K-TEK-M360-25-OTB-KP-FN-BL-BT-DWP

Category：	Marine keyboard
Key Number：	116 keys (including 2 mouse buttons)
Key Travel：	1.20mm±0.10mm
Backlight：	White
Interface：	USB/PS2 optional
Key Switch：	Carbon-on-gold
Protection Level：	IP65 dynamic (front panel)
Mounting Solution：	Rear panel mount
Operating Temperature：	-20ºC to +65ºC
Ball Diameter：	25mm
Application：	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

Prev： K-TEK-M360-25-OTB-KP-FN-BL-DWP

Next： K-TEK-M344KP-FN-BL-BT-ML-EMC-DWP

Description

Download

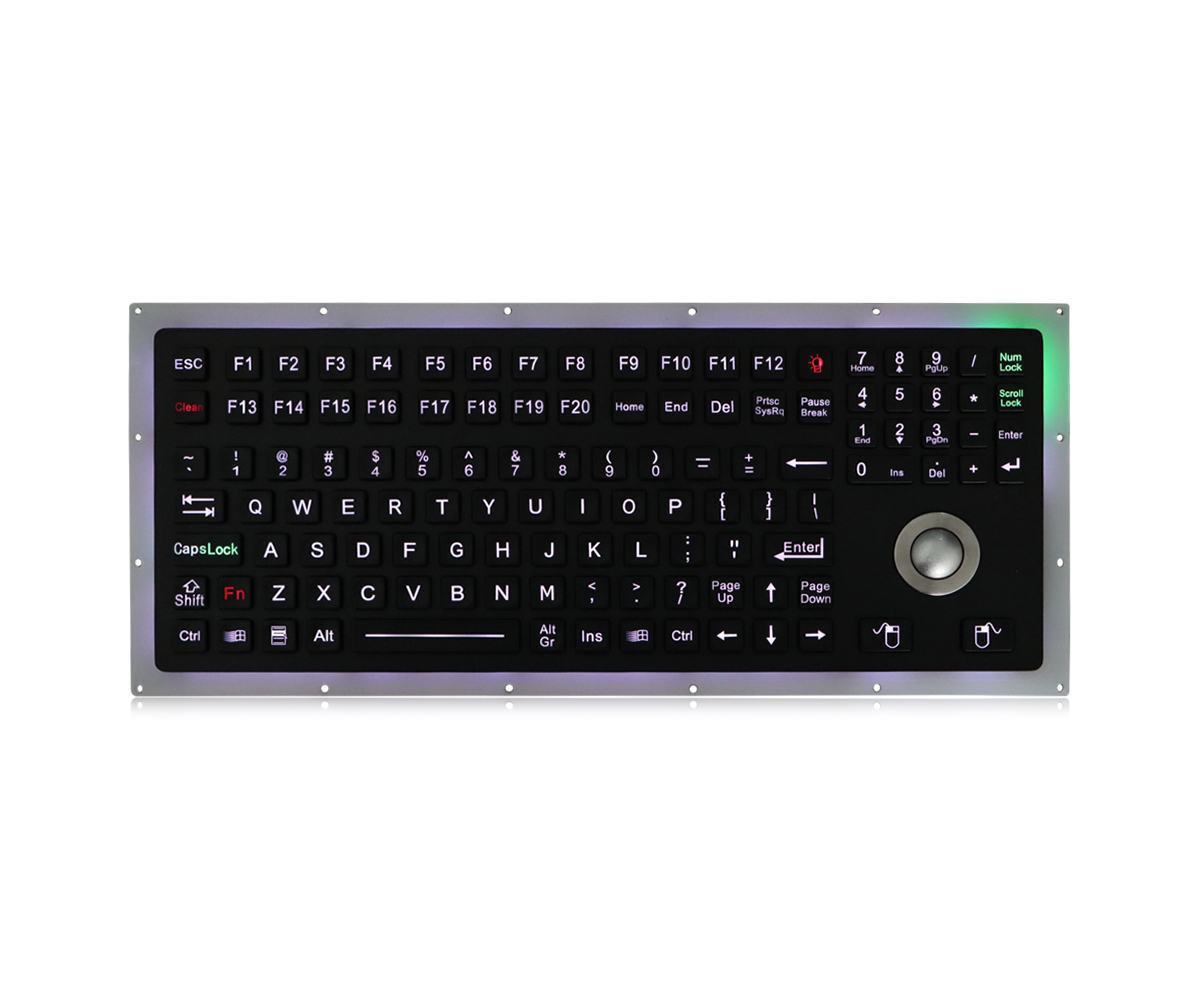

Description: 116 keys compact format IP65 dynamic water proof & vandal proof stainless steel industrial keyboard with individual durable and

robust polymer keys with full keyboard functionalities, totally sealed and ruggedized industrial PCB with carbon-on-gold key switch technology

with long stroke(1.20±0.10 mm) with extremely good tactile feeling for fast and accurate data input without any noise, function keys F1, F2, ...

F19, F20 are on the top line for easy operation, individual numeric keypad integrated, with integrated 25.0mm IP68 dynamic waterproof optical

trackball module with +800 DPI for fast and accurate cursor position, FN + Clean combination key lock/disable the keyboard for easy cleaning and

washing without taking out the keyboard from PC, one complete silicone rubber alone the rear stainless steel plate for easy mounting & sealing tightly

with cabinet. High quality scratch-proof durable black titanium electroplated on the top stainless steel plate, stainless steel back plate with holes for rear

mounting solution, which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt,

salt mist etc. Adjustable backlight included(red/blue/white etc.)

Dimensions: 360.0mm x 144.0mm (front panel)

MECHANICAL DATA
Keys	116 keys(Including 2 mouse buttons), durable and robust polymer keys
Keys travel	1.20mm±0.10mm
Keys Size	14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 68.2mm for space bar
Actuation Force	2.0±0.2N for key 14.0mm x 14.0mm (pressure point ), 3.5±0.2N for key 14.0mm x 28.0mm (pressure point)
Switch life	more than 5 million of operations
Front Plate	1.5mm stainless steel plate with super quality durable Black Titanium Electroplated
Back Plate	1.5mm stainless steel plate with super quality
Track ball:	IP68 25mm dynamic waterproof optical trackball module with +800 DPI
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	50mA (with backlight off) ,300mA (with backlight on)
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Switch Contact Material	Carbon-on-Gold key switch technology PCB
Interface	PS2, USB available
Cable length	Standard length at 2.0M. Other cable length is available.
OS	All Windows，Linux, Unix, Mac OSX，Vxworks，Android，（U-cos to be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Operating RH	30-90%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level	IP65 dynamic
Vandal resistant	IK09
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

K-TEK-M360-25-OTB-KP-FN-BL-BT-DWP-mechanical drawing
