Product Detail

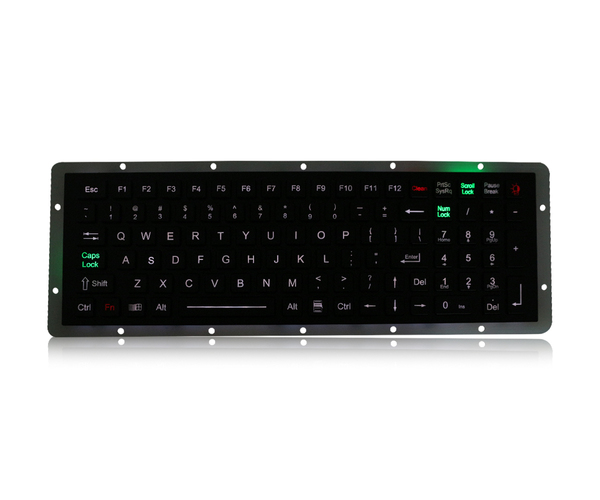

K-TEK-M344KP-FN-BL-BT-ML-EMC-DWP

Category: Marine Keyboard
Key Number: 100 keys
Key Travel: 1.20mm±0.10mm
Backlight: White
Interface: USB
Key Switch: Carbon-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Rear panel mount
Operating Temperature: -40℃~+75℃
Application: Vehicle, aerospace, navy, maritime, Radar, console, navigation controls etc.
Description
Download

DESCRIPTION: 100 keys compact format IP65 dynamic waterproof vandal proof stainless steel industrial keyboard with durable polymer keys

with full keyboard functionalities, function keys F1, F2, ...F12 are on the top line for easy operation, with numeric keypad, sealed and ruggedized

military PCB with carbon-on-gold key switch technology with stroke (1.20±0.10mm) with extremely good tactile feeling for fast and accurate data

input without any noise, high quality durable black titanium electroplated on the top stainless steel plate, one complete silicone rubber alone the

rear stainless steel plate for easy mounting & sealing tightly with cabinet, rear panel mounted. Meet MIL-STD-461G (EMC, EMI, EMS, ESD) and

MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity). Which is good for outdoor application with direct rain and very

harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc. Adjustable backlight optional (RED, BLUE, WHITE etc.)


Dimension: 344.0mm x 111.0mm (front panel)


MECHANICAL DATA

Key

100 keys, durable and robust polymer keys

Key top style

Protuberant rectangular keys with tactile feeling.

Key travel

1.20±0.10mm

Key Size

14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 68.2mm for space bar

Actuation Force


2.0N±0.2N for key 14.0mm x 14.0mm (pressure point ), 3.5N±0.2N for key 14.0mm x 28.0mm (pressure point)

Switch life

more than 5 million of operations.

Front and Back Plate

Super quality SUS304 brushed stainless steel

G.W.

2.0kgs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

30mA (with backlight off) ,300mA (with backlight on)

Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc.:

1

CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads

2

CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads

3

CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads

4

CS106 Conducted Susceptibility, Transients, Power Leads

5

CS112 Electrostatic Discharge Susceptibility

6

CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection

7

CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation

8

CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads

9

RE101 25Hz -100kHz Radiated Emissions, Magnetic Field

10

RE102 10kHz - 18GHz Radiated Emissions, Electric Field

11

RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field

12

RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field

MIL-STD-810F (wide temperature, shock, vibration, humidity).

Lifespan

> 5 years

Switch Contact Material

Military PCB with carbon-on-gold key switch technology

Interface

USB or aviation plug available

Cable length

Standard 2.0M or 1.5M, customized length available.

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-40℃ to +75

Storage temperature

-45℃ to +85

Saline mist

96h, IEC60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

Humidity

100%

Atmospheric pressure

60-106Kpa

RELIABILITY

RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist,

vibration, fungus, humidity)

Protection Level

IP65 dynamic

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
