Product Detail

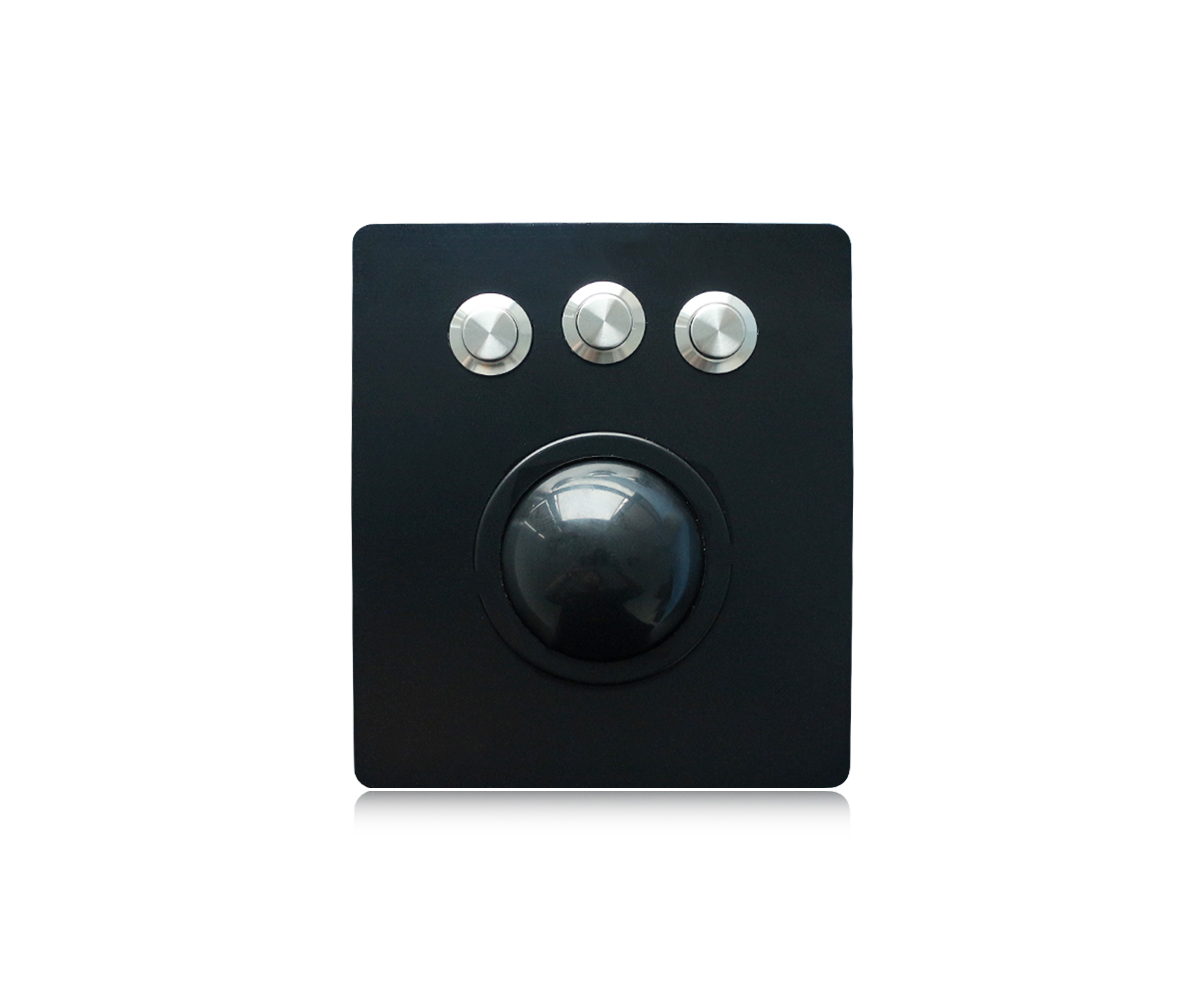

K-TEK-B110-50-MTB-AVB-ML-BT mechanical black trackball with 50mm diameter

Category: Trackball
Key Number: 3 keys
Key Travel: 1.40mm
Backlight: No
Interface: USB/PS2 optional
Key Switch: Gold-on-gold
Protection Level: IP65 static
Mounting Solution: Front panel mount
Operating Temperature: -40℃~+75℃
Ball Diameter: 50mm
Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas, marine etc.
Description
Download

DESCRIPTION: IP65 static vandal proof trackball with 50.8mm military grade mechanical trackball module with black hardened resin ball,

with 200~2000DPI resolutions, with sealed 3 metal mouse buttons for left and right clicking, middle scrolling button with ball rolling. 1.5 mm

top stainless plate and threaded bolts for top panel mounting solution, high quality scratch-proof black titanium electroplated on front stainless

steel and optional keys to withstand salt spray, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity), built to meet

-40°C to +75°C for working temperature and strong anti-vibration features.


DIMENSIONS: 110.0mm x 126.0mm (front panel)



MECHANICAL DATA

Keys

3 keys

Key travel

1.40mm

Actuation Force

2.5N±0.2N

Trackball

50mm black resin mechanical trackball with +400DPI resolutions

Trackball lifespan

> 2 millions scrolling

Protection level

IP65 static

G.W.

0.6KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

17mA

EMC Standard

EN 55032:2015, EN 55035:2017

Lifespan

> 5 years

Interface

USB, PS2

Cable length

Standard 2.0m, customized length available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-40℃ to +75

Storage temperature

-45℃ to +85

Operating RH

100%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

RELIABILITY

RoHS, CE, FCC, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity)

Protection Level

IP65 static

Key Lifespan

>1 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground

station etc.
