K-TEK-D349KP-FN-SW food processing membrane flat keyboard

Category: Membrane keyboard
Key Number: 103 keys
Key Travel: 0.45±0.05mm
Backlight: No
Interface: USB/PS2 optional
Key Switch: Omron micro key switch
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Front panel mount
Operating Temperature: -20ºC to +65ºC
Application: Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.
Description
Download


DESCRIPTION: 103 keys IP65 dynamic rated industrial membrane keyboard with integrated numeric keypad and function keys on the upper line,

industrial PCB with OMRON switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with FN+Clean

key combination for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely

flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments,

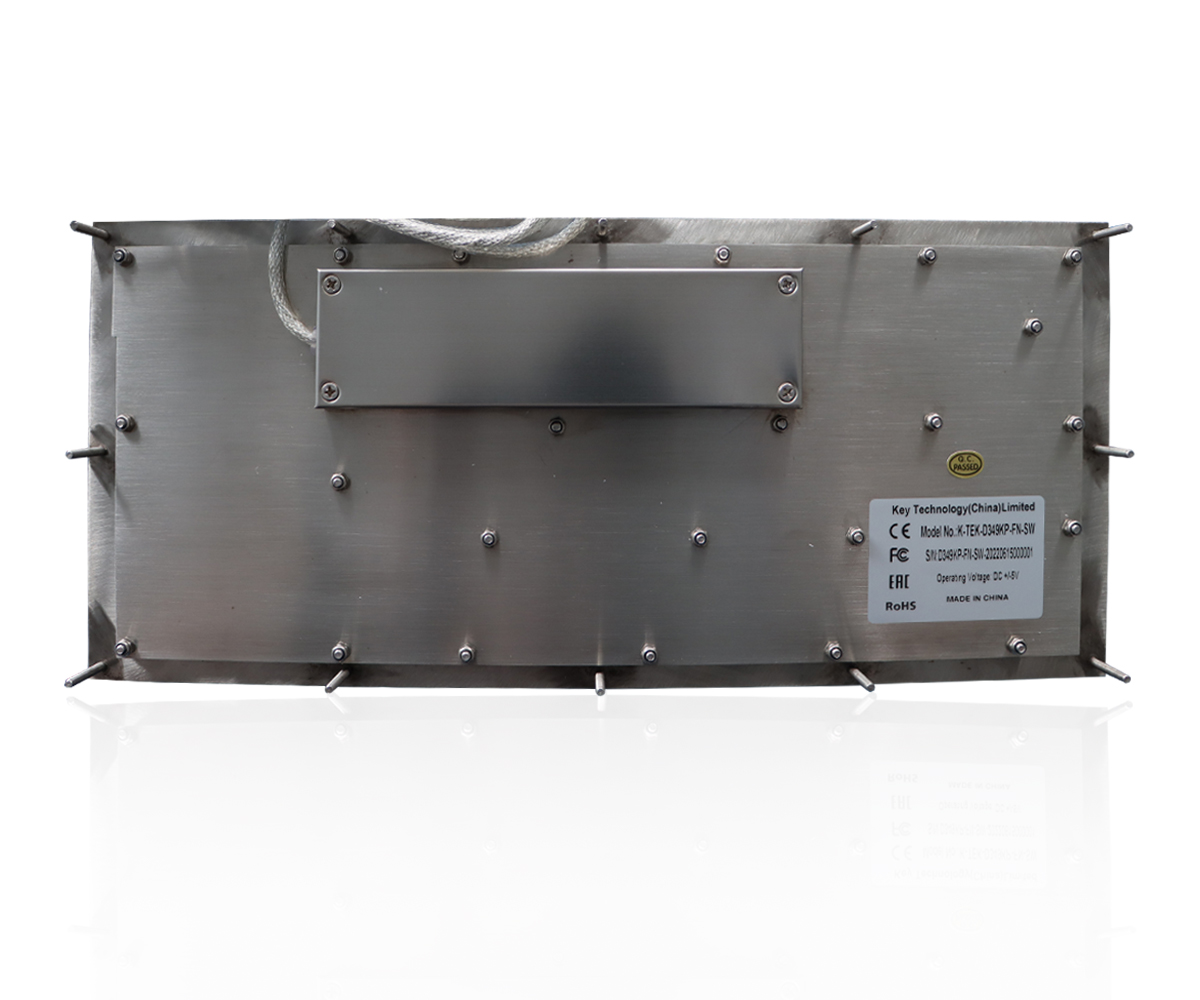

ruggedized stainless steel back plate with brushed treatment, top panel mounted solution with threaded bolts.

DIMENSIONS: 349.0mm x 152.0mm (top panel)


MECHANICAL DATA

Number of keys

103 keys

Key switch Technology

OMRON switch technology with short stroke 0.45mm for stable and accurate data input

Actuation Force

2.0N±0.2N(press point)

Key Travel

0.45±0.05mm

Mounting Type

Top panel mounting

Colors

2 (white, black)

G.W.

1.20KGs

Switch life

more than 1 million of operations

Key Dimensions (print area)

14.0mm x 14.0mm

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

30mA

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Interface

PS2, USB available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20℃ to +65℃

Storage temperature

-30℃ to +75℃

Saline mist

96h, IEC60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

Humidity

100%

Atmospheric pressure

60-106Kpa

RELIABILITY

RoHS compliant, CE and FCC certified

Protection Level

IP65 dynamic (front panel)

Key Lifespan

>1 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical

control machine etc.
