Product Detail

K-TEK-M399TP-KP-FN

Category: Silicone keyboard
Key Number: 107 keys (including 2 mouse buttons)
Key Travel: 1.50mm±0.10mm
Backlight: No
Interface: USB/PS2 optional
Key Switch: Carbon-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Front panel mount
Operating Temperature: -20ºC to +65ºC
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, UAV ground station etc.
Description
Download

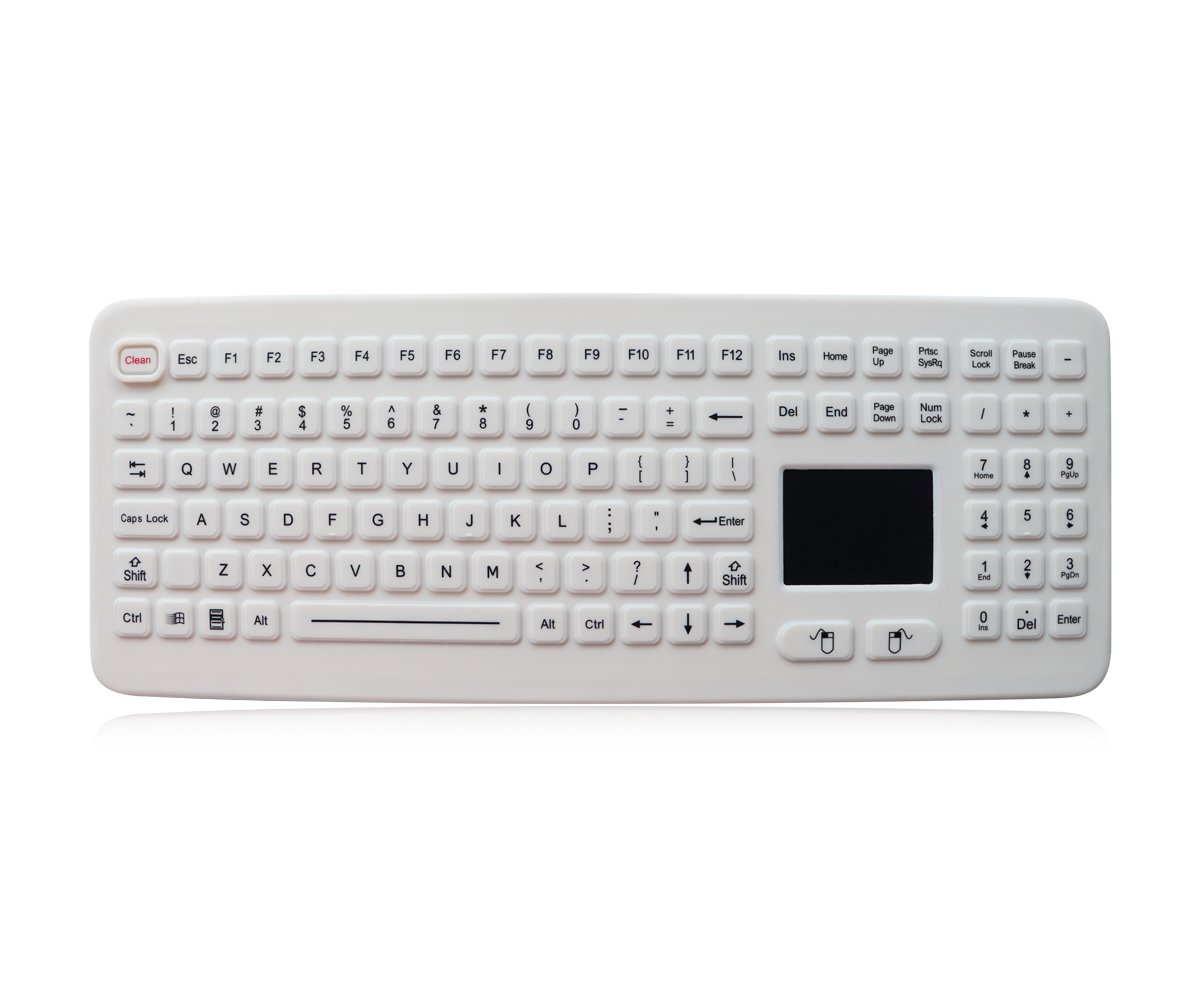

DESCRIPTION: 107 keys IP65 dynamic rated ruggedized industrial silicone rubber Hygienic keyboard with full keyboard functionalities with FN

(F1, F2...F11, F12) on upper line, integrated numeric keypad, sealed & ruggedized tough touchpad for fast and accurate cursor position, industrial

PCB with carbon-on gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input

without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, Clean

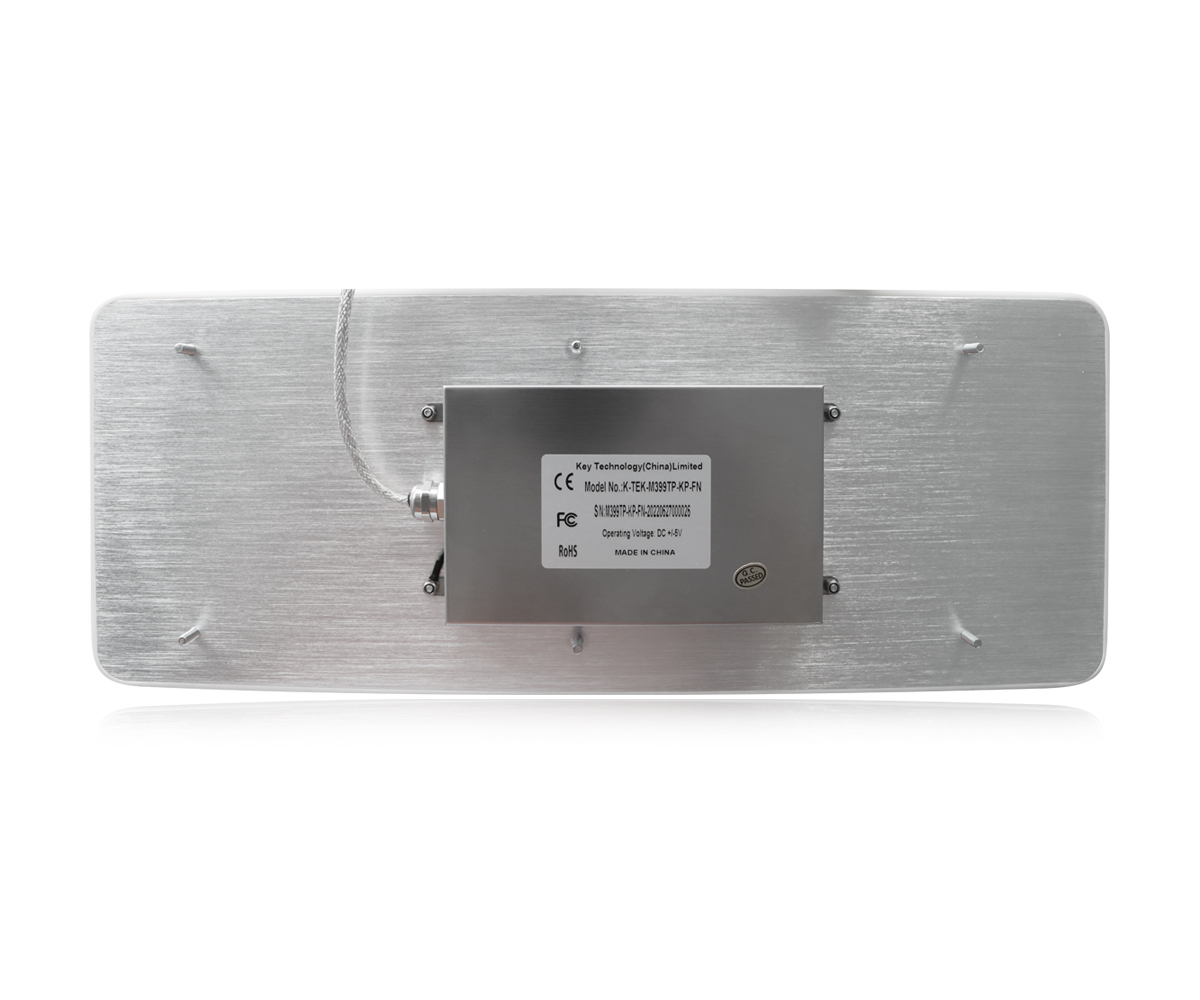

key for easy cleaning via lock/disable the keyboard without needing to take away the keyboard from PC, top panel mounted with 3.0mm oxygenation

surface treatment aluminum back plate sealed with top ruggedized industrial silicone cover & Industrial carbon-on gold PCB, adjustable industrial

backlight optional.

DIMENSIONS: 405.0mm x 155.0mm (L x W )


MECHANICAL DATA

Keys

107 keys (including 2 mouse buttons)

Key top style

Protuberant rectangular keys with tactile feeling

Key Size

16.0mm x 15.8mm for normal keys

Key travel

1.50±0.10mm

Actuation Force

1.2N±0.2N (pressure point )

Switch life

more than 5 million of operations

Touch pad

sealed and ruggedized tough touchpad

Touchpad cover

Composite

More than Lifetime 10 million strokes

Mutual capacitance sensing

X/Y axis location detection resolution

40 Counts /mm

X/Y position report

relative

Output (self-detectable depending on cable)

PS2 or USB

Tracking speed

Maximum 1,016 m/sec

Power supply voltage

5V ± 0.25V

Current rating (active mode)

< 10 mA

G.W.

1.30KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

50mA

EMC Standard

EN 55032:2015 EN 55035:2017

Lifespan

> 5 years

Switch Contact Material

Carbon-on-gold key switch technology

Interface

PS2, USB available

Cable length

Standard 2.0m, other customized length available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20℃ to +65

Storage temperature

-30℃ to +75

Operating RH

100%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

RELIABILITY

RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist,

vibration, fungus, humidity)(OPTIONAL)

Protection Level

IP65 dynamic (front panel)

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop,

UAV ground station etc.
