Product Detail

K-TEK-M396TP-KP-FN-DT

Category: Silicone keyboard
Key Number: 107 keys (including 2 mouse buttons)
Key Travel: 1.50mm±0.10mm
Backlight: No
Interface: USB/PS2 optional
Key Switch: Carbon-on-gold
Protection Level: IP68
Mounting Solution: Mountable inclined desktop solution
Operating Temperature: -20ºC to +65 ºC
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, UAV ground station etc.
Description
Download

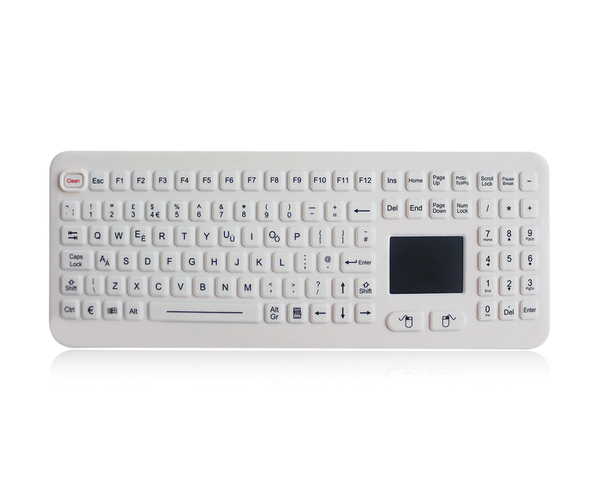

DESCRIPTION: 107 keys IP68 dynamic rated & ruggedized industrial silicone rubber Hygienic keyboard with full keyboard functionalities, integrated

numeric keypad, function keys, sealed & ruggedized tough touchpad for fast and accurate cursor position, industrial PCB with carbon-on gold key

switch technology with key stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating

& antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, Clean key for easy cleaning via lock/disable the

keyboard without needing to take away the keyboard from PC, mountable desk top version with robust polycarbonate case with VESA and AMPS

mounting holes. Adjustable industrial backlight optional.

DIMENSIONS : 405.0mm x 155.0mm x (22.11mm - 36.78 mm) (L x W x H)


MECHANICAL DATA

Keys

107 keys (including 2 mouse buttons)

Key top style

Protuberant rectangular keys with tactile feeling

Key Size

12.0mm x 13.0mm for normal keys

Key travel

1.50mm±0.10mm

Actuation Force

1.5N±0.2N (pressure point )

Switch life

more than 5 million of operations

Touch pad

sealed and ruggedized tough touchpad

Touchpad cover

Composite

More than Lifetime 10 million strokes

Mutual capacitance sensing

X/Y axis location detection resolution

40 Counts /mm

X/Y position report

relative

Output (self-detectable depending on cable)

PS2 or USB

Tracking speed

Maximum 1,016 m/sec

Power supply voltage

5V ± 0.25V

Current rating (active mode)

< 10 mA

G.W.

1.30KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

50mA

EMC Standard

EN 55032:2015 EN 55035:2017

Lifespan

> 5 years

Switch Contact Material

Carbon-on-gold key switch technology

Interface

PS2, USB available

Cable length

Standard 2.0m, other customized length available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20℃ to +65

Storage temperature

-30℃ to +75

Operating RH

100%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

RELIABILITY

RoHS compliant, CE and FCC certified

Protection Level

IP68

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground

station etc.
