Product Detail

K-TEK-M396-OTB-KP-FN-DT

Category: Silicone keyboard
Key Number: 109 keys (including 3 mouse buttons)
Key Travel: 1.50mm±0.10mm
Backlight: No
Interface: USB/PS2 optional
Key Switch: Carbon-on-gold
Protection Level: IP68
Mounting Solution: Mountable inclined desktop solution
Operating Temperature: -20ºC to +65 ºC
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, UAV ground station etc.
Description
Download

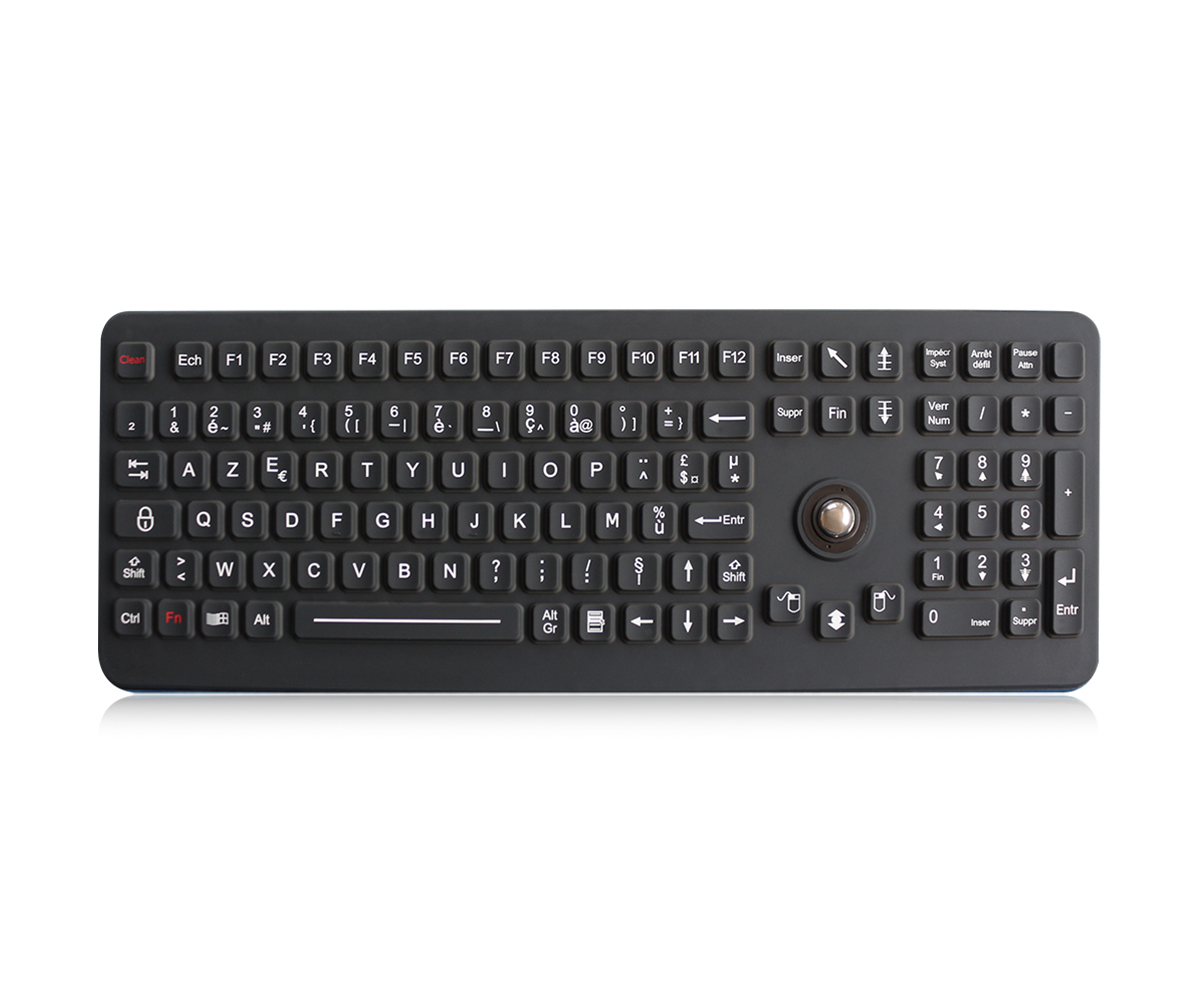

DESCRIPTION: 109 keys IP68 dynamic sealed & ruggedized silicone rubber industrial keyboard with full keyboard functionalities function keys,

integrated numeric keypad, IP68 dynamic rated 16.0mm optical trackball module with 800 DPI resolutions for fast and accurate cursor position

with extremely smooth operation, industrial PCB electronics controller with carbon-on-gold key switch technology with long stroke (1.50mm)

with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface

withstand to most chemicals and liquids under harsh environment, FN + CLEAN combination key for easy cleaning via lock/disable the

keyboard without needing to take away the keyboard from PC, VESA mountable desk top version with robust polycarbonate case, adjustable

industrial backlight optional.

DIMENSIONS: 399.0mm x 149.0mm x (20.0mm-37.90mm) (L x W x H)



MECHANICAL DATA

Key

109 keys (including 3 mouse buttons)

Key top style

Protuberant rectangular keys with tactile feeling.

Key Size

12.0mm x 13.0mm for normal keys

Key travel

1.50mm±0.10mm

Actuation Force

1.5N±0.2N (pressure point )

Switch life

more than 5 million of operations.

Trackball

16.0mm diameter

G.W.

1.00KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

100mA

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Switch Contact Material

Carbon-on-Gold key switch technology with gold PCB

Interface

PS2, USB available

Cable length

Standard 2.0m, customized length available.

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20℃ to +65

Storage temperature

-30℃ to +75

Saline mist

96h, IEC60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

Humidity

100%

Atmospheric pressure

60-106Kpa

RELIABILITY

RoHS compliant, CE and FCC certified

Protection Level

IP68

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground

station etc.
