MECHANICAL DATA |

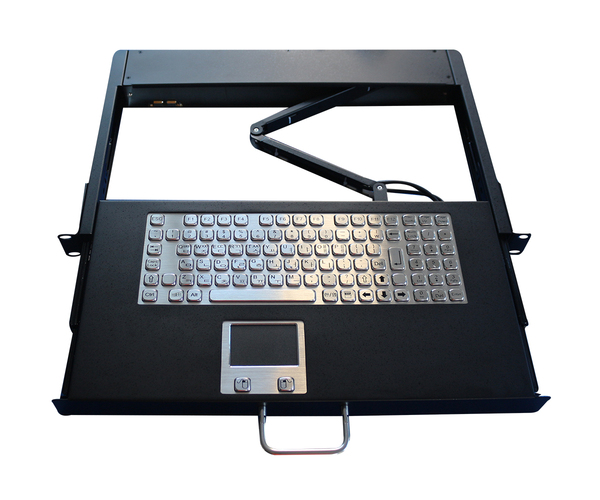

Actuator/keys | 99 keys (including 2 mouse buttons), super quality SUS304 brushed stainless steel |
Key top style | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar |
Key travel | 1.50±0.10mm |
Actuation Force | 1.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 2.5N±0.2N for key 14.0mm x 28.0mm (pressure point) |
Switch life | more than 5 million of operations |
Corrosion Resistance | 19” rack frame zinc plated, all screws and any accessories zinc plated, tension catch is brass, and handle is stainless steel. Then, USB connector with nickel coating for preventing corrosion. |
Touch pad | sealed and ruggedized tough touchpad |
Touchpad cover | Composite |
More than Lifetime 10 million strokes |
Mutual capacitance sensing |
X/Y axis location detection resolution | 40 Counts /mm |
X/Y position report | relative |
Output (self-detectable depending on cable) | PS2 or USB |
Tracking speed | Maximum 1,016 m/sec |
Power supply voltage | 5VDC ± 0.25V |
Current rating (active mode) | < 10 mA |
G.W. | 6.0KGs |
ELECTRICAL DATA |
Supply Voltage | DC +5V±5% |
Current Rating | 50mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material | Carbon-on-Gold key switch technology PCB |
Interface | 2*USB for Control Port (keyboard /mouse), and PC Port (keyboard /mouse) |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Operating RH | 30-90% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY |
RoHS Compliant, CE and FCC, ESD |
Protection Level | IP65 |
Vandal resistant | IK08 |
Key Lifespan | >5 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
