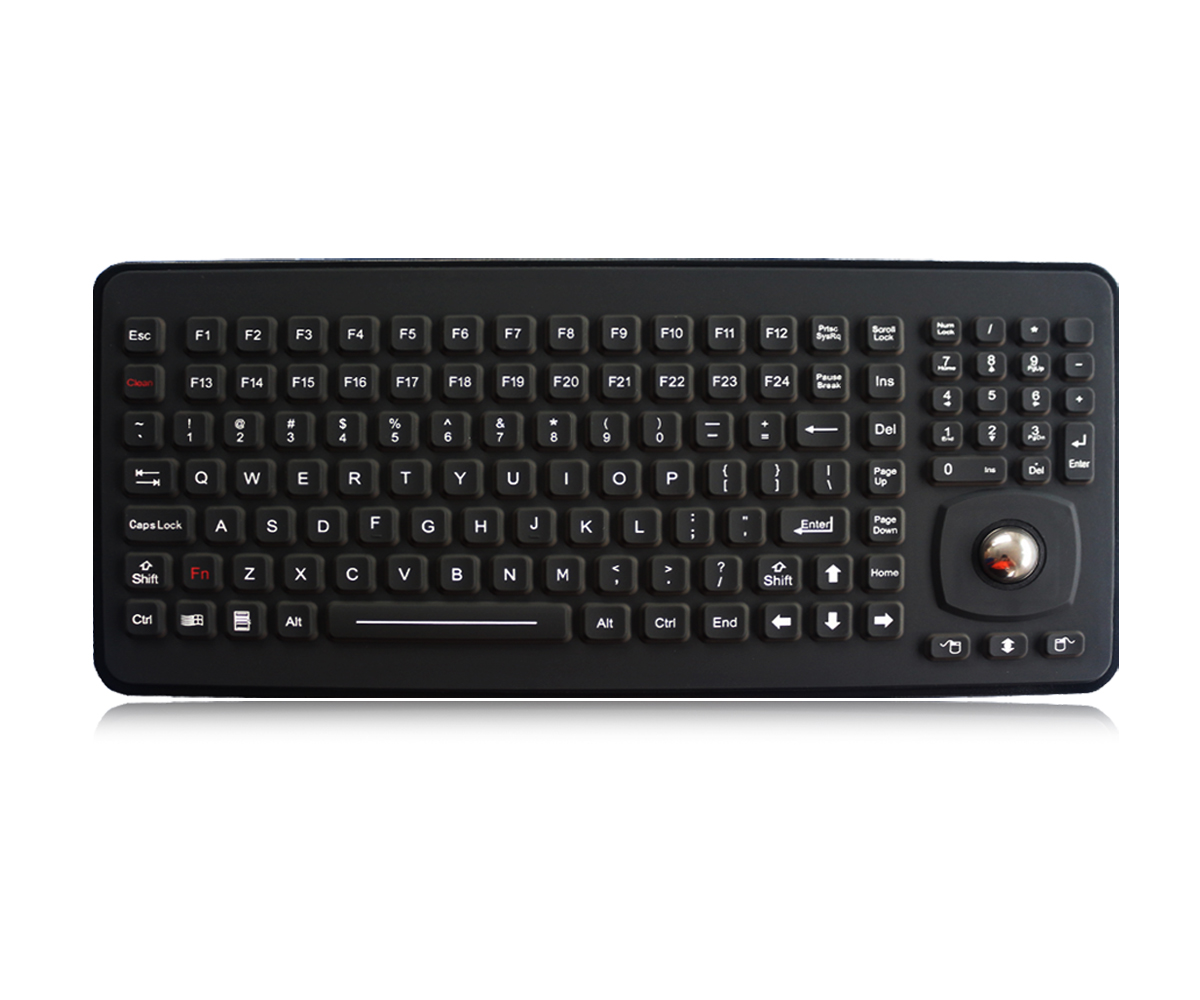

DESCRIPTION: 121 keys IP65 dynamic rated ruggedized industrial silicone rubber Hygienic keyboard with full keyboard functionalities, integrated
numeric keypad and 24 FN keys (F1, F2...F11, F12...F23, F24), sealed & ruggedized IP68 dynamic 25.0mm optical trackball module with 800 DPI
resolution for fast and accurate cursor position, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely
good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most
chemicals and liquids under harsh environment, FN+ CLEAN combination key for easy cleaning via locking/disabling the entire keyboard without
needing to take away the keyboard from PC, top panel mounted solutions with sealed & ruggedized robust polycarbonate frame with mounting studs,
adjustable industrial backlight optional, industrial level, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity) optional.
DIMENSIONS: 389.3mm x 179.2mm(L x W)
121 keys (including 3 mouse buttons)
Key top style
Protuberant rectangular keys with tactile feeling.
11.33mm x 12.67mm for normal keys
1.5N±0.2N (pressure point )
more than 5 million of operations.
Front panel mounted with polycarbonate plastic frame with mounting studs, (front panel mounted with exposed PCBA without any cover, or with rugged stainless steel backplate with mounting studs optional)
EN 55032:2015 EN 55035:2017
> 5 years
Switch Contact Material
Carbon-on-Gold key switch technology with gold PCB
PS2, USB available
Standard 2.0m, customized length available.
All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
-20℃ to +65℃
-30℃ to +75℃
Damp heat test at +40℃
21 days, IEC 60512-6
Dry heat test at +85℃
10 days, IEC 60512-6
RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) optional.
IP65 dynamic (front panel)
>5 million actuations
Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground
