K-TEK-M375KP-FN-DT IP68 desktop silicone keyboard

Category：	Silicone Medical Keyboard
Key Number：	106 keys
Key Travel：	1.50mm±0.10mm
Backlight：	No
Interface：	USB/PS2 optional
Key Switch：	Carbon-on-gold
Protection Level：	IP68
Mounting Solution：	Flat desk top solution
Operating Temperature：	-20ºC to +65 ºC
Application：	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, marine, oil and gas etc.

Prev： K-TEK-M378TP-FN-BL-DWT-151B-25KV-DT-DWP

Next： K-TEK-M65-OMS-DT-WF wireless mouse for medical application

Description

Download

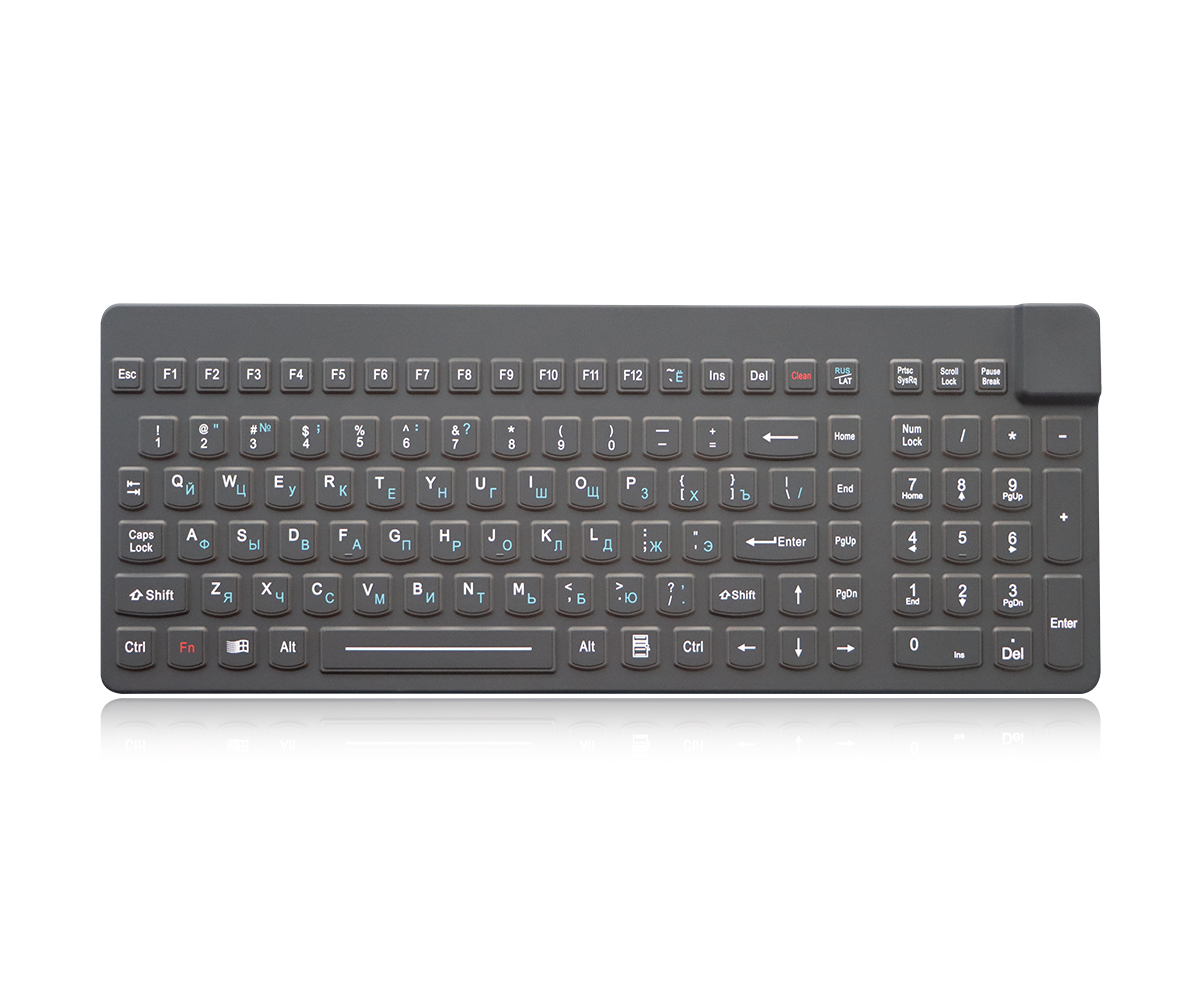

DESCRIPTION: 106 keys IP68 dynamic sealed & ruggedized industrial medical silicone rubber Hygienic keyboard, integrated sealed numeric

keypad, function keys and industrial PCB with carbon-on-gold key switch technology with 1.50mm key stroke with extremely good tactile feeling

for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids

under harsh environment, FN+Clean key for easy cleaning via locking/disable the whole keyboard without needing to take away the keyboard

from PC, movable stand alone desk top version, adjustable industrial backlight optional. This ruggedized keyboard can

be used and equipped with mouse K-TEK-M64-OMS-DT to work as combo set for medical etc. applications

DIMENSIONS: 379.0mm x 140.0mm x 15.5mm (L x W x H)

MECHANICAL DATA
Key	106 keys
Key top style	Protuberant rectangular keys with tactile feeling.
Key travel	1.50±0.10mm
Actuation Force	1.5N±0.2N (pressure point )
Switch life	more than 5 million of operations.
G.W.	1.00KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	30mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Switch Contact Material	Carbon-on-Gold key switch technology with gold PCB
Interface	PS2, USB available
Cable length	Standard 2.0m, customized length available.
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Saline mist	96h, IEC60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
Humidity	100%
Atmospheric pressure	60-106Kpa
RELIABILITY
RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) optional
Protection Level	IP68
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, medical, UAV ground station etc.

K-TEK-M375KP-FN-DT-mechanical drawing
