Product Detail

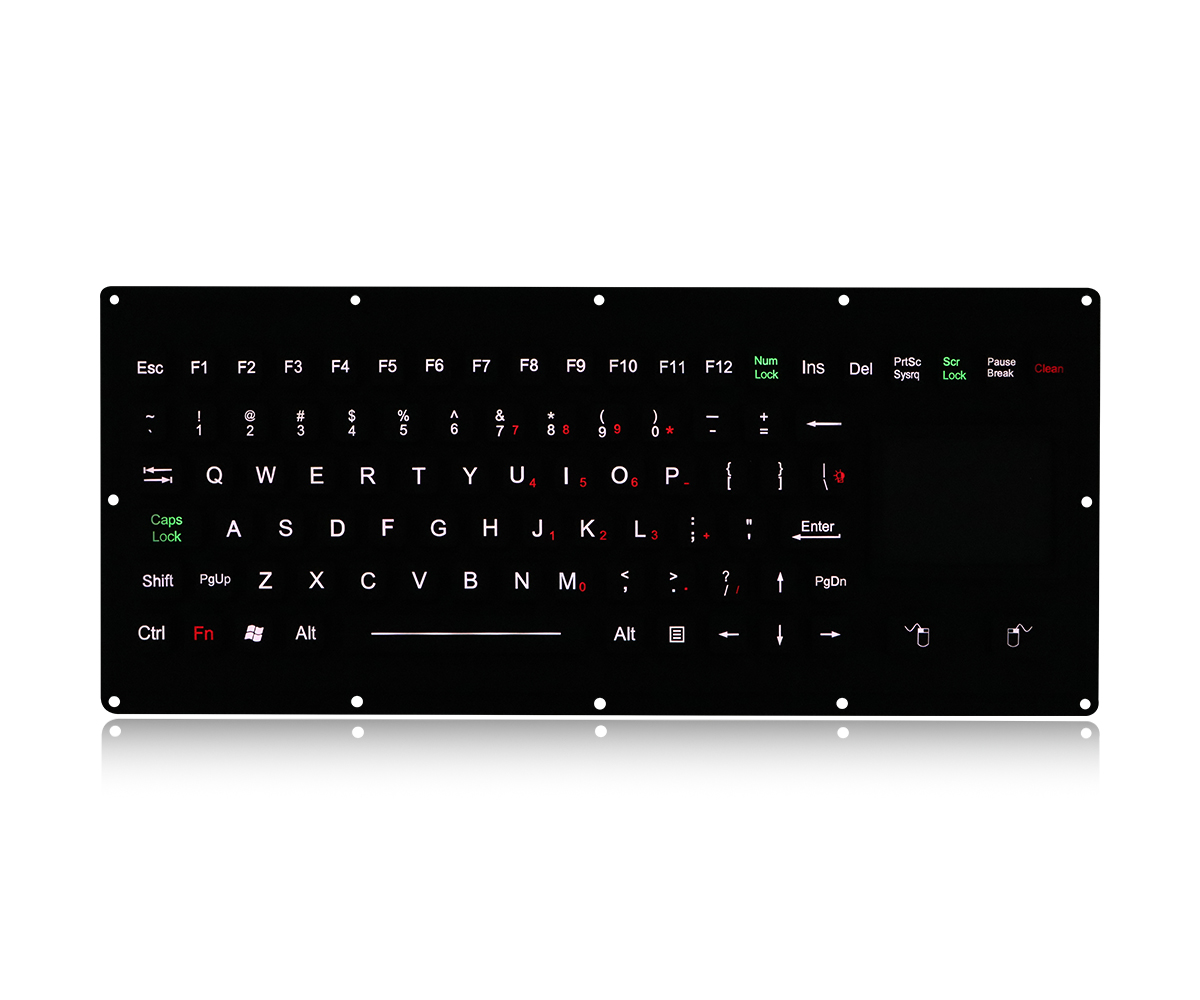

K-TEK-M330TP-FN-BL-NV-EMC-OEM

Category: Silicone military keyboard
Key Number: 89 keys (including 2 mouse buttons)
Key Travel: 1.50mm±0.10mm
Backlight: White
Interface: USB
Key Switch: Carbon-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Rear panel mount
Operating Temperature: -40℃~+75℃
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
Description
Download

DESCRIPTION: IP65 sealed reinforcement and durable embedded military-grade silicone full-function keyboard with built-in military-grade

carbon-on-gold PCB control board, with fully sealed and rugged touchpad, with 12 functional keys FN (F1, F2...F10, F11, F12), 1.50mm key

stroke with comfortable touch, accurate and fast data input. Wear resistant and antibacterial surface, which can be used in harsh environment.

FN+CLEAN key lock the entire keyboard to for easy cleaning without disconnecting or disabling the whole keyboard from the computer; With

white adjustable backlight, USB interface and built-in rear panel mounted solution, meets with MIL-STD-461G (EMC, EMI, EMS, ESD) and

MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity).



DIMENSION: 330.0mm x 130.0mm (L x W)


MECHANICAL DATA

Key

89 keys (including 2 mouse buttons)

Key top style

Protuberant rectangular keys with tactile feeling.

Key travel

1.5mm±0.1mm

Actuation Force

1.5N±0.2N (pressure point )

Switch life

more than 5 million of operations.

Touch pad

1.3mm thick PCB, containing polyester film

Touchpad cover

Composite

More than Lifetime 10 million strokes

Mutual capacitance sensing

X/Y axis location detection resolution

40 Counts /mm

X/Y position report

relative

Output (self-detectable depending on

cable)

PS2 or USB

Tracking speed

Maximum 1,016 m/sec

Power supply voltage

5V ± 0.25V

Current rating (active mode)

< 10 mA

G.W.

0.80KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

50mA when backlight is off, 300mA with backlight on

Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc.:

1

CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads

2

CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads

3

CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads

4

CS106 Conducted Susceptibility, Transients, Power Leads

5

CS112 Electrostatic Discharge Susceptibility

6

CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection

7

CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation

8

CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and

Power Leads

9

RE101 25Hz -100kHz Radiated Emissions, Magnetic Field

10

RE102 10kHz - 18GHz Radiated Emissions, Electric Field

11

RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field

12

RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field

MIL-STD-810F (wide temperature, shock, vibration, humidity).

Lifespan

> 5 years

Switch Contact Material

military PCB with Carbon-on-Gold key switch technology

Interface

USB/PS2

Cable length

Standard 2.0m, customized length available.

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-40℃ to +75

Storage temperature

-45℃ to +85

Saline mist

96h, IEC60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

Humidity

3%~95%

Atmospheric pressure

60-106Kpa

RELIABILITY

RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist,

vibration, fungus, humidity)

Protection Level

IP65

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop,

UAV ground station etc.
