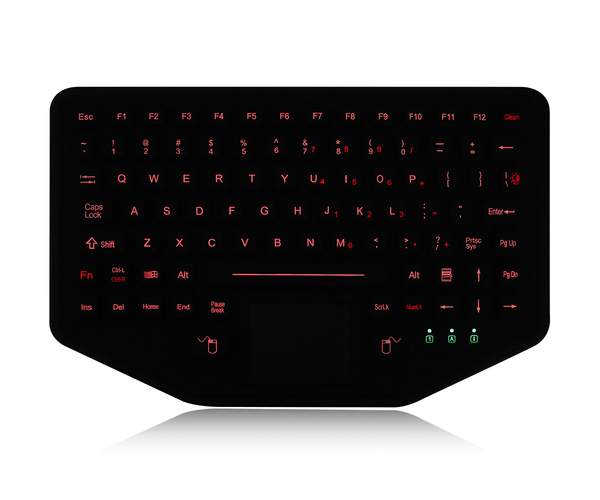

K-TEK-M275TP-FN-BL-NV-151B-FDT MIL-STD-461G Backlight EMC Keyboard

Category: Silicone keyboard
Key Number: 89 keys (including 2 mouse buttons)
Key Travel: 1.50mm±0.10mm
Backlight: White/Red
Interface: USB
Key Switch: Carbon-on-gold
Protection Level: IP68
Mounting Solution: Flat desk top solution
Operating Temperature: -40℃~+75℃
Description
Download

DESCRIPTION: 89 keys IP68 dynamic sealed and ruggedized silicone rubber military keyboard with sealed and tough touch pad for fast and

accurate cursor position, 12 FN keys (F1, F2...F11, F12) are on top line for easy operation, the overall key layout is compact, with military PCB

with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without

any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, flat movable

desk top solution with VESA mounting holes on backside, with adjustable red backlight included. FN+CLEAN combination key to lock/disable the

whole keyboard for easy cleaning without disconnecting the keyboard from computer. Designed to meet with military requirements of strong

anti interference, stability, low radiation etc, and MIL-STD-461G and MIL-STD-810F, wide temperature of -40°C to +75°C.

DIMENSION: 295.0mm x 191.0mm (L x W) (Front panel)


MECHANICAL DATA

Keys

89 keys (including 2 mouse buttons)

Key top style

Protuberant rectangular keys with tactile feeling

Key Size

14mm x 14mm for normal keys, 14.0mm x 10.7mm for function keys

Key travel

1.50±0.10mm

Actuation Force

1.5N±0.2N (pressure point )

Switch life

more than 5 million of operations

Touch pad

1.3mm thick PCB, containing polyester film

Touchpad cover

Composite

More than Lifetime 10 million strokes

Mutual capacitance sensing

X/Y axis location detection resolution

40 Counts /mm

X/Y position report

relative

Output (self-detectable depending on cable)

PS2 or USB

Tracking speed

Maximum 1,016 m/sec

Power supply voltage

5V ± 0.25V

Current rating (active mode)

< 10 mA

Mounting solution

Mountable flat desktop (front panel mounted with exposed PCBA without any cover or front

panel mounted with rugged stainless steel back plate version optional)

G.W.

0.80KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

50mA when backlight is off, 300mA with backlight on

Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc.:

1

CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads

2

CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads

3

CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads

4

CS106 Conducted Susceptibility, Transients, Power Leads

5

CS112 Electrostatic Discharge Susceptibility

6

CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection

7

CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation

8

CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and

Power Leads

9

RE101 25Hz -100kHz Radiated Emissions, Magnetic Field

10

RE102 10kHz - 18GHz Radiated Emissions, Electric Field

11

RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field

12

RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field

MIL-STD-810F (wide temperature, shock, vibration, humidity).

Lifespan

> 5 years

Switch Contact Material

military grade PCB with carbon-on-gold key switch technology

Interface

USB

Cable lengh

Standard 2.0m, customized length available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-40℃ to +75

Storage temperature

-45℃ to +85

Operating RH

100%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

RELIABILITY

RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration,

fungus, humidity)

Protection Level

IP68

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV

ground station etc.
