Product Detail

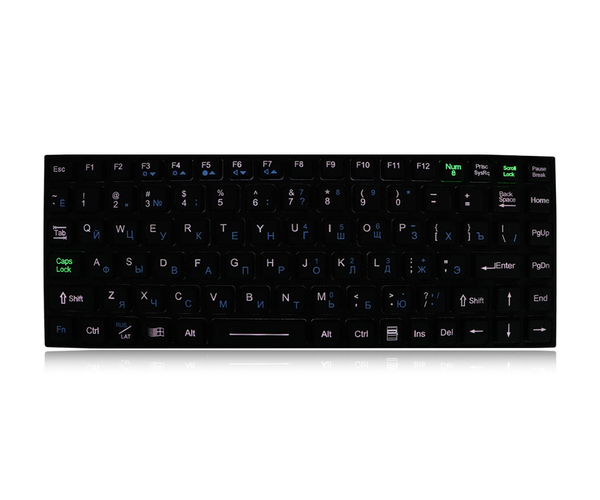

K-TEK-M284-FN-BL-IL-OEM Cyrillic keyboard

Category: Silicone keyboard
Key Number: 89 keys
Key Travel: 1.50mm±0.10mm
Backlight: White
Interface: USB/PS2 optional
Key Switch: Carbon-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Top panel mount
Operating Temperature: -20ºC to +65ºC
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, UAV ground station etc.
Description
Download

DESCRIPTION: 89 keys IP65 dynamic waterproof industrial silicone rubber keyboard, with carbon-on gold key switch 12 FN keys (F1, F2...F11, F12)

on top line for easy operation, industrial PCB with carbon-on gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling

for fast and accurate data input without any noise, durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under

harsh environment, top panel mounting solution, with industrial white backlight included. Military level optional, with integrated touchpad K-TEK-TP6549 optional.

Dimensions: 284.00mm x 109.00mm(L x W )


MECHANICAL DATA

Key

89 keys

Key top style

Protuberant rectangular keys with tactile feeling.

Key travel

1.50mm±0.10mm

Actuation Force

1.5N±0.2N (pressure point )

Switch life

more than 5 million of operations.

G.W.

0.80KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

30mA when backlight is off, 300mA with backlight on

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Switch Contact Material

Carbon-on-Gold key switch technology

Interface

PS2, USB available

Cable length

Standard 2.0m, customized length available.

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20℃ to +65

Storage temperature

-30℃ to +75

Saline mist

96h, IEC60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

Humidity

100%

Atmospheric pressure

60-106Kpa

RELIABILITY

RoHS compliant, CE and FCC certified

Protection Level

IP65 dynamic (front panel)

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop,

UAV ground station etc.
