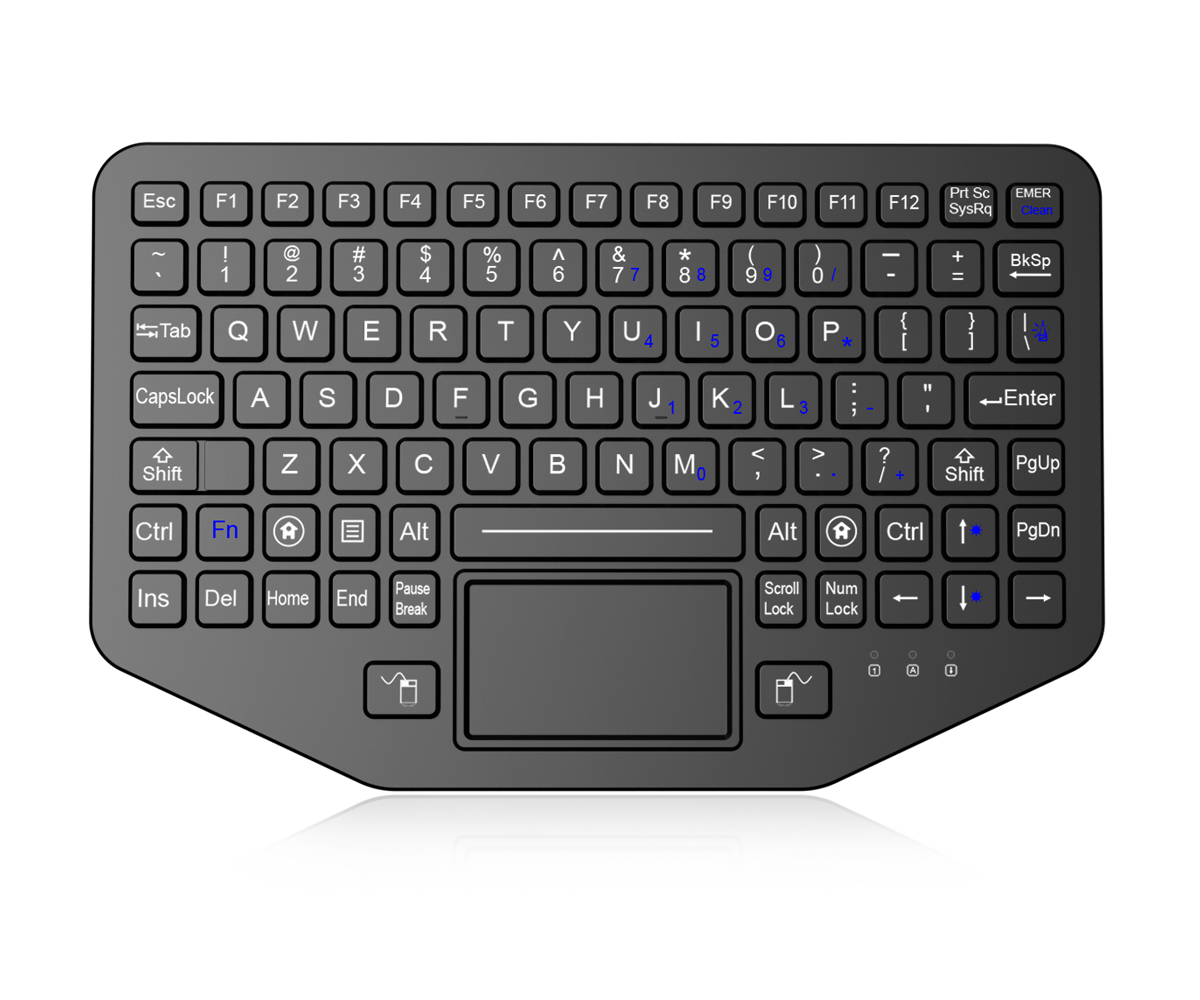

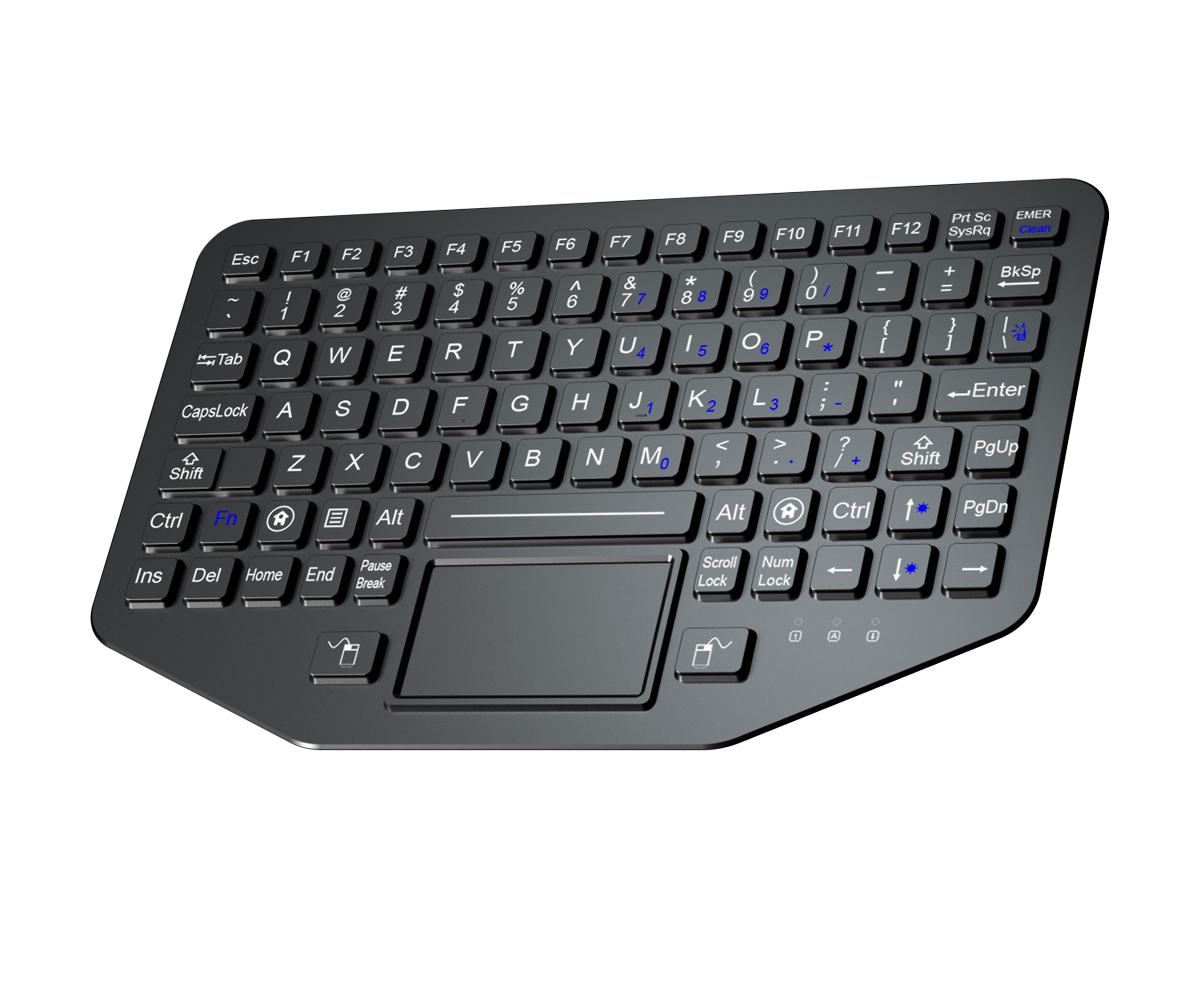

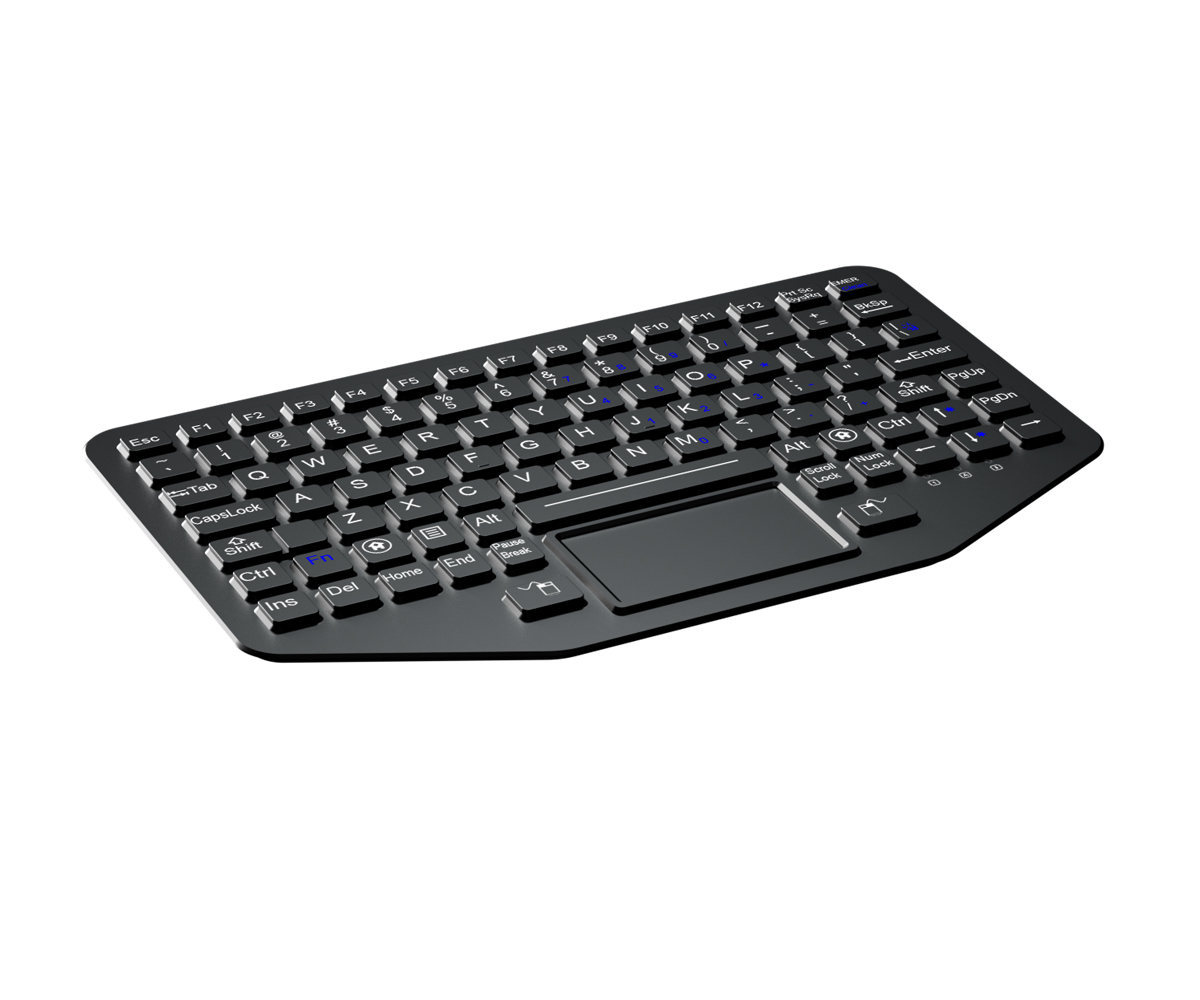

K-TEK-M284TP-FN-BL-ML

Category：	Silicone keyboard
Key Number：	93 keys (including 2 mouse buttons)
Key Travel：	1.50mm±0.10mm
Backlight：	White
Interface：	USB
Key Switch：	Carbon-on-gold
Protection Level：	IP65 dynamic (front panel)
Mounting Solution：	Front panel mount
Operating Temperature：	-40℃~+75℃
Application：	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc

Prev： K-TEK-M284TP-FP-FN-BL-FDT

Next： K-TEK-M284-FN-BL-NV-151B+TP6549-002

Description

Download

DESCRIPTION: 93 keys IP65 dynamic sealed & durable embedded military silicone rubber keyboard integrated with sealed tough touchpad for fast & accurate cursor position, with built-in military grade PCB module, 12 function keys on top line for easy operation, with carbon-on-gold key switch technology with key stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC, top panel mount solution, adjustable white backlight included, FN + bulb button control keyboard backlight on or off. Designed to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.),and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

Dimension: 284.8mm x 179.5mm (L x W)

MECHANICAL DATA
Keys	93 keys (including 2 mouse buttons)
Key top style	Protuberant rectangular keys with tactile feeling
Key travel	1.50mm±0.10mm
Actuation Force	1.5N±0.2N (pressure point )
Switch life	more than 5 million of operations
Mutual capacitance sensing
X/Y axis location detection resolution	40 Counts /mm
X/Y position report	relative
Tracking speed	Maximum 1,016 m/sec
Power supply voltage	5VDC ± 0.25V
Current rating (active mode)	< 10 mA
G.W.	1.0KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	50mA when backlight is off, 300mA with backlight on
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Switch Contact Material	carbon-on-gold key switch technology
Interface	USB/PS2
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-40℃ to +75℃
Storage temperature	-45℃ to +85℃
Operating RH	3%~95%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS compliant, CE and FCC certified, MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.)
Protection Level	IP65 dynamic (front panel)
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATION	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

K-TEK-M284TP-FN-BL-ML mechanical drawing
