Product Detail

K-TEK-M284-FN-BL-NV-151B+TP6549-002

Category: Silicone military keyboard
Key Number: 91 keys (including 2 mouse buttons)
Key Travel: 1.50mm±0.10mm
Backlight: White
Interface: USB
Key Switch: Carbon-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Top panel mount
Operating Temperature: -40℃~+75℃
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station, medical etc.
Description
Download

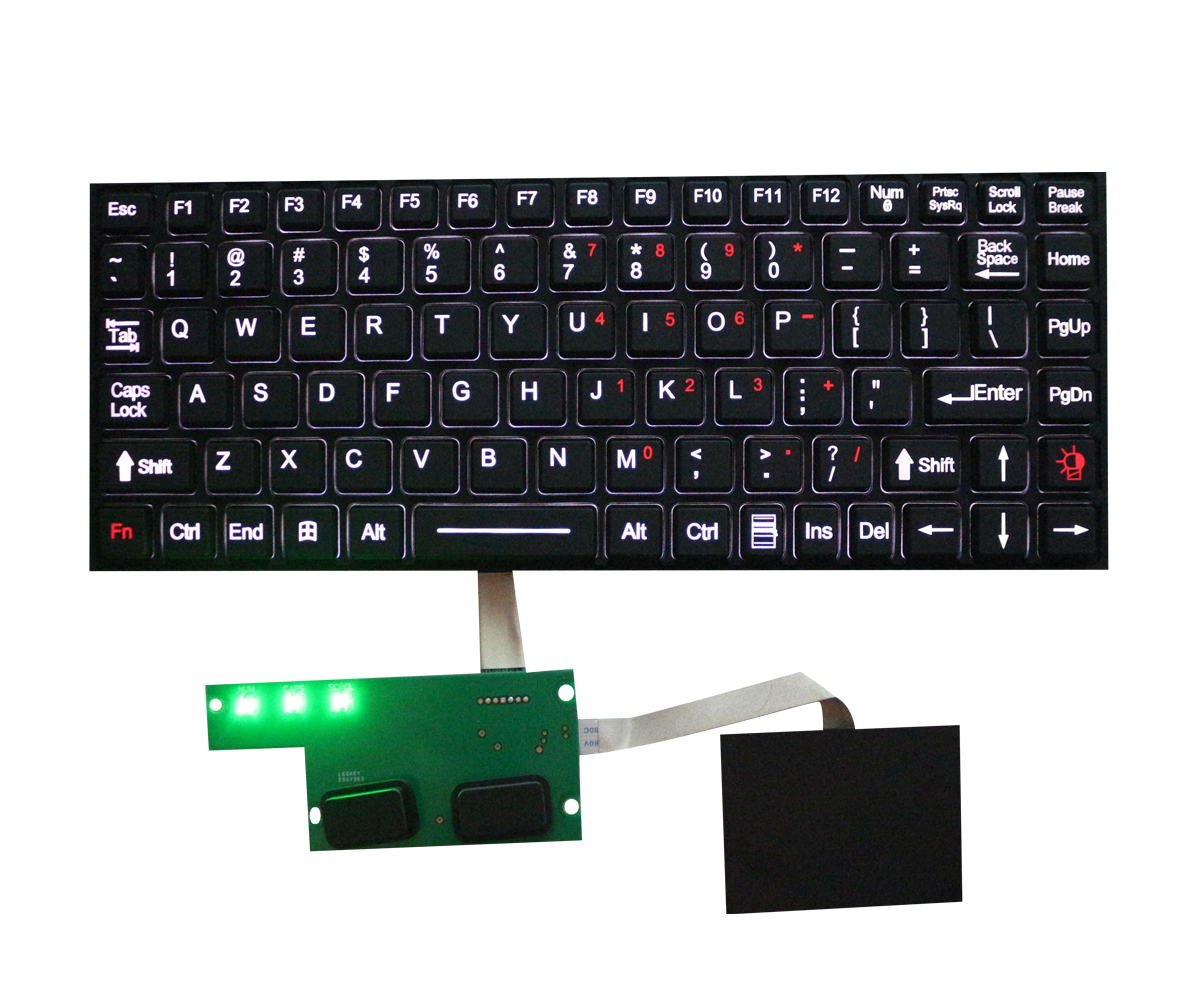

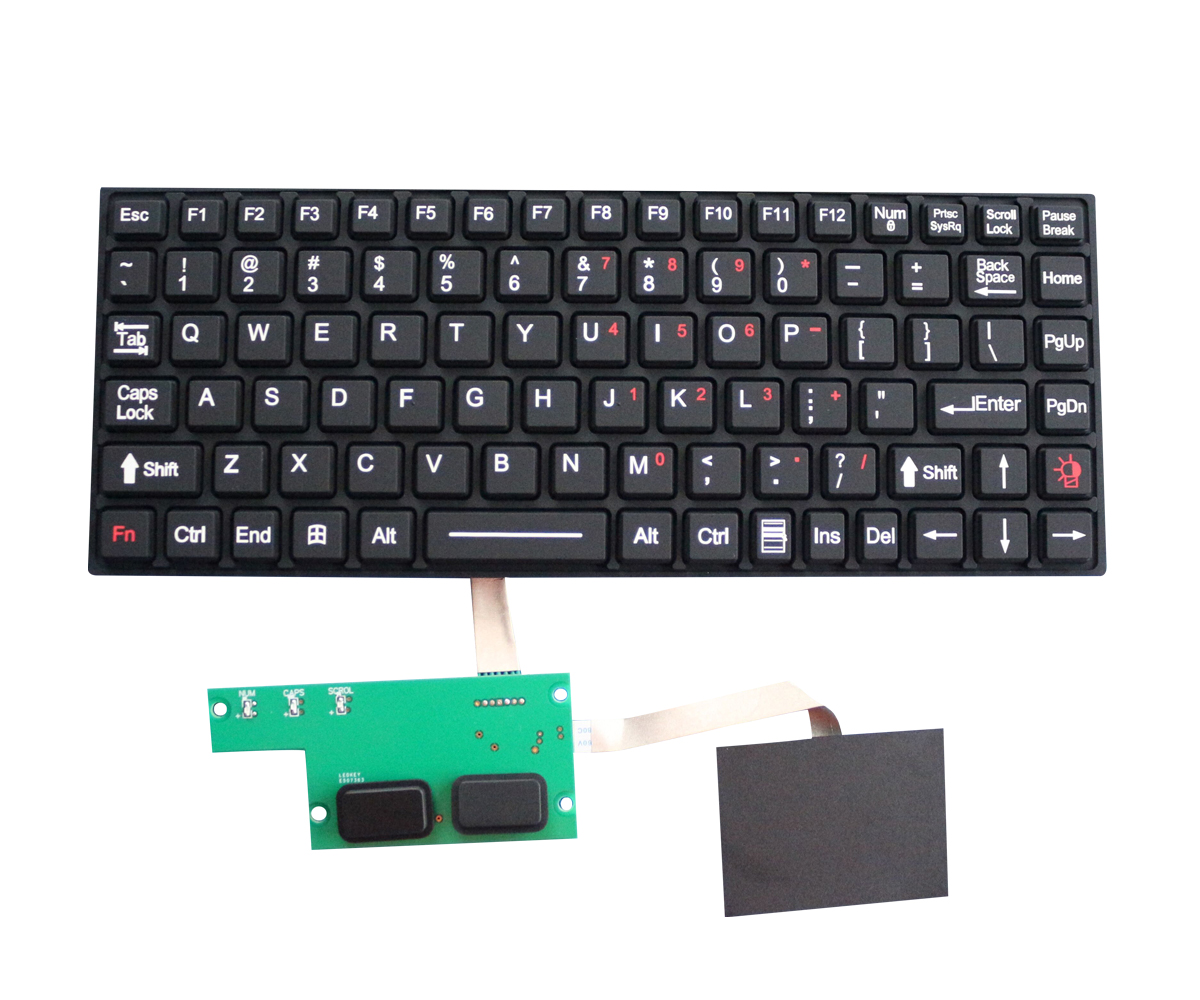

DESCRIPTION: 89 keys IP65 sealed & ruggedized silicone rubber military keyboard with a separate military-grade wide temperature touchpad with 400DPI resolutions for fast cursor position, as well as independent left and right mouse buttons with 3 LEDs, 12 function keys on top line for easy operation, military PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, top panel mount solution, adjustable white/red backlight included, with USB interface. Military level, designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

DIMENSIONS : Keyboard: 284.0mm*109.0mm (L x W ) Touchpad: 68.0mm * 49.0mm (L x W)



MECHANICAL DATA

Keys

89 keys + 2 mouse buttons

Key top style

Protuberant rectangular keys with tactile feeling

Key travel

1.50mm±0.10mm

Actuation Force

1.5N±0.2N (pressure point )

Switch life

more than 5 million of operations.

Touch pad

1.3mm thick PCB, containing polyester film

Touchpad cover

Composite

More than Lifetime 10 million strokes

Mutual capacitance sensing

X/Y axis location detection resolution

40 Counts /mm

X/Y position report

relative

Output (self-detectable depending

on cable)

USB

Tracking speed

Maximum 1,016 m/sec

Power supply voltage

5V ± 0.25V

Current rating (active mode)

< 10 mA

G.W.

0.80KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

50mA (non-backlight) , 300mA (with backlight on)

Meet MIL-STD-461G (EMC, EMI, EMS, ESD).:

1

CE101 25Hz - 10kHz Conducted Emissions, Audio   Frequency Currents, Power leads

2

CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads

3

CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads

4

CS106   Conducted Susceptibility, Transients, Power Leads

5

CS112 Electrostatic Discharge Susceptibility

6

CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection

7

CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation

8

CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables

and Power Leads

9

RE101 25Hz -100kHz Radiated Emissions, Magnetic Field

10

RE102 10kHz - 18GHz   Radiated Emissions, Electric Field

11

RS101   25HZ - 100kHz Radiated Susceptibility, Magnetic Field

12

RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field

MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist,        fungus, solar radiation etc.)

Lifespan

> 5 years

Switch Contact Material

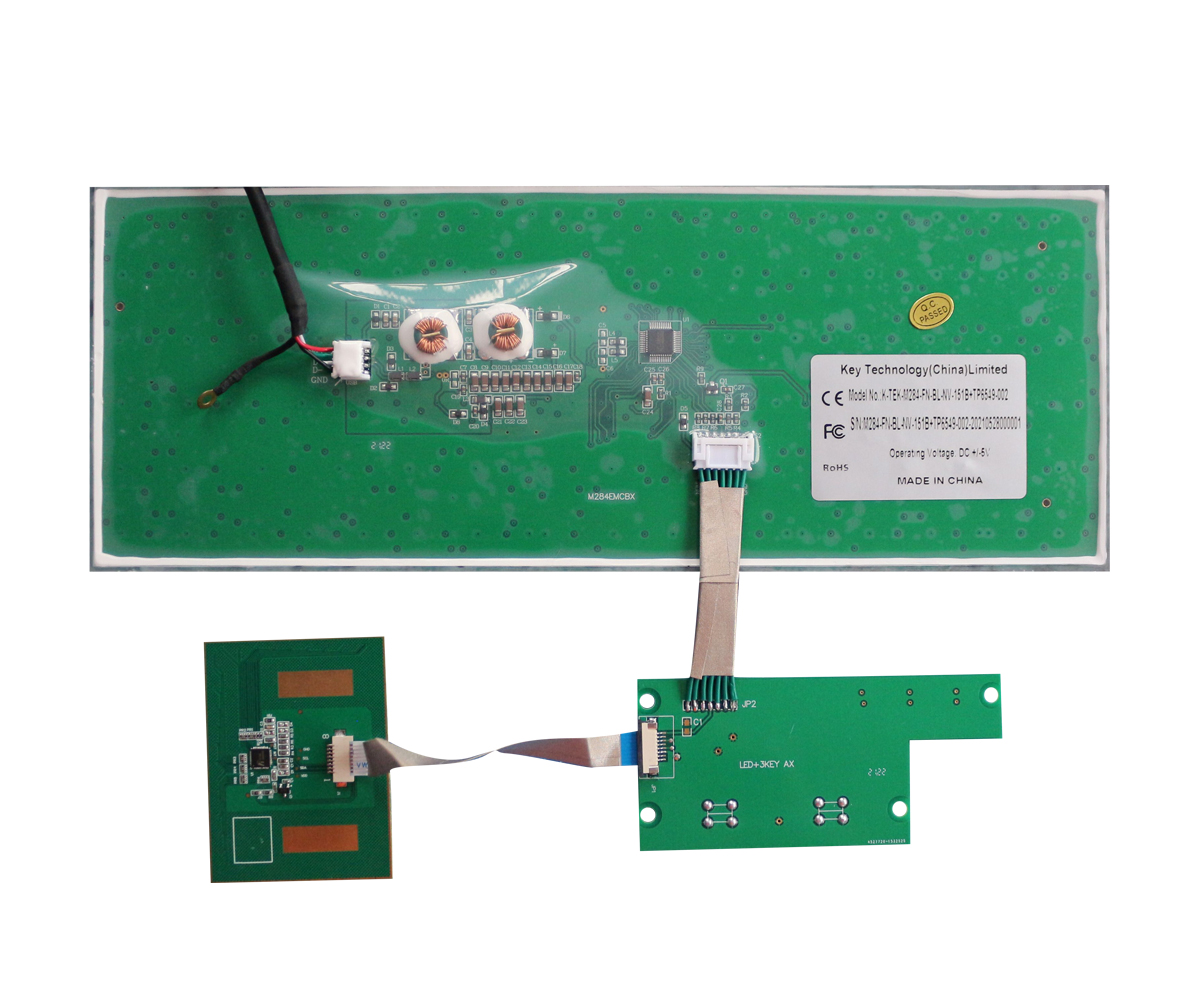

Carbon-on-Gold key switch technology with military PCB

Interface

USB

Cable length

Standard 2.0m, customized length available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-40℃ to +75℃

Storage temperature

-45℃ to +85

Saline mist

96h, IEC60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

Operating RH

3%-95%

Atmospheric pressure

60-106Kpa

RELIABILITY

RoHS compliant, CE and FCC certified MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (high and low wide temperature,   low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.).

Protection Level

IP65 dynamic (front panel)

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATION

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop,

UAV ground station etc.
