Product Detail

K-TEK-M284-FN-BL-ML-EMC-OEM

Category: Silicone keyboard
Key Number: 89 keys
Key Travel: 1.50mm±0.10mm
Backlight: White
Interface: USB
Key Switch: Carbon-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Top panel mount
Operating Temperature: -40℃~+75℃
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station, medical etc.
Description
Download

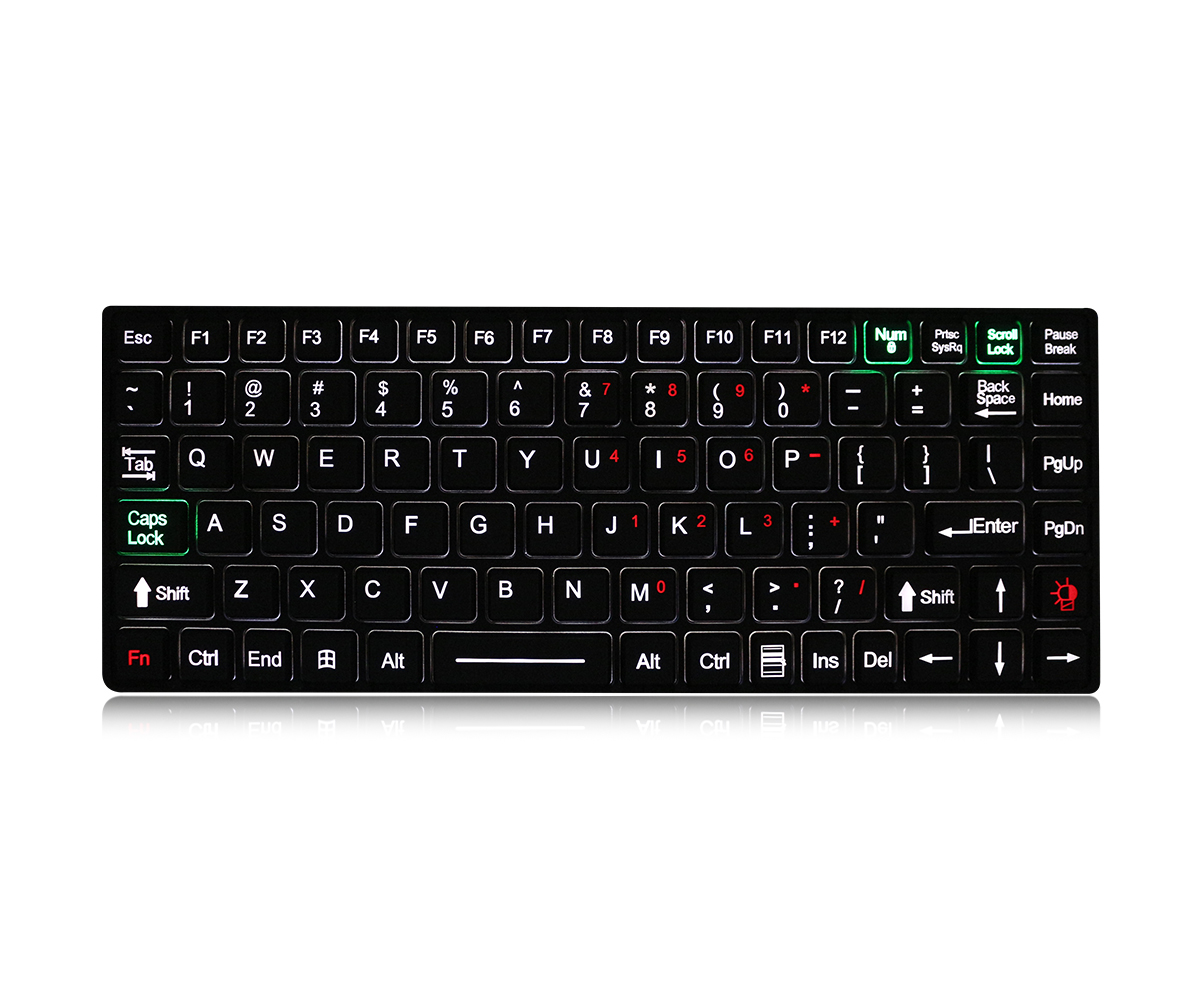

DESCRIPTION: 89 keys IP65 dynamic waterproof military silicone keyboard, with carbon-on-gold key switch 12 FN keys (F1, F2...F11, F12) on top line

for easy operation, military PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and

accurate data input without any noise, durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, top panel mounting, with industrial backlight included. EMC approval ensures that this model can coexist with other sensitive equipment without causing

interference. USB interface, Military level, designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock,

salt mist, vibration, fungus, humidity).

Dimensions: 284.00mm x 109.00mm (L x W)



MECHANICAL DATA

Keys

89 keys

Key top style

Protuberant rectangular keys with tactile feeling

Key travel

1.50mm±0.10mm

Actuation Force

1.5N±0.2N (pressure point )

Switch life

more than 5 million of operations.

G.W.

0.80KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

30mA (non-backlight) , 300mA (with backlight on)

Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc.:

1

CE101 25Hz - 10kHz Conducted Emissions, Audio   Frequency Currents, Power leads

2

CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads

3

CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads

4

CS106   Conducted Susceptibility, Transients, Power Leads

5

CS112 Electrostatic Discharge Susceptibility

6

CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection

7

CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation

8

CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads

9

RE101 25Hz -100kHz Radiated Emissions, Magnetic Field

10

RE102 10kHz - 18GHz   Radiated Emissions, Electric Field

11

RS101   25HZ - 100kHz Radiated Susceptibility, Magnetic Field

12

RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field

MIL-STD-810F (wide temperature, shock, vibration, humidity).

Lifespan

> 5 years

Switch Contact Material

Carbon-on-Gold key switch technology

Interface

PS2, USB available

Cable length

Standard 2.0m, customized length available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-40℃ to +75℃

Storage temperature

-45℃ to +85

Saline mist

96h, IEC60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

Operating RH

100%

Atmospheric pressure

60-106Kpa

RELIABILITY

RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist,

vibration, fungus, humidity)

Protection Level

IP65 dynamic (front panel)

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
