Product Detail

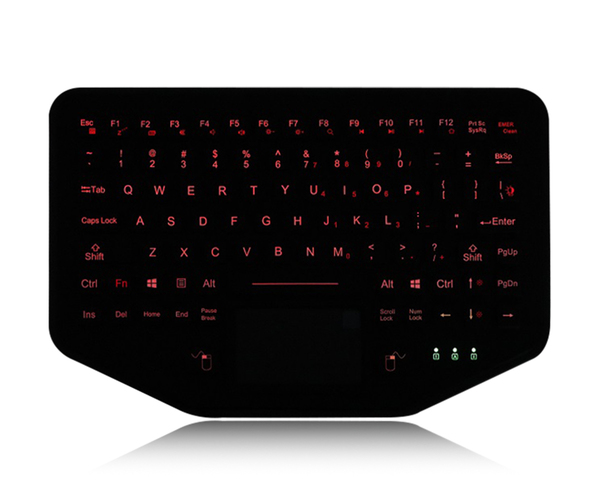

K-TEK-M284TP-FN-MS-IL-BL-FDT

Category: Silicone keyboard
Key Number: 92 keys (including 2 mouse buttons)
Key Travel: 1.20mm
Backlight: Red
Interface: USB/PS2 optional
Key Switch: Membrane key switch
Protection Level: IP68
Mounting Solution: Mountable desktop solution
Operating Temperature: -20ºC to +60ºC
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station, medical etc.
Description
Download

DESCRIPTION: 90 keys IP68 dynamic water proof sealed & ruggedized silicone rubber industrial keyboard with full keyboard functionalities with

sealed & rugged tough touchpad (finger print reader function optional) for fast and accurate cursor position, with 2 mouse buttons for left/right clicking,

12 FN keys (F1, F2...F11,F12) are on the top line for easy operation, with industrial PCB with industrial membrane key switch technology with long

stroke (1.20mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard

surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole

keyboard without needing to take away the keyboard from PC, adjustable industrial white backlight included, with USB interface. FN + bulb button

to control keyboard backlight and FN + or button to adjust backlight brightness, MIL-STD-810F, high and low temperature, wet and hot, vibration,

mildew Level 2, salt spray, direct rain, direct sun, dust etc. MIL-STD-461G-EMC-EMI-EMS-ESD optional, VESA/AMPS mountable super flat desktop

version with robust ABS polycarbonate case.



Dimensions: 297.54mm x 192.03mm x 22.40mm



MECHANICAL DATA

Keys

92 keys (including 2 mouse buttons)

Key top style

Protuberant rectangular keys with tactile feeling

Key Size

12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key

Key travel

1.20mm±0.10mm

Actuation Force

1.2N±0.2N   (pressure point )

Switch life

more than 5 million of operations

Touch pad

sealed and ruggedized tough touchpad

Touchpad cover

Composite

More than Lifetime 10 million strokes

Mutual capacitance sensing

X/Y axis location detection resolution

40 Counts /mm

X/Y position report

relative

Output (self-detectable depending

on cable)

PS2 or USB

Tracking speed

Maximum 1,016 m/sec

Power supply voltage

5VDC ± 0.25V

Current rating (active mode)

< 10 mA

G.W.

0.80KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

50mA when backlight is off, 300mA with backlight on

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Switch Contact Material

Industrial membrane key switch technology

Interface

PS2, USB available

Cable lengh

Standard 2.0m, customized length available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20℃ to +60

Storage temperature

-25℃ to +65

Operating RH

100%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

Shock

3x11 ms pulses of 50g on each of 3 axes

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF

TEST PER AXIS: 3 hours

RELIABILITY

RoHS, CE, FCC, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus,

humidity) optional

Protection Level

IP68

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground

station etc.
