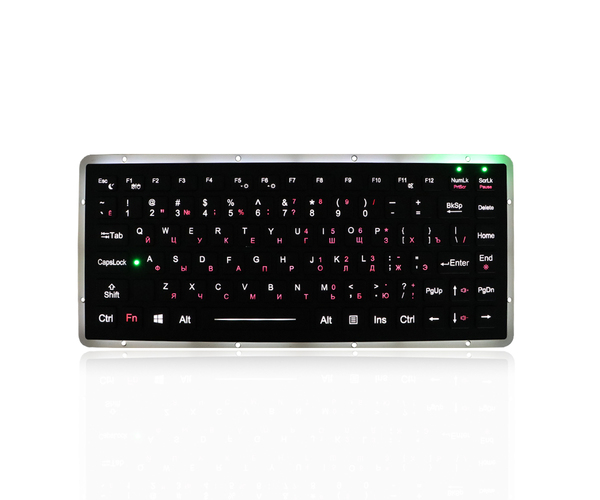

K-TEK-M270-FN-AC-BL-DWP IP65 backlighting matrix rugged keyboard

Category: Chiclet Keyboard
Key Number: 86 keys
Key Travel: 1.20mm
Backlight: White
Interface: Dot Matrix
Key Switch: Carbon-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Rear panel mount
Operating Temperature: -20ºC to +65ºC
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
Description
Download

DESCRIPTION: 86 keys IP65 dynamic waterproof special professional compact format rugged keyboard with durable polymer keys. The high

quality rugged aluminum alloy panel is processed by CNC. With 12 function keys(F1, F2, ... F12) on the top line of keyboard, sealed and rugged

matrix PCB with carbon-on-gold key switch technology with stroke 1.20mm, which is extremely good tactile feeling for fast and accurate data input

without any noise, one complete silicone rubber along the top panel for easy mounting & sealing tightly with cabinet, rear panel with through hole

for easy mounting and sealing. Adjustable backlight included ( White or Red etc). FN + Clean combination keys for easy cleaning without taking

the keyboard away from PC to avoid mis-operation or mistyping. High quality durable and scratch-proof black titanium   on the aluminum alloy panel,

which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, salt mist etc. Dot matrix

with FPC PIN without electronic controller included, this matrix keyboard can be with optional USB elctronic controller board and touchpad

K-TEK-M73TP-IL or K-TEK-TP6549 together for optional.


DIMENSIONS: 270.0mm(L) x 110.0mm(W) (Top Panel)


MECHANICAL DATA

Actuator/keys

86 keys, durable and robust polymer keys

Key top style

Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

Actuator/keys materials

Polymer

Plate

High quality ruggedized aluminum alloy top panel processed by CNC

Key Size

14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar

Key travel

1.20mm

Actuation Force

1.0N±0.2N for key 14.0mm x 14.0mm (pressure point ), 1.5N±0.2N for key 14.0mm x 28.0mm (pressure point)

Switch life

more than 5 million of operations

Lettering

laser-etched or high quality ink print

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

30mA for keyboard without backlight. 300mA for keyboard with backlight on.

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Switch Contact Material

Carbon-on-Gold key switch technology PCB

Interface

Dot matrix interface, PS2, USB available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20℃ to +65

Storage temperature

-30℃ to +75

Operating RH

30-90%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

RELIABILITY

RoHS Compliant, CE and FCC, ESD,

MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity) optional

Protection Level

IP65

Vandal resistant

IK09

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
