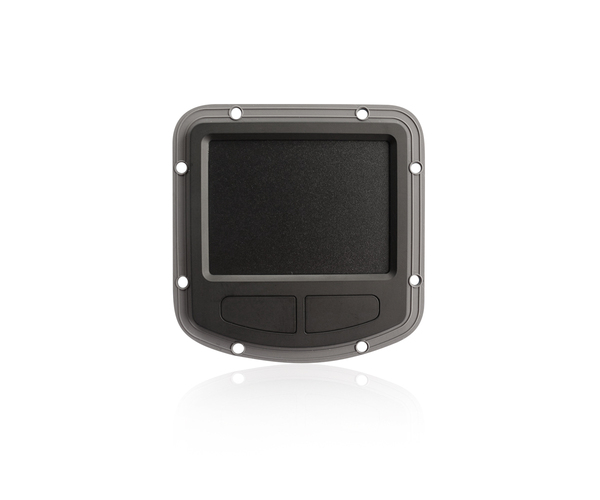

Description: IP65 static sealed Touchpad with 2 mouse buttons under touchpad for left and right clicking with OMRON key switch technology with
short stroke of 0.4mm, the electronics controller module shielded and protected with one ultra thin aluminum backplate, with mounting holes along
with the rear ABS plastic plate for rear panel mounting. Military level with wide temperature of -40℃ to +65℃, MIL-STD-461G (EMC, EMI, EMS, ESD)
and MIL-STD-810F(wide temperature, shock, salt mist, vibration, fungus, humidity) optional.
Dimension: 73.0 x 76.0mm (front panel)
ITEM | SPECIFICATION |
Mechanical | Key | 2 keys |
Key top style | Non-protuberant Keys |
Key Travel | 0.30±0.05mm |
Touchpad thickness | 1.3 mm PCB thickness inclusive of mylar layer |
Key switch lifespan | more than 1 Mio actuations |
Touchpad lifespan | 10 millions clicking |
Back Metal Cover | Rear side integrated electronics protected by a ultra thin aluminum backplate |
Actuation Force | 1.2N±0.2N |
Mounting Solution | Rear panel mounted |
Dimension | Touchpad: 61.0mm x 45.0mm; Front Mounting Panel: 73.0 x 73.0 mm Rear Mounting Panel: 87.0mm x 90.0mm |
Interface | PS2, USB are available |
Electrical | Power supply | DC +5V±5% |
Protection level | IP65 (front panel) |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Power consuming | ≤1.00W(dynamic) |
≤0.2W(static) |
Environmental | Operating temperature | -40ºC~+ 65º C |
Storage temperature | -45ºC~+ 75ºC |
Operating RH | 30～90% |
Atmospheric pressure | 60～106Kpa. |
Reliable | Certificates | RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity) optional. |
MTBF | >20000h |
MTTR | < 30min |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) |
Packing Details | Each unit to a suitable brown box, suitable brown boxes to a standard export carton. |
Application | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas, portable rugged laptop, ground vehicle etc. |
