Product Detail

K-TEK-B88-25-OTB-DWP

Category: Trackball
Key Number: 3 keys
Key Travel: 0.45±0.05mm
Backlight: No
Interface: USB/PS2 optional
Key Switch: Metal dome gold-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Front panel mount
Operating Temperature: -20ºC to +65ºC
Ball Diameter: 25mm
Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
Description
Download

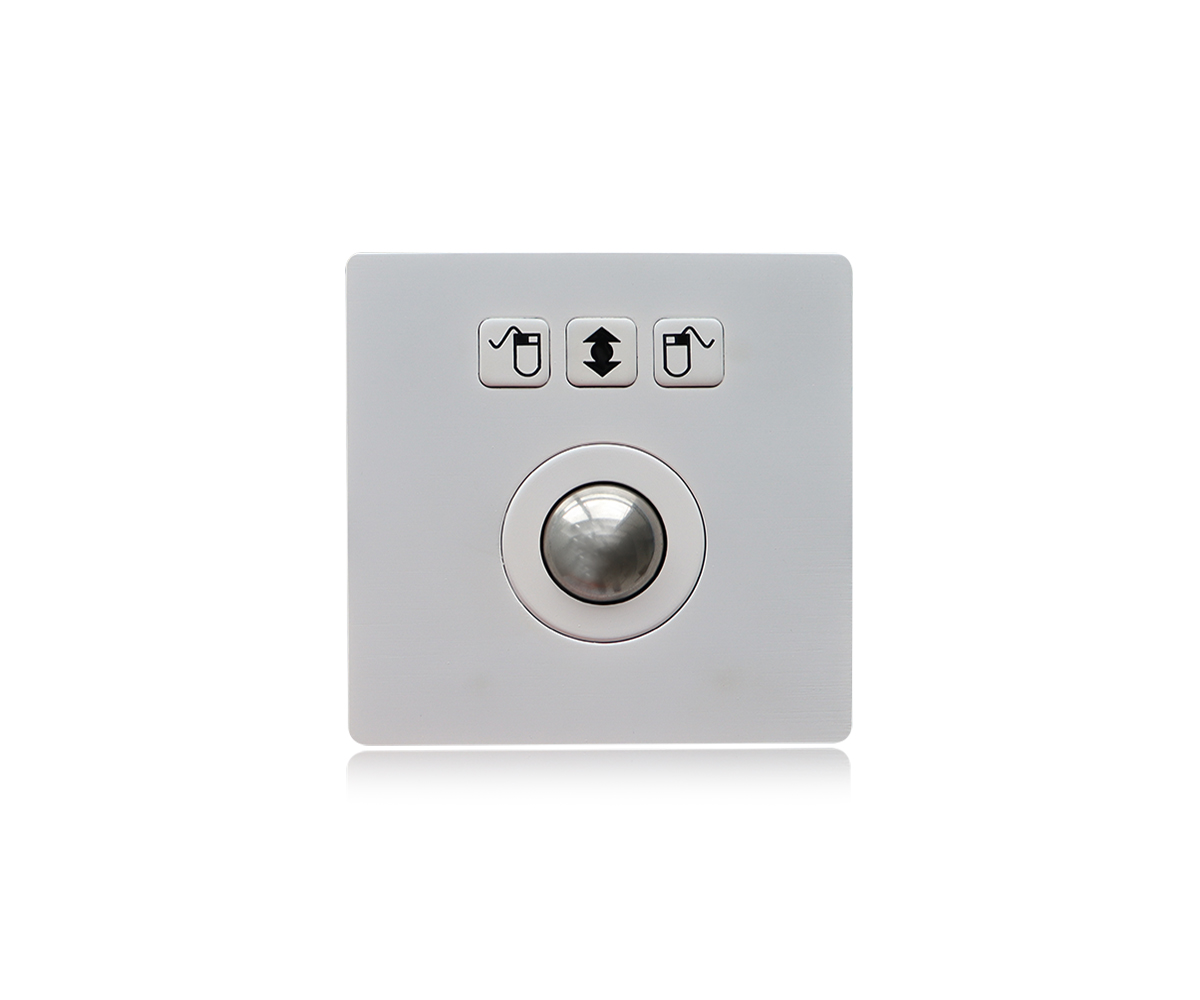

DESCRIPTION: IP65 dynamic rated vandal proof stainless steel optical trackball with IP65 dynamic sealed & ruggedized stainless mouse buttons

and IP68 dynamic rated washable 25.0mm stainless steel optical trackball module with +800 DPI resolutions for fast and accurate fixing cursor

position with extreme smooth operation without any noise,optical trackball module protected and shielded by stainless steel housing, 3 sealed

stainless steel mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, with top panel mounting solution. one

complete silicone rubber for easy mounting & sealing tightly with cabinet. Which is good for outdoor application with direct rain and very harsh

environments with humidity, much dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.



DIMENSIONS: 88.0mm x 88.0mm (top panel)


ITEM

SPECIFICATION

Mechanical

Key

3 keys, quality brushed stainless steel

Key top style

Non-protuberant rectangular Keys

Front Plate

Quality brushed stainless steel

Key Travel

0.45±0.05mm

Ball diameter

25.4mm/1.0' (16mm, 19mm, 38mm, 50mm also available)

Key switch lifespan

more than 1 Mio actuations

Track ball lifespan

> 2 millions scrolling

Actuation Force

2.5N±0.2N

Mounting Solution

Front panel mounted with threaded bolts

Dimension

Dimensions with 25mm trackball

Front plate (W x H): 88.0mm x 88.0mm

Interface

PS2, USB are available, Y type cable with ports of PS2 and USB

Electrical

Power supply

DC +5V±5%

Protection level

IP65 (dynamic), IK09

EMC Standard

EN 55032:2015, EN 55035:2017

Power consuming

≤1.00W(dynamic)

≤0.2W(static)

Contact Material

Gold-on-Gold

Environmental

Operating temperature

-20ºC~+ 65º C

Storage temperature

- 30ºC~+ 75ºC

Operating RH

3090%

Atmospheric pressure

60106Kpa.

Reliable

Certificates

RoHS compliant, CE and FCC certified. ESD

MTBF

>20000h

MTTR

< 30min

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

Packing Details

Each unit to a suitable brown box, suitable brown boxes to a standard export carton.

Application

Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation,

oil and gas etc.
