Product Detail

K-TEK-M275-OTB-FN-DT

Category: Silicone keyboard
Key Number: 92 keys (including 3 mouse buttons)
Key Travel: 1.50mm±0.10mm
Backlight: No
Interface: USB/PS2 optional
Key Switch: Carbon-on-gold
Protection Level: IP68
Mounting Solution: Mountable inclined desktop solution
Operating Temperature: -20ºC to +65ºC
Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station, medical etc.
Description
Download

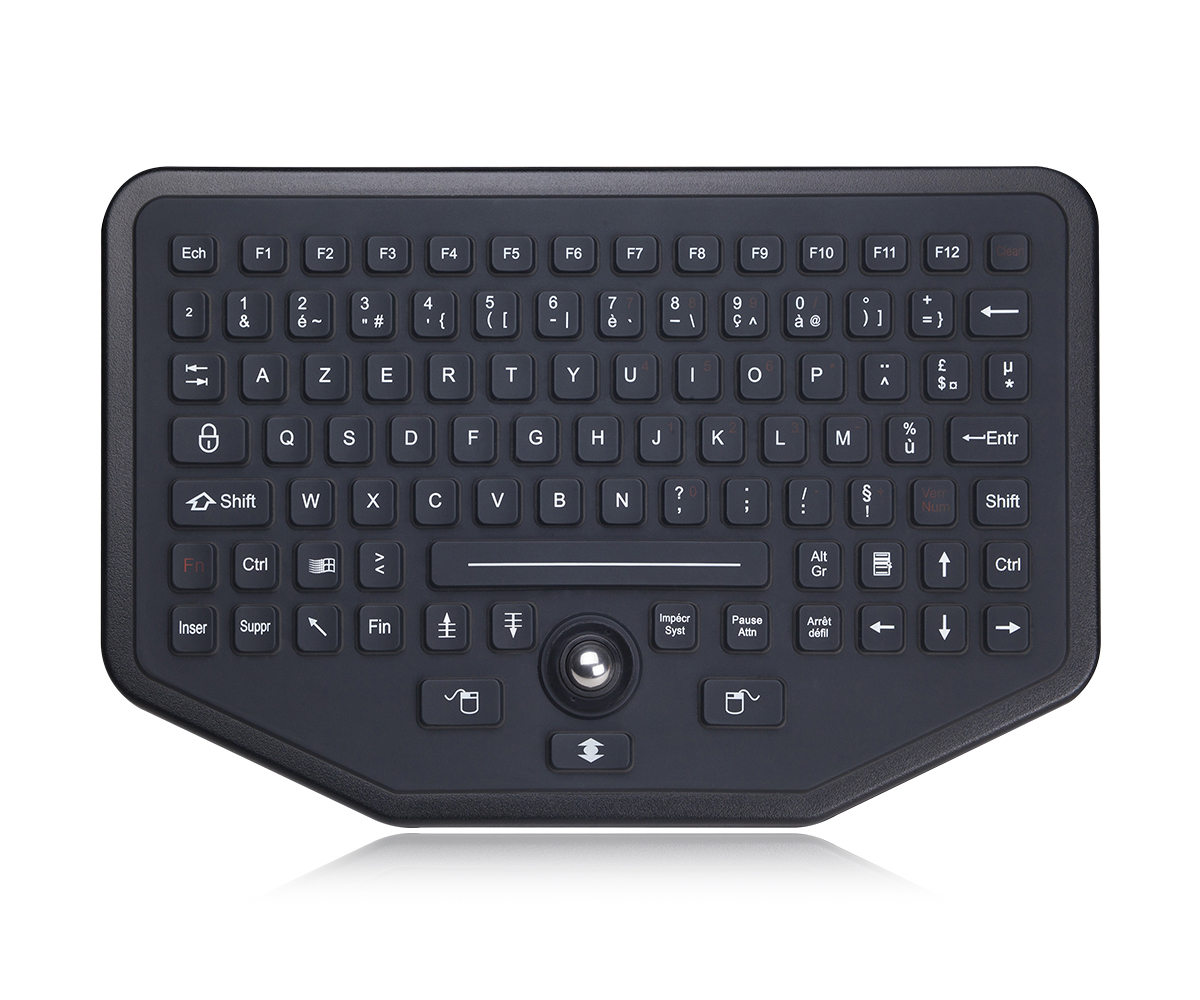

DESCRIPTION: 92 keys IP68 dynamic washable sealed & ruggedized silicone rubber industrial keyboard with full keyboard functionalities with IP68

dynamic washable 16.0mm optical trackball module with 800 DPI for fast and accurate cursor position, 12 FN keys (F1, F2...F11, F12) are on the top

line for easy operation, with industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling

for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under

harsh environment, FN + CLEAN key for easy cleaning, adjustable industrial backlight optional. Mountable desk top version with robust polycarbonate

case, military level. Industrial level optional.

DIMENSIONS : 304.40mm x 195.80mm x (22.34mm-47.33mm) (L x W x H)


MECHANICAL DATA

Keys

92 keys (including 3 mouse buttons)

Key top style

Protuberant rectangular keys with tactile feeling

Tracker ball

16mm diameter

More than Lifetime 10 million strokes

Key Size

12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key

Key travel

1.50±0.10mm

Actuation Force

1.5N±0.2N (pressure point )

Switch life

more than 5 million of operations

G.W.

1.20KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

100mA

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Switch Contact Material

Carbon-on-Gold key switch technology with gold PCB

Interface

PS2, USB available

Cable length

Standard 2.0m, customized length available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20℃ to +65

Storage temperature

-30℃ to +75

Operating RH

30~90%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

Shock

3x11 ms pulses of 50g on each of 3 axes

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours

RELIABILITY

RoHS, CE, FCC

Protection Level

IP68

Key Lifespan

>5 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATIONS

Vehicle, aerospace, naval, defense, maritime, Radar, console, UAV ground station etc.
