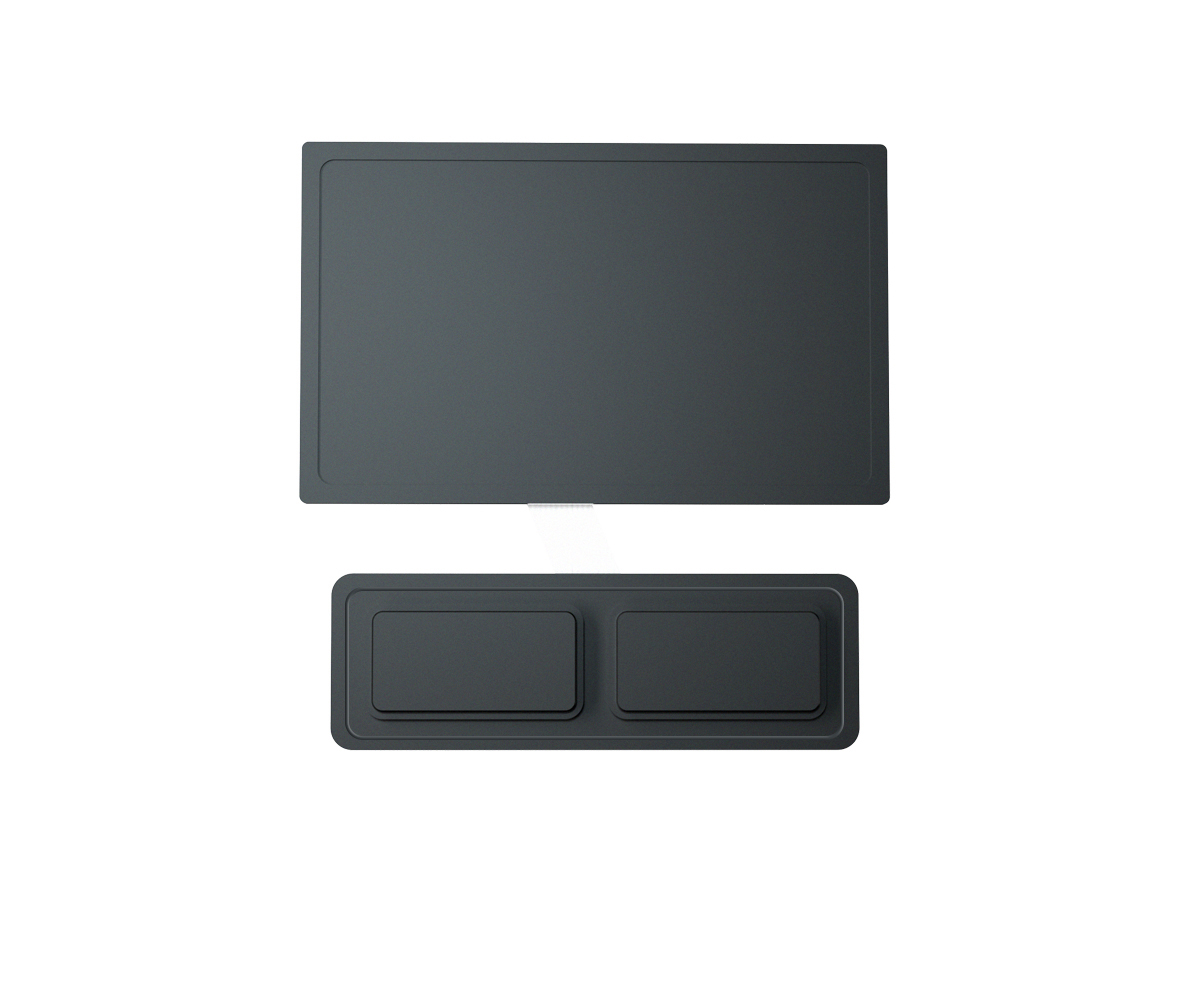

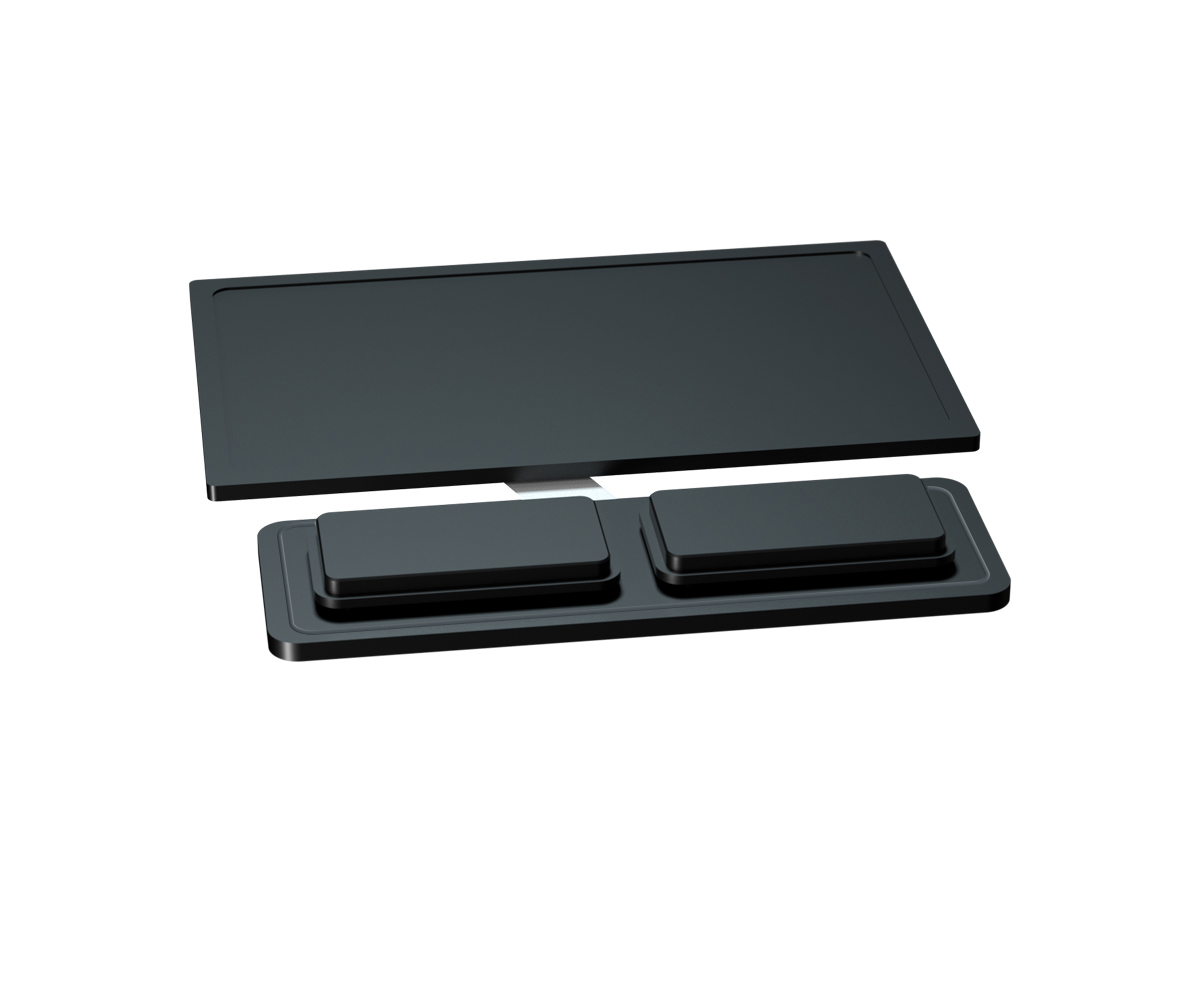

K-TEK-TP80-DML-25KV+2KEY

Category：	Touchpad
Key Number：	2 keys
Interface：	IIC
Key Switch：	Micro key switch technology
Protection Level：	IP65
Mounting Solution：	Panel mount
Operating Temperature：	-40ºC to +60ºC
Application：	Vehicle, aerospace, naval, maritime, Radar, console, portable rugged laptop, notebook, PC, UAV ground station etc.

Prev： K-TEK-TP115-DML-25KV+2KEY

Next： K-TEK-M281-DHP-FN-BL-NV-151B

Description

Download

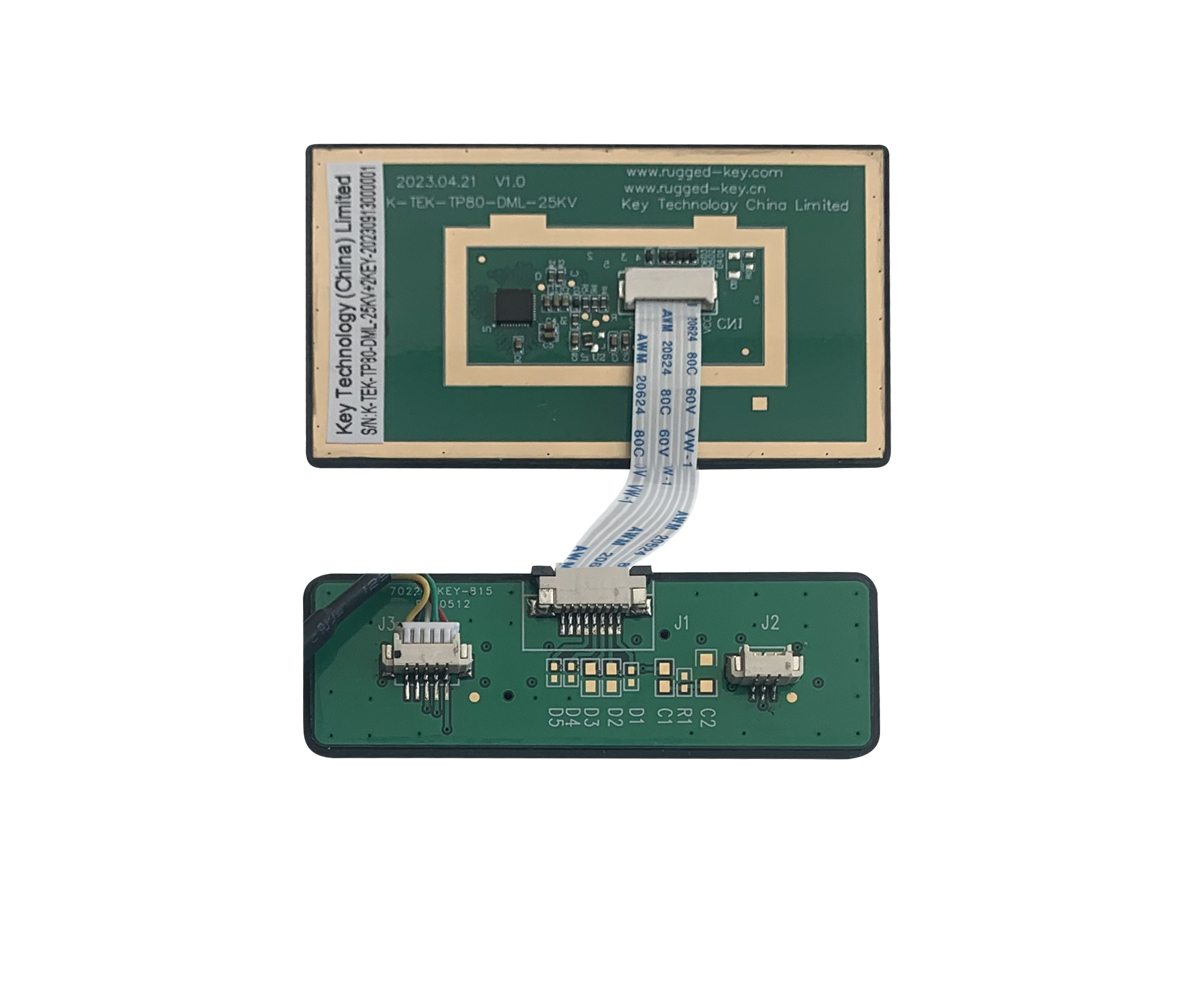

DESCRIPTION: K-TEK-TP80-DML-25KV+2KEY is a high performance humanize designed capacitive touchpad module especially for Laptops,

Notebooks and EPC products. Utilizing capacitive sensing technology to provide accurate cursor motion at X, Y directions through fingers, which

adopts IIC communication protocol (PS2 protocol optional; it can also be connected with an external adapter board to convert to USB protocol).

With 2 fully sealed waterproof and oilproof mouse buttons with micro key switch technology and plastic keycap for comfortable tactile feeling. Built

to meet MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) and MIL-STD-461G (EMC, EMI, EMS, ESD) optional,

which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental

adaptability, stability, compatibility, consistency, and continuity.

DIMENSION: 81.0mm x 50.0mm (L x W)

MECHANICAL DATA
Keys	2 keys
Key Switch	Micro key switch technology
G.W.	0.20KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Mutual capacitance sensing
X/Y axis location detection resolution	40 Counts /mm
X/Y position report	relative
Output (self-detectable depending on cable)	PS2 or USB
Tracking speed	Maximum 1,016 m/sec
Current rating (active mode)	< 10 mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Interface	IIC
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-40℃ to +60℃
Storage temperature	-45℃ to +75℃
Operating RH	3%~95%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
Protection Level	IP65
MTBF	>20000H
MTTR	<30min
APPLICATION	Vehicle, aerospace, naval, maritime, Radar, console, portable rugged laptop, notebook, PC, UAV ground station etc.

K-TEK-TP80-DML-25KV+2KEY--mechanical drawing
