K-TEK-TP6549-USB+2KEY

Category：	Touchpad
Key Number：	2 keys
Interface：	USB
Key Switch：	Micro key switch technology
Protection Level：	IP65 (front panel)
Mounting Solution：	Panel mount
Operating Temperature：	-20ºC to +55ºC
Application：	Vehicle, aerospace, naval, maritime, Radar, console, portable rugged laptop, notebook, PC, UAV ground station etc.

Prev： K-TEK-M315KP-FN-BL-NV-151B+M125TP

Next： K-TEK-D410-OTB-KP-FN-SW-DT

Description

Download

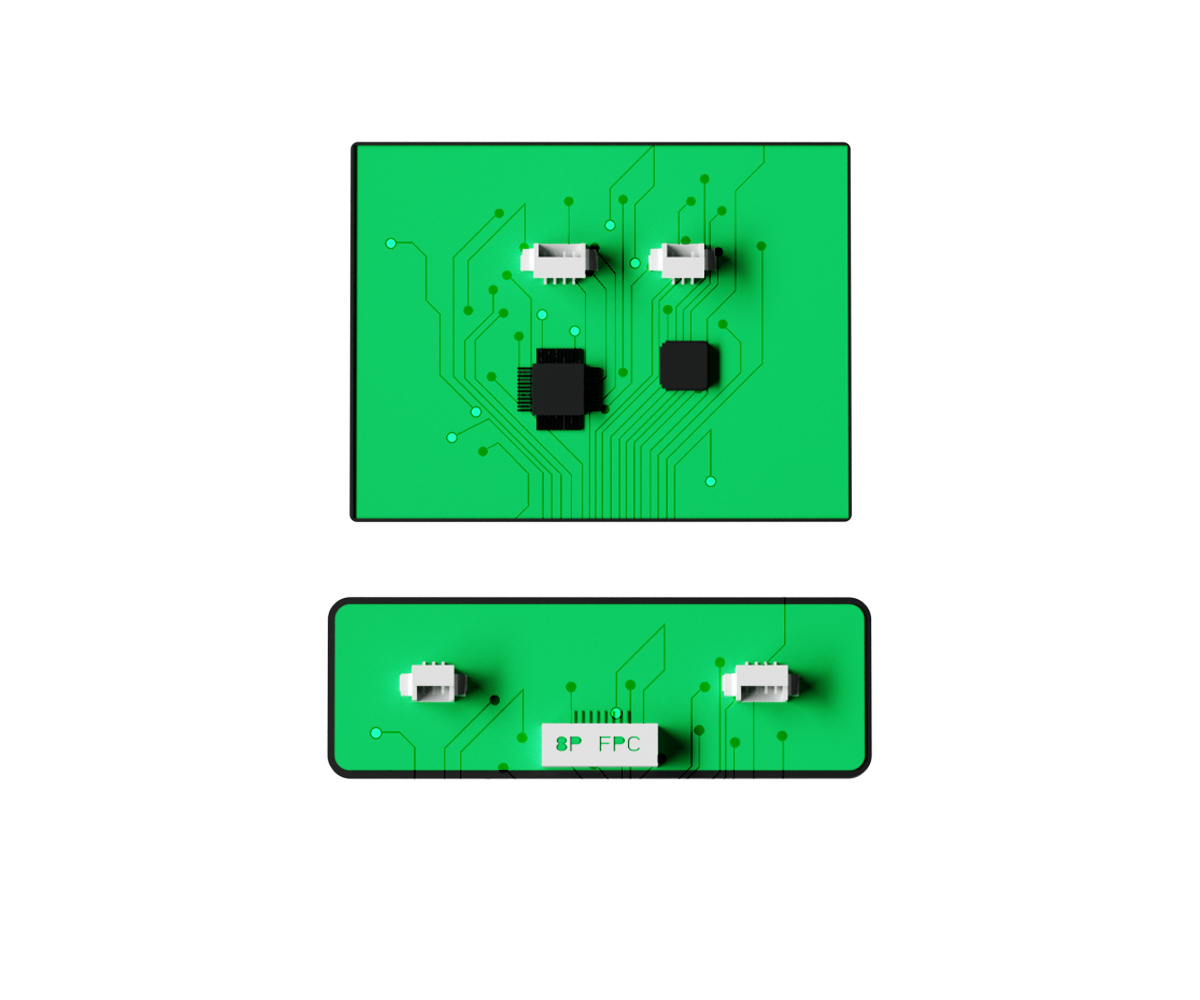

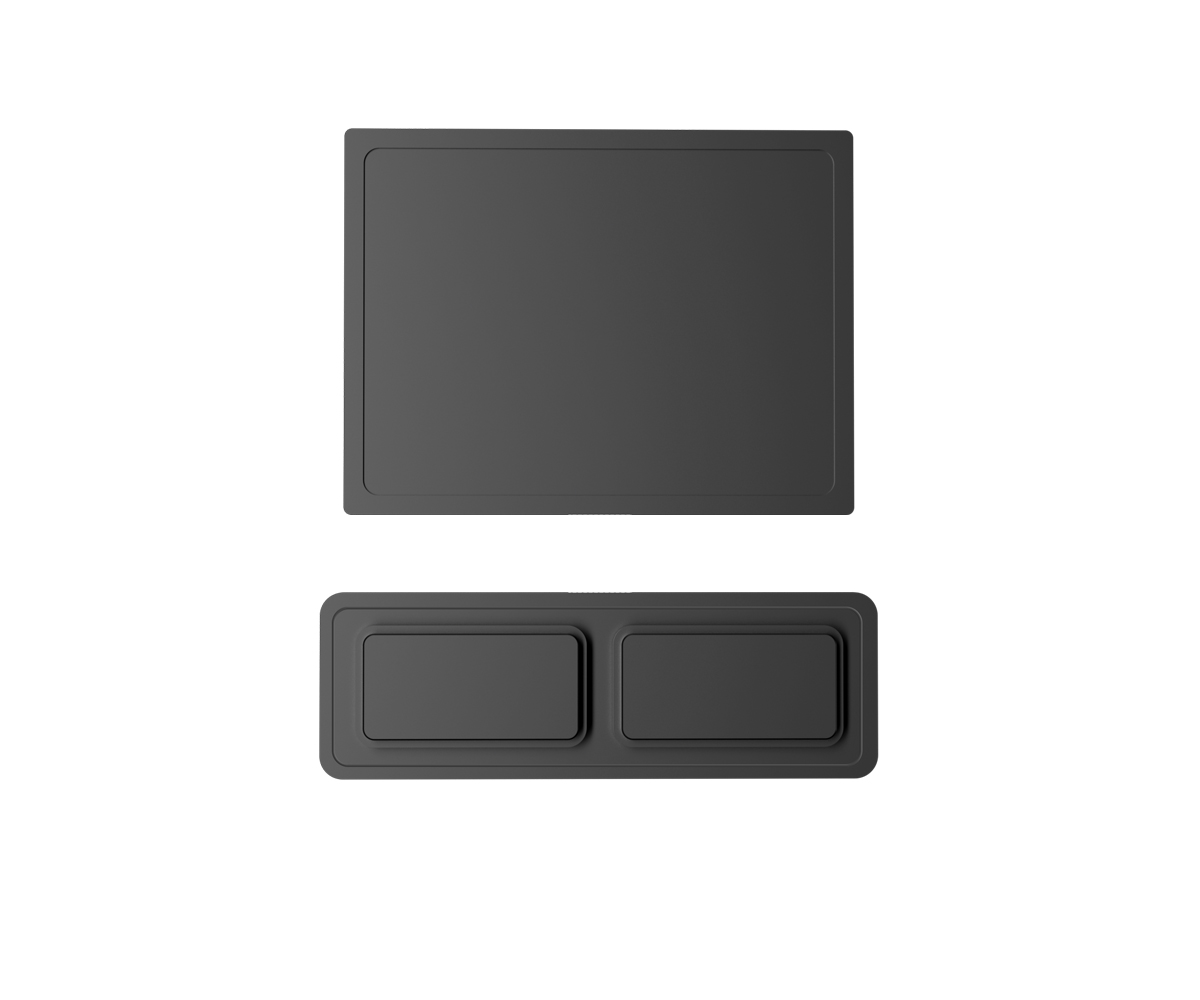

DESCRIPTION: K-TEK-TP6549-USB+2KEY is a high performance humanize designed touchpad module especially for Laptops, Notebooks and

EPC products. Utilizing capacitive sensing technology to provide accurate cursor motion at X, Y directions through fingers. Function as complete

computer mouse via USB interface. Plug-and-play. With multi-touch functionality optional in difference with conventional mouse. USB interface,

with 2 external fully waterproof mouse buttons with micro key switch technology for comfortable tactile feeling.

DIMENSIONS: 65.0mm x 49.0mm (L x W)

MECHANICAL DATA
Keys	2 keys
Key Technology	Micro key switch technology
Mutual capacitance sensing
X/Y axis location detection resolution	40 Counts /mm
X/Y position report	relative
Output (self-detectable depending on cable)	PS2 or USB
Tracking speed	Maximum 1,016 m/sec
Current rating (active mode)	< 10 mA
G.W.	0.20KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Interface	USB
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +55℃
Storage temperature	-30℃ to +70℃
Operating RH	3%~95%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS compliant, CE and FCC certified
Protection Level	IP65 (front panel)
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Vehicle, aerospace, naval, maritime, Radar, console, portable rugged laptop, notebook, PC, UAV ground station etc.

K-TEK-TP6549-USB+2KEY--mechanical drawing
