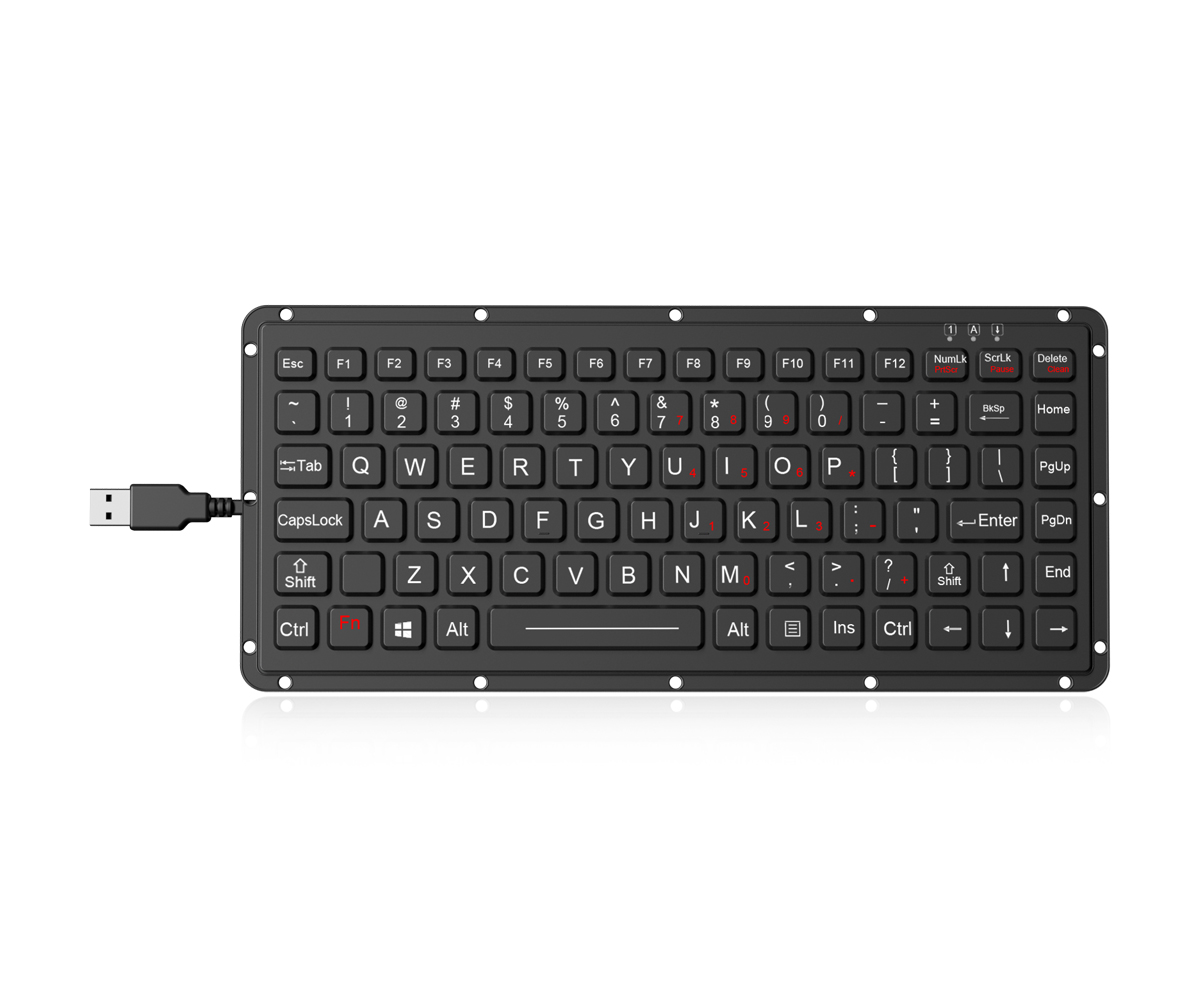

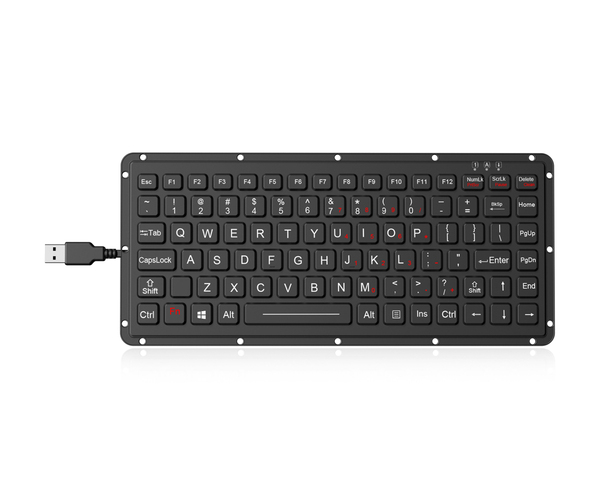

K-TEK-M270-FN-ML

DESCRIPTION: 87 keys IP65 dynamic sealed and durable embedded silicone rubber rugged keyboard, with built-in military grade PCB, 12 function

keys on top line for easy operation, with carbon-on-gold key switch technology with key stroke (1.50±0.10mm) with extremely good tactile feeling for

fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under

harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from

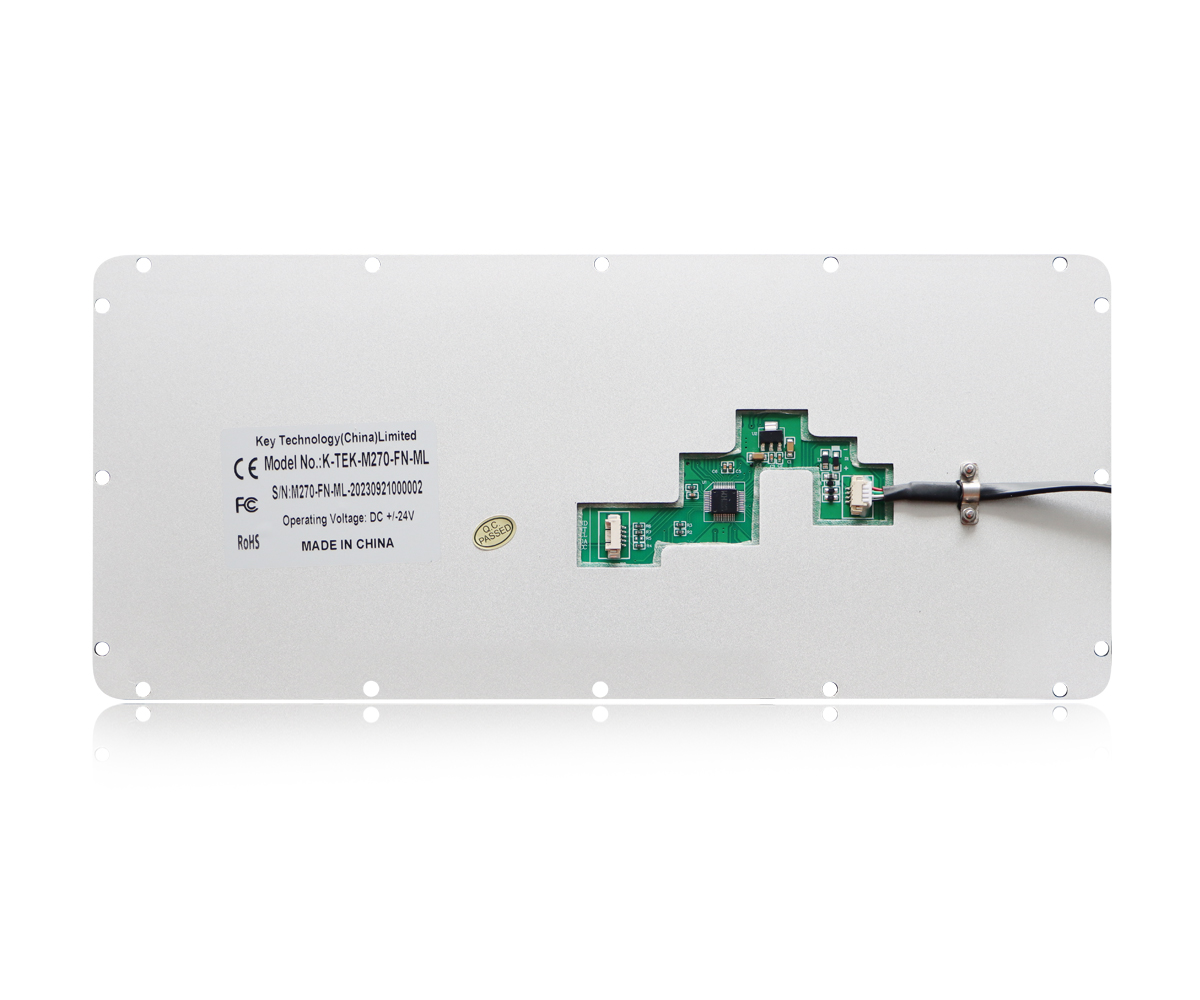

PC, rear panel mounted, with a reinforced and rugged aluminum back plate for better shielding function and positioning of the rugged cable outlet.

Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust,

fungus, solar radiation etc.),and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as the critical military standards in these 10 aspects: reliability,

safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

DIMENSIONS: 270.0mm x 113.0mm (Front panel)

K-TEK-M270-FN-ML--mechanical drawing
