Product Detail

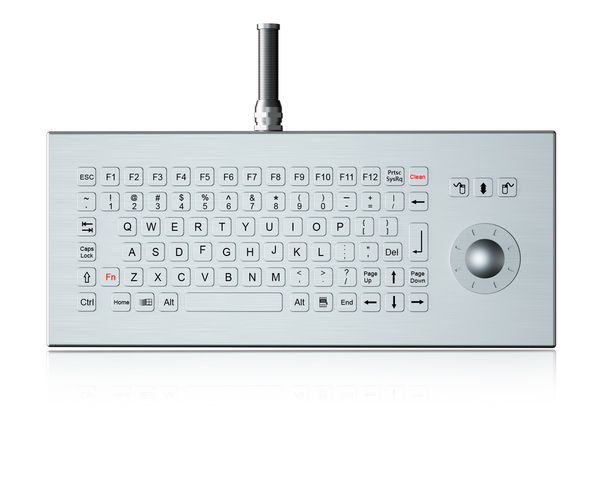

K-TEK-B361-DHP-FN-DT-DWP

Category: Stainless steel keyboard
Key Number: 86 keys (including 3 mouse buttons)
Key Travel: 0.45±0.05mm
Backlight: No
Interface: USB/PS2 optional
Key Switch: Metal dome gold-on-gold
Protection Level: IP65 dynamic (front panel)
Mounting Solution: Flat desk top solution
Operating Temperature: -20ºC to +65ºC
Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
Description
Download

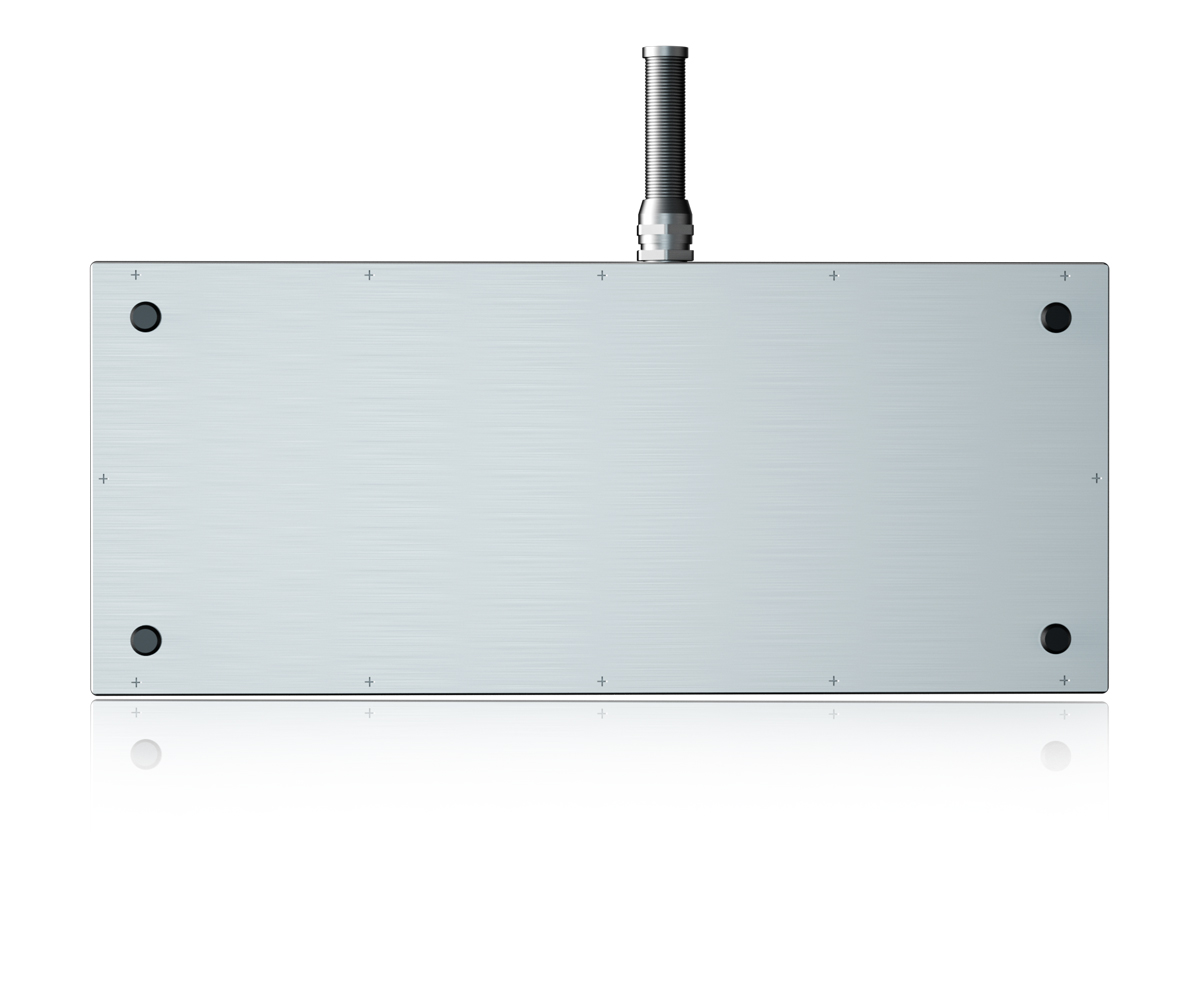

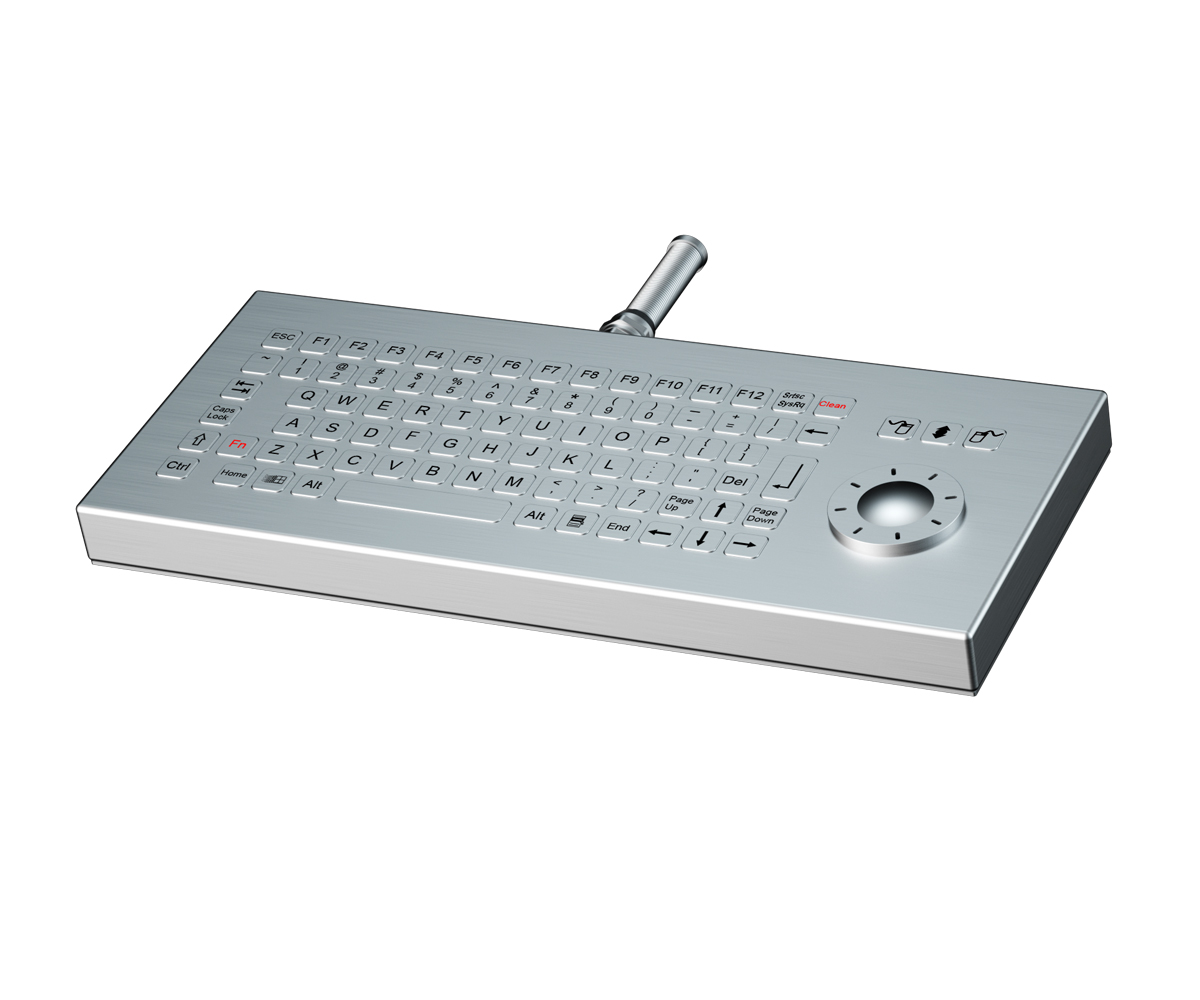

DESCRIPTION: 86 keys compact format IP68 dynamic waterproof, oil proof, dust proof and explosive proof stainless steel industrial keyboard with sealed & ruggedized tough stainless steel hula pointer for fast and accurate cursor position, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation,industrial metal dome PCB with gold-on-gold key switch technology with 0.45mm short stroke with good tactile feeling for stable and accurate data input, all the keys are flat without raised keys for dust accumulation, and the surface is extremely easy for cleaning and washing, FN+Clean combination keys to lock/disable the whole keyboard for easy cleaning without disconnecting the keyboard from PC, movable stand alone DESK TOP VERSION, or optional mountable desktop with mounting holes on the bottoms for fixing. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion. DHP durable hular pointer (FSR-Force Sensitive Resistor) features deep waterproof performance and wide temperature resistance. Its core advantage lies in smooth operation while wearing any type of gloves with bare-hand contact unnecessary. It is highly suitable for extreme working conditions, special operations and harsh application scenarios where bare-hand operation is prohibited.

DIMENSION: 361.0mm x 145.0mm x 21.5mm (L x W x H)


MECHANICAL DATA

Actuator/keys
86 keys (including 3 mouse buttons)
Key top style
Non-protuberant rectangular keys, laser engraved & etched legends on keys are available
Key Size

14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for

space bar

Key travel
0.45±0.05mm
Actuation Force
3.5N±0.2N for key 14.0mm x 14.0mm (pressure point )
7.0N±0.4N for key 14.0mm x 28.0mm (pressure point)
G.W.
2.8KGs
ELECTRICAL DATA

Supply Voltage
DC +5V±5%
Current Rating
50mA
EMC Standard
EN 55032:2015   EN 55035:2017
Lifespan
> 5 years
Switch Contact Material
Gold-on-Gold key switch technology PCB
Interface
PS2, USB available
OS
All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY

Operating temperature
-20℃ to +65
Storage temperature
-30℃ to +75
Operating RH
100%
Atmospheric pressure
60-106Kpa
Saline mist
96 hours, IEC 60512-6
Damp heat test at +40℃
21 days, IEC 60512-6
Dry heat test at +85℃
10 days, IEC 60512-6
RELIABILITY

RoHS Compliant, CE and FCC, ESD

Protection Level
IP68
Vandal resistant
IK09
Key Lifespan
>1 million actuations
MTBF
>20000H
MTTR
<30min
APPLICATION

Industrial, coal and mine, medical, bank kiosk and self service terminal, public access,

explosion-proof automation, oil and gas etc.
