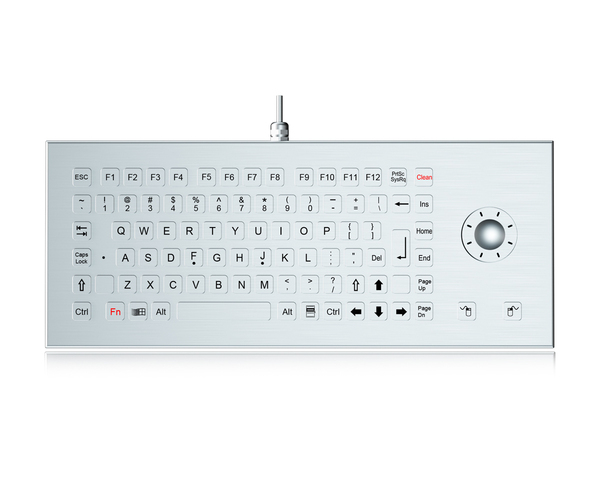

K-TEK-B380-DHP-FN-DT-DWP

Category：	Stainless steel keyboard
Key Number：	90 keys (including 2 mouse buttons)
Key Travel：	0.45±0.05mm
Backlight：	No
Interface：	USB/PS2 optional
Key Switch：	Metal dome gold-on-gold
Protection Level：	IP65 dynamic (front panel)
Mounting Solution：	Flat desk top solution
Operating Temperature：	-20ºC to +65ºC
Application：	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

Prev： K-TEK-B361-DHP-FN-DT-DWP

Next： K-TEK-M327KP-FN-BL-IT-ML-DWP + M73TP

Description

Download

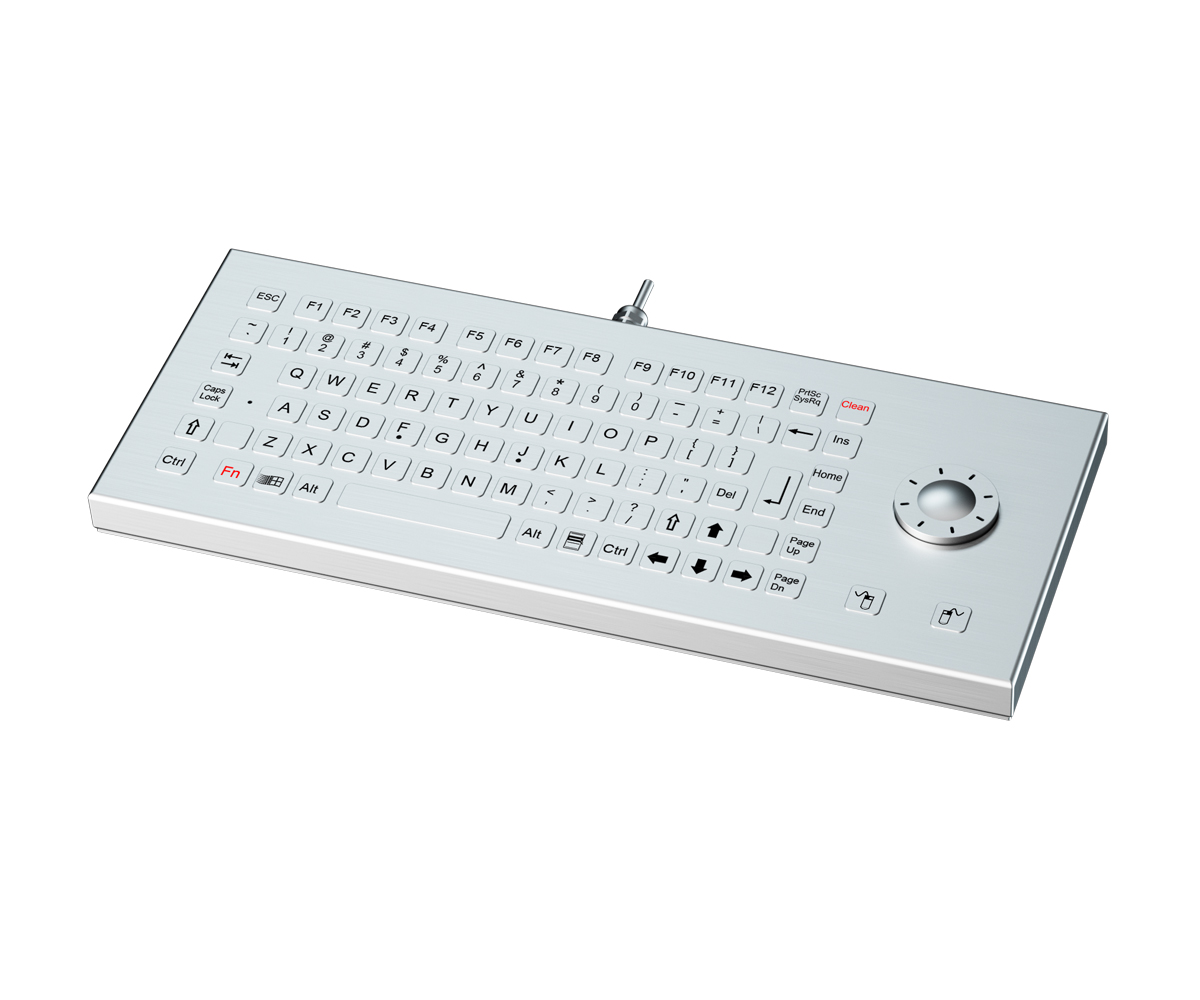

DESCRIPTION: 90 keys compact format IP68 dynamic waterproof, oil proof, dust proof and explosive proof stainless steel industrial keyboard

with sealed & ruggedized tough stainless steel hula pointer for fast and accurate cursor position, 2 mouse buttons designed for right & left

clicking, functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation, industrial metal dome PCB with gold-on-gold key

switch technology, all the keys are flat without raised keys for dust accumulation, and the surface is extremely easy for cleaning and washing, with

0.45mm short stroke with excellent tactile feeling for stable and accurate data input, movable stand alone DESK TOP VERSION, or optional

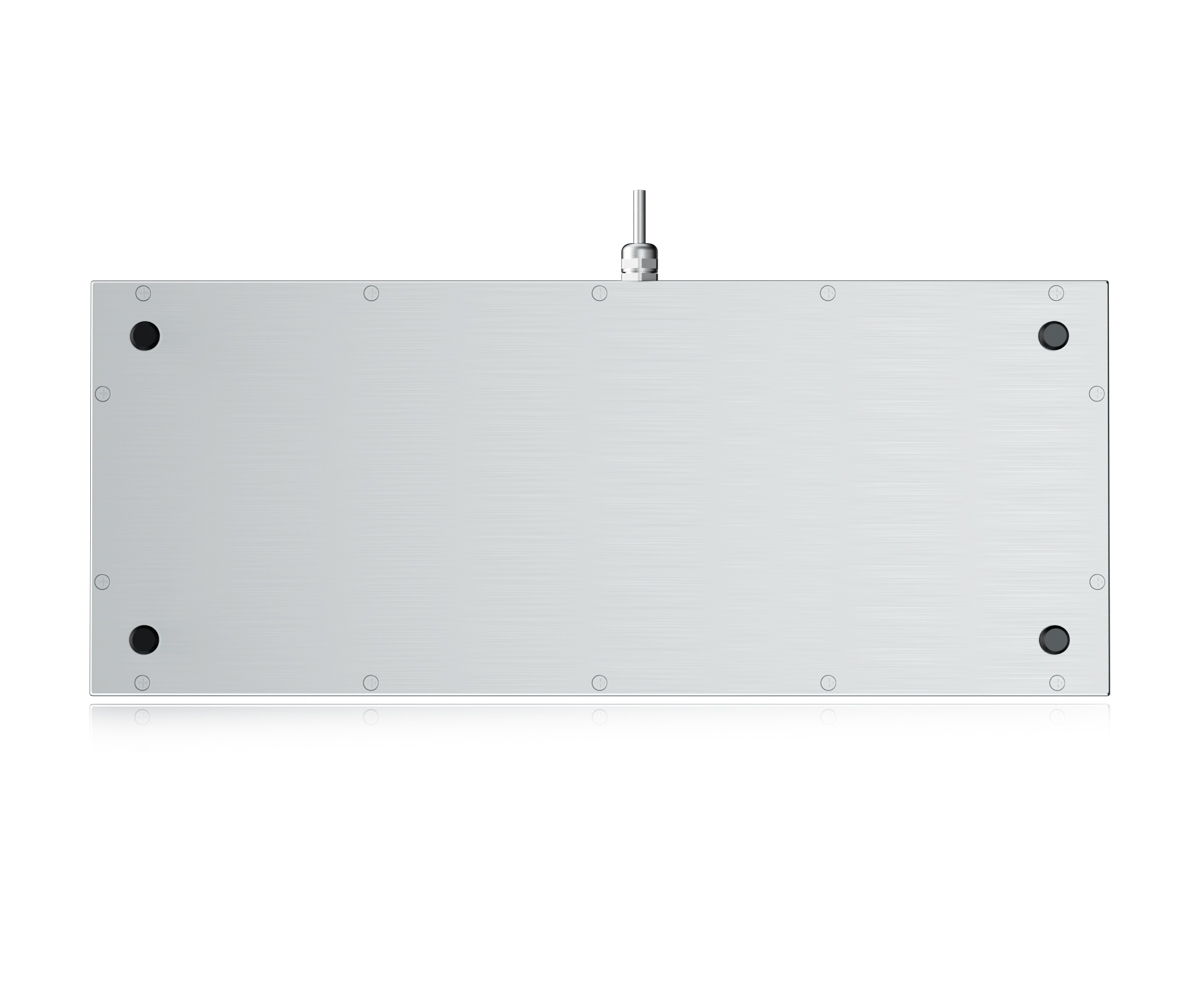

mountable desktop with mounting holes on the bottoms for fixing. FN+Clean combination keys to lock/disable the whole keyboard for easy cleaning

without disconnecting the keyboard from PC. Which is good for outdoor application with direct rain and very harsh environments with humidity,

much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

DIMENSION: 380.0mm x 155.0mm x 21.5mm (L x W x H)

MECHANICAL DATA
Actuator/keys	90 keys (including 2 mouse buttons)
Key top style	Non-protuberant rectangular keys, laser engraved & etched legends on keys are available
Key Size	14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar
Key travel	0.45±0.05mm
Actuation Force	3.5N±0.2N for key 14.0mm x 14.0mm (pressure point ) 7.0N±0.4N for key 14.0mm x 28.0mm (pressure point)
G.W.	≈3.0KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	50mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Switch Contact Material	Gold-on-Gold key switch technology PCB
Interface	PS2, USB available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Operating RH	3%~90%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level	IP68
Vandal resistant	IK09
Key Lifespan	>1 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATION	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

K-TEK-B380-DHP-FN-DT-DWP--mechanical drawing
