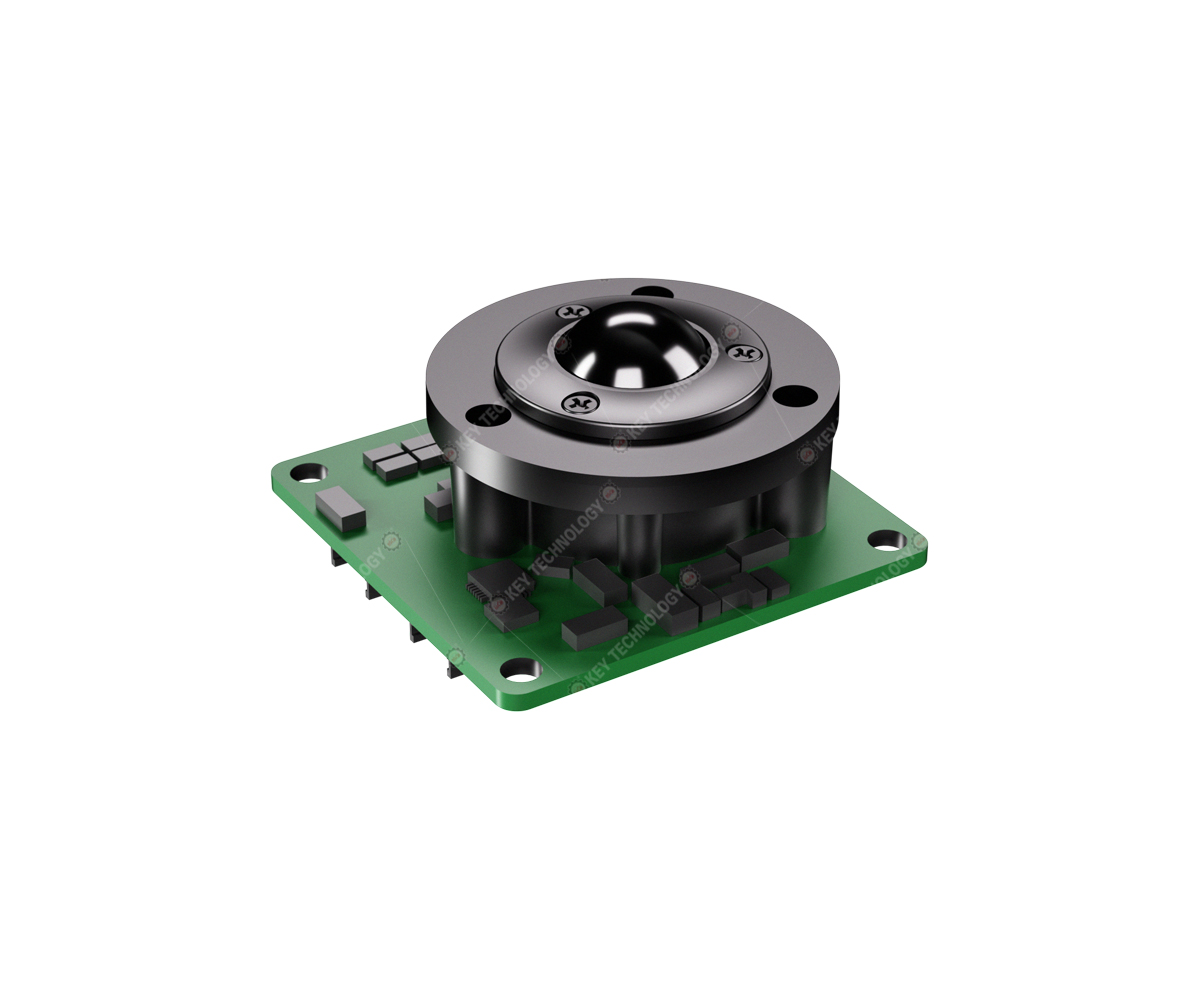

K-TEK-14-LTB-AVR

Category：	Trackball
Interface：	USB/PS2 optional
Protection Level：	IP65
Mounting Solution：	Panel mount
Operating Temperature：	-40℃~+75℃
Ball Diameter：	14.0mm
Application：	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas, marine etc.

Prev： K-TEK-M327KP-FN-BL-IT-ML-DWP

Next： K-TEK-A68KP-AC-DWP

Description

Download

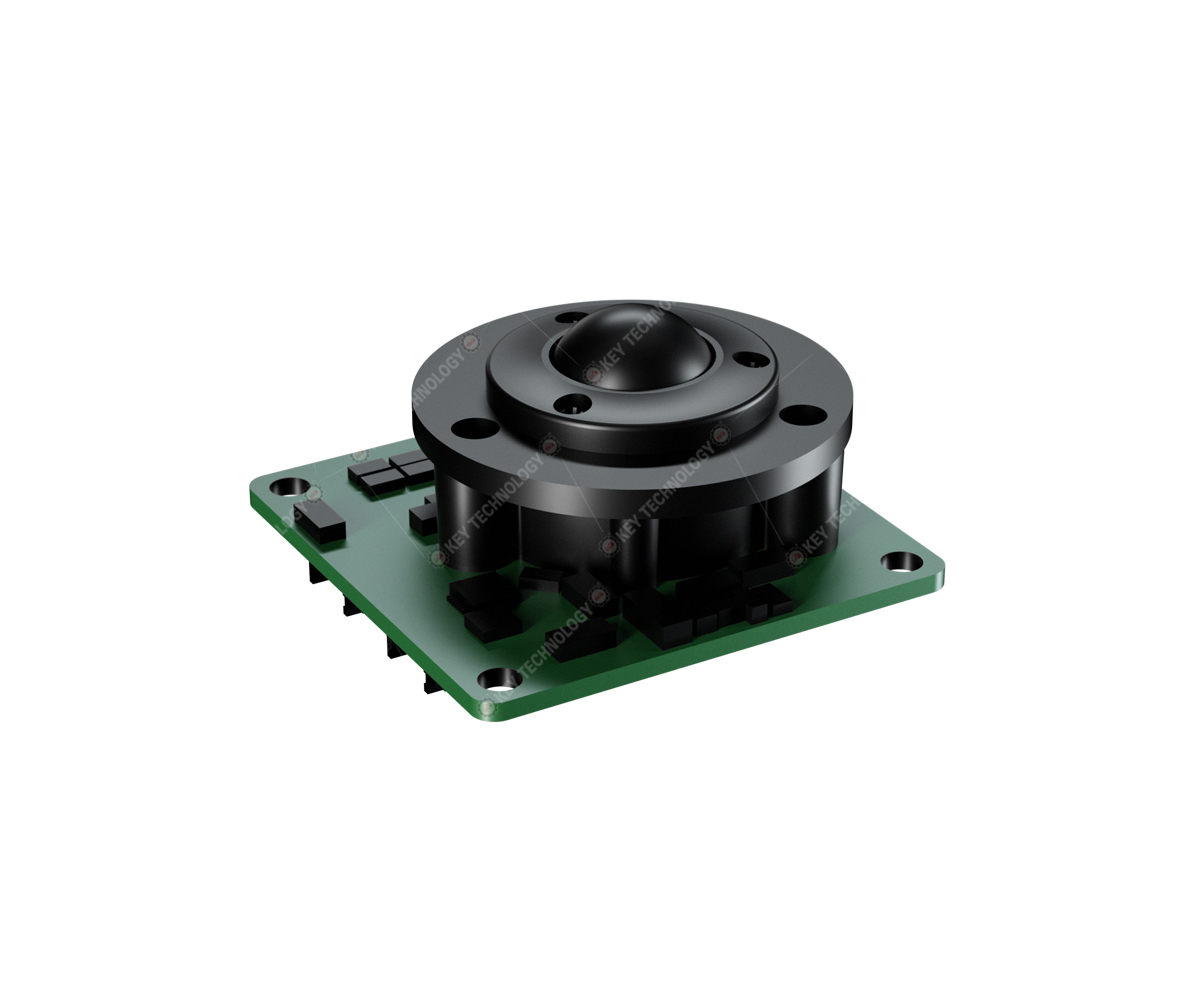

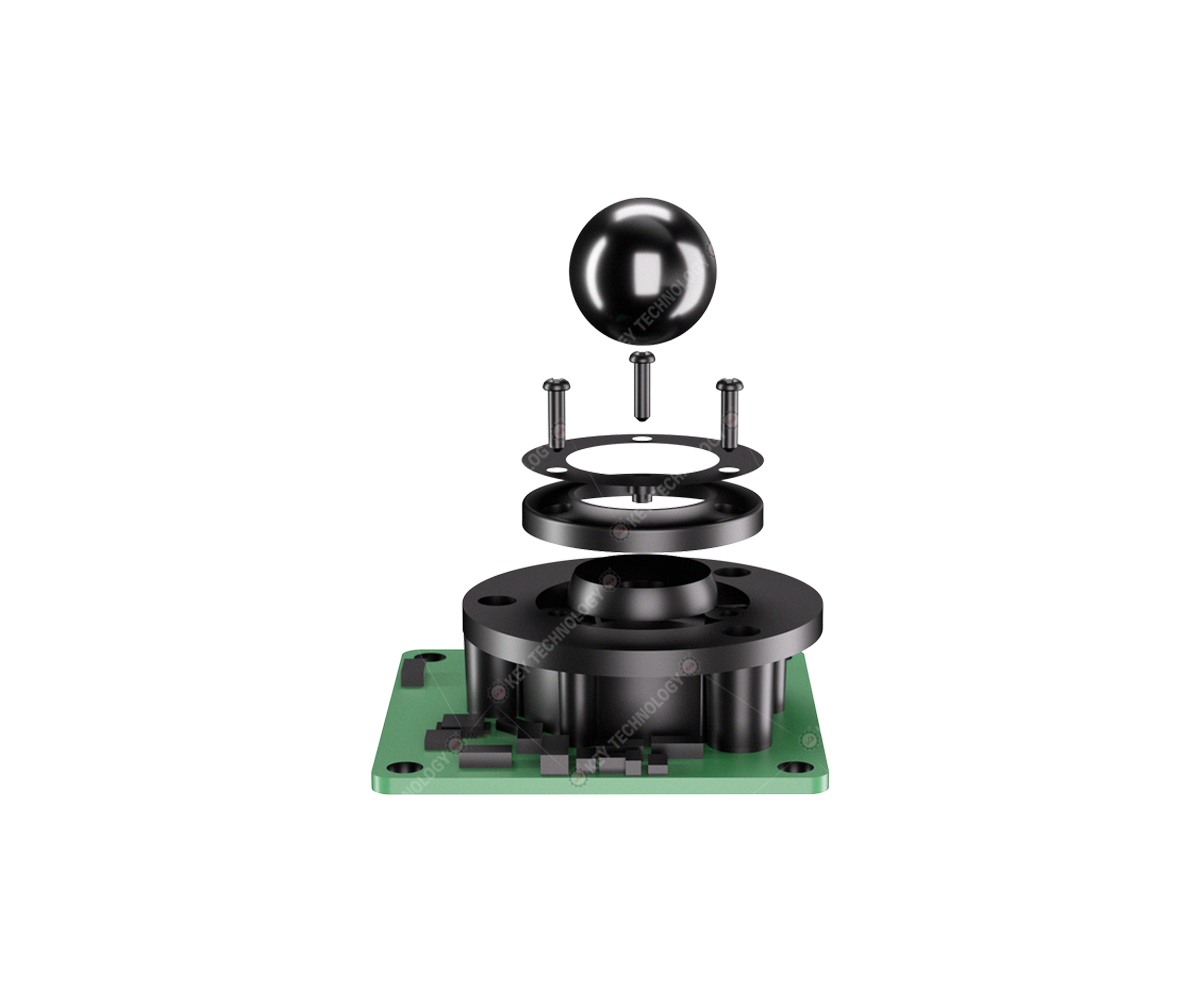

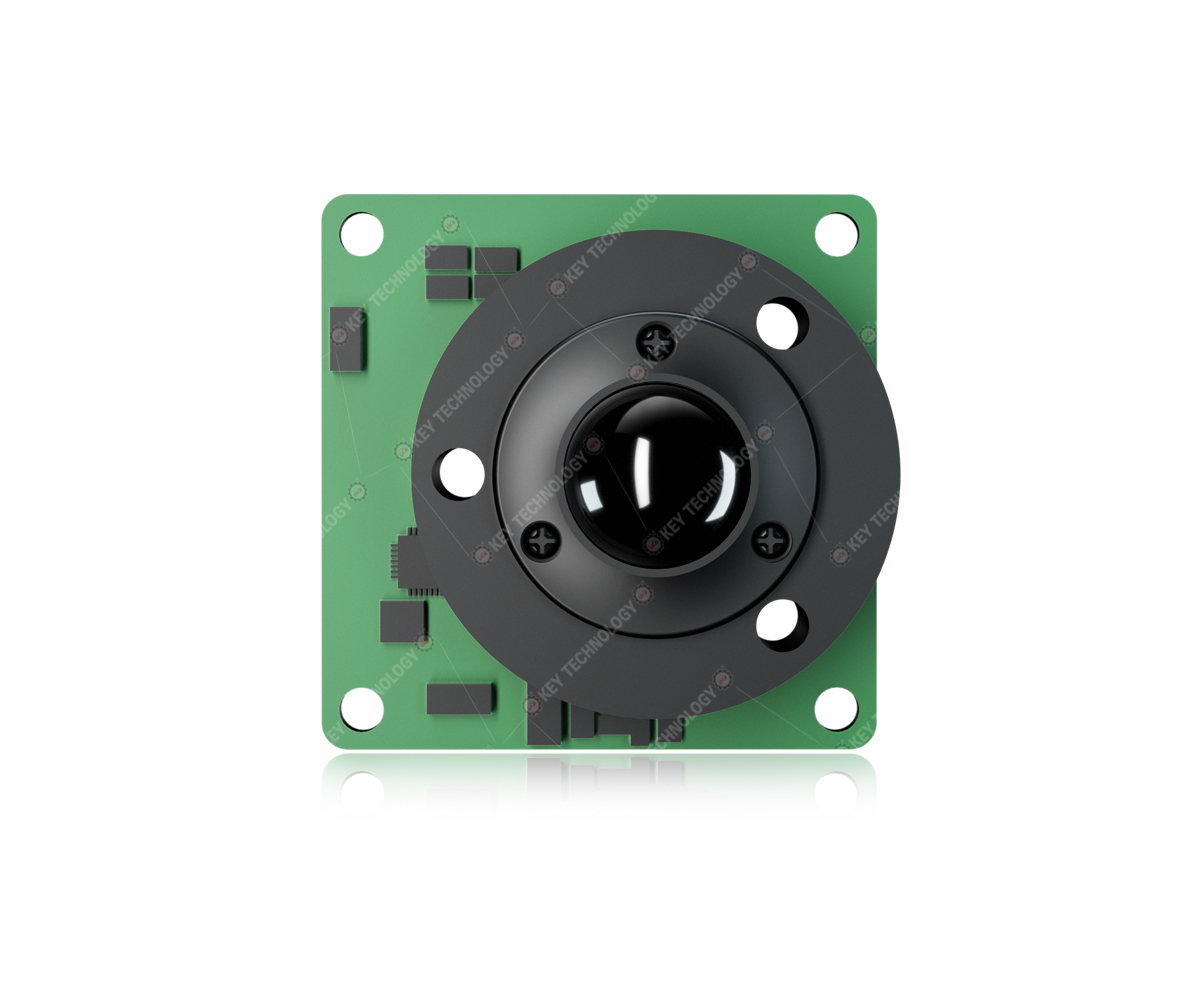

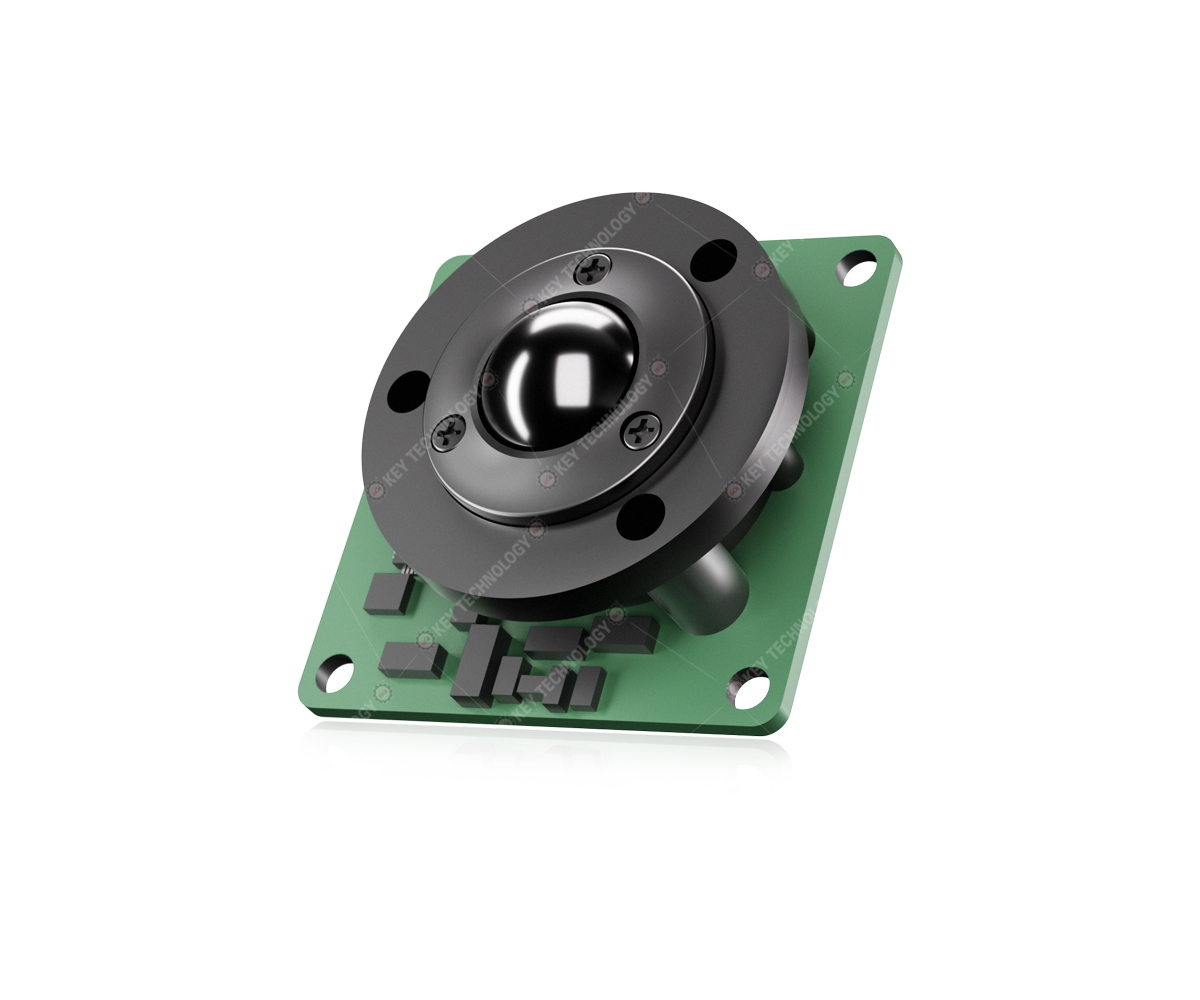

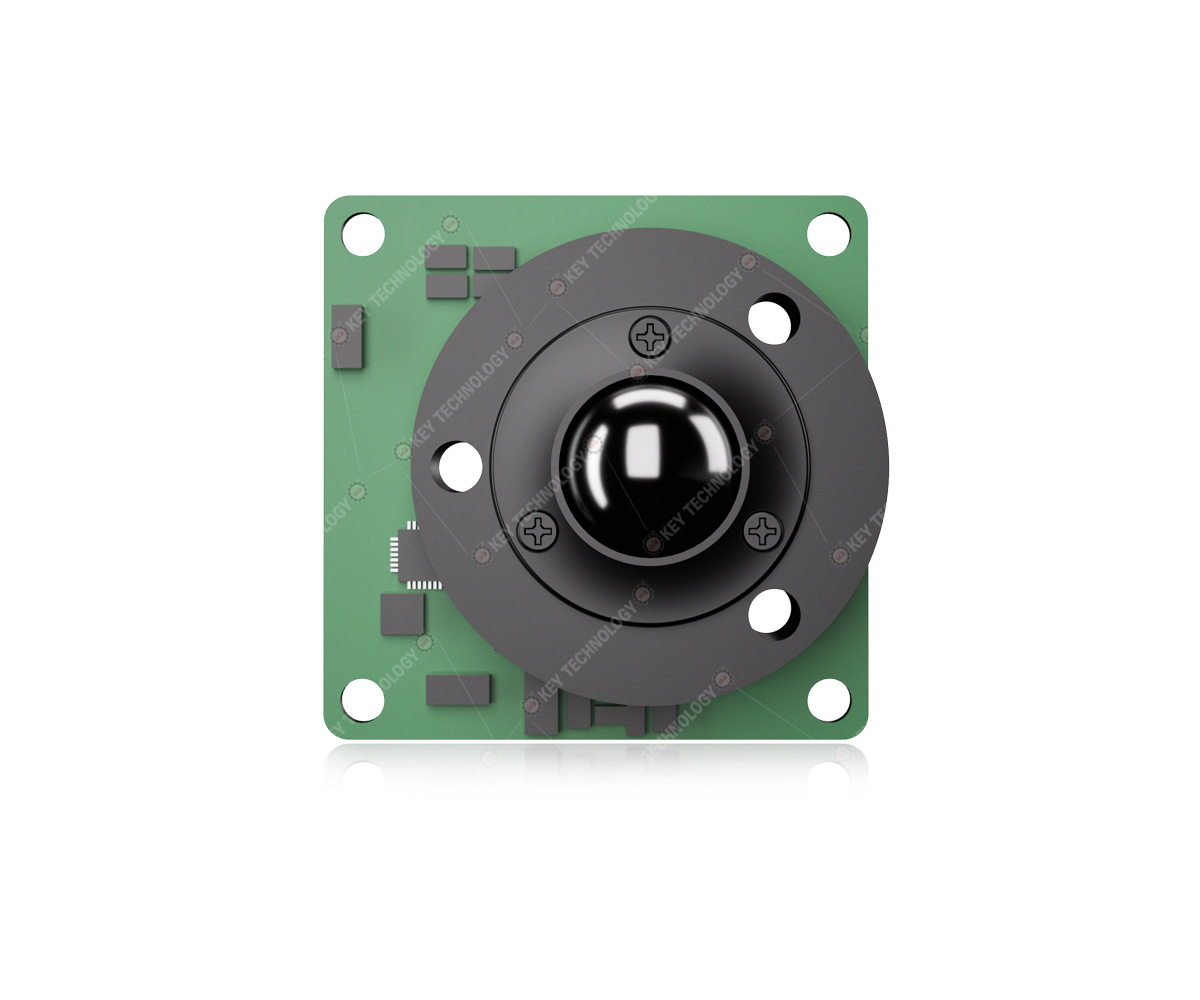

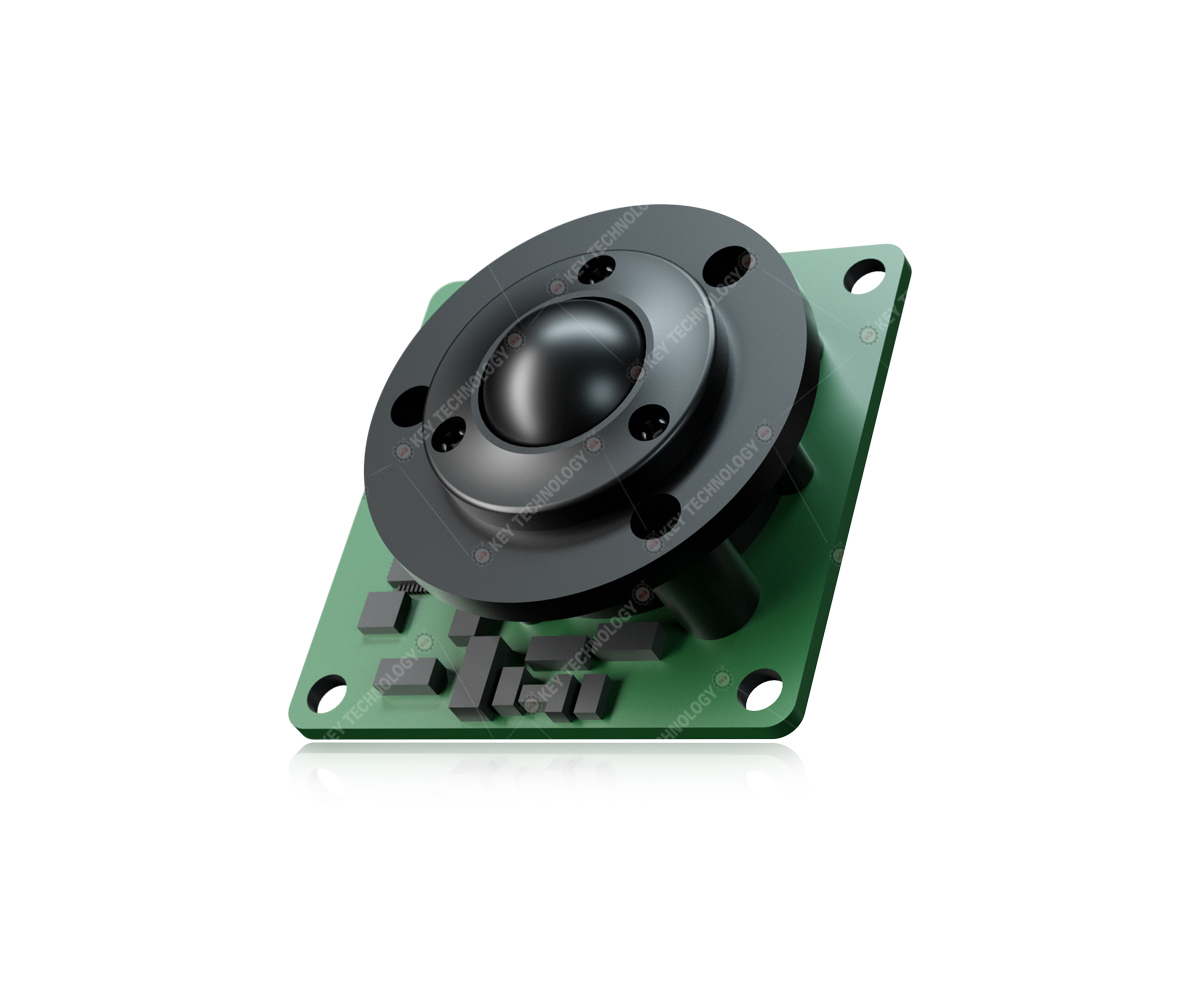

DESCRIPTION: 14.0mm IP65 dynamic waterproof MINI removable laser trackball module with 1200 DPI resolutions for fast and accurate cursor movement, with durable coating & antimicrobial surface and can be used in harsh environments to well withstand bacteria, USB interface, with 2 external left and right mouse buttons optional, panel mounted solution. Designed to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, drop, rain, dust, fungus, solar radiation etc.) as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity, MIL-STD-461G-EMC-EMI-EMS-ESD optional.

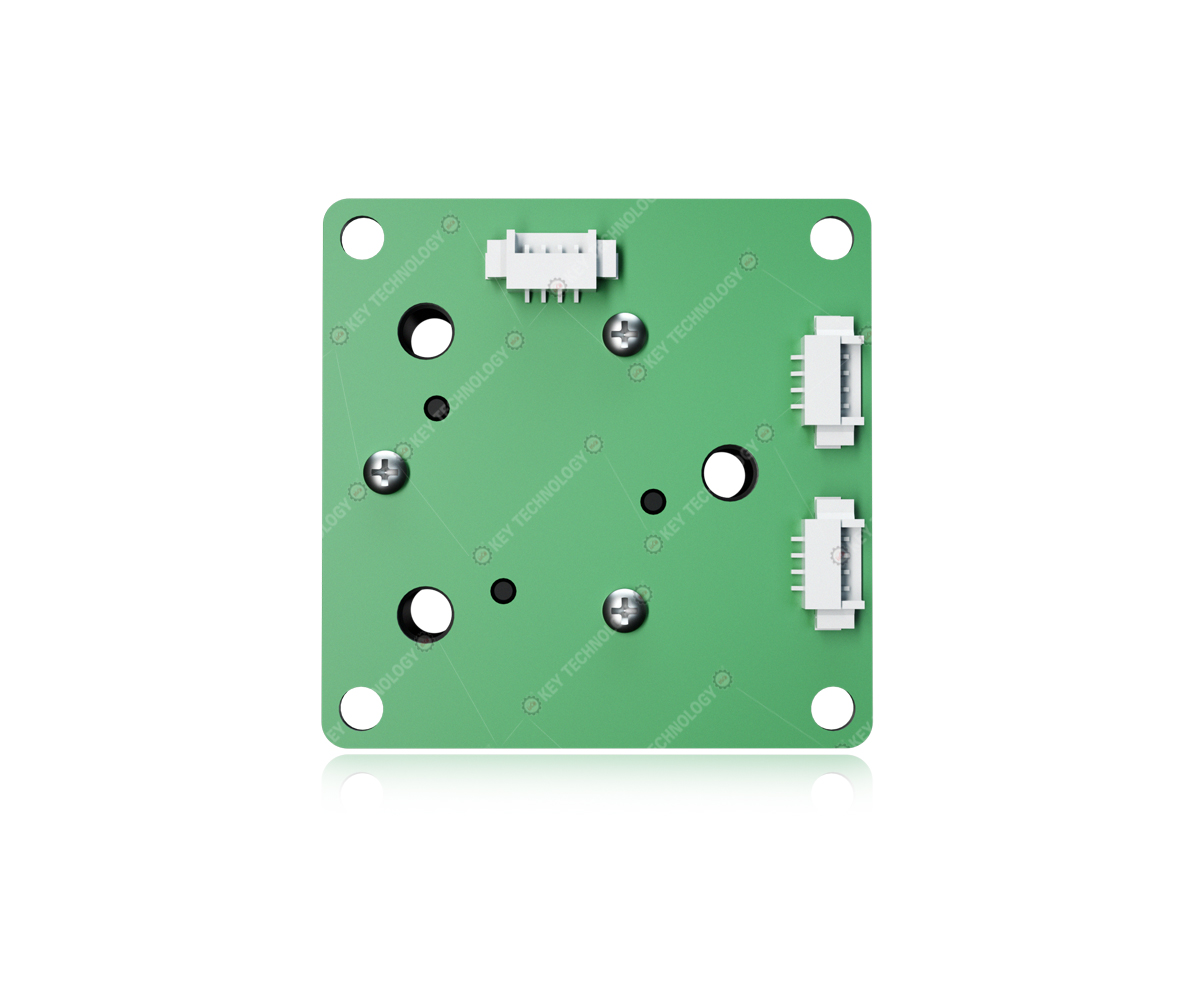

DIMENSIONS: 42.5mm x 42.0mm (L X W)

MECHANICAL DATA
Trackball lifespan	2 millions scrolling
Trackball diameter	14.0mm
Resolution	1200 DPI
Gross Weight	0.1KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	< 30mA
EMC standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Interface	USB or PS2 optional
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-40℃ to +75℃
Storage temperature	-45℃ to +85℃
Operating RH	3% ~ 95%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC
MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, drop, rain, dust, fungus, solar
radiation etc.)
Protection Level	IP65
MTBF	>20000H
MTTR	<30min
APPLICATION	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas, marine etc.

K-TEK-14-LTB-AVR--mechanical drawing
