K-TEK-M270-FN-BL-ML-OEM

Category：	Silicone keyboard
Key Number：	83 keys
Key Travel：	1.50mm±0.10mm

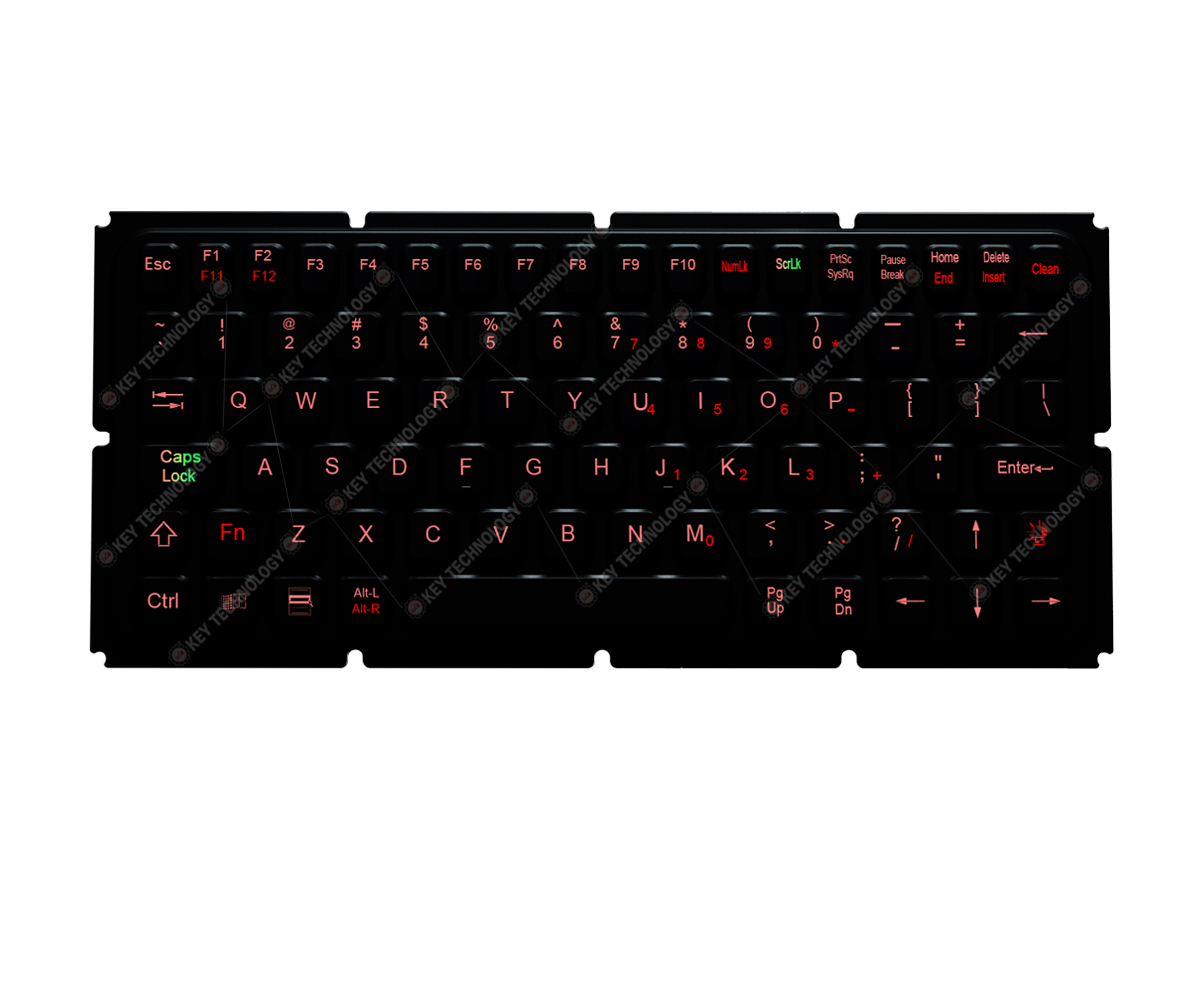

Backlight：	Red
Interface：	USB/PS2 optional
Key Switch：	Carbon-on-gold
Protection Level：	IP65 dynamic (front panel)
Mounting Solution：	Rear panel mount
Operating Temperature：	-40℃~+75℃
Application：	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

Prev： K-TEK-M270-FN-BL-NV-EMC-OEM

Next： K-TEK-M270-FN-BL-IL-OEM

Description

Download

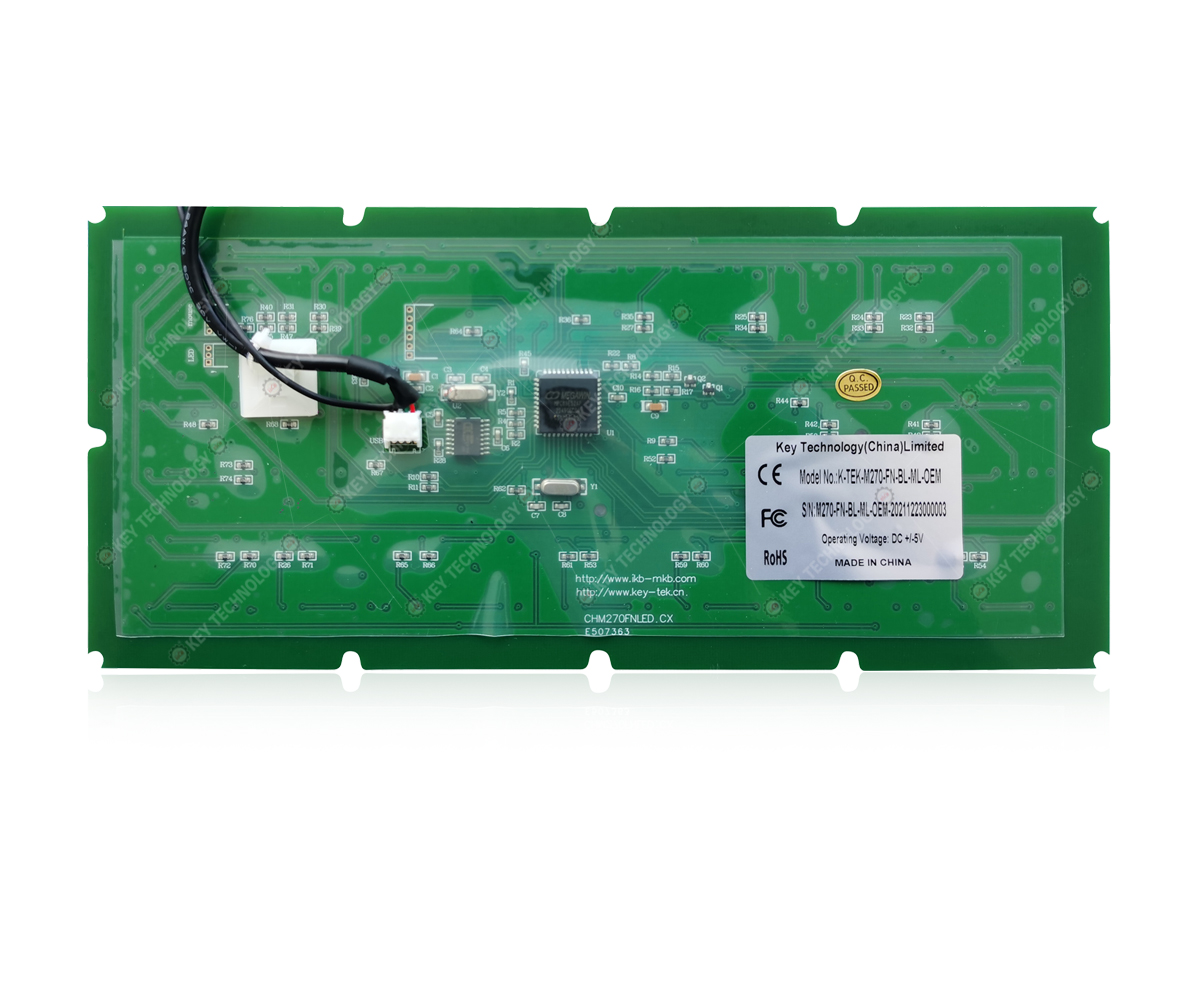

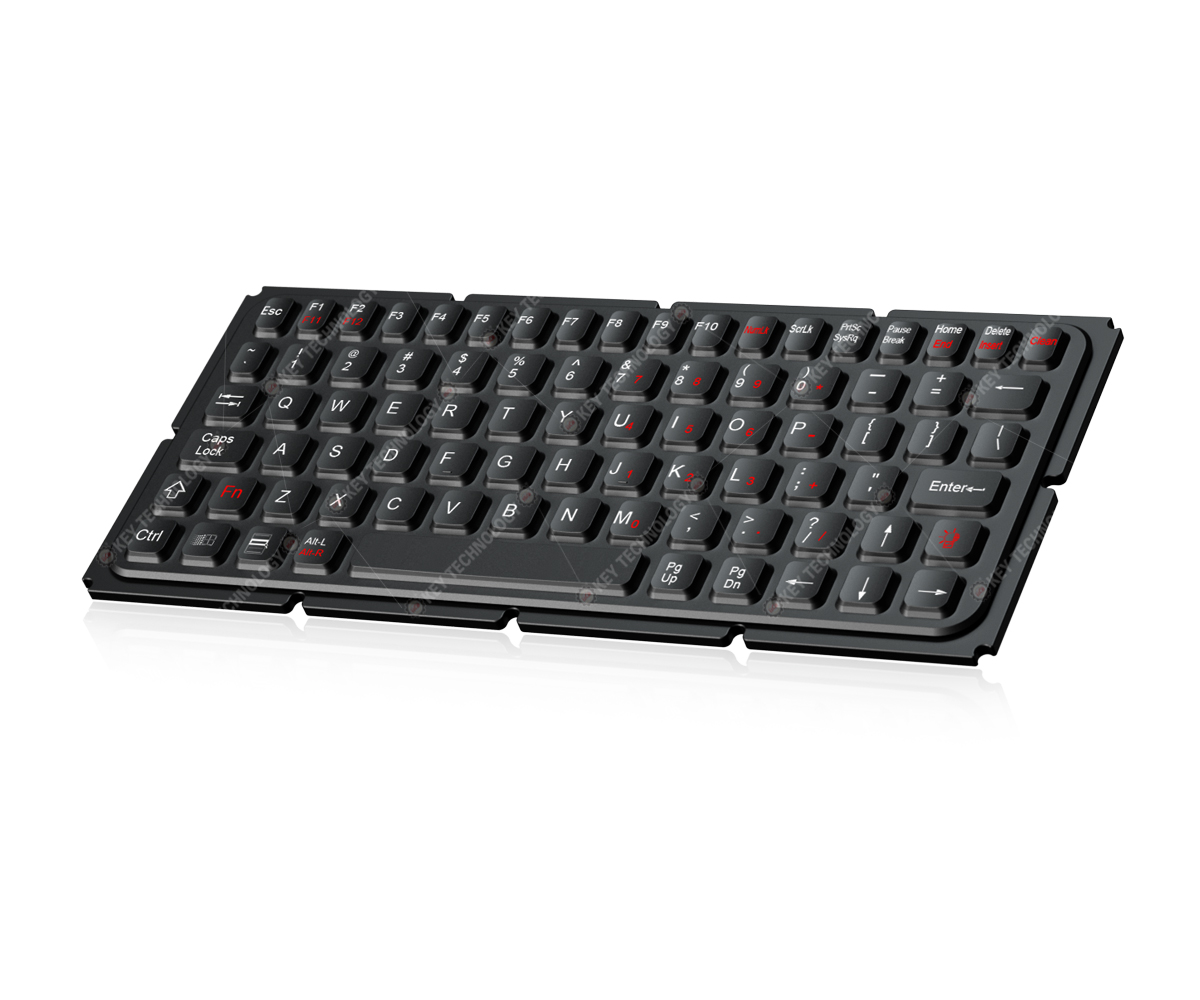

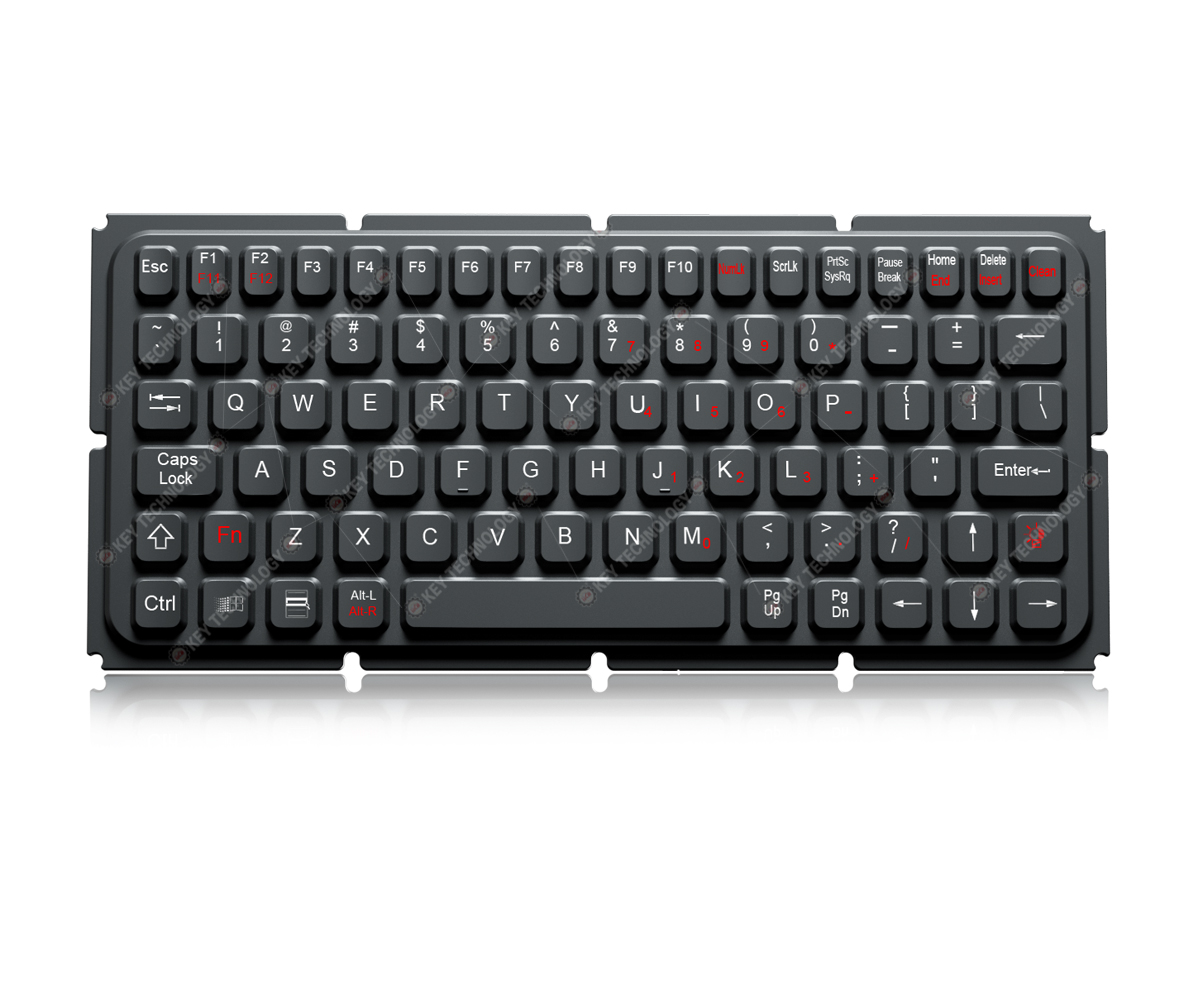

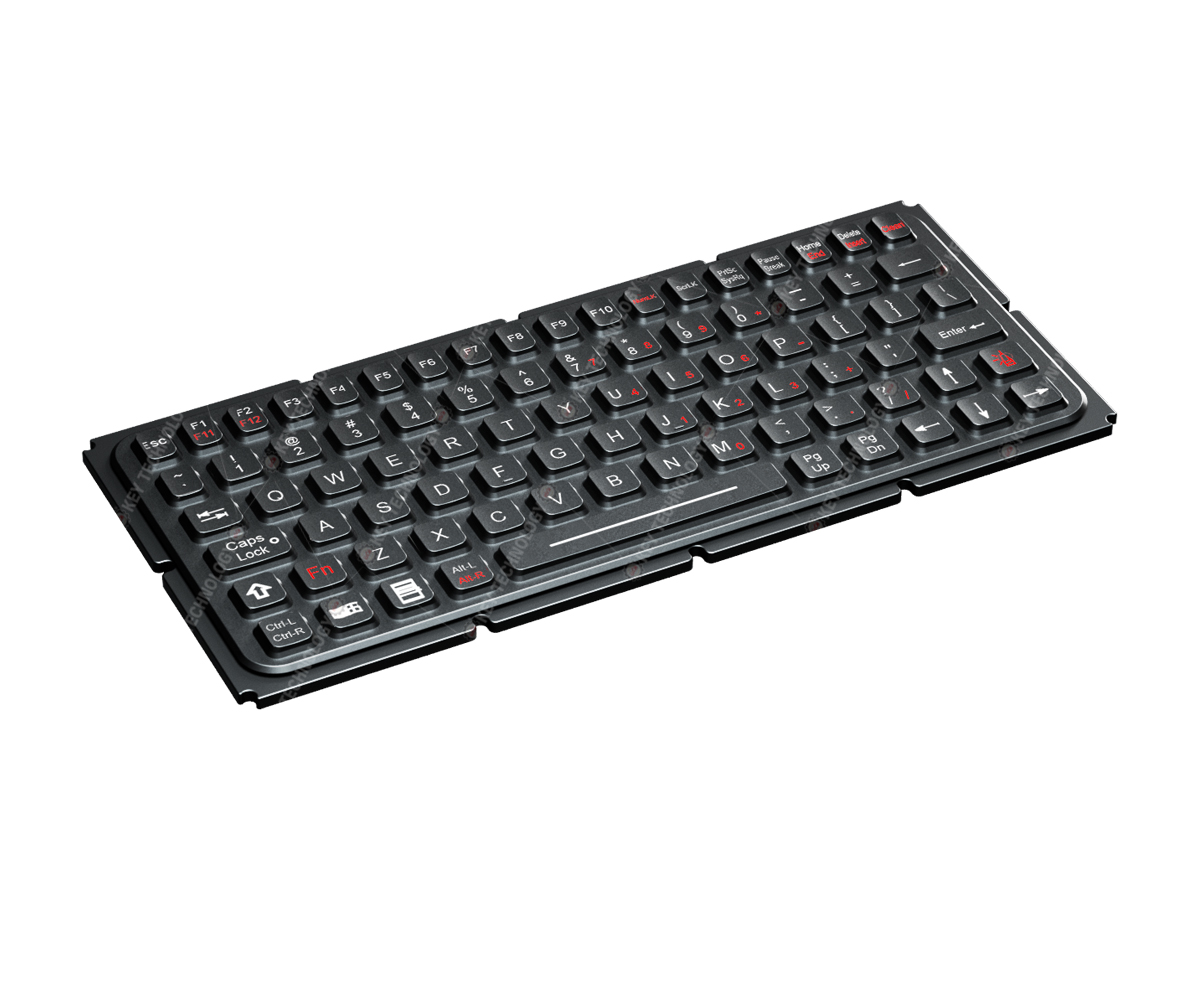

DESCRIPTION: 83 keys IP65 dynamic sealed & ruggedized silicone rubber military keyboard with military electronics PCB included, 12 function keys

on top line for easy operation, military PCB with carbon-on gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling

for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids

under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard

from PC, panel mounted version, adjustable backlight included.Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity,

vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.),and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as the

critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility,

consistency, and continuity.

DIMENSIONS : 277.0mm x 119.0mm(L x W )

MECHANICAL DATA
Keys	83 keys
Key top style	Protuberant rectangular keys with tactile feeling
Key Size	12.0mm X 13.0mm for normal keys, 22.5mm x 13.0mm for enter key and 82.0mm x 12.5mm for space bar key
Key travel	1.50mm±0.1mm
Actuation Force	1.5N±0.2N (pressure point )
Switch life	more than 5 million of operations
G.W.	0.80KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	30mA when backlight is off, 300mA with backlight on
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Switch Contact Material	Carbon-on-Gold key switch technology with gold PCB
Interface	PS2, USB available
Cable length	Standard 2.0m, customized length available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-40℃ to +75℃
Storage temperature	-45℃ to +85℃
Operating RH	100%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS compliant, CE and FCC certified, MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperatue shock, rain, salt mist, dust, fungus, solar radiation etc.)
Protection Level	IP65
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

K-TEK-M270-FN-BL-ML-OEM-mechanical drawing
