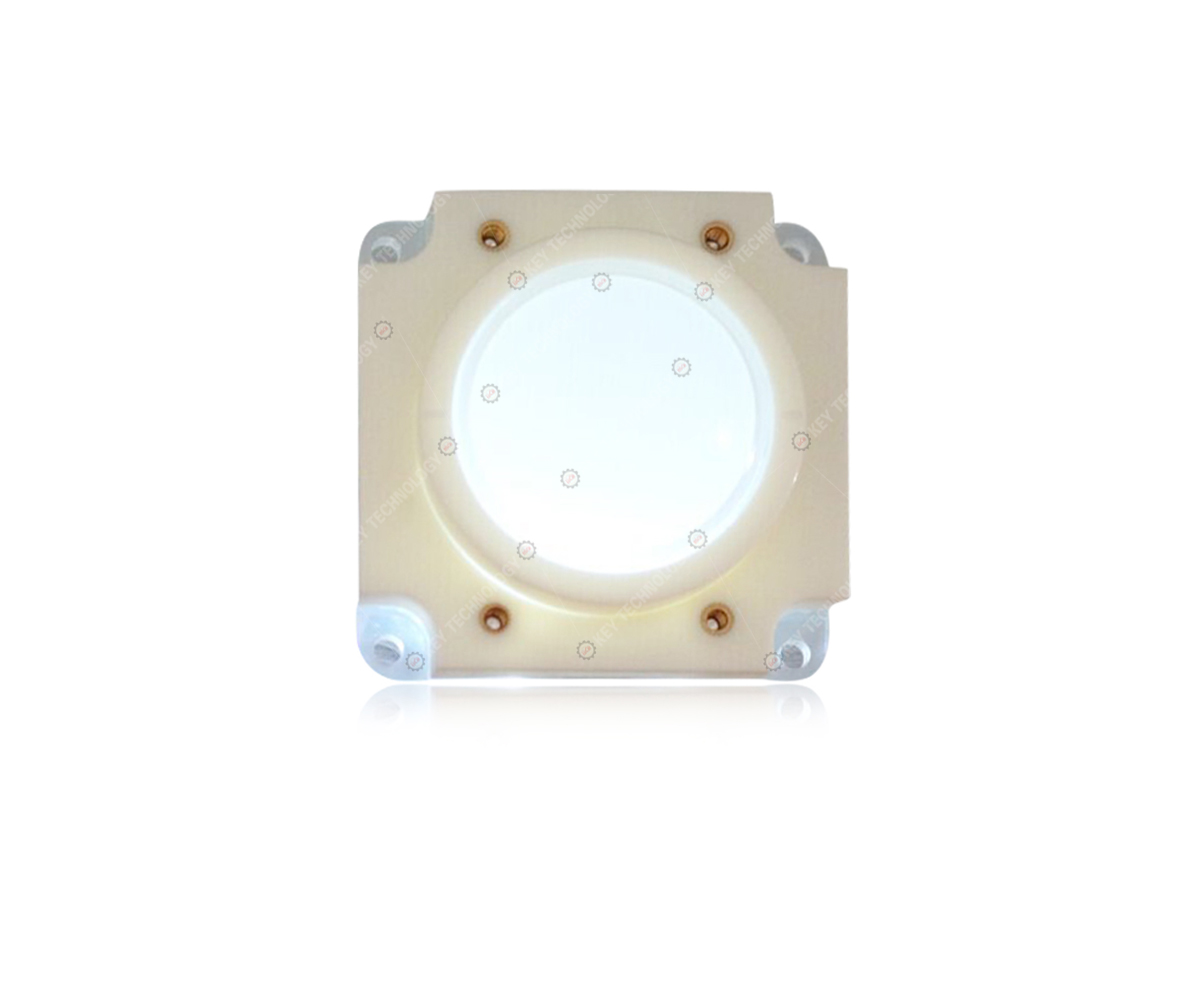

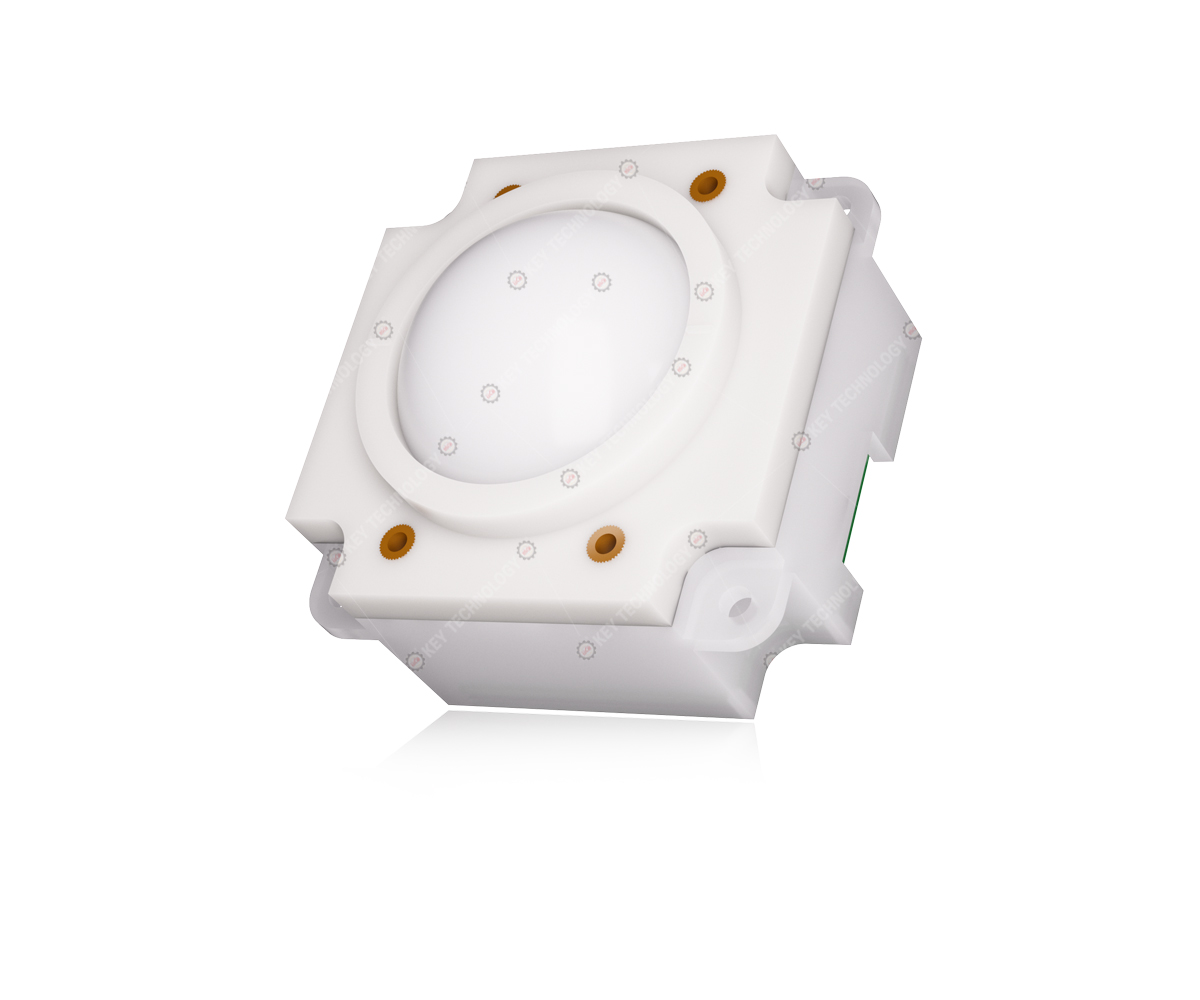

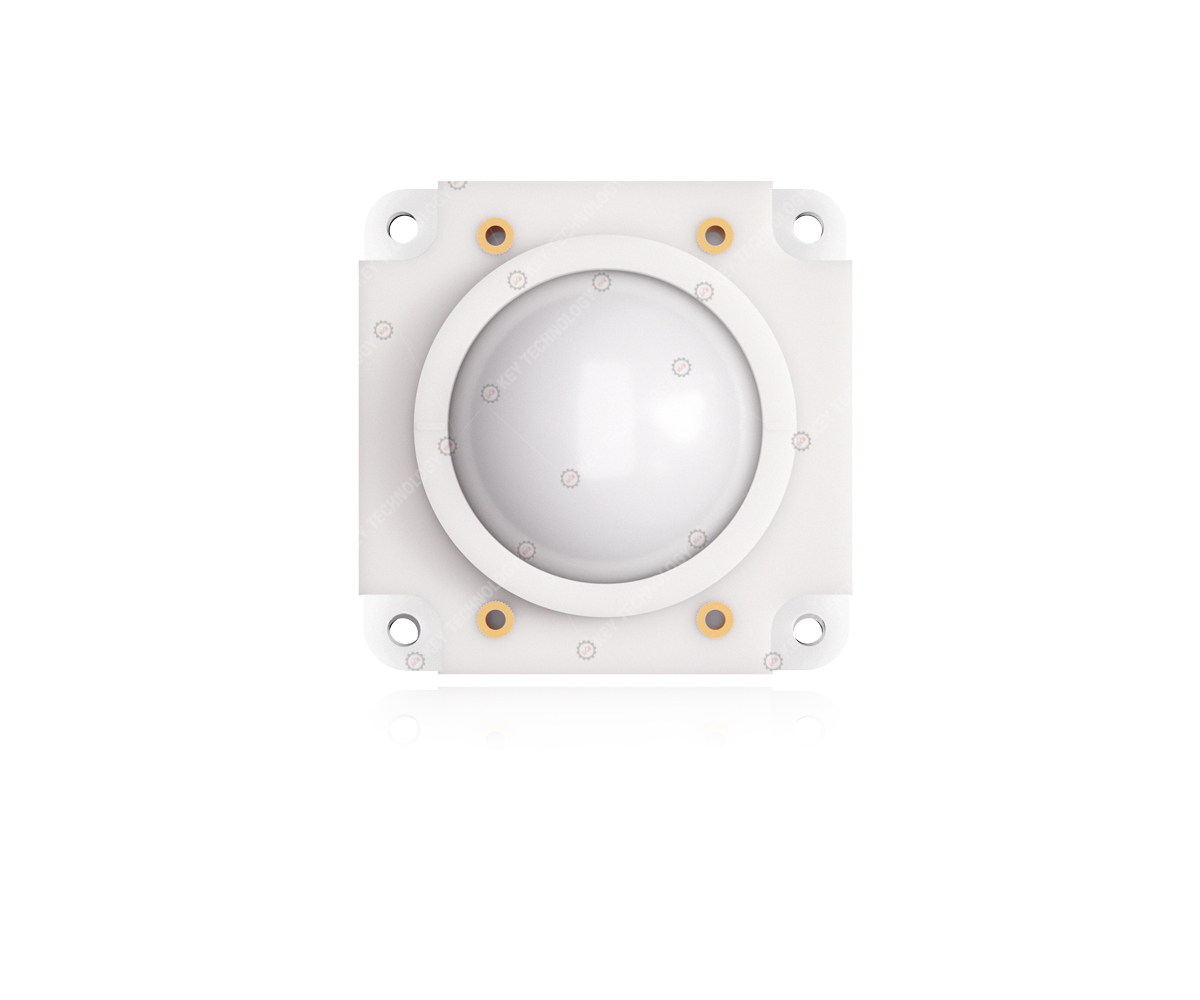

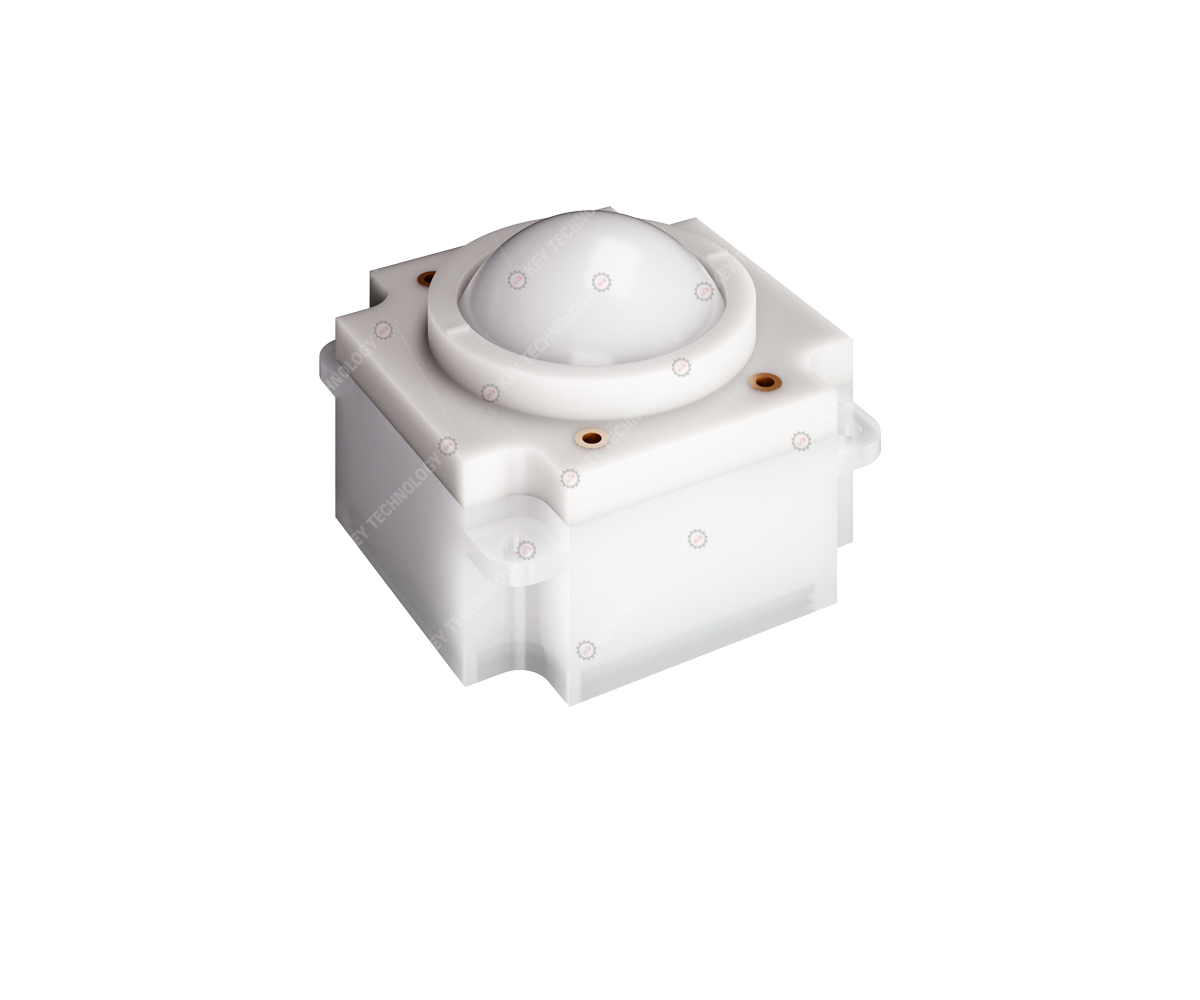

DESCRIPTION: 50.0mm IP65 waterproof laser trackball module with backlight, with 1200 DPI resolutions for fast and accurate cursor movement, white backlight included.
DIMENSIONS: 72.00mm x 72.00mm x 50.80mm(front panel)
TECHNICAL SPECIFICATION
ITEM | SPECIFICATION |
Mechanical Data | Ball diameter | 50mm/2.00'' (19mm, 25mm, 38mm also available) |
Track ball lifespan | > 2 millions scrolling |
Dimension | 50.0 mm diameter for ball, 72.00mm x 72.00mm x 50.80mm(front panel) |
Interface | PS2, USB are available |
Electrical | Power supply | DC +5V±5% |
Protection level | IP65 static |
EMC Standard | EN 55032:2015, EN 55035:2017 |
Power consuming | ≤1.00W(dynamic) |
≤0.2W(static) |
Environmental | Operating temperature | -20ºC~+ 65º C |
Storage temperature | - 30ºC~+ 75ºC |
Operating RH | 30～90% |
Atmospheric pressure | 60～106Kpa. |
Reliable | Certificates | RoHS compliant, CE and FCC certified |
MTBF | >20000h |
MTTR | < 30min |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) |
Packing Details | Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. |
Application | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas, marine etc. |
