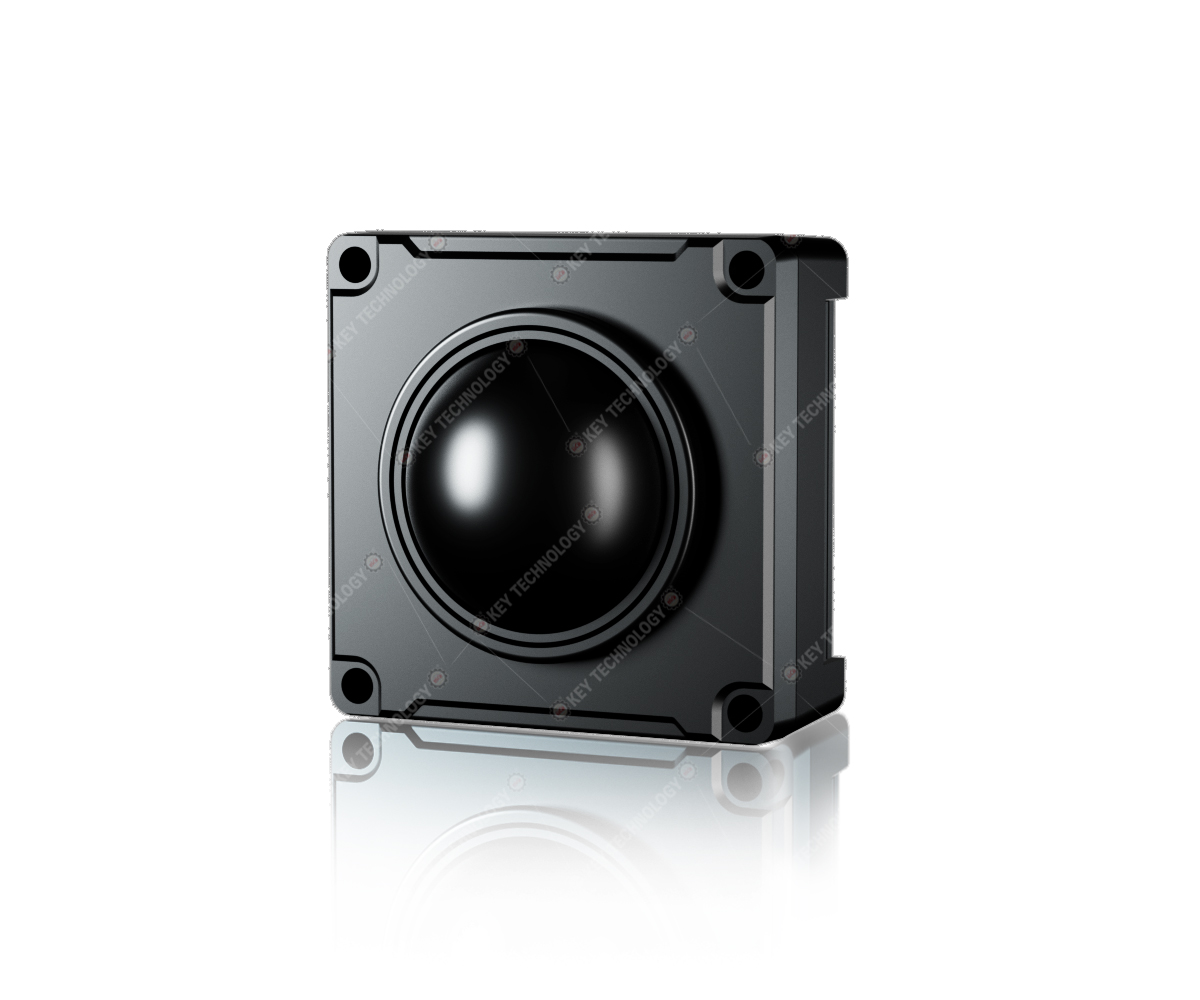

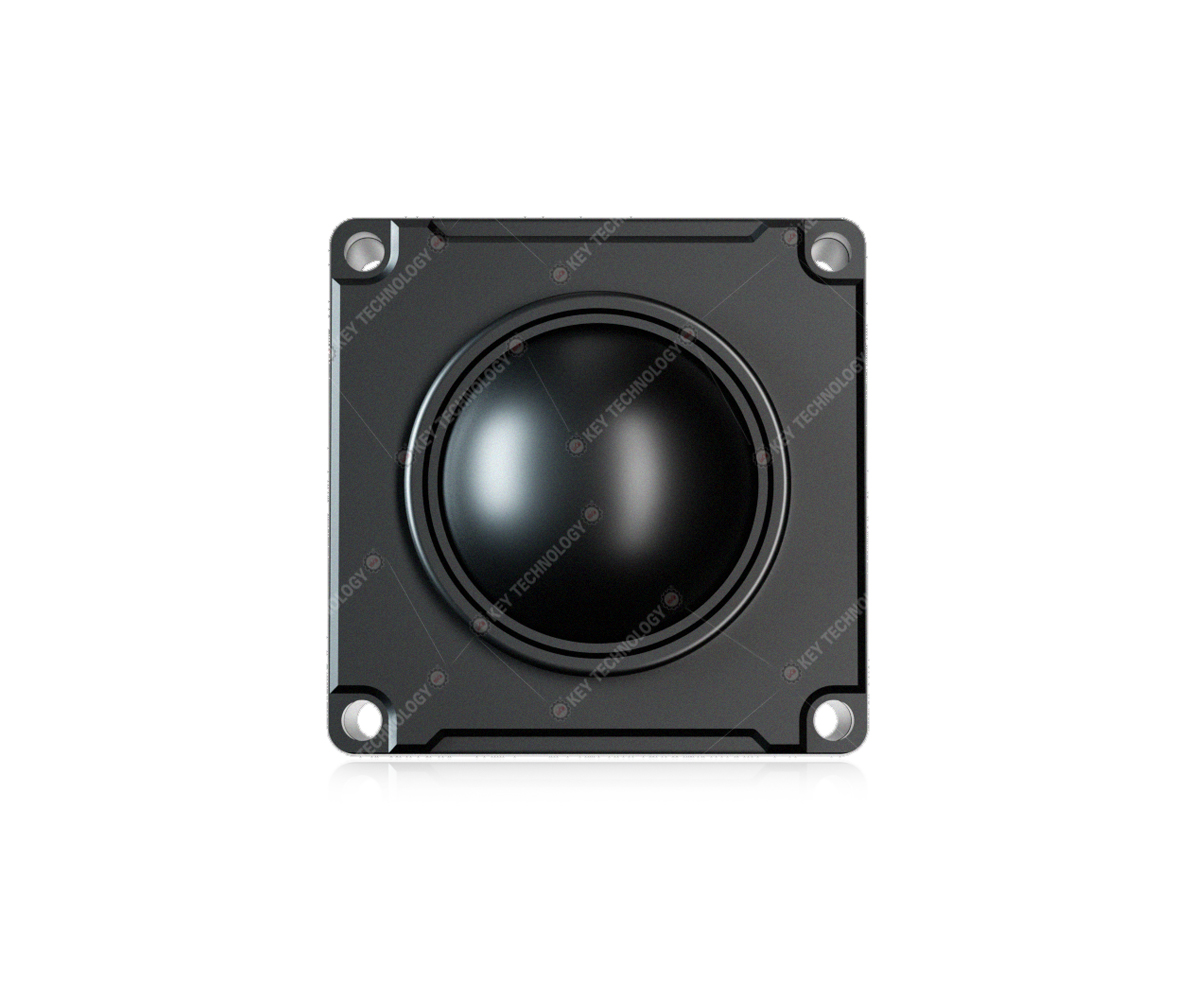

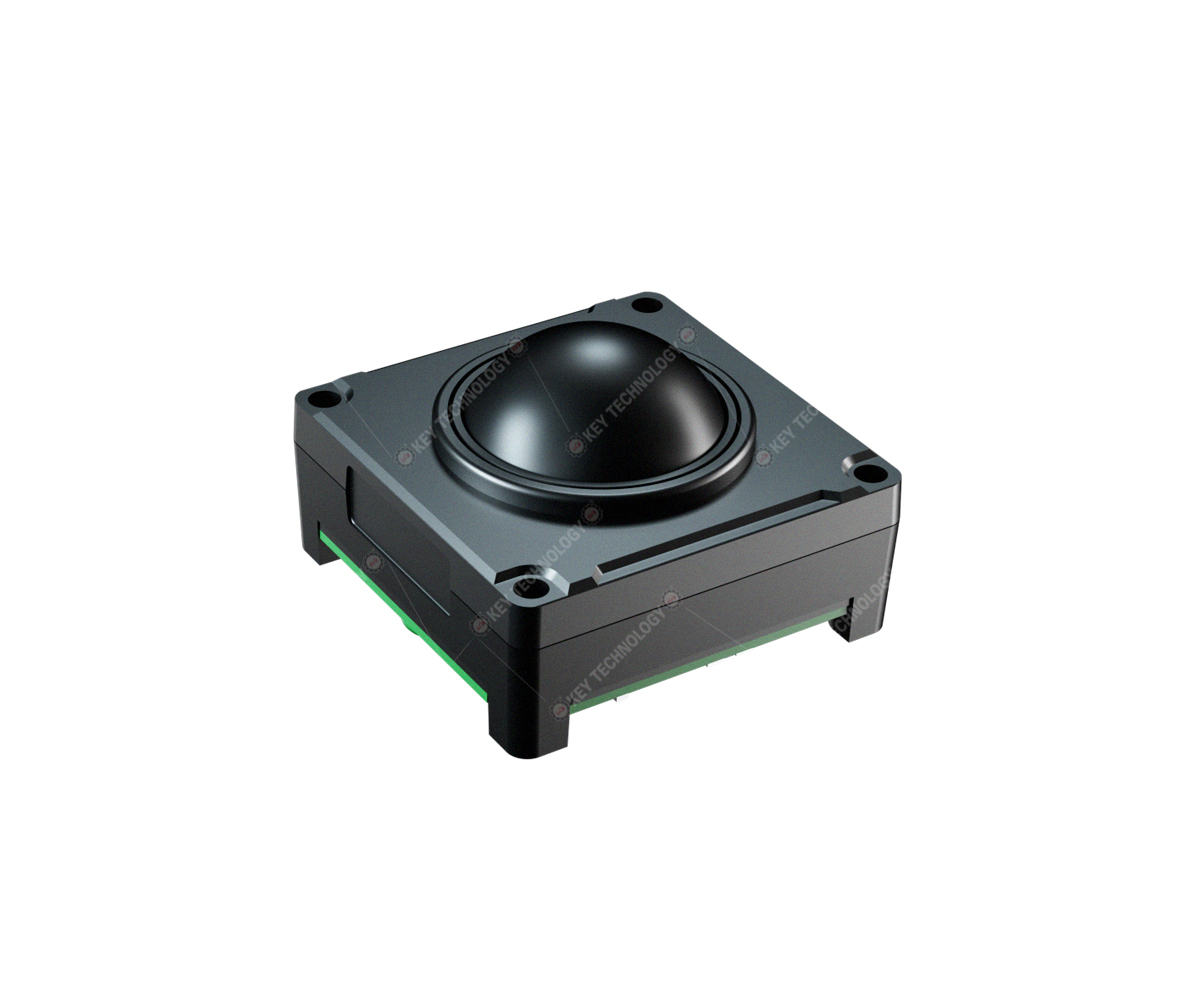

DESCRIPTION: 38.0mm (1.5’') vandal proof IP65 static mechanical black resin trackball module, with 400DPI resolutions, designed to meet MIL-STD-461G and MIL-STD-810H, military level, anti-interference, and low radiation etc. DIMENSIONS: 60.3.0mm x 60.3mm x 25.43mm
TECHNICAL SPECIFICATION
ITEM | SPECIFICATION | Mechanical Data | Ball diameter | 38mm/1.50’' | Track ball lifespan | >2 millions scrolling | Dimension | 38 .1 mm diameter for ball, 60.3.0mm x 60.3mm x 25.43mm | Interface | USB | Electrical | Power supply | DC +5V±5% | Protection level | IP65 static (front panel) | EMC Standard | MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity) | Power consuming | ≤1.00W(dynamic) | ≤0.2W(static) | Environmental | Operating temperature | -40ºC~+ 75º C | Storage temperature | -45ºC~+ 85ºC | Operating RH | 30～90% | Atmospheric pressure | 60～106Kpa. | Reliable | Certificates | RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H (wide temperature, shock, salt mist, vibration, fungus, humidity) | MTBF | >20000h | MTTR | < 30min | OS | All Windows, Linux, Unix | Packing Details | Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. | Application | Industrial,rugged computer, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas, marine etc. | Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc.: | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads | CS106 Conducted Susceptibility, Transients, Power Leads | CS112 Electrostatic Discharge Susceptibility | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field | RE102 10kHz - 18GHz Radiated Emissions, Electric Field | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field | MIL-STD-810H (wide temperature, shock, vibration, fungus, humidity). |
|
