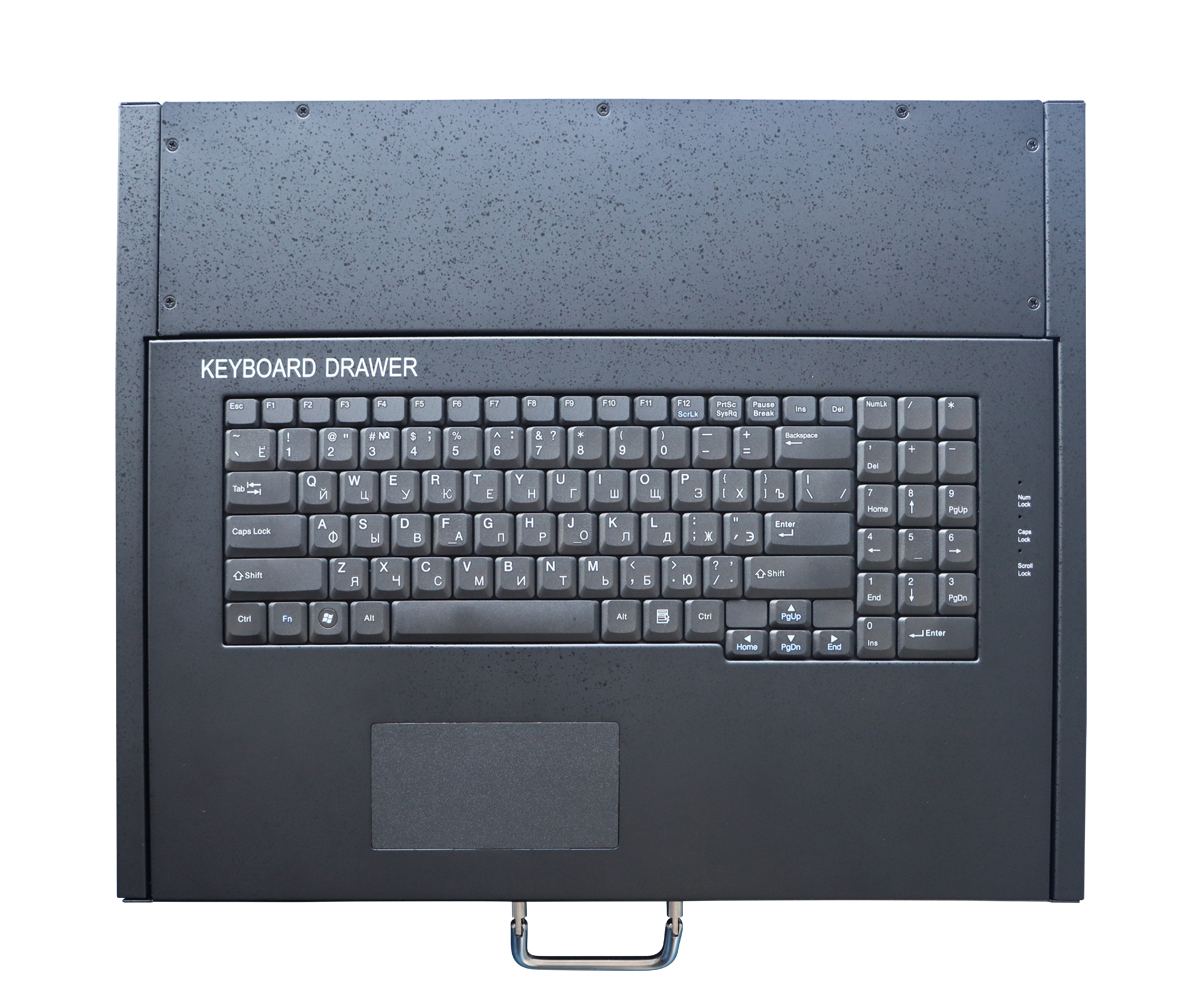

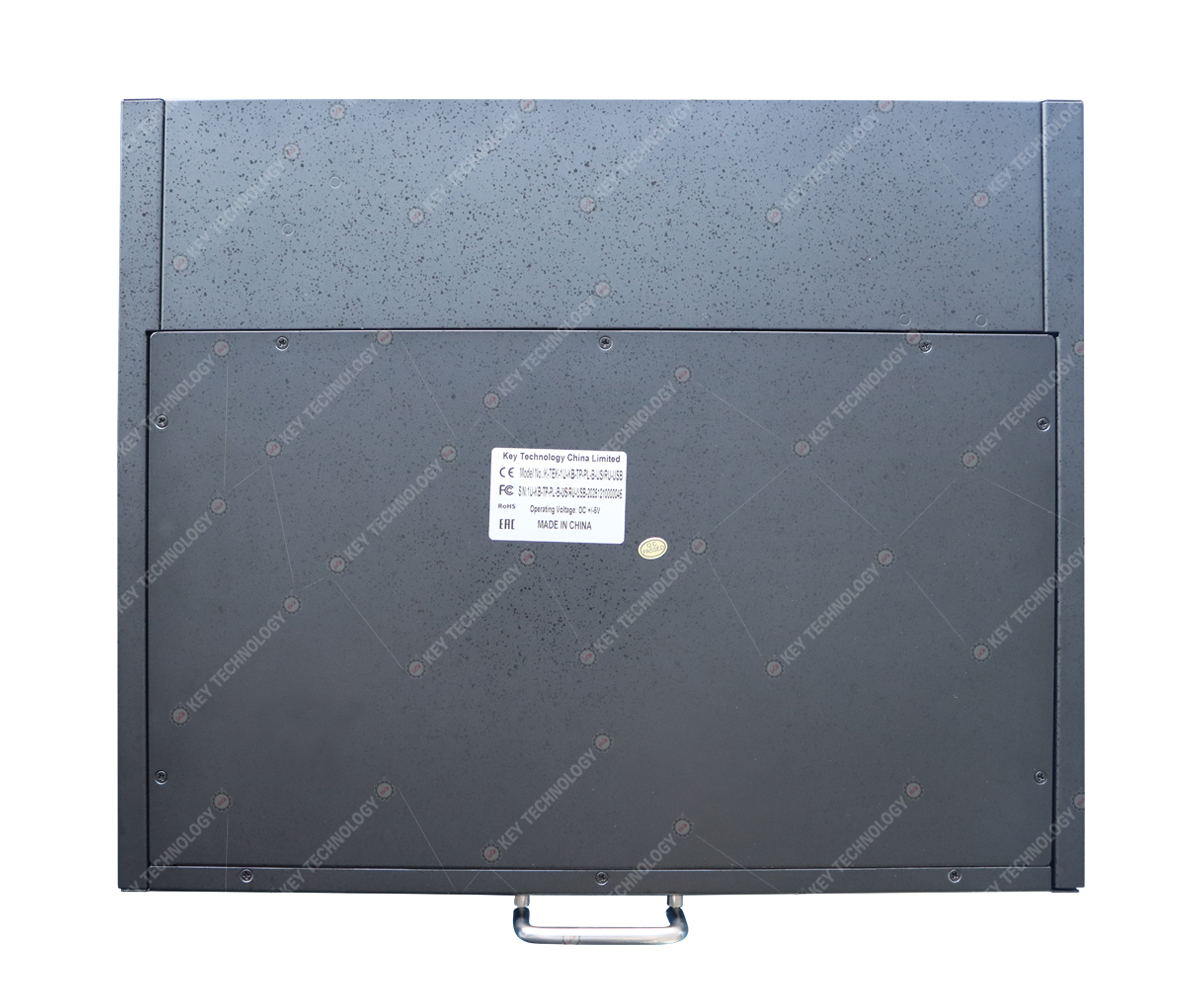

Description: K-TEK-1U-KB-TP-PL is a rack mount keyboard drawer for keyboard and mouse control console; it is fit for standard 19” rack installation
and can be operated with the computer.
Dimension: 440.0mm×355.0mm×42.5mm
MECHANICAL DATA |
Cable length | 1800mm |
Control Port (keyboard /mouse) | 1* DB9F |
PC Port (keyboard /mouse) | 1* USB type A 1 * 6P Mini-DIN F(purple) 1 * 6P Mini-DIN F(green) |
Key travel | 1.50±0.10mm |
Switch life | more than 5 million of operations |
Touch pad | sealed and ruggedized tough touchpad |
Product Dimension (W × D × H) | 440.0mm×355.0mm×42.5mm |
Package Dimension (W × D × H) | 532.0mm×455.0mm×125.0mm |
G.W. | 7.5KGs |
ELECTRICAL DATA |
Supply Voltage | DC +5V±5% |
Current Rating | 50mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material | Carbon-on-Gold key switch technology PCB |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Operating RH | 30-90% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY |
RoHS Compliant, CE and FCC, ESD |
Protection Level | IP65 static (front panel) |
Vandal resistant | IK08 |
Key Lifespan | >5 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
