Product Detail

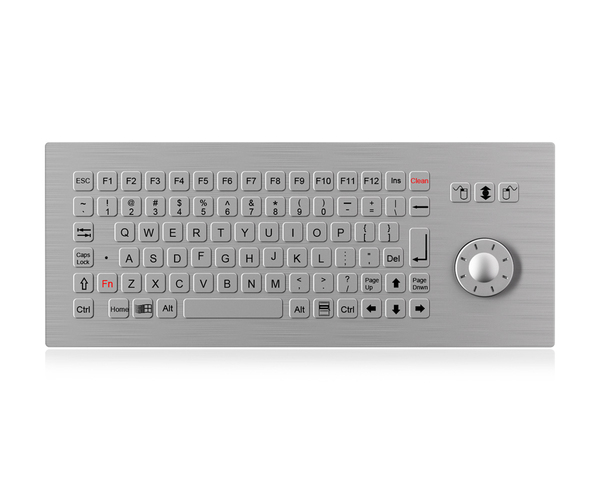

K-TEK-B361-DHP-FN-DWP

Category: Stainless steel keyboard
Key Number: 86 keys (including 3 mouse buttons)
Key Travel: 0.45±0.05mm
Interface: USB/PS2 optional
Key Switch: Gold-on-gold
Protection Level: IP65 dynamic
Mounting Solution: Top panel mount
Operating Temperature: -20℃ to +65℃
Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
Description
Download

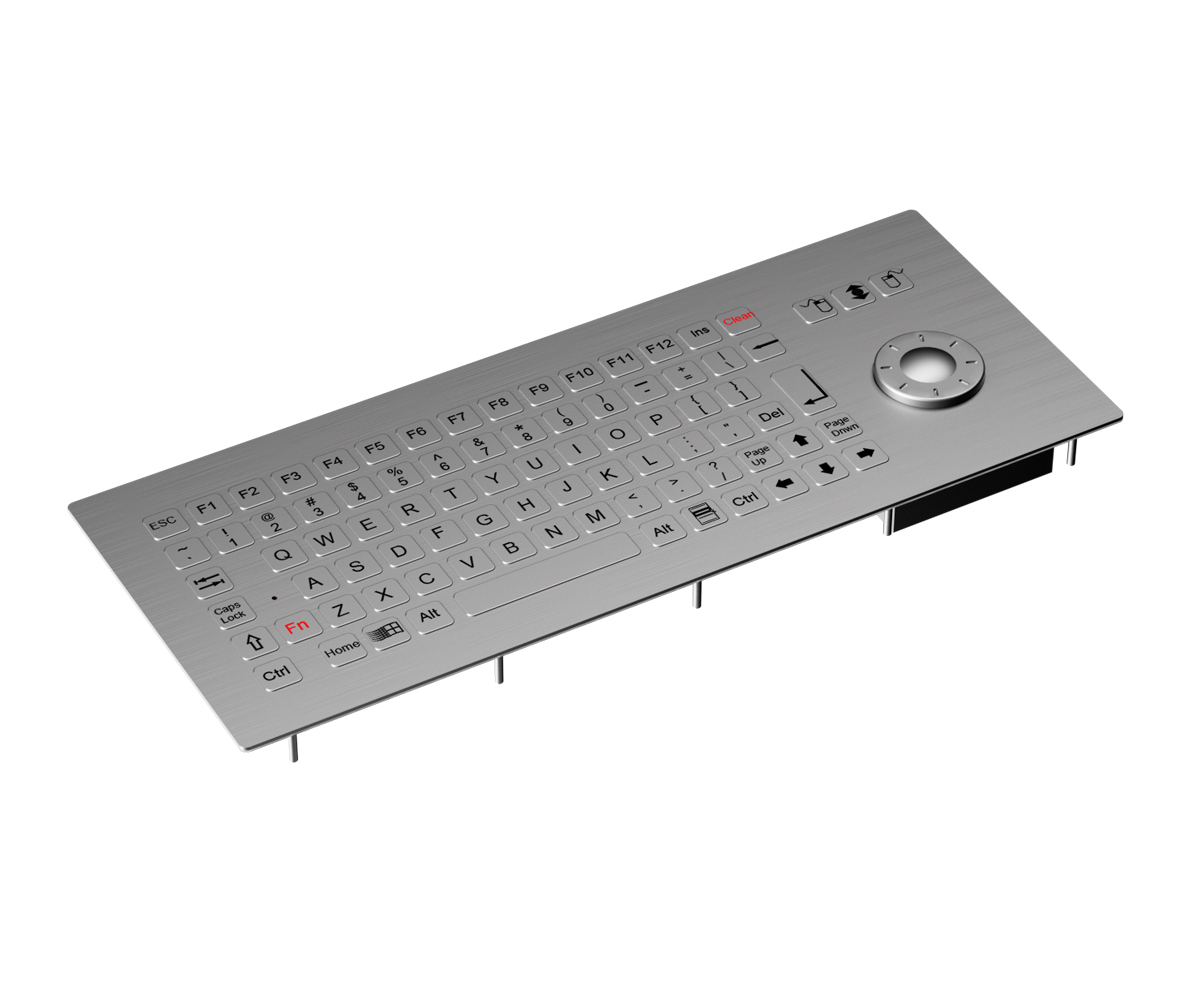

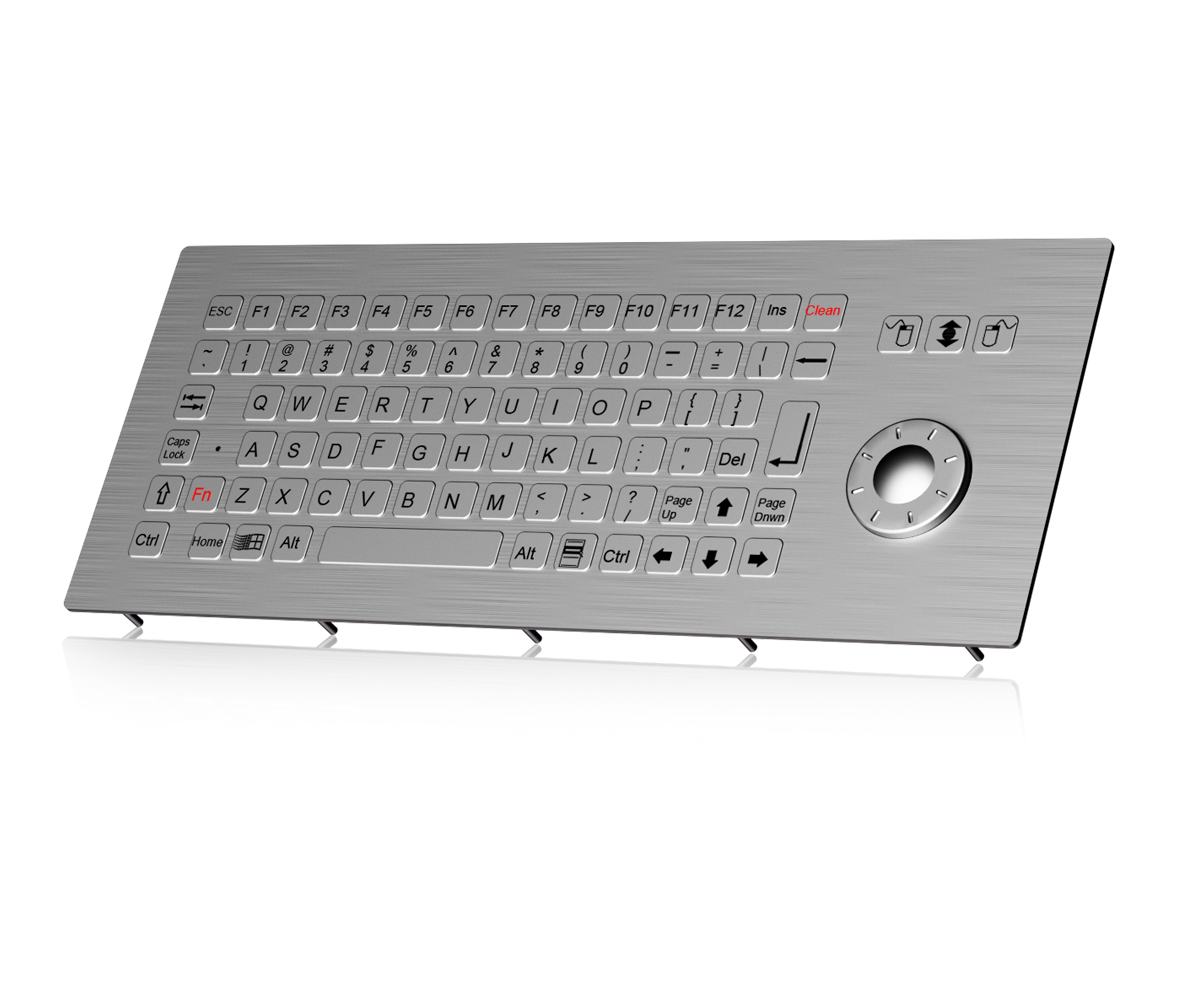

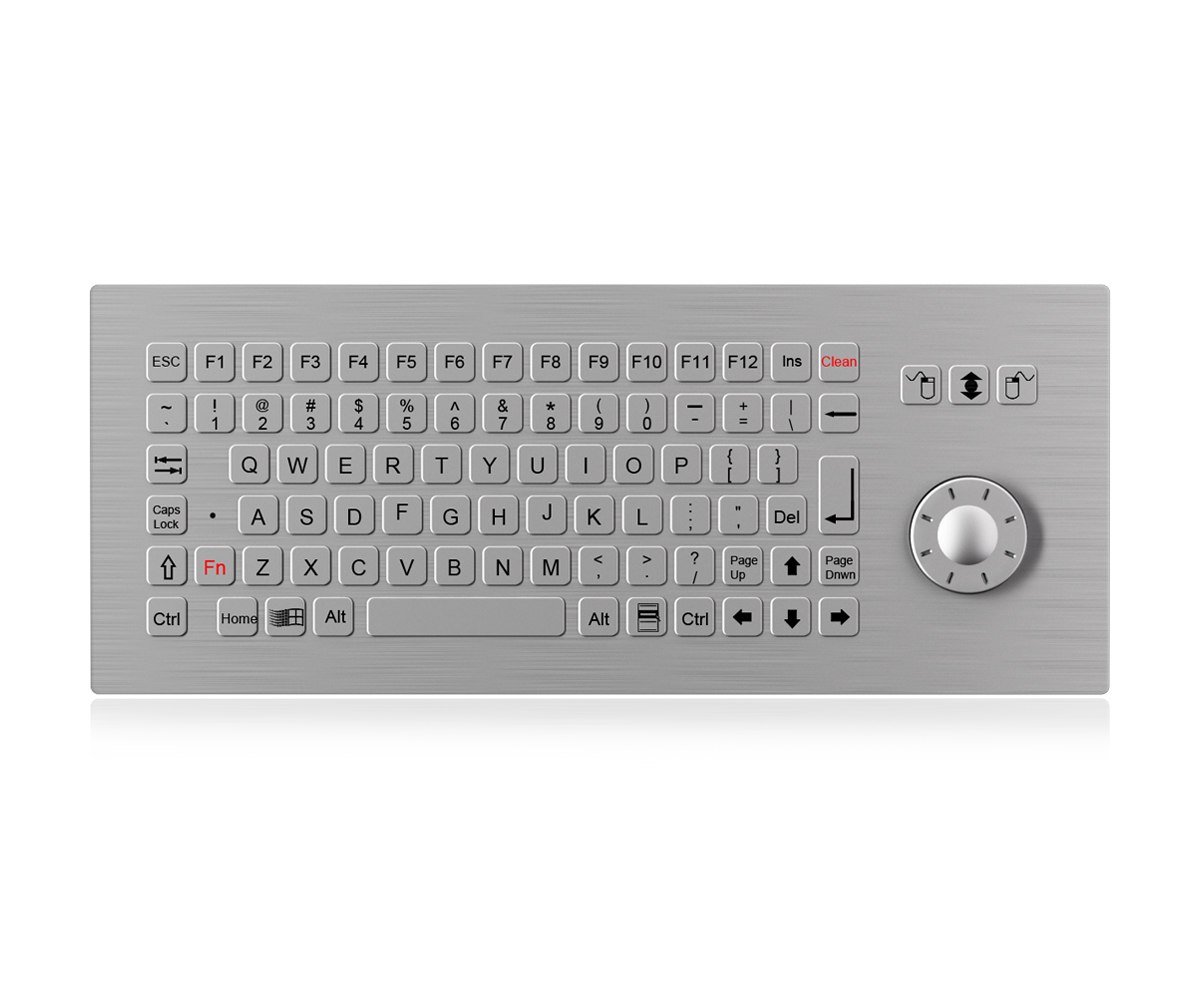

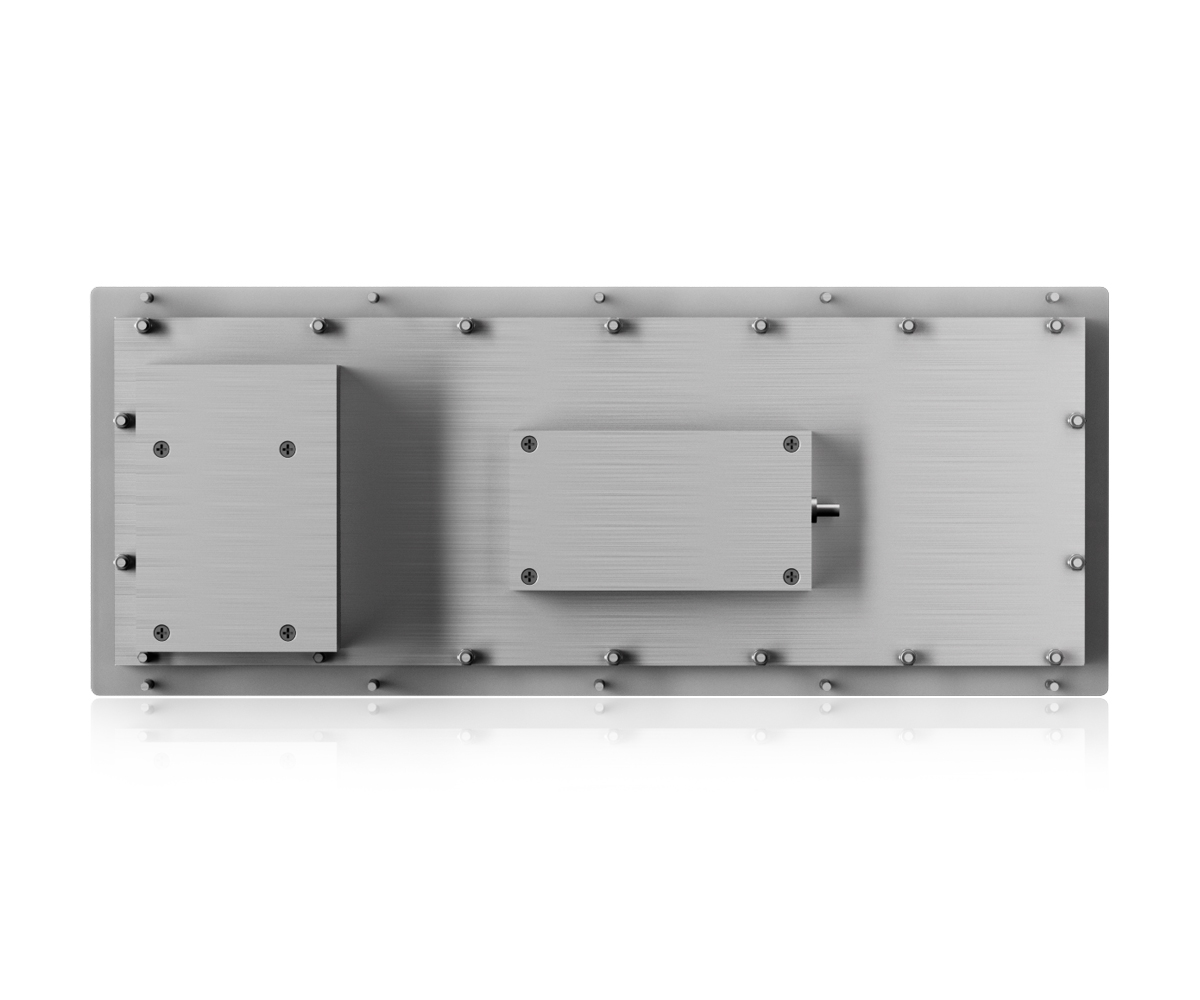

DESCRIPTION: 86 keys compact format IP65 dynamic waterproof, oil proof, dust proof stainless steel industrial keyboard with sealed & ruggedized tough and durable Force Sensitive Resistor hula pointer on right side for fast and accurate cursor position, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation, industrial metal dome PCB with gold-on-gold key switch technology with 0.45mm short stroke with good tactile feeling for stable and accurate data input, all the keys are flat without raised keys for dust accumulation, and the surface is extremely easy for cleaning and washing, front panel mounted solution with threaded bolts. FN+Clean combination keys to lock/disable the whole keyboard for easy cleaning without disconnecting the keyboard from PC. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion. DHP durable hular pointer (FSR-Force Sensitive Resistor) features deep waterproof performance and wide temperature resistance. Its core advantage lies in smooth operation while wearing any type of gloves with bare-hand contact unnecessary. It is highly suitable for extreme working conditions, special operations and harsh application scenarios where bare-hand operation is prohibited.

DIMENSION: 361.0mm x 145.0mm (L x W)


MECHANICAL DATA

Actuator/keys

86 keys (including 3 mouse buttons)

Key top style

Non-protuberant rectangular keys, laser engraved & etched legends on keys are available

Key Size

14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar

Key travel

0.45±0.05mm

Actuation Force

3.5N±0.2N for key 14.0mm x 14.0mm (pressure point )

7.0N±0.4N for key 14.0mm x 28.0mm (pressure point)

G.W.

≈2.0KGs

ELECTRICAL DATA

Supply Voltage

DC +5V±5%

Current Rating

50mA

EMC Standard

EN 55032:2015   EN 55035:2017

Lifespan

> 5 years

Switch Contact Material

Metal Dome Gold-on-Gold key switch technology PCB

Interface

PS2, USB available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20℃ to +65

Storage temperature

-30℃ to +75

Operating RH

100%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at +40℃

21 days, IEC 60512-6

Dry heat test at +85℃

10 days, IEC 60512-6

RELIABILITY

RoHS Compliant, CE and FCC, ESD

Protection Level

IP65 dynamic

Vandal resistant

IK09

Key Lifespan

>1 million actuations

MTBF

>20000H

MTTR

<30min

APPLICATION

Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and

gas etc.
