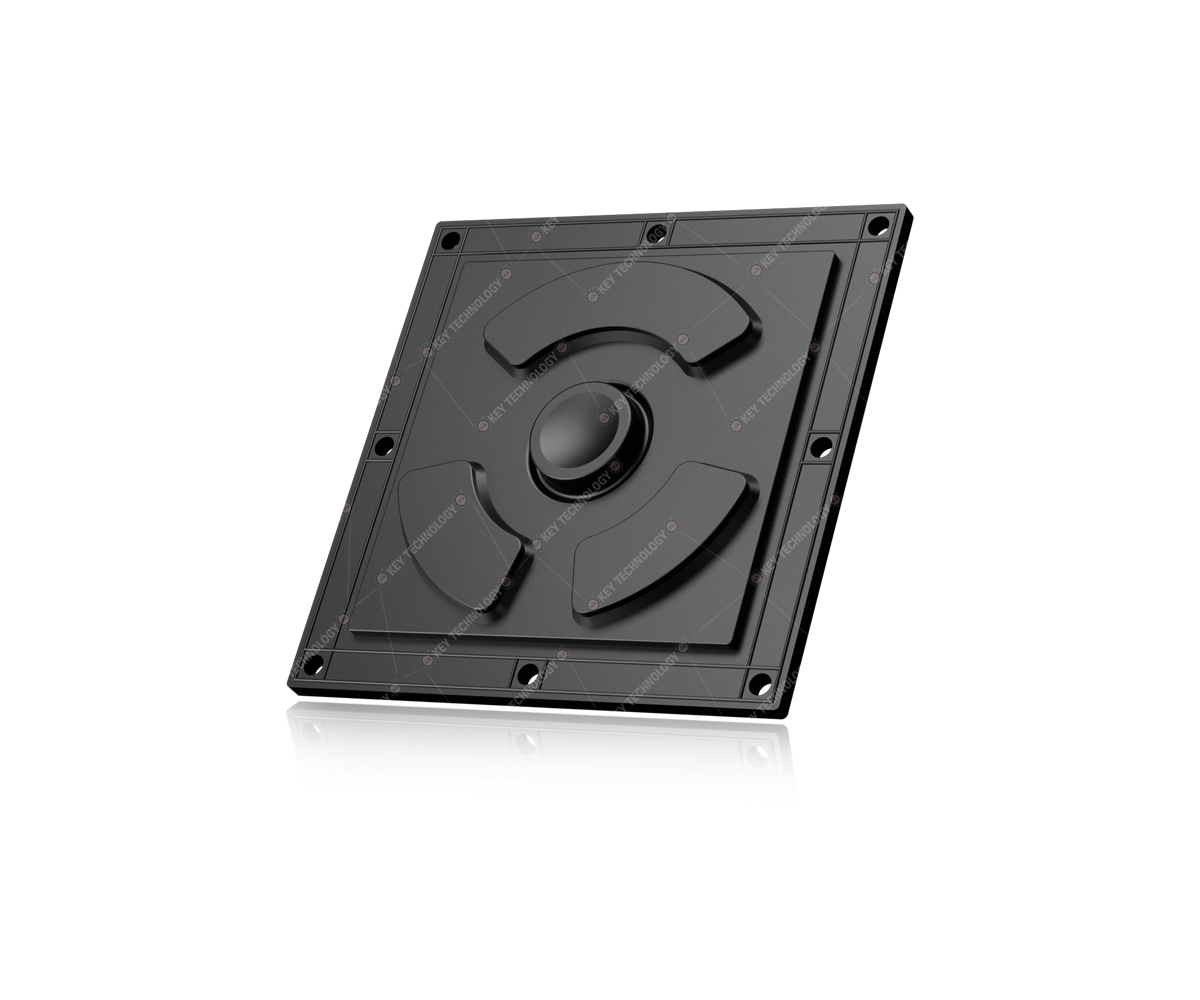

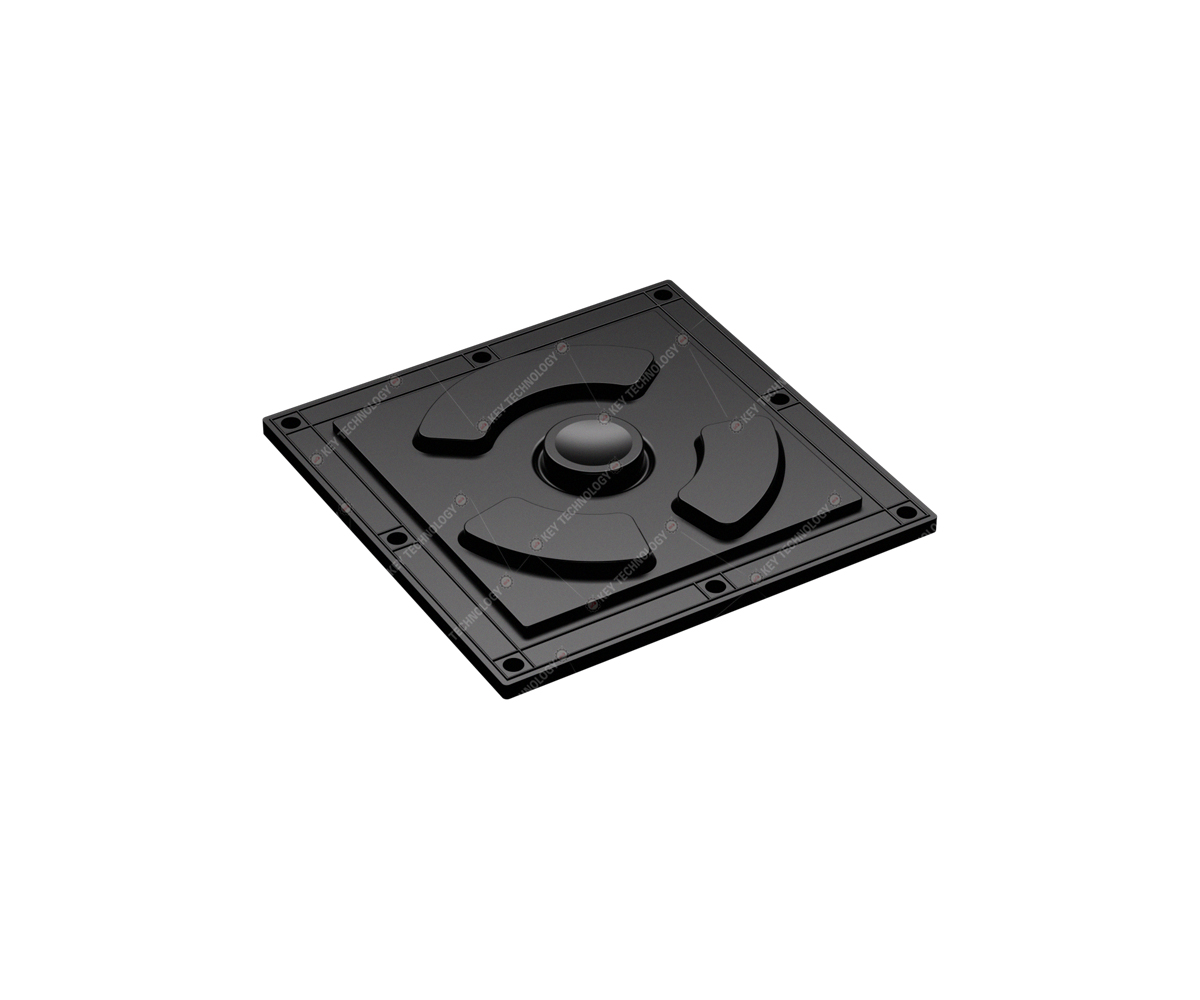

DESCRIPTION: IP67 dynamic rated waterproof & dustproof rugged Force Sensing Resistor pointing device integrated in one-piece compact seamless silicone cover for fast and accurate cursor position, with 3 mouse buttons for left and right clicking as well as middle button, rear panel mount solution with mounting holes along the edge for easy mounting & sealing, which is good for much oil, water, sand etc. application or gloves are needed when operation. USB interface. Designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, drop, rain, sand & dust, fungus, solar radiation etc.), as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity. Dimension: 77.00mm x 77.00mm (L x W)
MECHANICAL DATA | Keys | 3 buttons | Key Switch | Carbon-on-gold key switch technology | Key Travel | 1.50mm±0.10mm | Actuation Force | 1.8N±0.2N (pressure point) | G.W. | 0.20KGs | ELECTRICAL DATA | Supply Voltage | DC +5V±5% | Current Rating | <30mA | EMC Standard | EN 55032:2015, EN 55035:2017 | Lifespan | > 5 years | Interface | USB | OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). | Meet MIL-STD-461G (EMC, EMI, EMS, ESD): | 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads | 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads | 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads | 4 | CS106 Conducted Susceptibility, Transients, Power Leads | 5 | CS112 Electrostatic Discharge Susceptibility | 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection | 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation | 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads | 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field | 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field | 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field | 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field | MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, drop, rain, sand & dust, fungus, solar radiation etc.) | ENVIRONMENTAL ADAPTABILITY | Operating temperature | -40℃ to +60℃ | Storage temperature | -45℃ to +75℃ | Operating RH | 3% - 95% | Atmospheric pressure | 60-106Kpa | Saline mist | 96 hours, IEC 60512-6 | Damp heat test at +40℃ | 21 days, IEC 60512-6 | Dry heat test at +85℃ | 10 days, IEC 60512-6 | RELIABILITY | RoHS, CE, FCC | MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, drop, rain, sand & dust, fungus, solar radiation etc.) | Protection Level | IP67 | Key Lifespan | >5 million actuations | MTBF | >20000H | MTTR | <30min | APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
|
