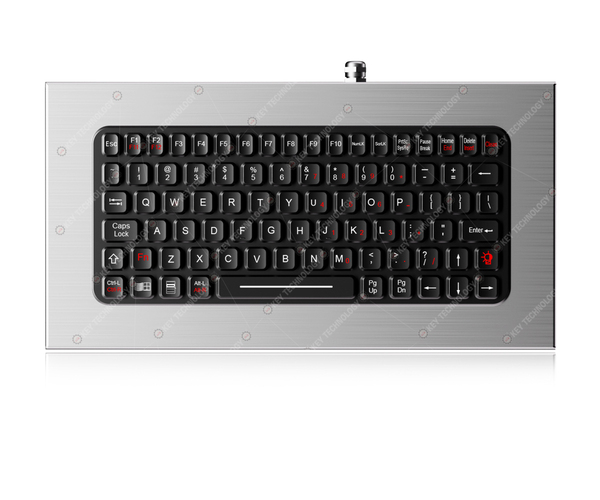

K-TEK-M337-176-FN-BL-IL-DT-SS

Category：	Silicone Keyboard
Key Number：	83 keys
Key Travel：	1.50mm±0.10mm
Backlight：	Red
Interface：	USB/PS2 optional
Key Switch：	Carbon-on-gold
Protection Level：	IP68
Mounting Solution：	Movable desktop solution
Operating Temperature：	-20℃ to +65℃
Application：	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

Prev： K-TEK-M410-154-MTB-AVR-RM-FN-BL-151B-BT-DWP

Next： K-TEK-M410-154-OTB-AVR-RM-FN-BL-151B-BT-DWP

Description

Download

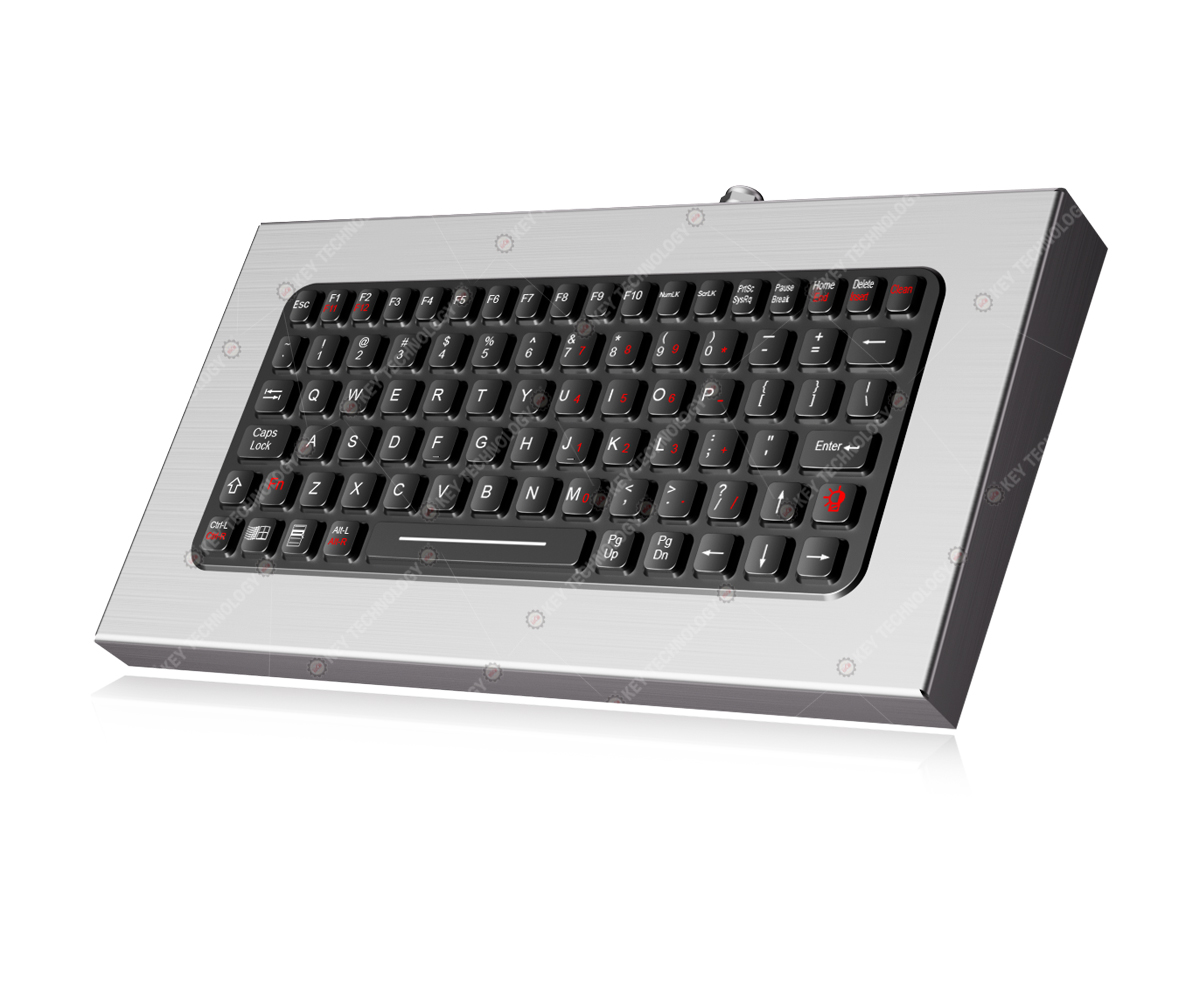

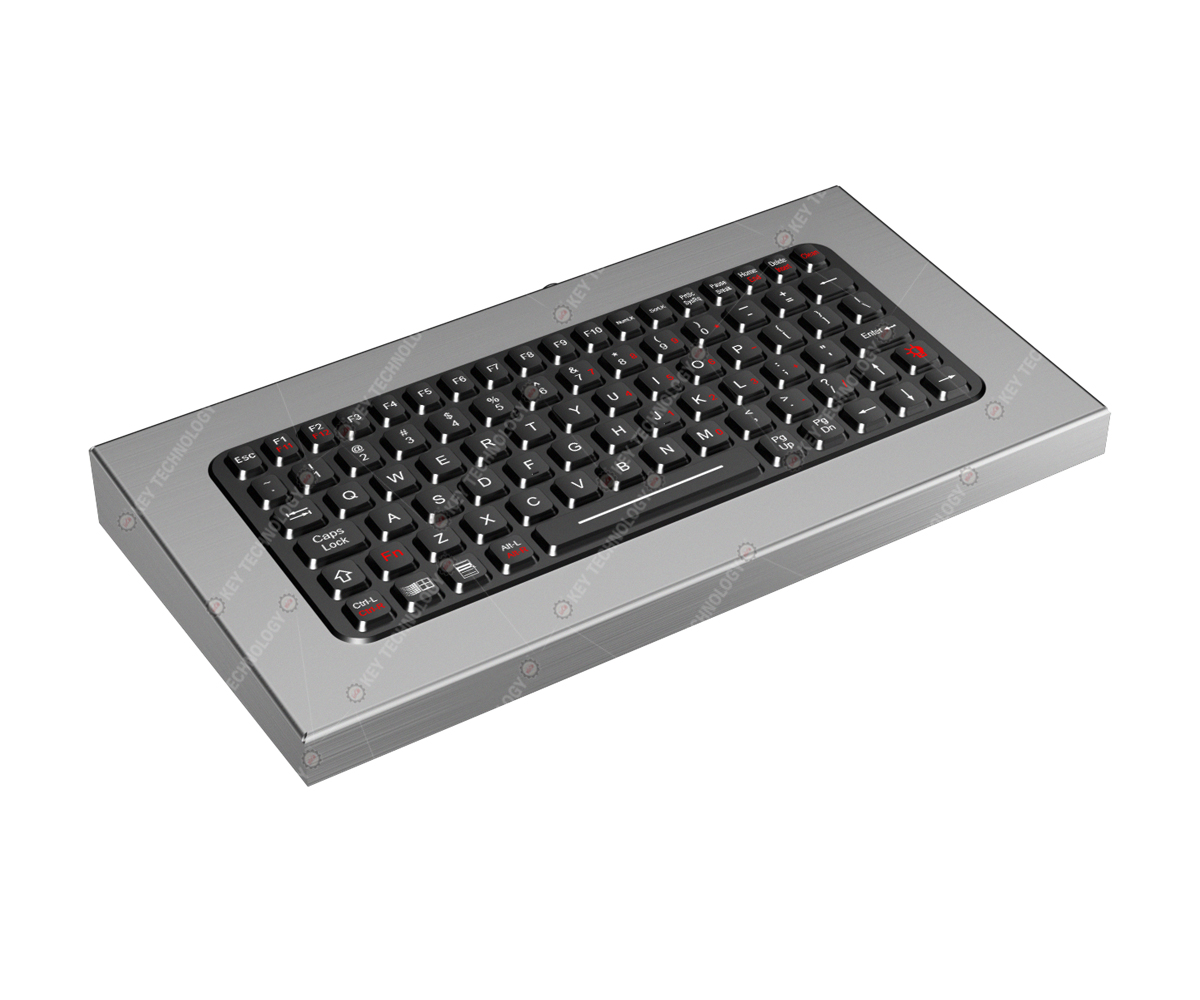

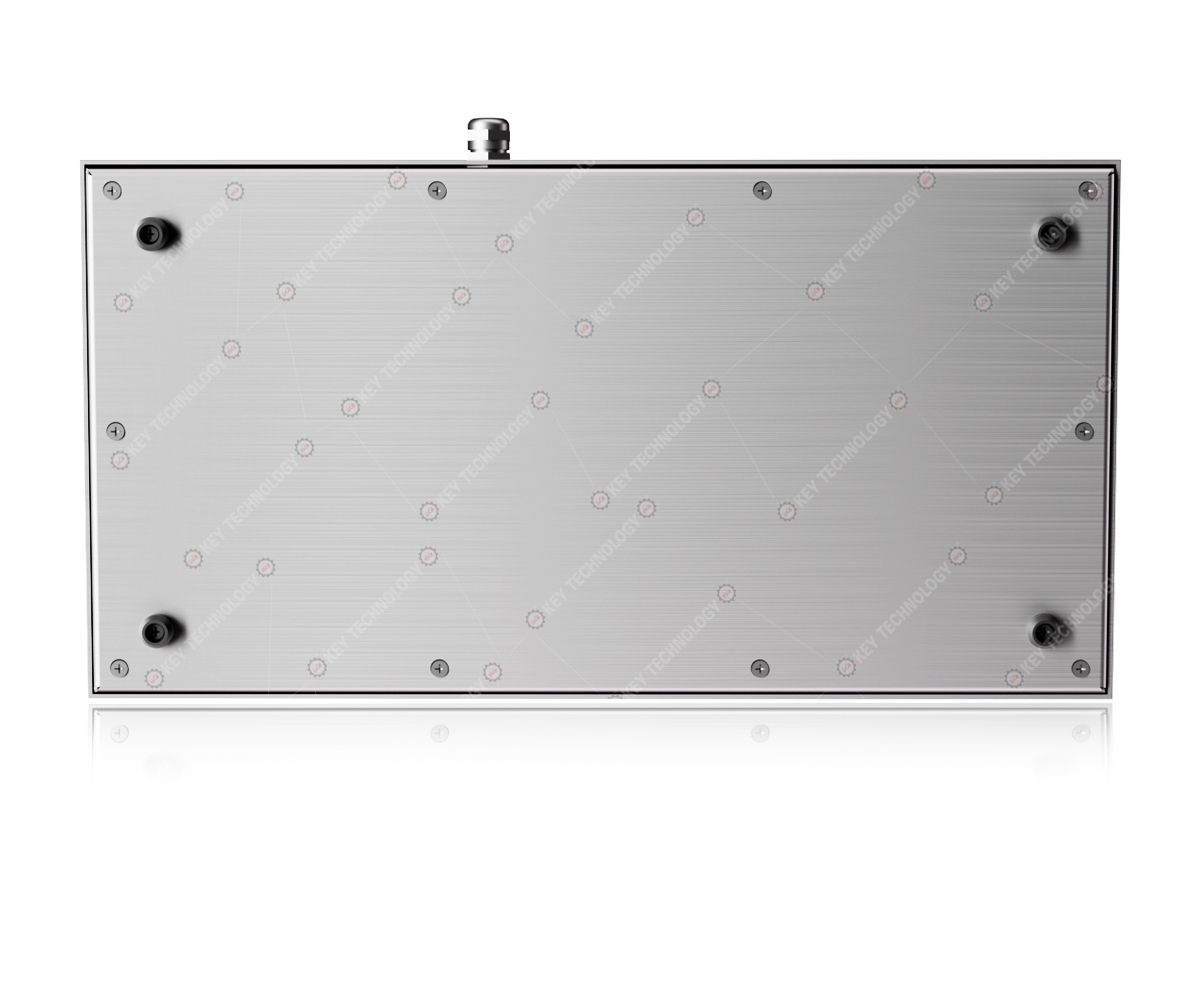

DESCRIPTION: 83 keys IP68 dynamic sealed and ruggedized silicone rubber industrial keyboard with 12 FN keys (F1, F2...F11, F12) are on top line for easy operation, with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + CLEAN combination key to lock/disable the keyboard for easy cleaning without needing to take away the keyboard from PC, standard alone inclined movable desk top version with fully stainless steel metal housing, with adjustable red backlight included.

Dimensions: 336.6mm x 176.3mm x (39.6-24.3)mm (L x W x H)

MECHANICAL DATA
Keys	83 keys
Key top style	Protuberant rectangular keys with tactile feeling
Key Size	14.00mm x 13.80mm for normal keys
Key travel	1.50mm±0.1mm
Actuation Force	1.5N±0.2N (pressure point )
Switch life	more than 5 million of operations
G.W.	1.50KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	50mA when backlight is off, 300mA with backlight on
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Switch Contact Material	Carbon-on-Gold key switch technology
Interface	PS2, USB available
Cable lengh	Standard 2.0m, customized length available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Operating RH	100%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS compliant, CE and FCC certified.
Protection Level	IP68
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

K-TEK-M337-176-FN-BL-IL-DT-SS mechanical drawing
