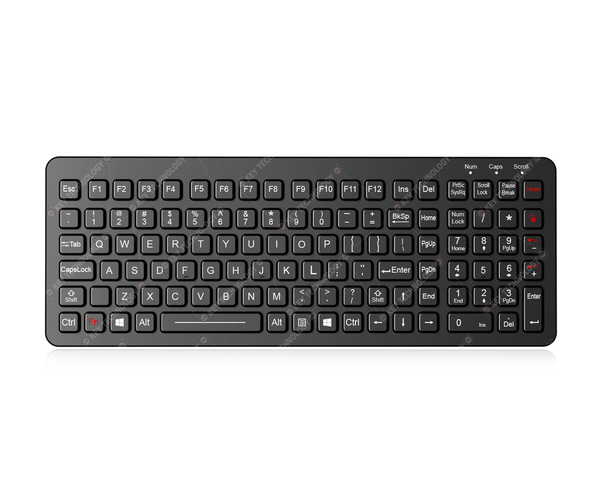

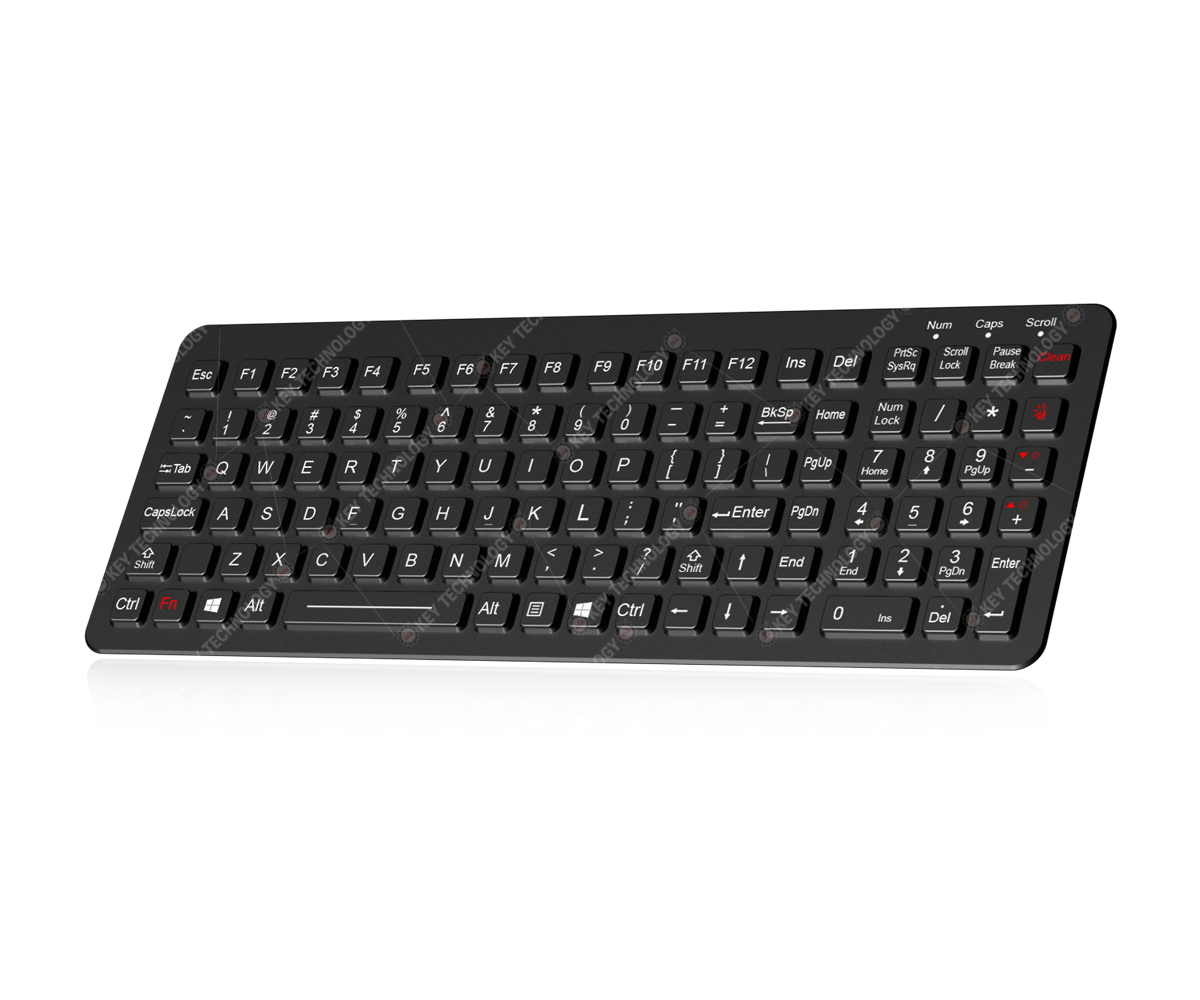

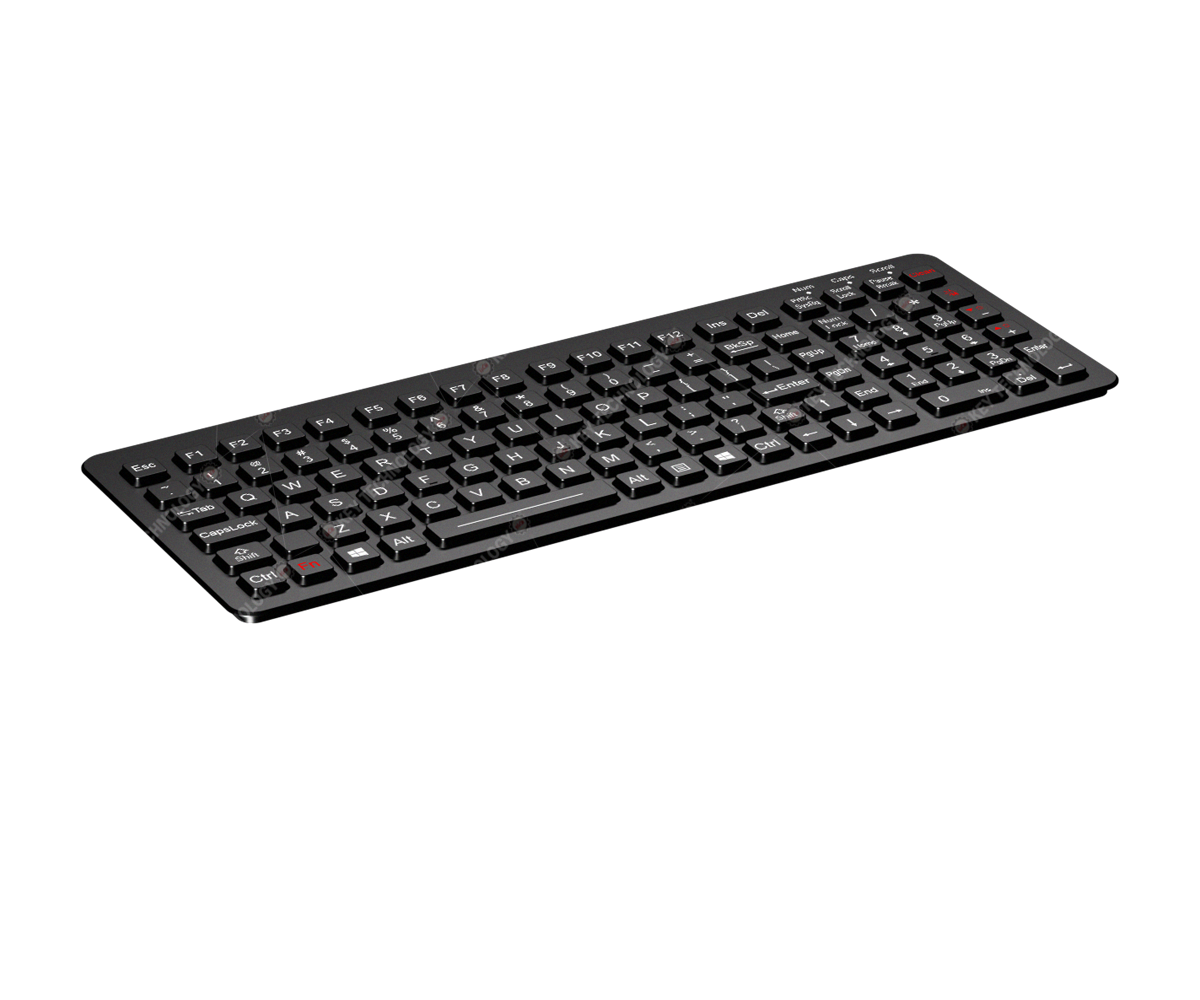

K-TEK-M366KP-FN-BL-ML-OEM

Category：	Silicone Military Keyboard
Key Number：	108 keys
Key Travel：	1.50mm±0.10mm
Backlight：	White
Interface：	USB/PS2 optional
Key Switch：	Carbon-on-gold
Protection Level：	IP65 (front panel)
Mounting Solution：	Top panel mount
Operating Temperature：	-40℃~+75℃
Application：	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

Prev： K-TEK-M334KP-FN-BL-NV-151B-DT-DWP

Next： K-TEK-D333-OTB-FN-DT-SW

Description

Download

DESCRIPTION: 108 keys IP65 dynamic waterproof sealed & ruggedized silicone rubber Hygienic keyboard, integrated numeric keypad and 12 FN keys (F1, F2...F11, F12), with carbon-on-gold key switch technology with key stroke (1.50mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning without disconnecting the keyboard and computer, top panel mount solution. Adjustable white backlight included to fit for dim or dark environment. Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.),and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

DIMENSION: 366.0mm x 136.0mm (L x W)

MECHANICAL DATA
Keys	108 keys
Switch Contact Material	Carbon-on-gold key switch technology
Key Top Style	Protuberant rectangular keys with tactile feeling
Key Travel	1.50mm±0.10mm
Actuation Force	1.5N±0.2N (pressure point )
G.W.	1.00KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	30mA when backlight is off, 300mA with backlight on
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Interface	USB/PS2 optional
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-40℃ to +75℃
Storage temperature	-45℃ to +85℃
Operating RH	3%~95%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS compliant, CE and FCC certified, MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, fungus etc.)
Protection Level	IP65 (front panel)
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATION	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

K-TEK-M366KP-FN-BL-ML-OEM mechanical drawing

‍
