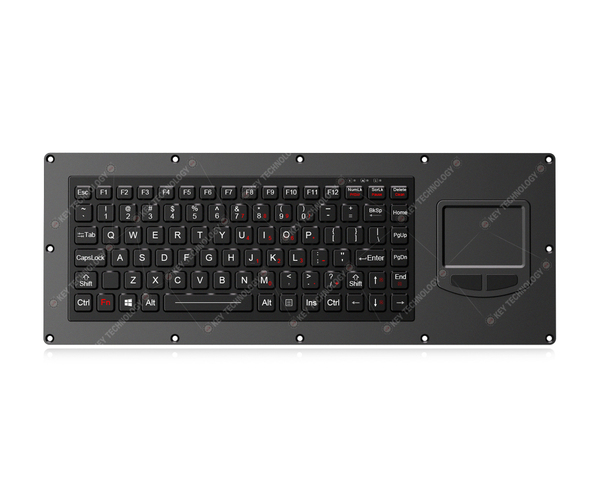

K-TEK-M400-150TP-FN-BL-ML-BT

Category：	Silicone Keyboard
Key Number：	87 keys + 2 mouse buttons
Key Travel：	1.50mm±0.10mm
Backlight：	White
Interface：	USB/PS2 optional
Key Switch：	Military PCB with carbon-on-gold key switch technology
Protection Level：	IP65 dynamic (front panel)
Mounting Solution：	Top panel mount
Operating Temperature：	-40℃~+75℃
Application：	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

Prev： K-TEK-M111-OTB-AVR-PM-BT

Next： K-TEK-M315KP-FN-BL-FC-KC-DM-EP

Description

Download

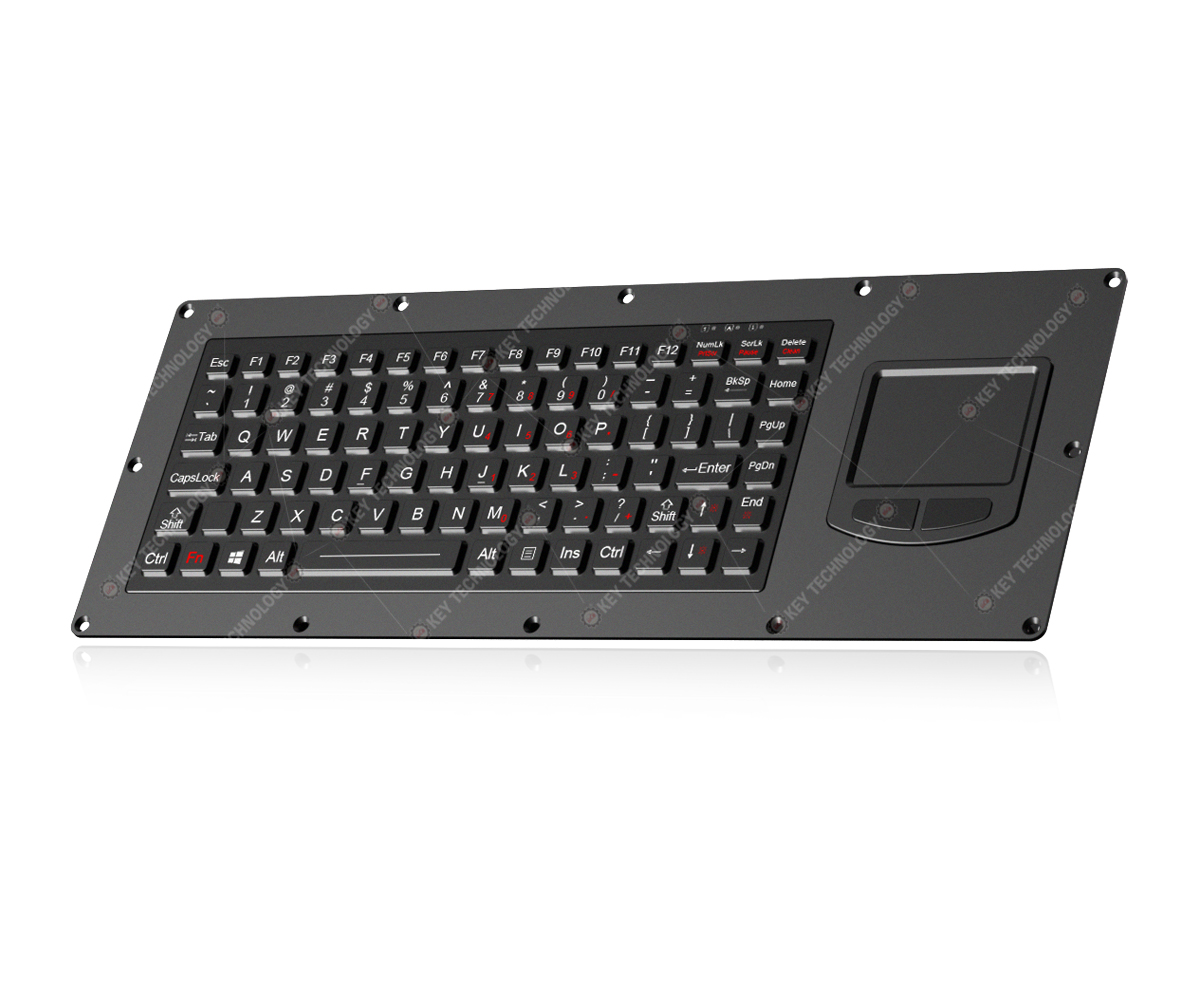

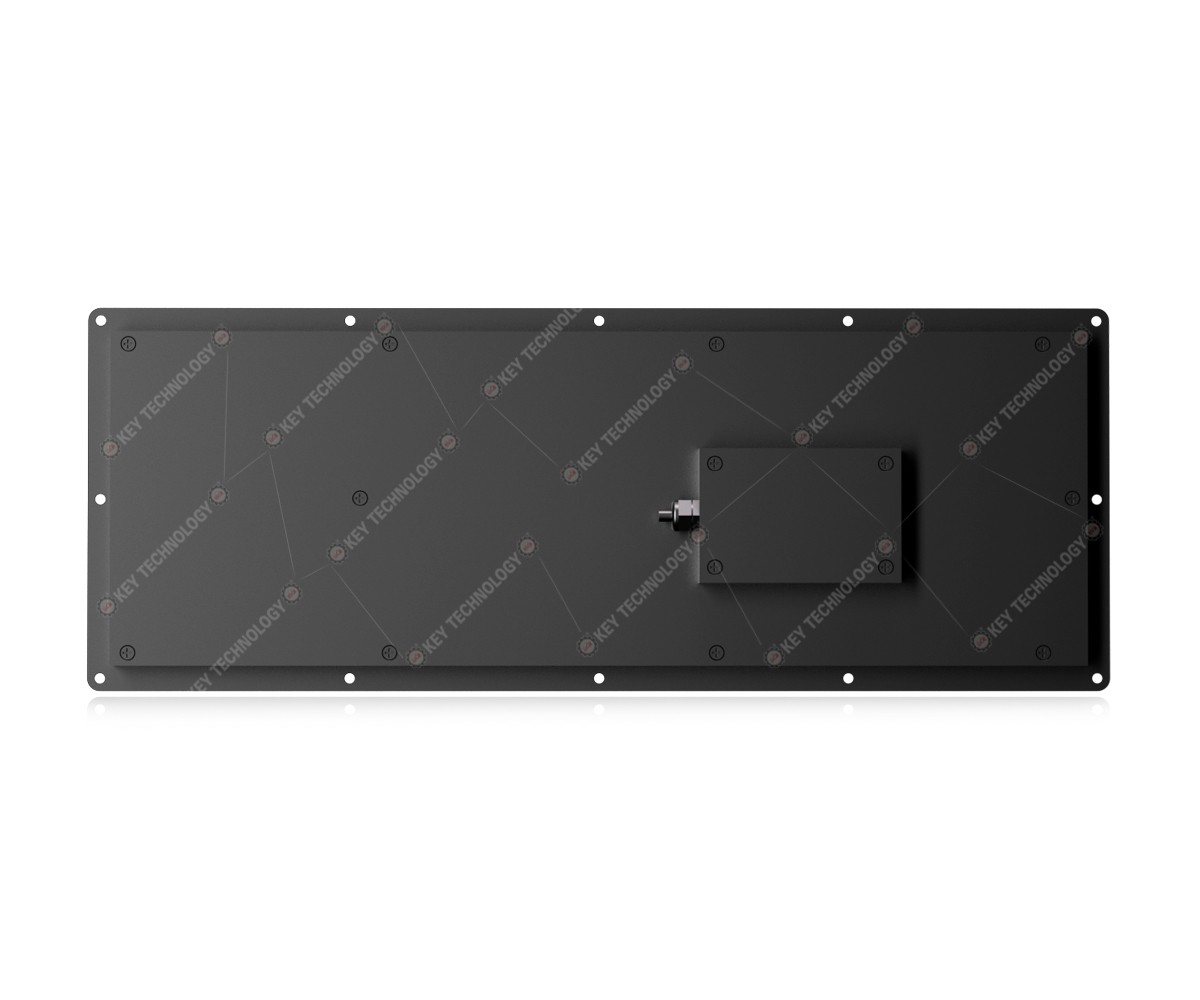

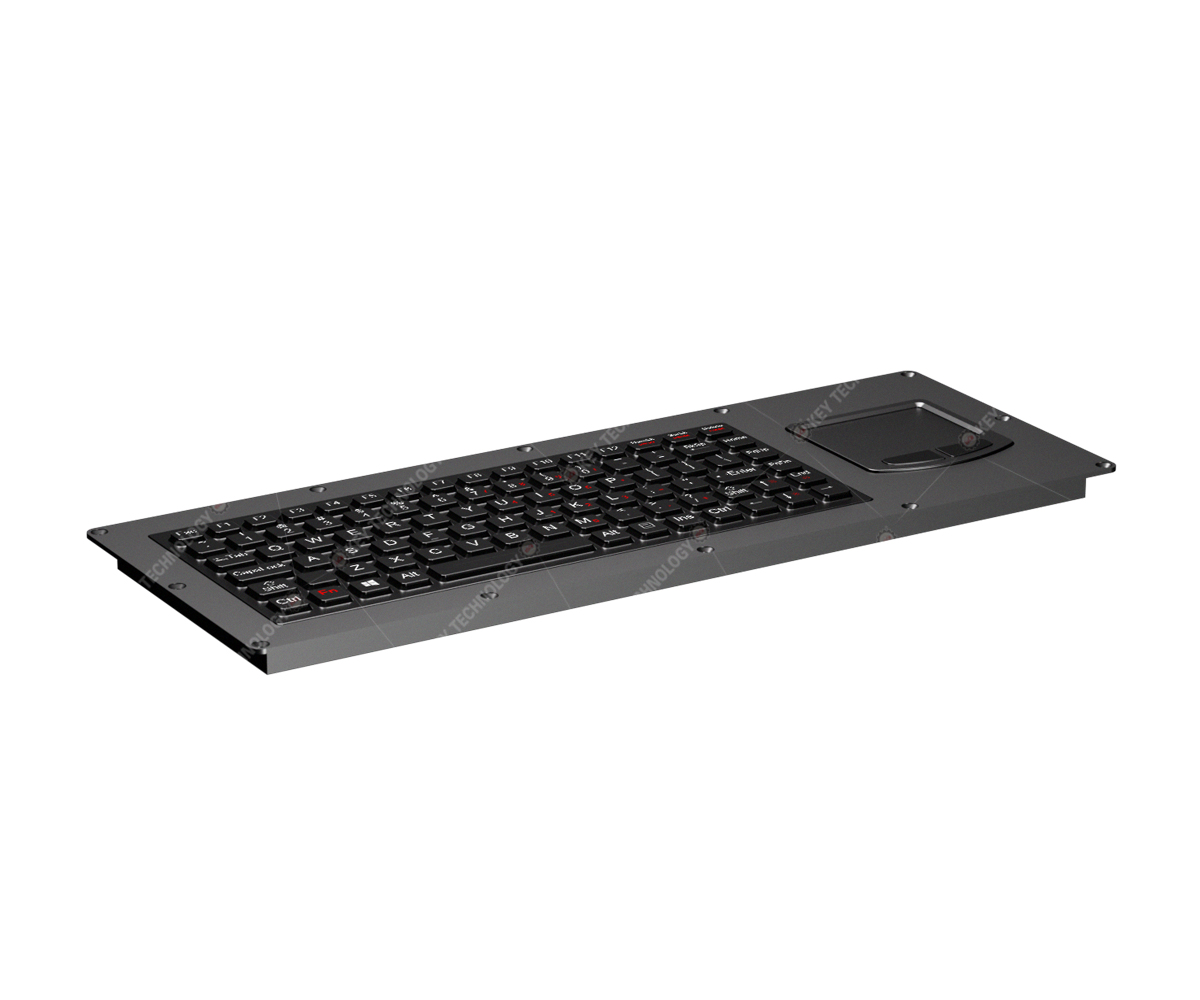

DESCRIPTION: 87 keys IP65 dynamic sealed and ruggedized silicone rubber military keyboard with full keyboard functionality with sealed & tough IP65 touch pad for fast and accurate cursor position, 12 FN keys (F1, F2...F11,F12) are on the top line for easy operations, military PCB with carbon-on-gold key switch technology with 1.5mm key stroke with extremely good tactile feeling for fast and accurate data input without any noise, FN+Clean can lock the whole keyboard for easily clean the keyboard. with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment. Stainless steel top panel mount version electroplated with high quality black titanium for full black color treatment to be scratch proof. With Adjustable industrial backlight (white backlight ). Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.), and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

DIMENSION: 400.0mm x 150.0mm (L x W)

MECHANICAL DATA
Key	87 keys for keyboard, 2 keys for touchpad
Key top style	Protuberant rectangular keys with tactile feeling.
Key travel	1.5mm±0.1mm
Actuation Force	1.5N±0.2N (pressure point )
Switch life	more than 5 million of operations.
Touch pad	1.3mm thick PCB, containing polyester film
Touchpad cover	Composite
More than Lifetime 10 million strokes
Mutual capacitance sensing
X/Y axis location detection resolution	40 Counts /mm
X/Y position report	relative
Tracking speed	Maximum 1,016 m/sec
Power supply voltage	5V ± 0.25V
Current rating (active mode)	< 10 mA
G.W.	2.00KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	50mA when backlight is off, 300mA with backlight on
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Switch Contact Material	Military PCB with carbon-on-gold key switch technology
Interface	PS2, USB available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-40℃ to +75℃
Storage temperature	-45℃ to +85℃
Saline mist	96h, IEC60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
Humidity	3%~95%
Atmospheric pressure	60-106Kpa
RELIABILITY
RoHS compliant, CE and FCC certified, MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.)
Protection Level	IP65 dynamic (front panel)
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATION	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

K-TEK-M400-150TP-FN-BL-ML-BT mechanical drawing
