K-TEK-A290-FN-BT-DT-DWP

Category：	Stainless steel keyboard
Key Number：	83 keys
Key Travel：	1.50mm±0.10mm
Interface：	USB/PS2 optional
Key Switch：	Carbon-on-gold
Protection Level：	IP68
Mounting Solution：	Desktop version
Operating Temperature：	-20℃ to +65℃
Application：	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

Prev： K-TEK-M425-172-38-MTB-FN-BL-BT

Next： K-TEK-M235-OTB-KP-23-ML-BT-DWP

Description

Download

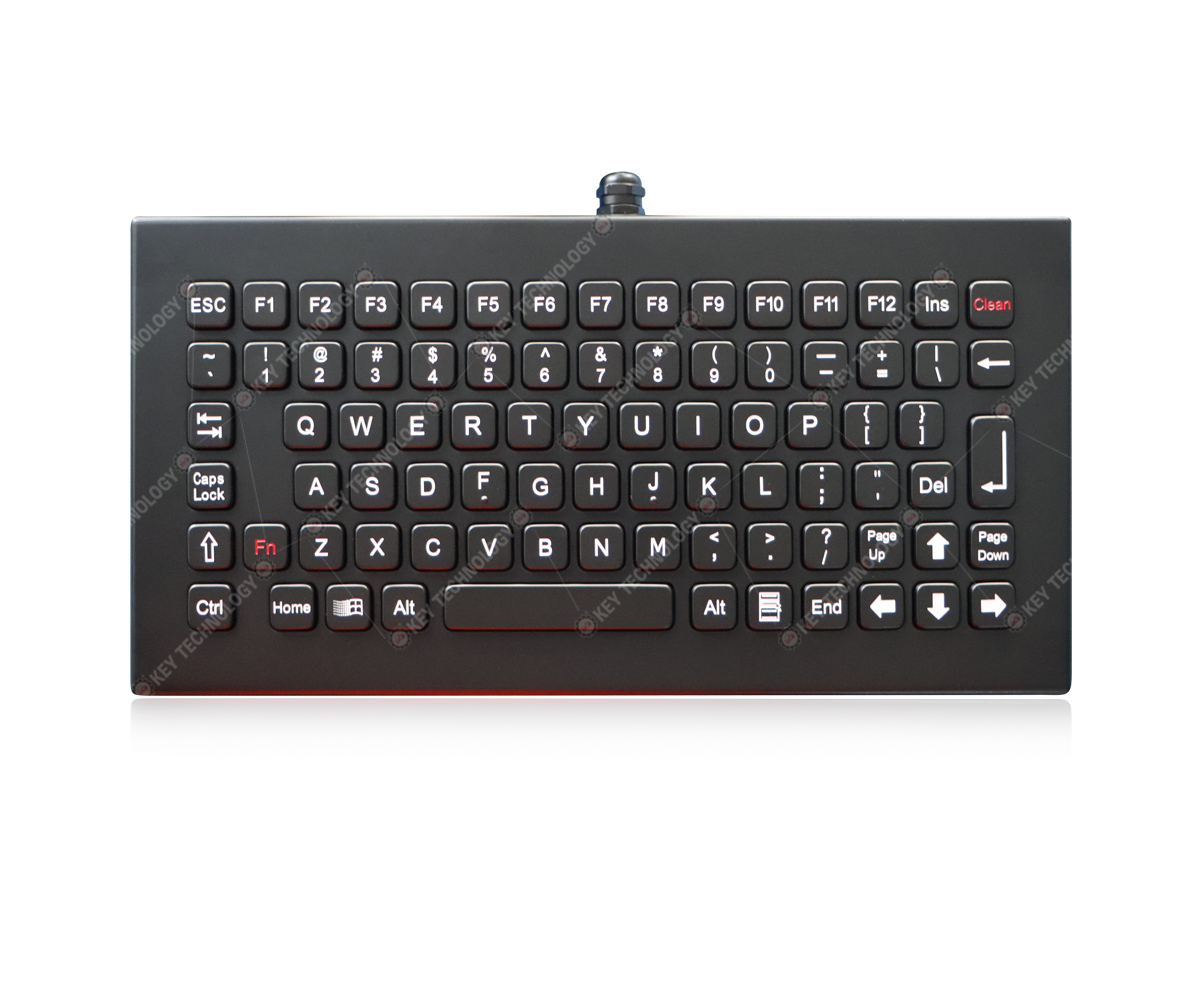

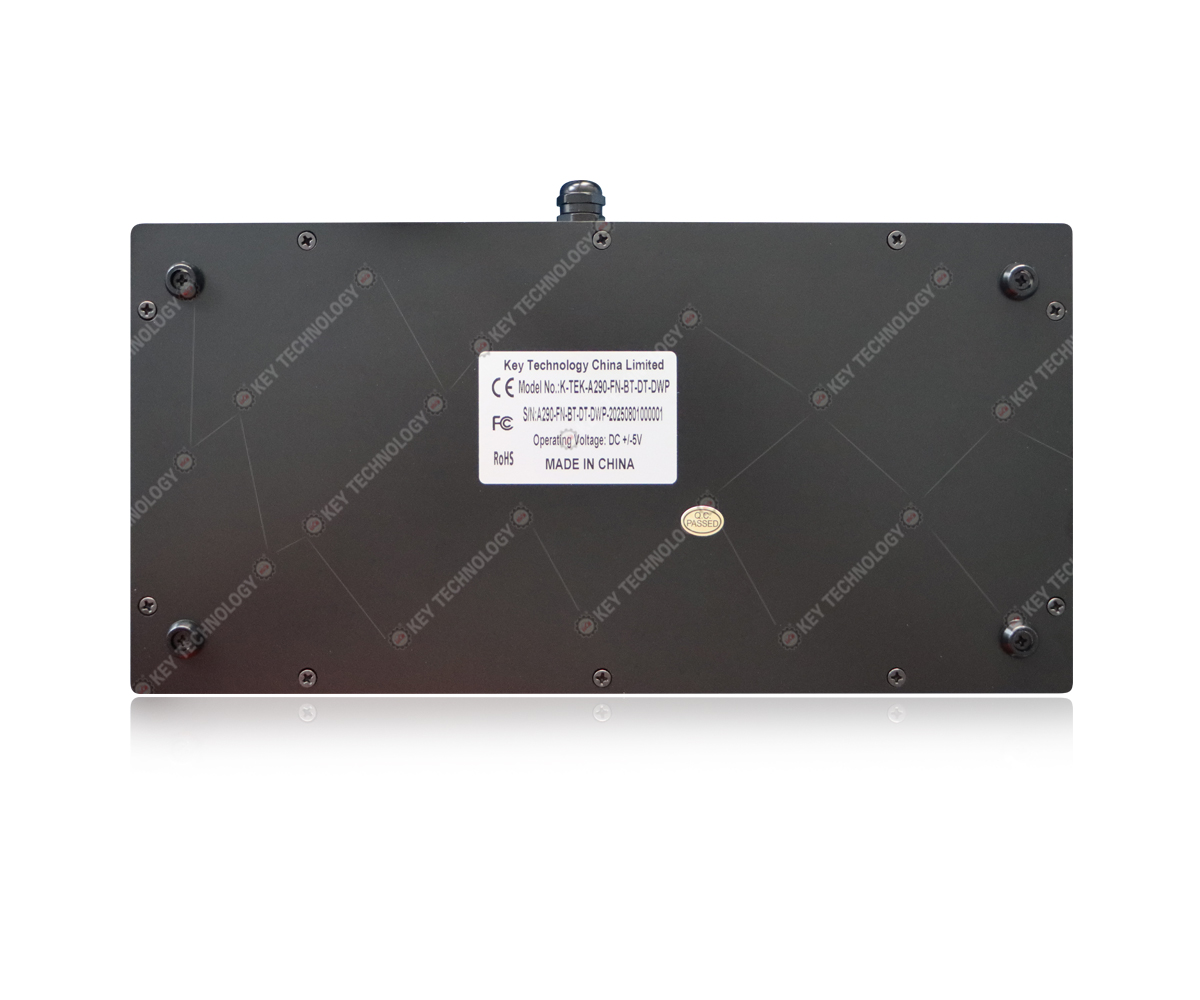

DESCRIPTION: 83 keys compact format IP68 dynamic vandal proof stainless steel industrial keyboard,industrial PCB with carbon-on-gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, function keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation, movable stand alone DESK TOP VERSION, or mountable desktop with mounting holes on the bottoms for fixing. High quality durable black titanium electroplated on all keys, stainless steel front plate and back housing. FN+Clean combination keys to lock/disable the whole keyboard for easy cleaning without error output. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

DIMENSION: 290.0 mm x 145.0mm x 20.00mm (L x W x H)

MECHANICAL DATA
Actuator/keys	83 keys
Key top style	Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size	14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar
Key travel	1.50±0.10mm
Actuation Force	1.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 2.5N±0.2N for key 14.0mm x 28.0mm (pressure point)
Switch life	more than 5 million of operations
G.W.	1.50KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	30mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Switch Contact Material	Carbon-on-Gold key switch technology PCB
Interface	PS2, USB available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Operating RH	100%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level	IP68
Vandal resistant	IK08
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATION	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

K-TEK-A290-FN-BT-DT-DWP mechanical drawing
