K-TEK-A19U-MTB-KP-FN-DWP

Category：	Stainless steel keyboard
Key Number：	104 keys (including 3 mouse buttons)
Key Travel：	1.50mm±0.10mm
Interface：	USB/PS2 optional
Key Switch：	Carbon-on-gold
Protection Level：	IP65 (front panel)
Mounting Solution：	Top panel mount
Operating Temperature：	-20℃ to +65℃
Ball Diameter：	38.0mm
Application：	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

Prev： K-TEK-A19U-OTB-KP-FN-DWP

Next： K-TEK-M315TP-FN-BL-KC-ANA-151B

Description

Download

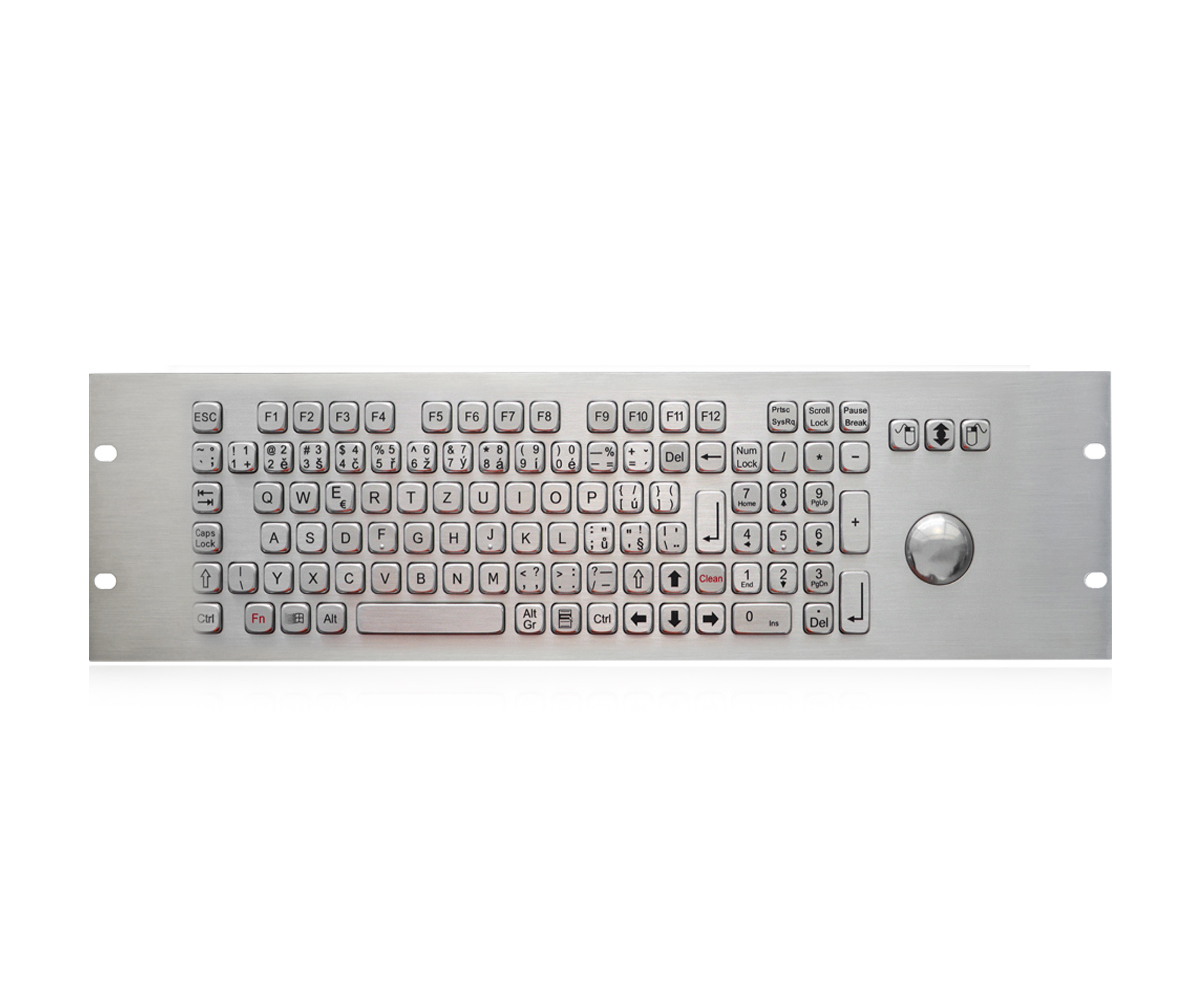

DESCRIPTION: 104 keys (including 3 mouse buttons) IP65 vandal proof stainless steel industrial keyboard with IP65 static rated 38.0mm stainless steel

mechanical trackball module with 400 DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise, integrtaed

with numeric keypad and function keys F1, F2..F10, F11, F12 on the top line for easy operation, fully sealed and ruggedized industrial PCB with carbon-

on-gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise,

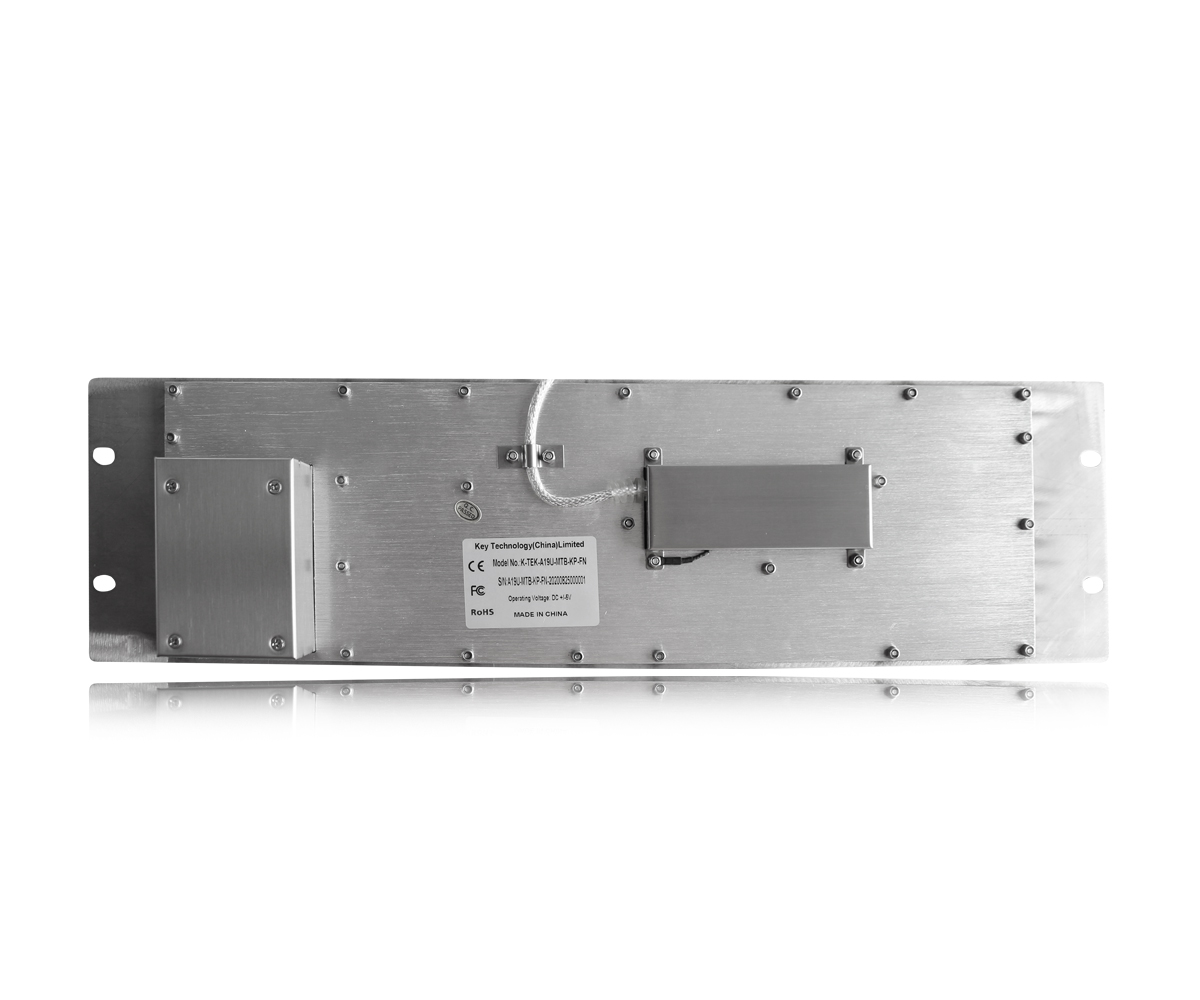

3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, top panel mounting solution with mounting holes. FN+Clean

combination keys to lock/disable the whole keyboard for easy cleaning without error output. Which is good for outdoor application with direct rain and very

harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

DIMENSIONS: 482.6mm x 133.3mm (top panel)

MECHANICAL DATA
Actuator/keys	104 keys(including 3 mouse buttons)
Key top style	Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size	14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key
Key travel	1.50±0.10mm
Actuation Force	1.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 2.5N±0.2N for key 14.0mm x 28.0mm (pressure point)
Switch life	more than 5 million of operations
Tracker ball	38.0mm stainless steel mechanical trackball module, black resin ball module available
G.W.	2.50KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	50mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Switch Contact Material	Carbon-on-Gold key switch technology PCB
Interface	PS2, USB available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Operating RH	3%-95%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level	IP65 (front panel)
Vandal resistant	IK08
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATION	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
