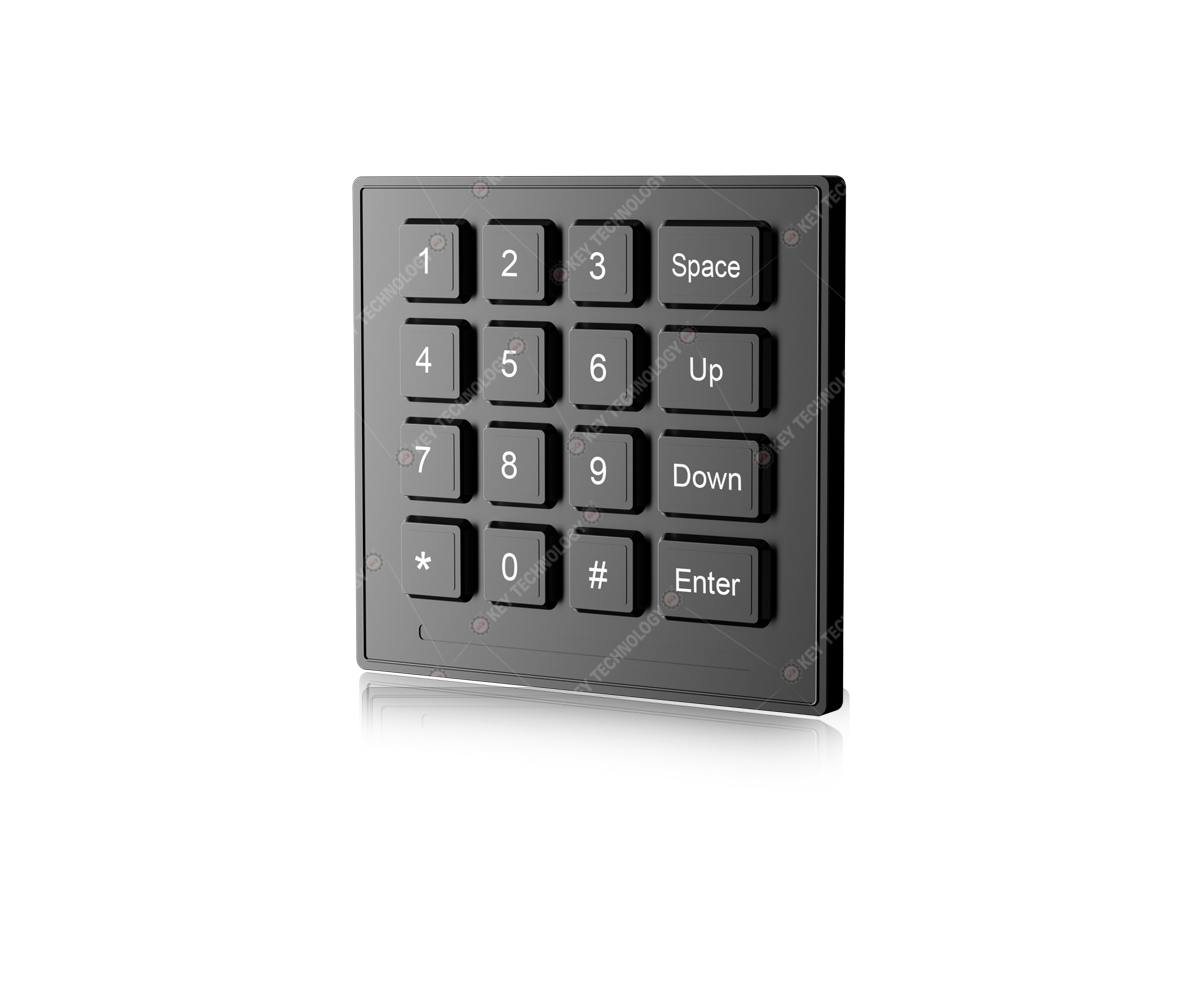

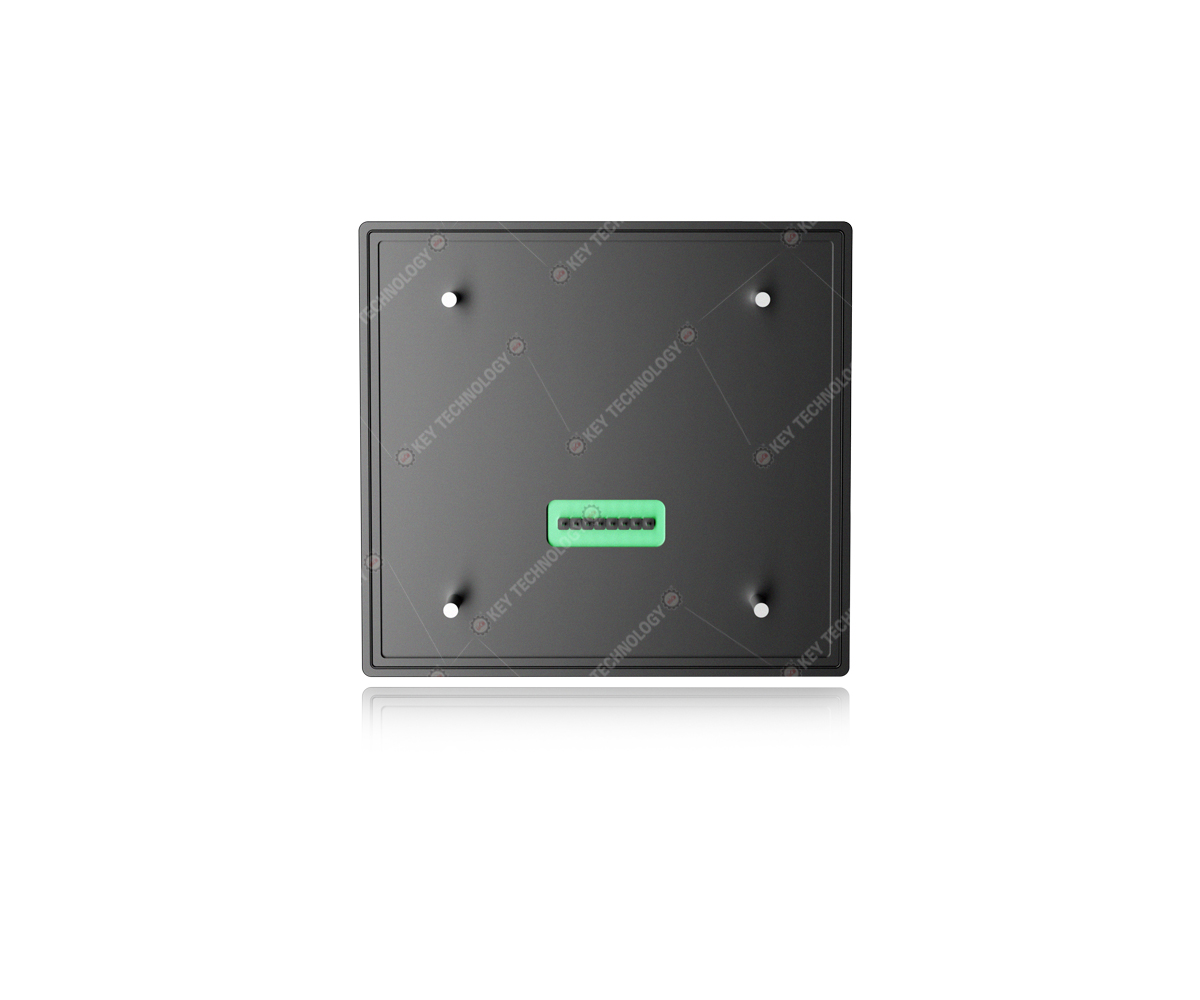

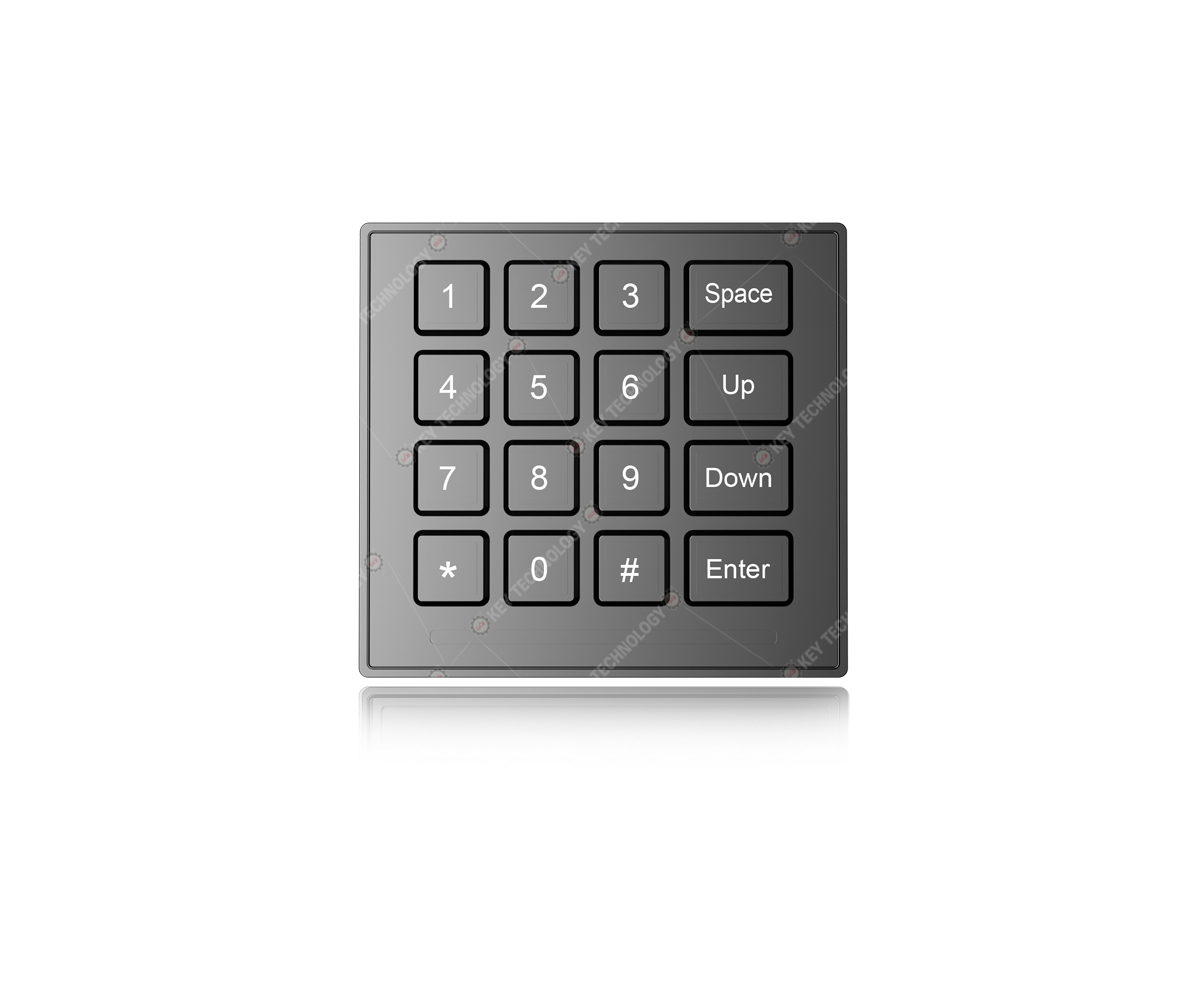

K-TEK-M103KP-16-AC-BL

Category：	Silicone keypad
Key Number：	16 keys
Key Travel：	1.40mm±0.10mm
Backlight：	White
Interface：	Dot matrix
Key Switch：	Carbon-on-gold
Protection Level：	IP65 dynamic (front panel)
Mounting Solution：	Top panel mount
Operating Temperature：	-40ºC to +60ºC
Application：	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

Prev： K-TEK-M70KP-12-AC-BL

Next： K-TEK-M340KP-FN-BL-FC-KC-ML

Description

Download

DESCRIPTION: 16 keys IP65 rated sealed & ruggedized silicone matrix function keypad, with carbon-on-gold key switch technology with key stroke (1.40mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, matrix output without electronics controller, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, white backlight included, top panel mounted solution, designed to meet MIL-STD-810H (high and low wide temperature (-40°C-+75°C), low pressure (Altitude), humidity, vibration, shock, salt spray, temperature shock, drop, rain, sand & dust, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity. MIL-STD-461G (EMC, EMI, EMS, ESD) optional.

DIMENSION: 103.0mm x 96.0mm (L x W)

MECHANICAL DATA
Keys	16 keys
Key Size	14.0mm x 14.0mm for normal keys
Key Travel	1.40±0.10mm
Actuation Force	1.5N±0.2N (pressure point)
G.W.	0.30KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	100mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Switch Contact Material	Carbon-on-Gold key switch technology PCB
Interface	Dot matrix
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating Temperature	-40℃ to +60℃
Storage Temperature	-45℃ to +70℃
Operating RH	3%-95%
Atmospheric Pressure	60-106Kpa
Saline Mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS compliant, CE and FCC certified
MIL-STD-810H (high and low wide temperature (-40°C-+75°C), low pressure (Altitude), humidity, vibration, shock, salt spray, temperature shock, drop, rain, sand & dust, fungus, solar radiation etc.)
Protection Level	IP65 dynamic (front panel)
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATION	Vehicle, aerospace, naval, maritime, Radar, display console, portable rugged laptop, UAV ground station etc.

K-TEK-M103KP-16-AC-BL mechanical drawing
