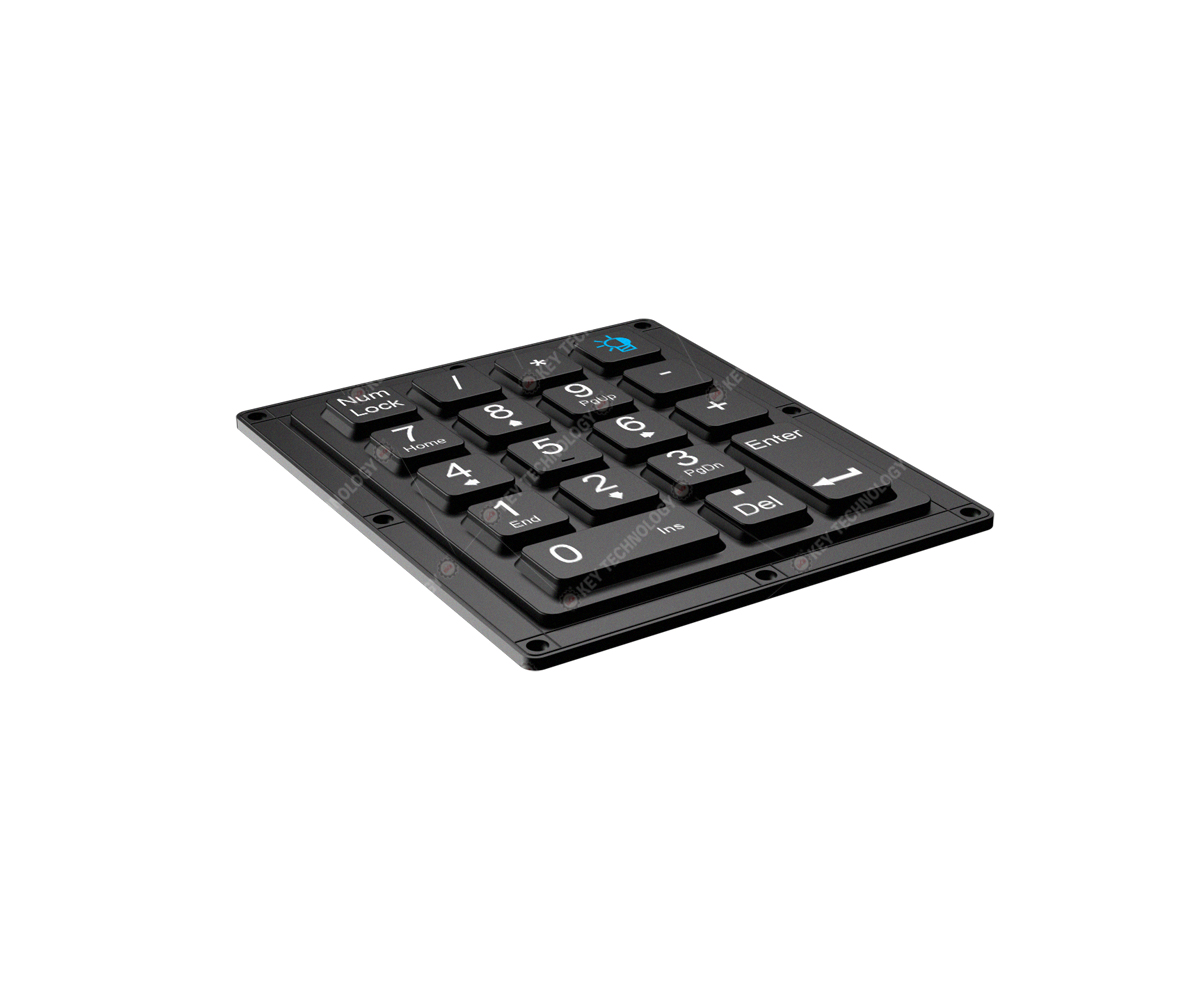

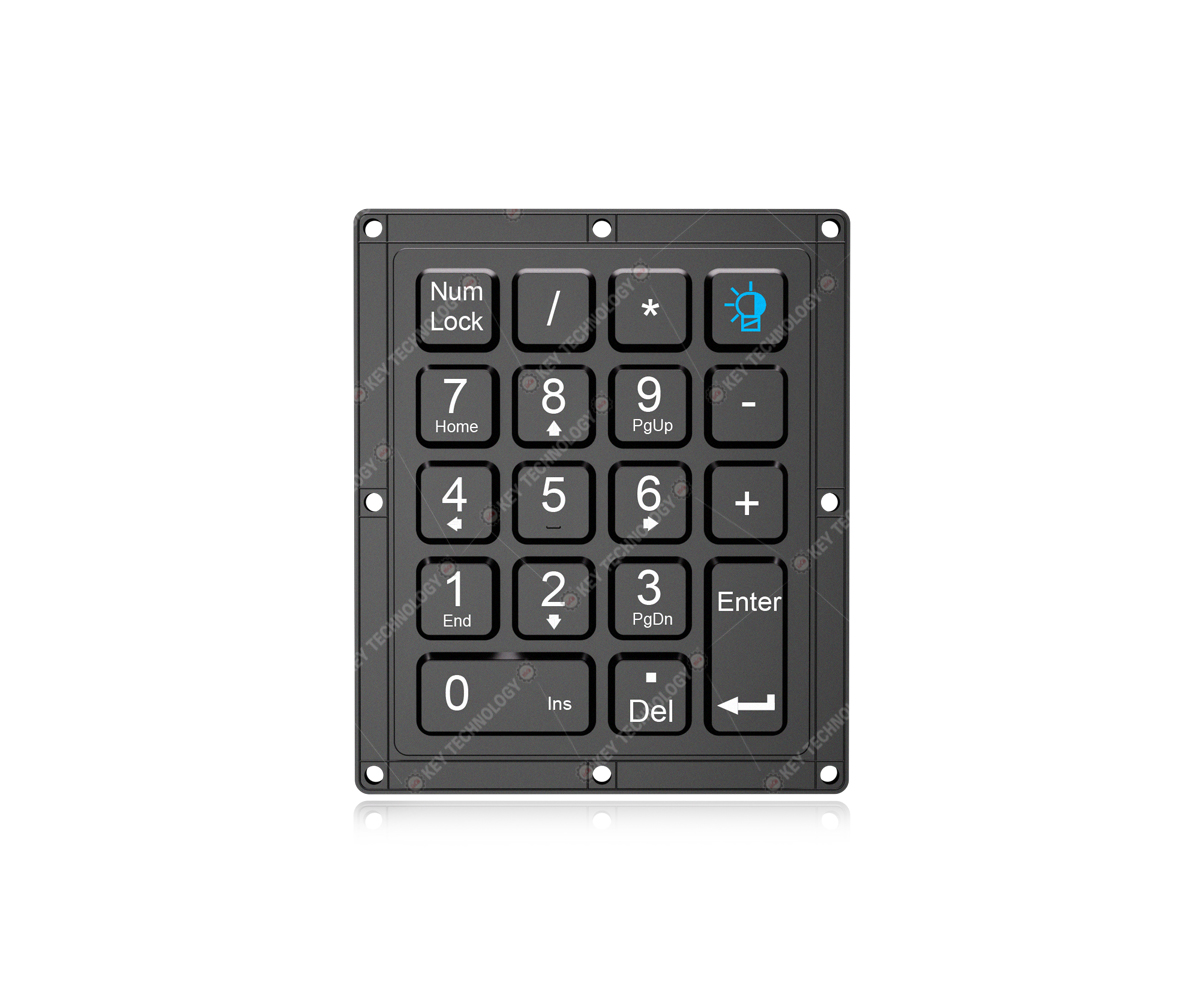

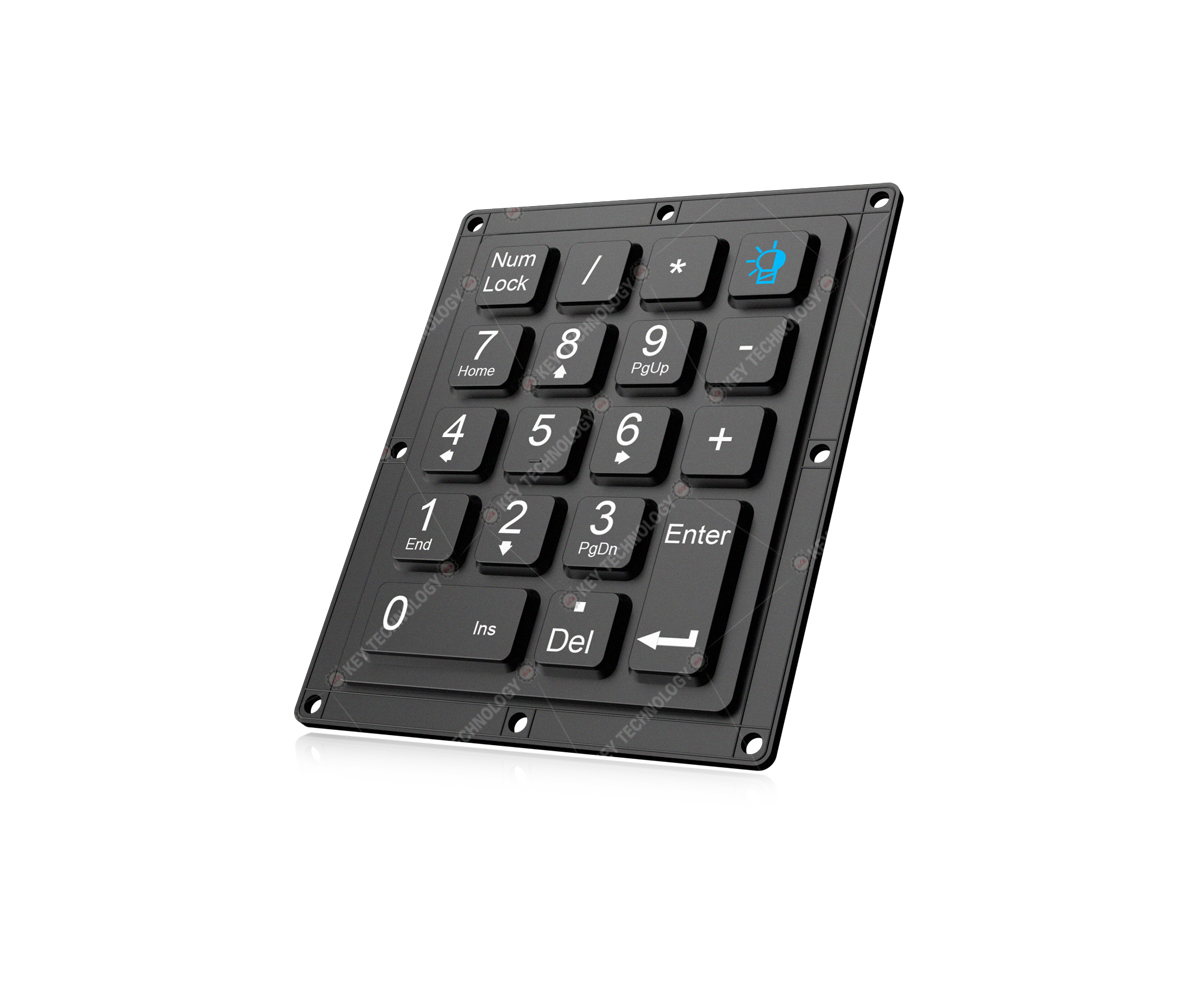

K-TEK-M87KP-18-BL-ML

Category：	Silicone keypad
Key Number：	18 keys
Key Travel：	1.50mm±0.10mm
Backlight：	White
Interface：	USB, With customized interface optional
Key Switch：	Carbon-on-gold
Protection Level：	IP65 dynamic (front panel)
Mounting Solution：	Rear panel mount
Operating Temperature：	-40℃~+75℃
Application：	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

Prev： K-TEK-M340KP-FN-BL-FC-KC-ML

Next： K-TEK-M390-MTB-AVR-FN-BL-NV-151B-BT-DWP

Description

Download

DESCRIPTION: 18 keys IP65 dynamic sealed & ruggedized silicone rubber keypad with integrated military PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise or mistyping, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, rear panel mount solution with mounting holes. Adjustable WHITE backlight included, with USB interface. The whole keyboard is designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

DIMENSIONS: 87.0 mm x 106.0mm (L x W)

MECHANICAL DATA
Keys	18 keys
Switch Contact Material	Carbon-on-gold key switch technology
Key Top Style	Protuberant rectangular keys with tactile feeling
Key Travel	1.50mm±0.10mm
Actuation Force	1.5N±0.2N (pressure point )
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	150mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Interface	USB, With customized interface optional
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating Temperature	-40℃ to +75℃
Storage Temperature	-45℃ to +85℃
Operating RH	3%~95%
Atmospheric Pressure	60-106Kpa
Saline Mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
CE/FCC/ROHS,MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.)
Protection Level	IP65 dynamic (front panel)
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATION	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

K-TEK-M87KP-18-BL-ML mechanical drawing
