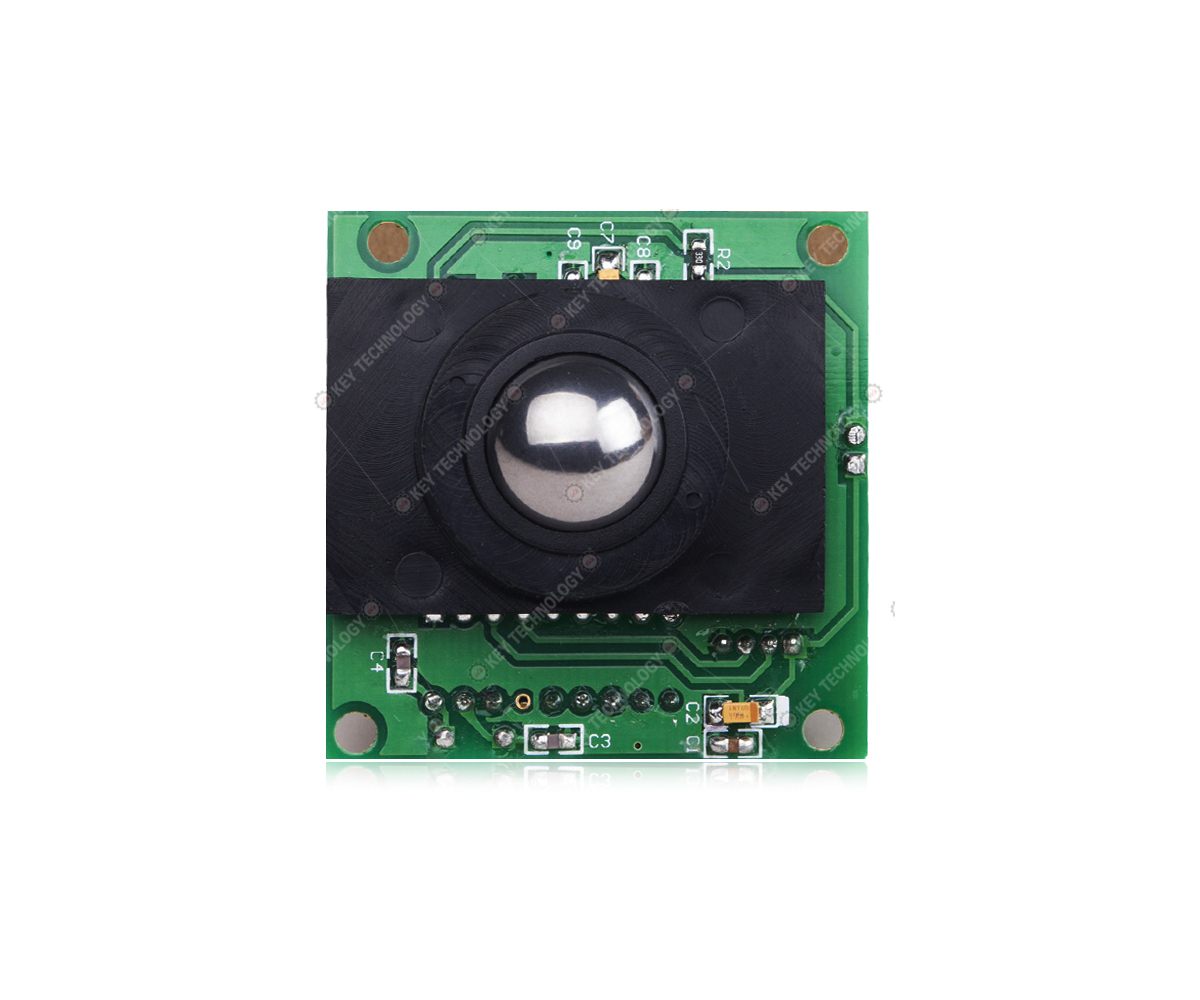

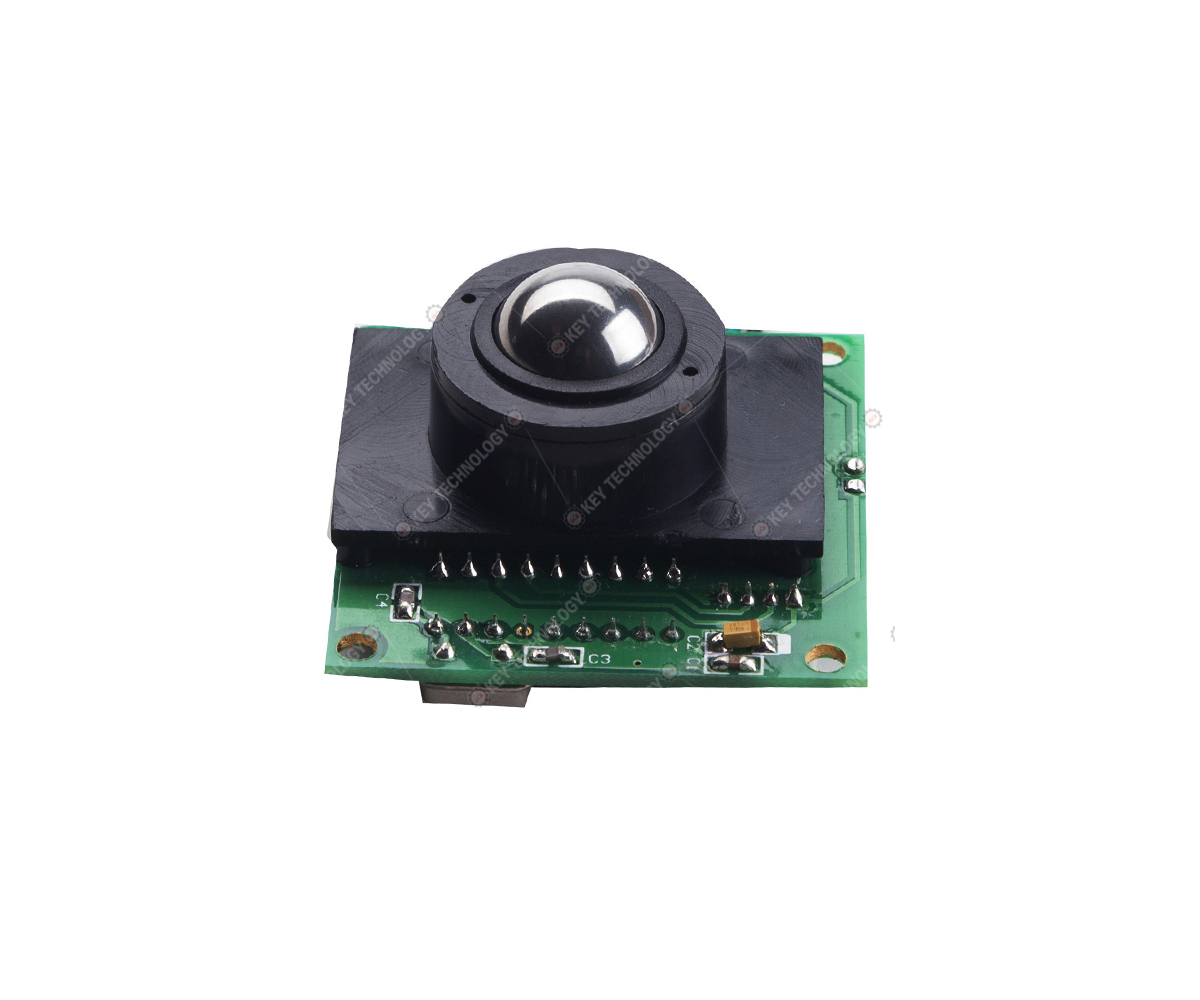

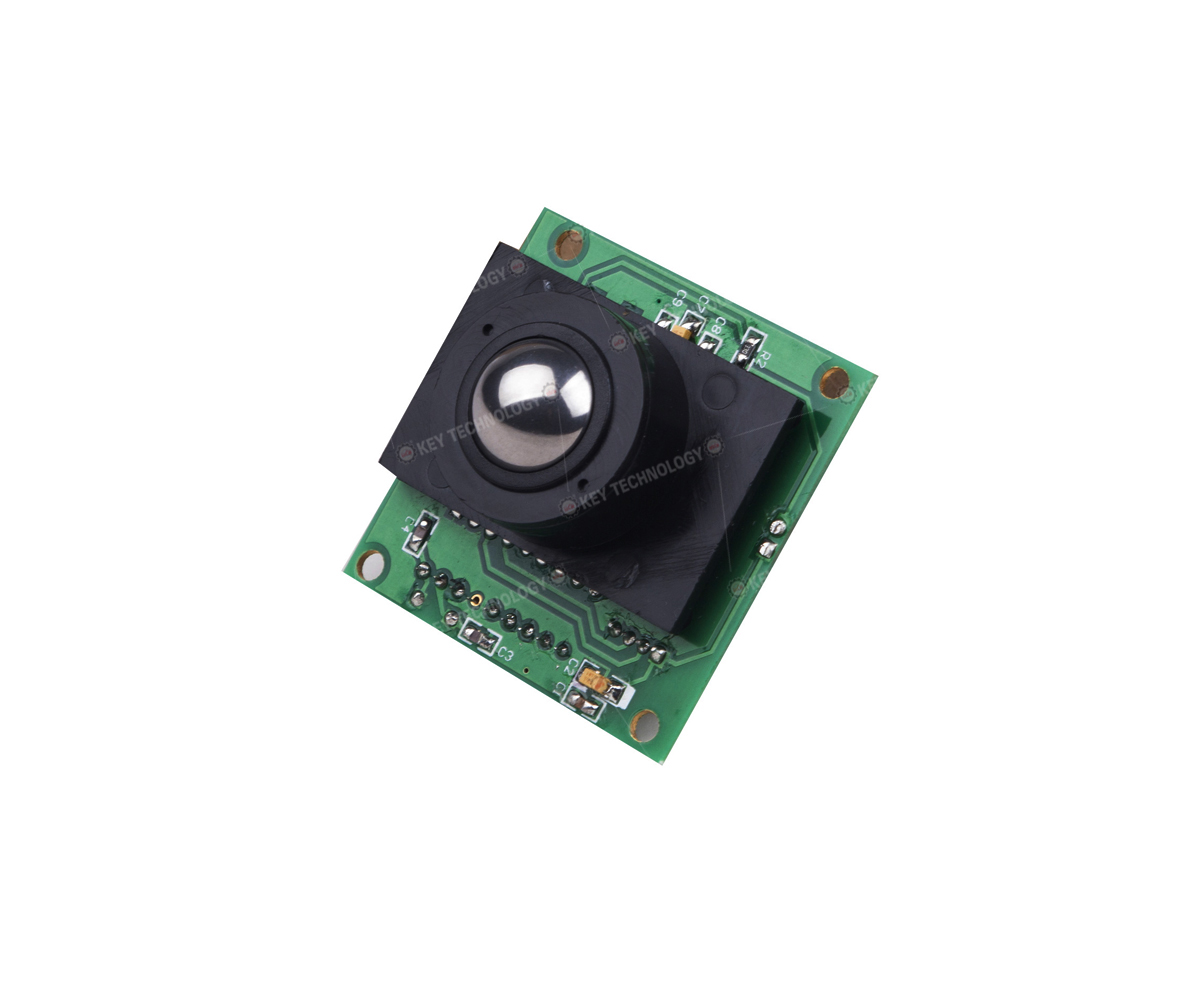

K-TEK-16-OTB

ITEM

SPECIFICATION

Mechanical Data

Ball diameter

16mm

Track ball lifespan

> 2 millions scrolling

Dimension

16mm diameter for ball, 42.90mm x 28.60mm x 26.0(front panel)

Interface

PS2, USB are available, Y type cable with ports of PS2 and USB

Electrical

Power supply

DC +5V±5%

Protection level

IP68

EMC Standard

EN 55032:2015, EN 55035:2017

Power consuming

≤1.00W(dynamic)

≤0.2W(static)

Environmental

Operating temperature

-20ºC~+ 65º C

Storage temperature

-30ºC~+ 75ºC

Operating RH

30～90%

Atmospheric pressure

60～106Kpa.

Reliable

Certificates

RoHS compliant, CE and FCC certified

MTBF

>20000H

MTTR

< 30min

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)

Packing Details

Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.

Application

Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas,

maritime etc.
