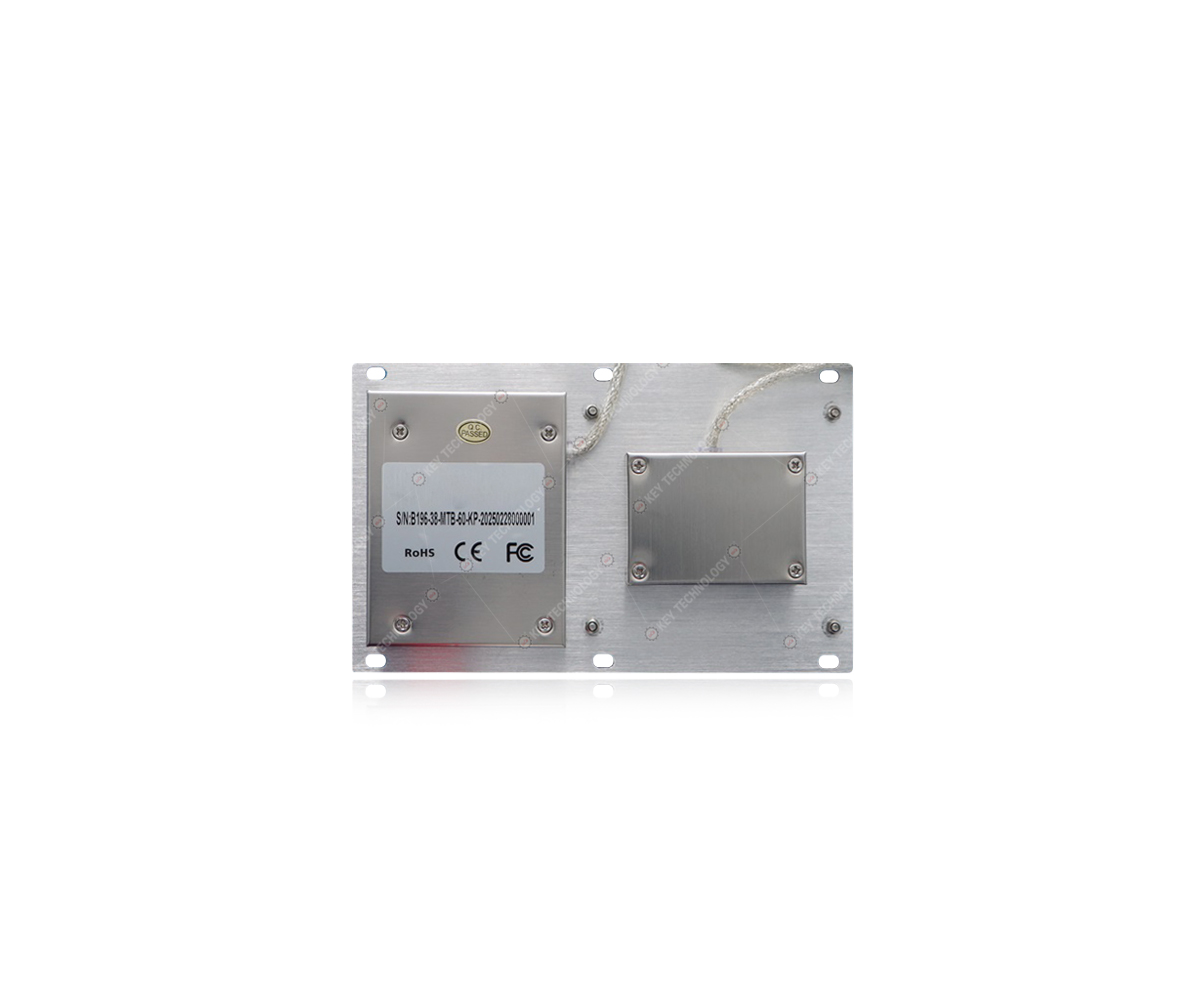

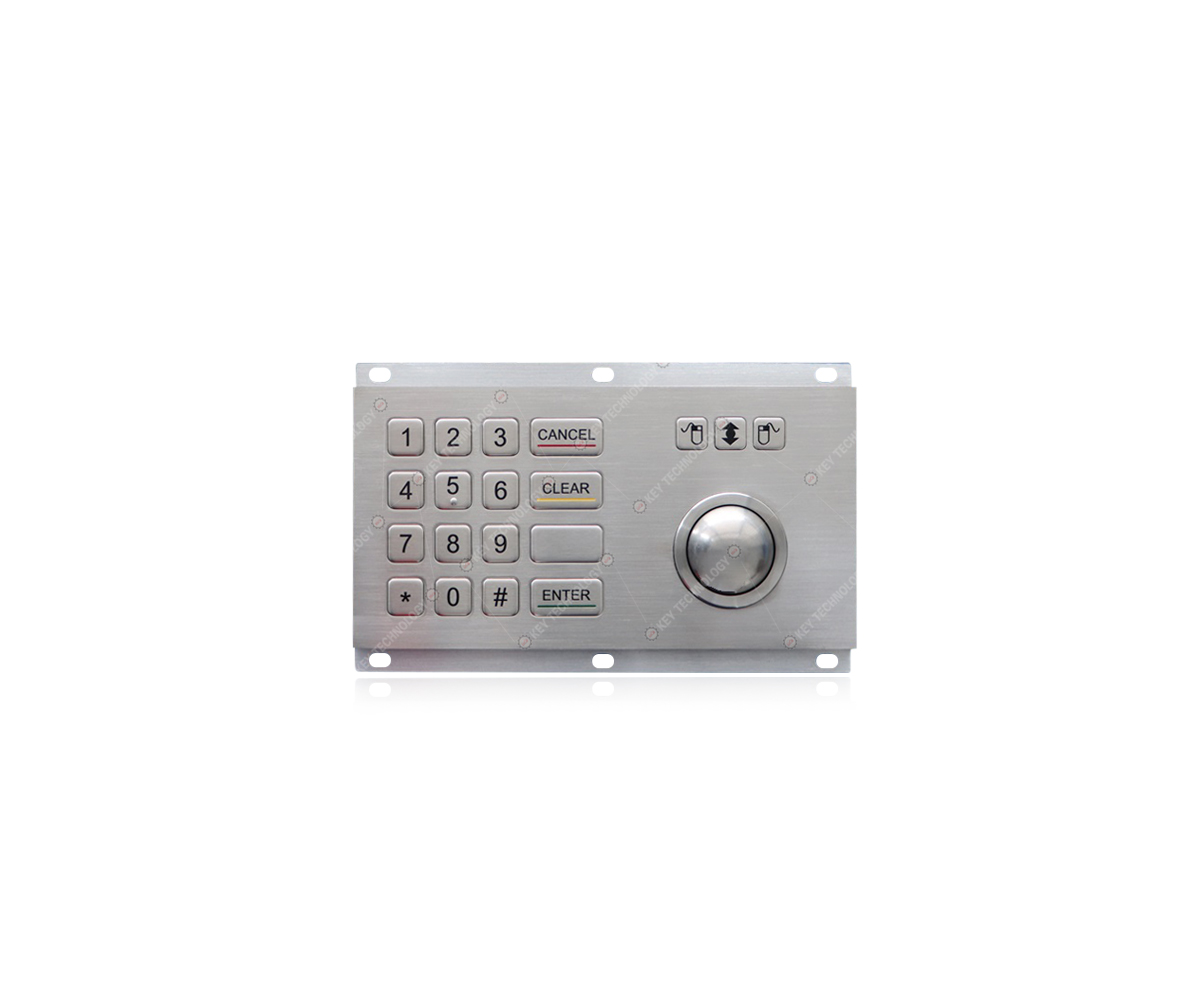

DESCRIPTION: 16 Keys IP65 dynamic washable vandal proof stainless steel industrial compact format numeric keypad with IP65 static 38.00mm mechanical trackball module with 400 DPI resolutions,Industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45±0.05mm with excellent tactile feeling for stable and accurate data input, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, Rear stainless steel plate with mounting holes for rear panel mounting.With dual USB interface and metal box on the back of keypad. Customized Layout is available.
Dimensions: 196.0mm x 100.0mm (top panel)
ELECTRICAL DATA |
Supply Voltage | DC +5V±5% |
Current Rating | 50mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material | Gold-on-Gold key switch technology PCB. |
Interface | PS2, USB available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed). |
MECHANICAL DATA |
Front Plate | 1.5mm thickness super quality brushed stainless steel |
Back Plate | 3.0mm thickness super quality aluminum plate |
Actuator/keys | 16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key |
Key top style | Non-protuberant rectangular keys, laser engraved & etched legends on keys are available |
Key Size | 14.0mm x 14.0mm for normal keys |
Key Travel | 0.45mm±0.05mm |
Actuation Force | 3.5N±0.2N (pressure point) |
Switch Life | more than 1 million of operations |
G.W. | 1.30KGs |
ENVIRONMENTAL ADAPTABILITY |
Operating Temperature | -20℃ to +65℃ |
Storage Temperature | -30℃ to +75℃ |
Operating RH | 30-90% |
Atmospheric Pressure | 60-106Kpa |
Saline Mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY |
RoHS Compliant, CE and FCC, ESD |
Protection Level | IP65 dynamic (front panel) |
Vandal Resistant | IK09 |
Key Lifespan | >1 million actuation |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
