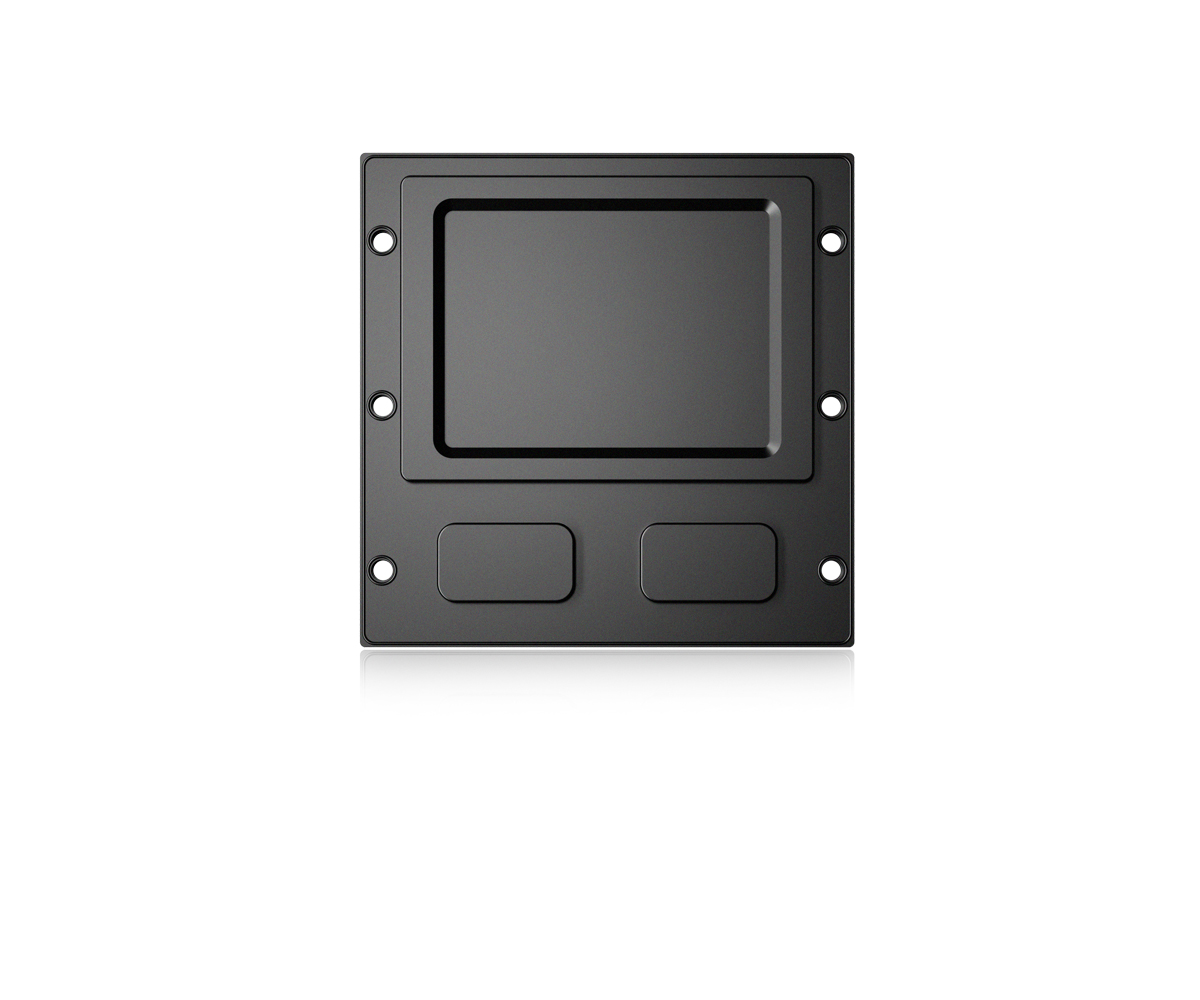

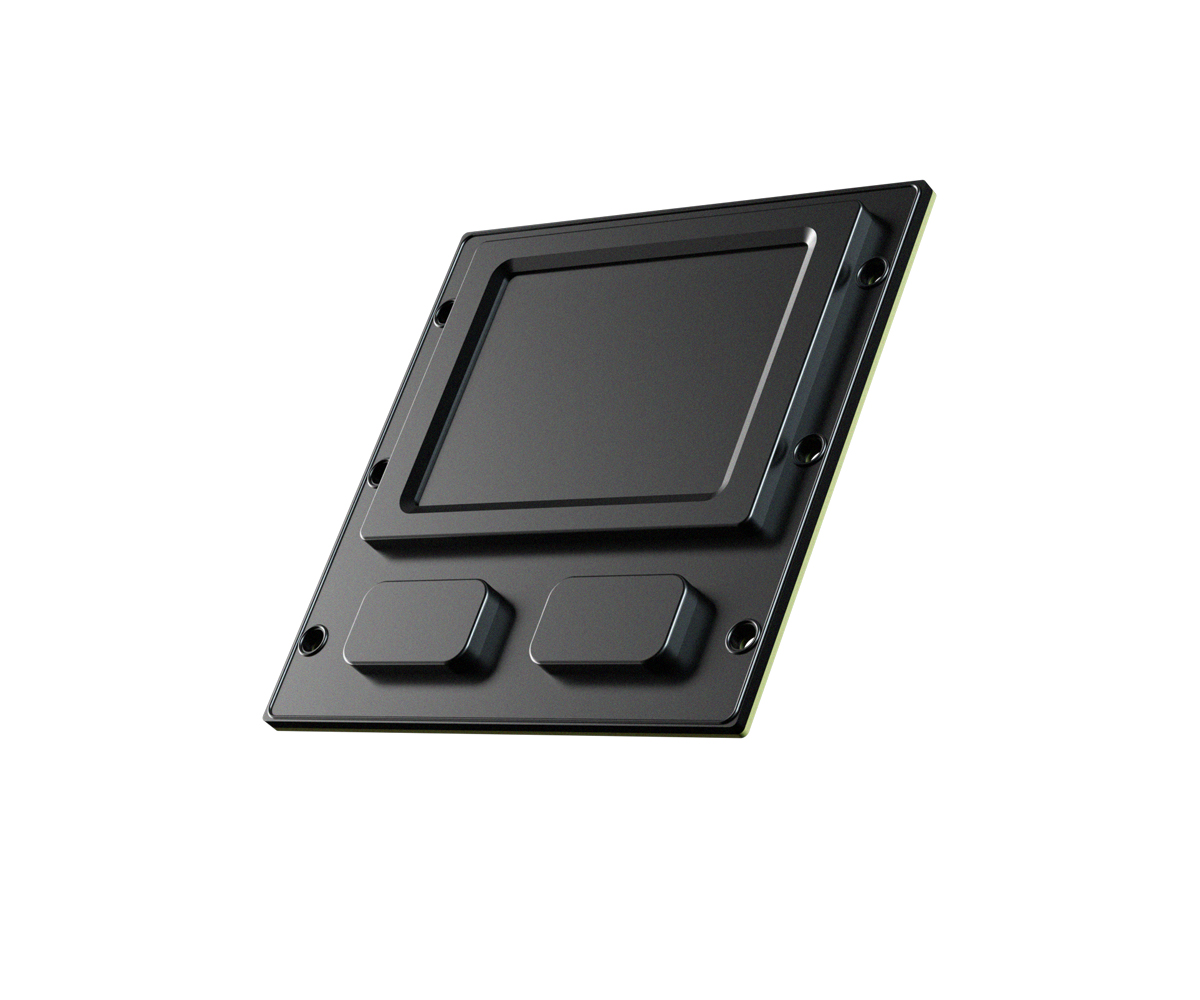

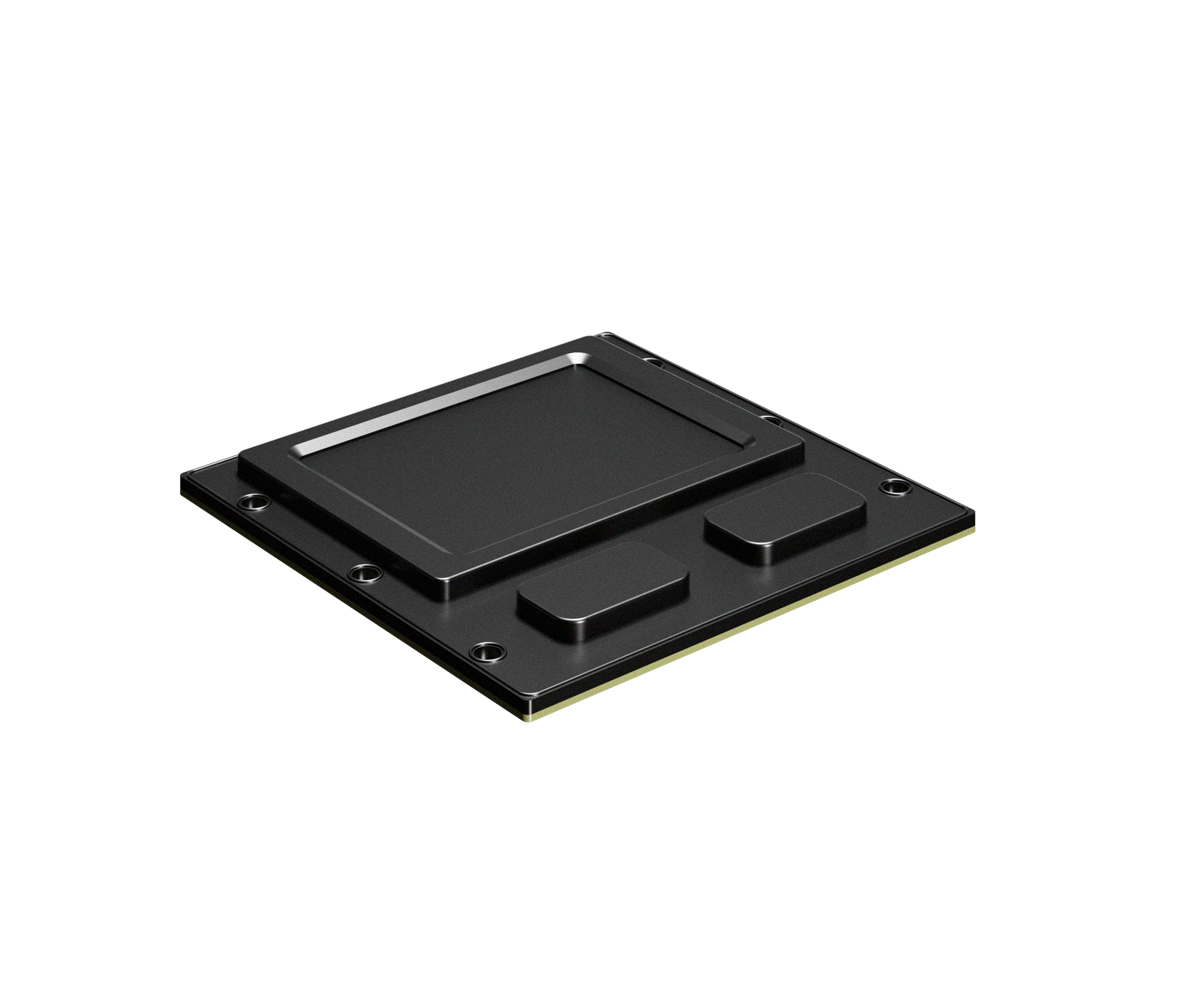

DESCRIPTION: IP67 dynamic sealed and ruggedized rubber military touchpad with 400DPI resolutions for fast and accurate cursor position, with 2 micro switch mouse buttons with plastic keycaps, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, rear panel mounting solution with mounting holes,USB interface. Military level with strong anti-interference and low radiation ability. Designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
DIMENSIONS : 90.0mm x 90.0mm (front panel)
MECHANICAL DATA | Keys | 2 keys | Key switch | Micro key switch technology | Key travel | 1.20mm±0.10mm | Actuation force | 3.2±0.2N | Key lifespan | more than 5 million of operations | Touch pad | sealed and ruggedized tough touchpad | Touchpad cover | Composite | Mutual capacitance sensing | X/Y axis location detection resolution | 40 Counts /mm | X/Y position report | relative | Tracking speed | Maximum 1,016 m/sec | G.W. | 0.30KGs | ELECTRICAL DATA | Supply Voltage | DC +5V±5% | Current Rating | 30mA | Interface | USB, PS2 optional | OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). | MIL-STD-461G (EMC, EMI, EMS, ESD): | 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads | 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads | 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads | 4 | CS106 Conducted Susceptibility, Transients, Power Leads | 5 | CS112 Electrostatic Discharge Susceptibility | 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection | 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation | 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads | 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field | 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field | 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field | 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field | MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.) | ENVIRONMENTAL ADAPTABILITY | Operating temperature | -40℃ to +60℃ | Storage temperature | -45℃ to +70℃ | Operating RH | 3% ~ 95% | Atmospheric pressure | 60-106Kpa | Saline mist | 96 hours, IEC 60512-6 | Damp heat test at +40℃ | 21 days, IEC 60512-6 | Dry heat test at +85℃ | 10 days, IEC 60512-6 | RELIABILITY | RoHS, CE, FCC, MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.) | Protection Level | IP67 | Lifespan | >5 years | MTBF | >20000H | MTTR | <30min | APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
|
