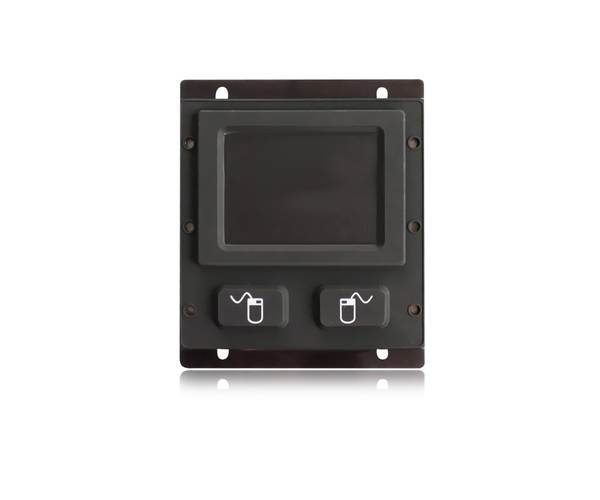

DESCRIPTION: IP65 dynamic Sealed and Ruggedized Rubber Touchpad for fast and accurate cursor position, with 2 raised mouse buttons under touchpad, with stainless steel housing protects the electronics controller, with mounting holes along the rear panel mounting plate for rear panel mounting.
DIMENSIONS : 90.0mm x 90.0mm (front panel)
MECHANICAL DATA |
Keys | 2 keys |
Key top style | Protuberant rectangular keys with tactile feeling |
Key travel | 1.50mm |
Actuation Force | 1.5N±0.2N (pressure point) |
Switch life | more than 5 million of operations |
Touch pad | sealed and ruggedized tough touchpad |
Touchpad cover | Composite |
More than Lifetime 10 million strokes |
Mutual capacitance sensing |
X/Y axis location detection resolution | 40 Counts /mm |
X/Y position report | relative |
Output (self-detectable depending on cable) | PS2 or USB |
Tracking speed | Maximum 1,016 m/sec |
Current rating (active mode) | < 10 mA |
G.W. | 0.50KGs |
ELECTRICAL DATA |
Supply Voltage | DC +5V±5% |
Current Rating | 17mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material | Carbon-on-Gold key switch technology PCB |
Interface | PS2, USB available |
Cable lengh | Standard 2.0m, customized length available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Operating RH | 100% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY |
RoHS, CE, FCC |
Protection Level | IP65 |
Key Lifespan | >5 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
