K-TEK-M284TP-FN-AC-BL-UT-ML-OEM

Category：	Silicone keyboard
Key Number：	94 keys (including 2 mouse buttons)
Key Travel：	1.50mm±0.10mm

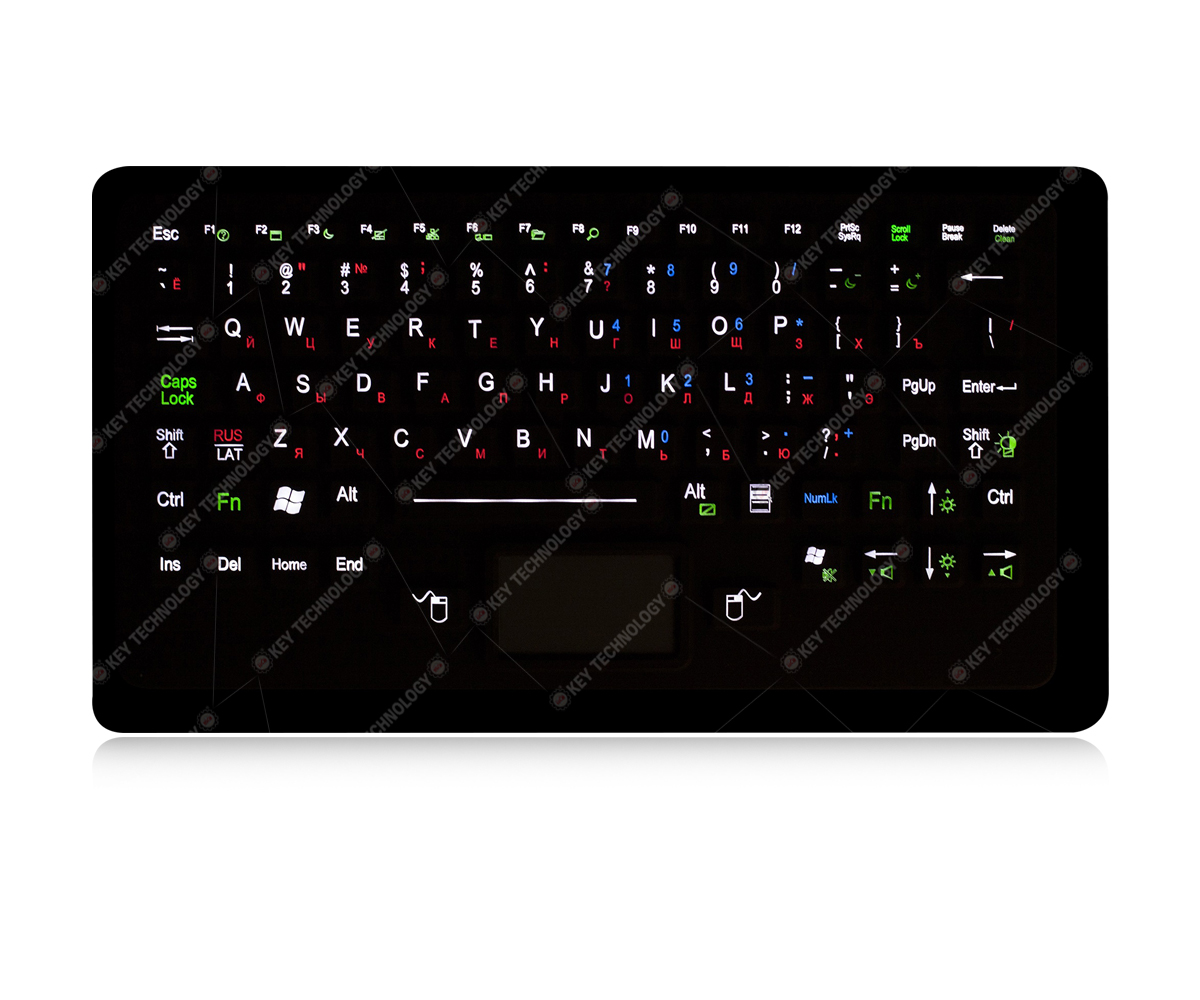

Backlight：	White
Interface：	Dot Matrix
Key Switch：	Carbon-on-gold
Protection Level：	IP65 dynamic (front panel)
Mounting Solution：	Top panel mount
Operating Temperature：	-40℃~+75℃
Application：	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

Prev： K-TEK-M255TP-FN-BL-BT-IL-DWP

Next： K-TEK-M284-FN-IL-OEM

Description

Download

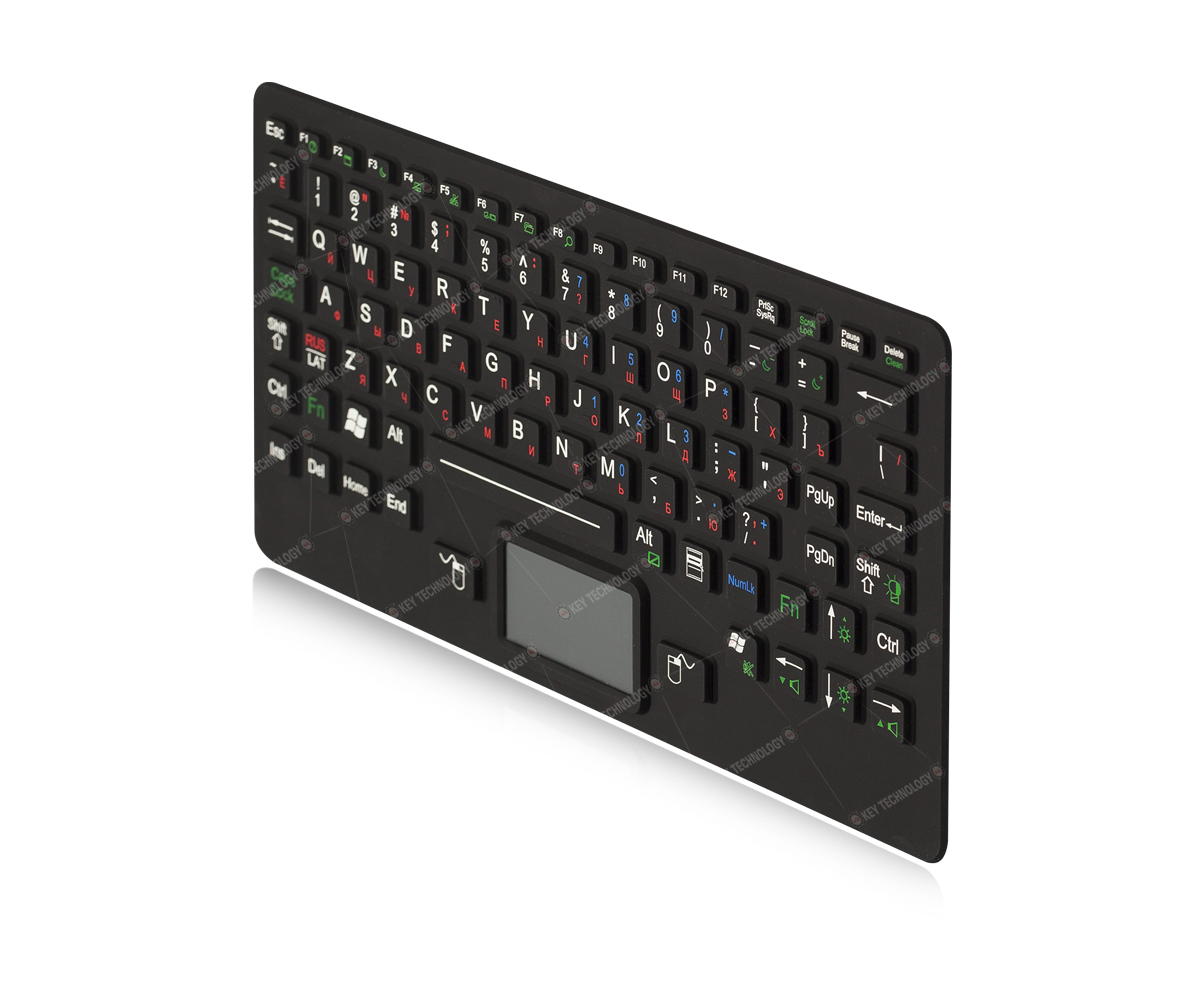

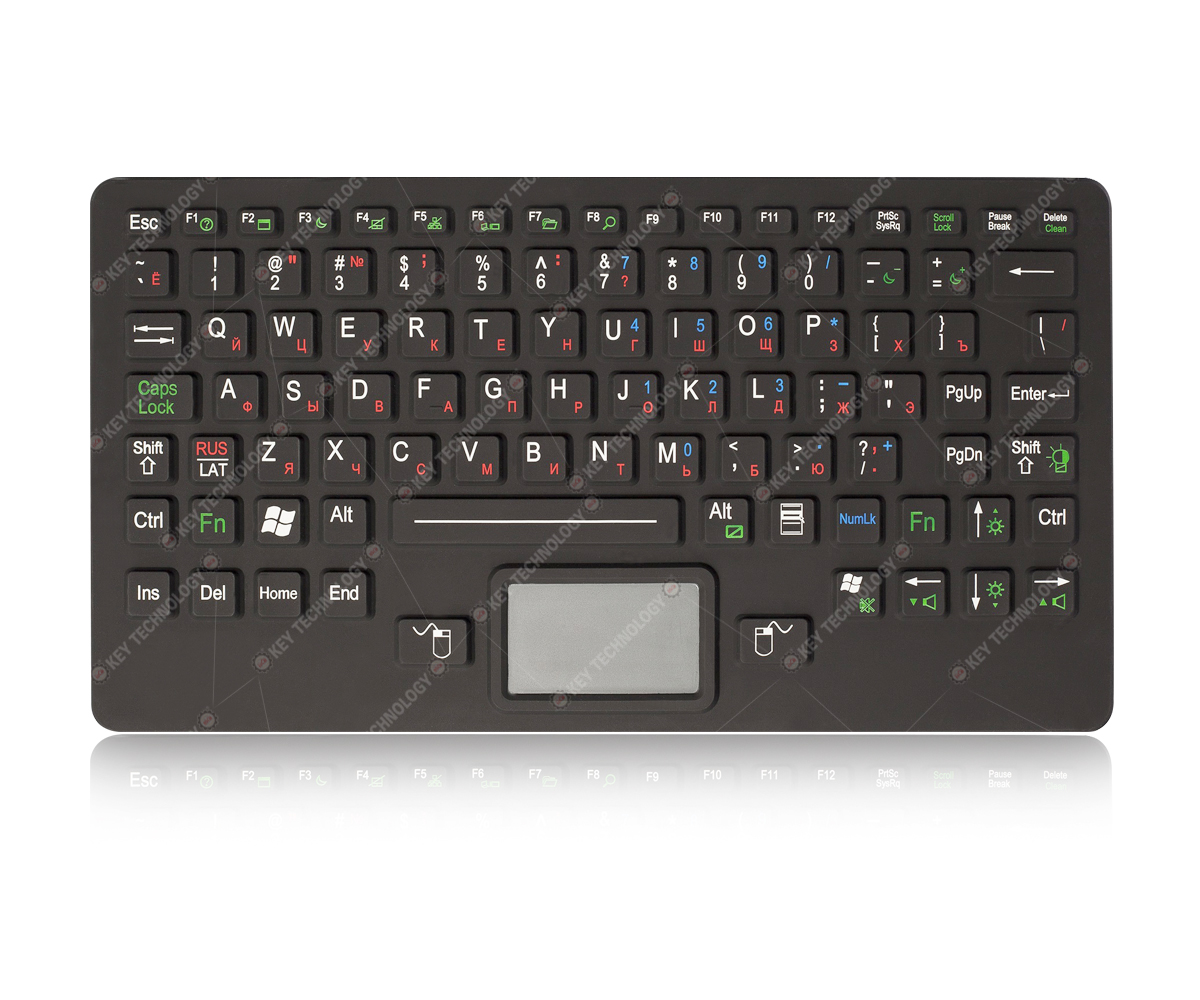

DESCRIPTION: 94 keys IP65 dynamic sealed and ruggedized silicone rubber keyboard with matrix FPC flex cable, with carbon-on-gold key switch

technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating &

antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, top panel mounted with top ruggedized industrial

silicone cover & military matrix PCB for ruggedized structure and easy mounting and sealing, adjustable industrial backlight included.Designed to

meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus,

solar radiation etc.),and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as the critical military standards in these 10 aspects: reliability, safety,

maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

Dimensions: 284.00mm x 153.00mm (L x W)

MECHANICAL DATA
Key	94 keys (including 2 mouse buttons)
Key top style	Protuberant rectangular keys with tactile feeling.
Key travel	1.5mm±0.1mm
Actuation Force	1.5N±0.2N (pressure point )
Switch life	more than 5 million of operations.
Touch pad	1.3mm thick PCB, containing polyester film
Touchpad cover	Composite
More than Lifetime 10 million strokes
Mutual capacitance sensing
X/Y axis location detection resolution	40 Counts /mm
X/Y position report	relative
Output (self-detectable depending on cable)	PS2 or USB
Tracking speed	Maximum 1,016 m/sec
Power supply voltage	5V ± 0.25V
Current rating (active mode)	< 10 mA
G.W.	0.50KGs
ELECTRICAL DATA
Lifespan	> 5 years
Switch Contact Material	Carbon-on-gold key switch technology
Interface	Dot matrix
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-40℃ to +75℃
Storage temperature	-45℃ to +85℃
Saline mist	96h, IEC60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
Humidity	100%
Atmospheric pressure	60-106Kpa
RELIABILITY
RoHS compliant, CE and FCC certified, MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.)
Protection Level	IP65 dynamic (front panel)
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

K-TEK-M284TP-FN-AC-BL-UT-ML-OEM--mechanical drawing
