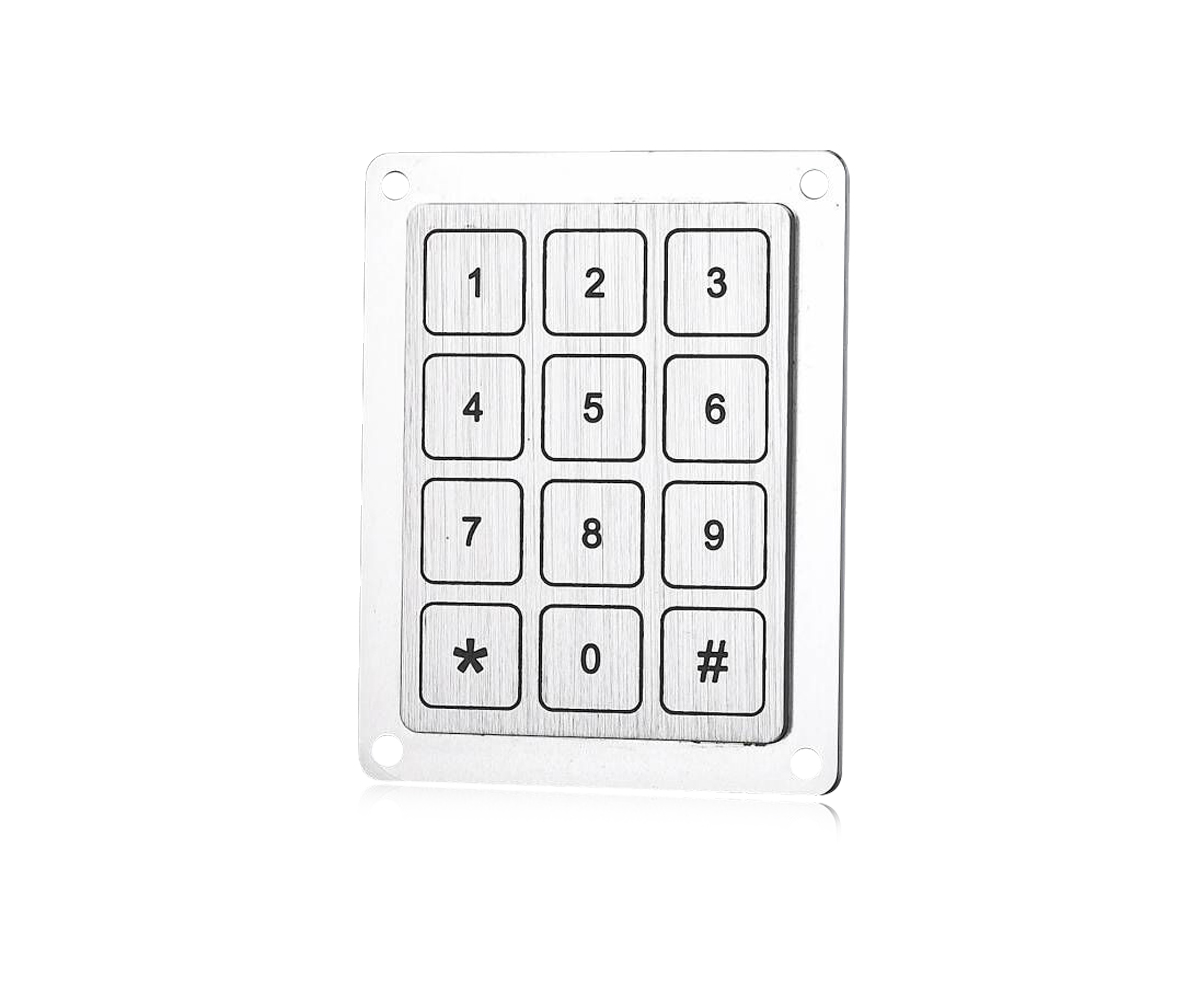

K-TEK-P73KP-AC-DWP

Category：	Stainless steel keypad
Key Number：	12 keys
Key Travel：	0.45±0.10mm
Interface：	Dot Matrix
Key Switch：	piezo contact key switch technology
Protection Level：	IP65 (front panel)
Mounting Solution：	Rear panel mount
Operating Temperature：	-20ºC to +65ºC
Application：	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

Prev： K-TEK-D396KP-FN-DT-SW

Next： K-TEK-P93KP-16-AC-DWP

Description

Download

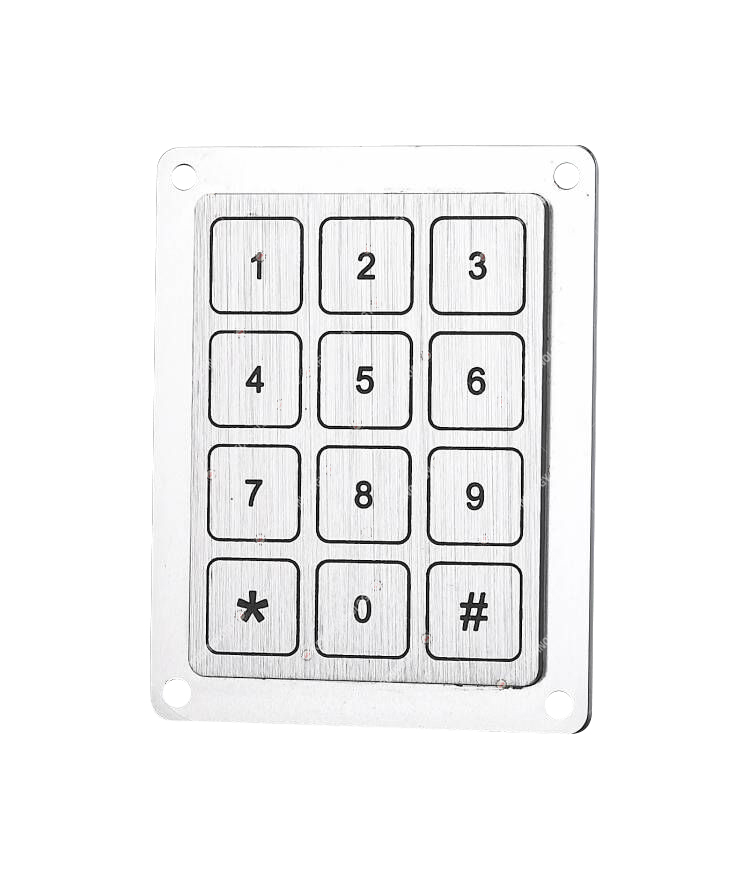

DESCRIPTION: 12 keys compact format IP65 water proof and vandal proof metal dot matrix keypad with fully sealed industrial PCB with socket on

the back panel for connecting electronics controller, with industrial PCB with piezo contact key switch technology with stroke (0.45mm) with extremely

good tactile feeling for stable and accurate data input without any noise, rear metal plate with mounting holes for easy mounting and tightening to

enclosure or panel.Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt

mist etc, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 73.00mm x 93.00mm (L x W)

ELECTRICAL DATA
Lifespan	> 5 years
Switch Contact Material	Piezo contact
Interface	Dot matrix
Actuator/keys	12 keys, super quality flat key
Key Travel	0.45mm±0.10mm
Actuation Force	0.6 N+/-0.1N (pressure point)
Switch Life	more than 1 million of operations
G.W.	0.25KGs
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating Temperature	-20℃ to +65℃
Storage Temperature	-30℃ to +75℃
Operating RH	30-90%
Atmospheric Pressure	60-106Kpa
Saline Mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level	IP65 (front panel)
Vandal Resistant	IK08
Key Lifespan	>1 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
