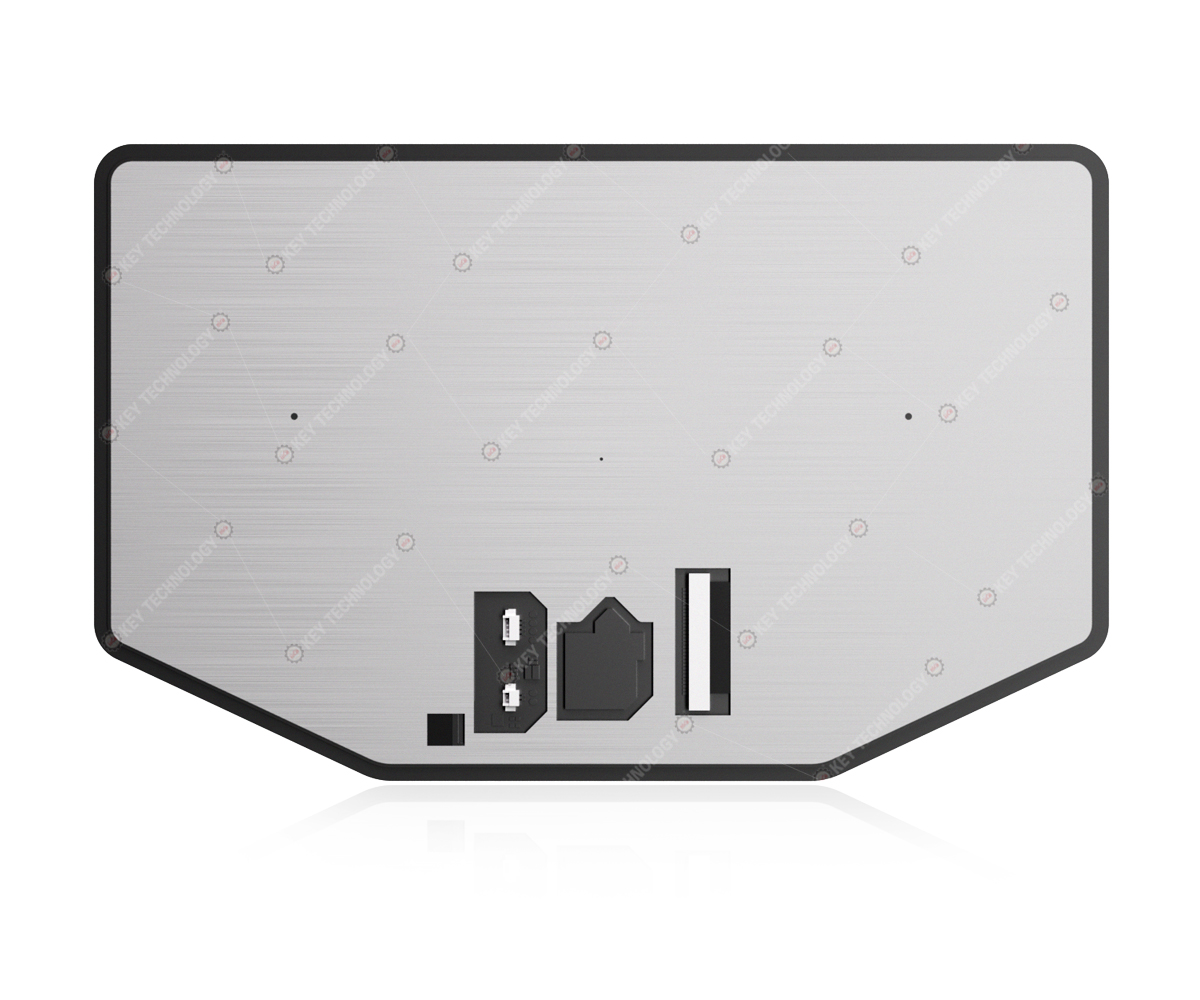

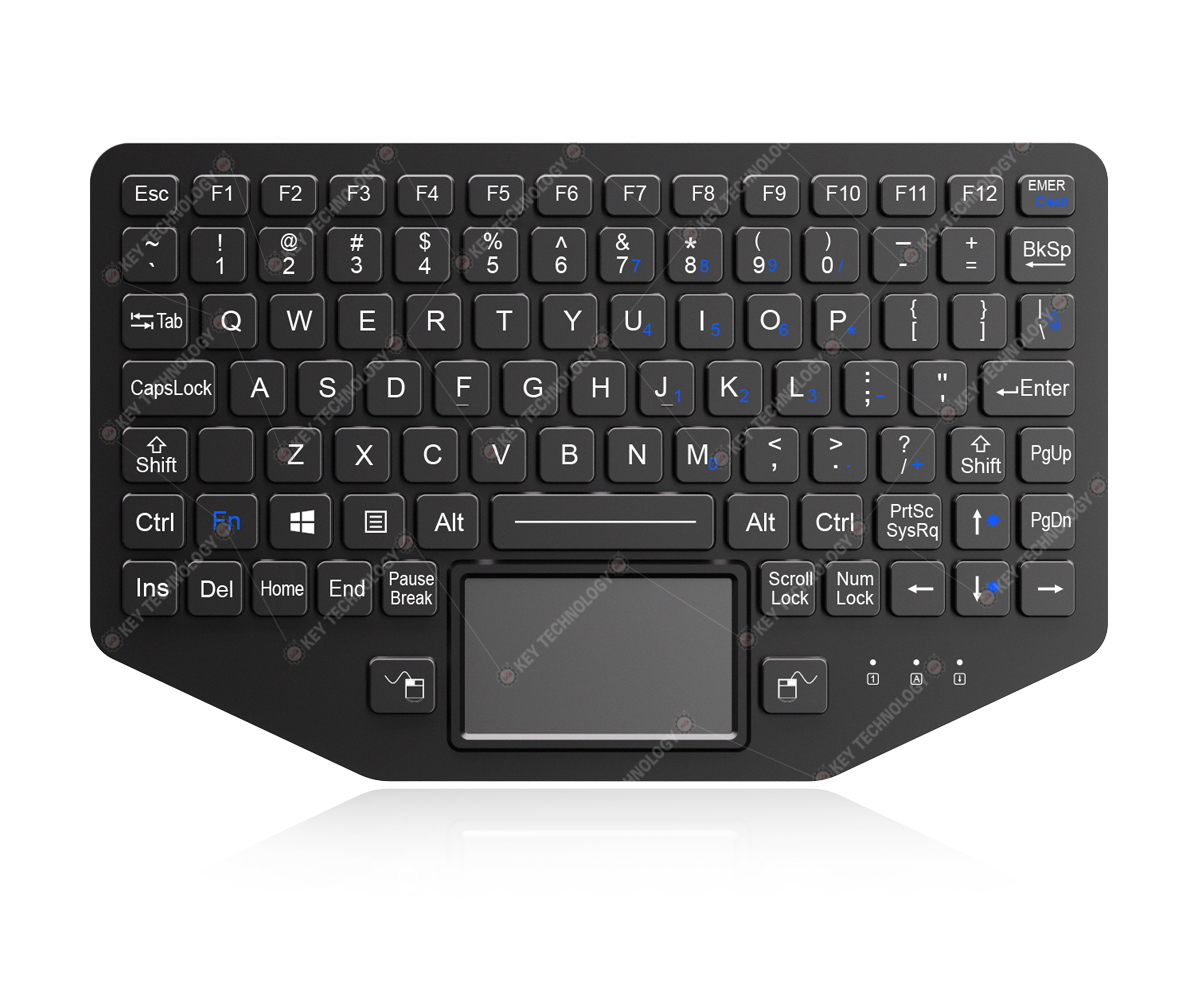

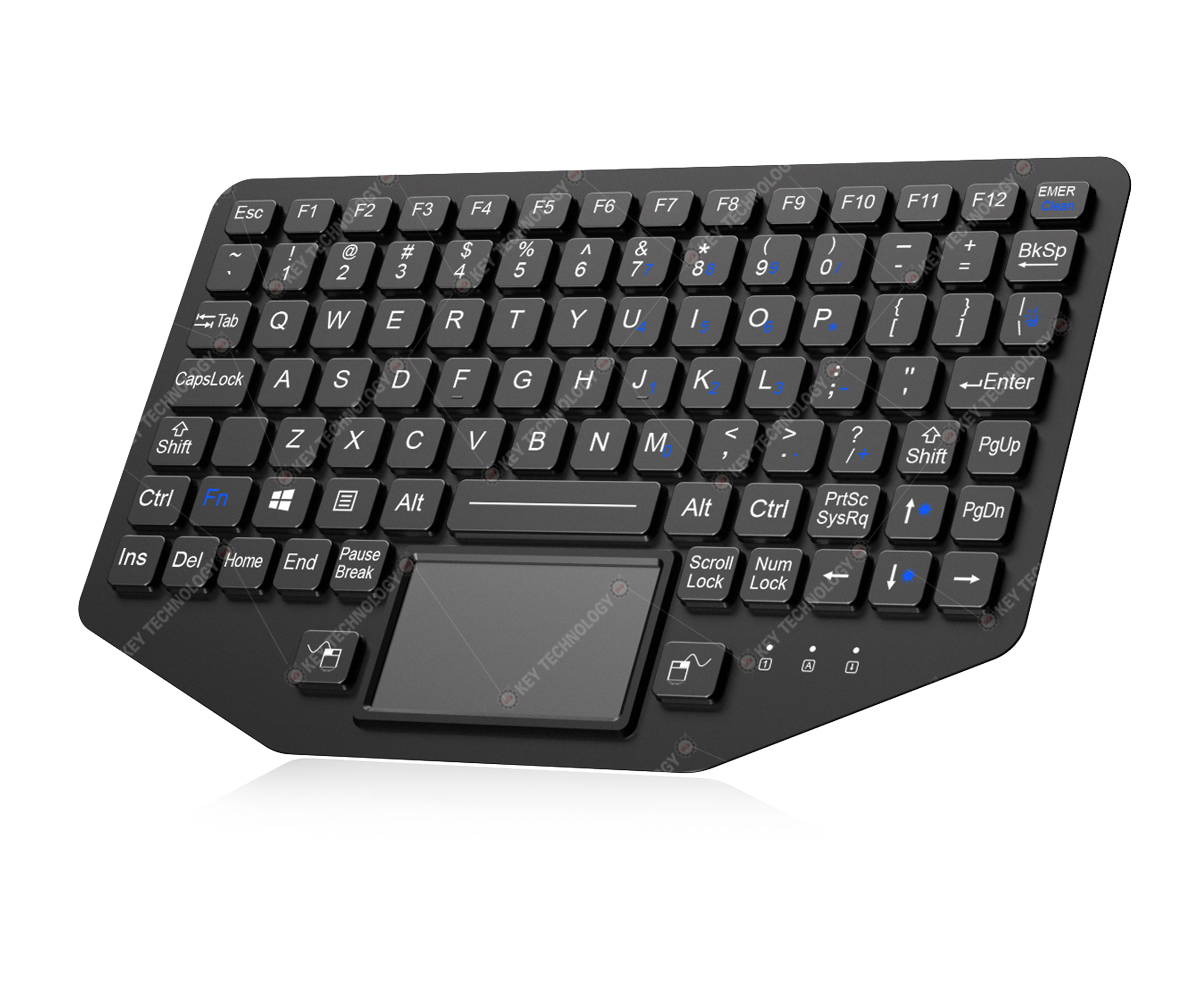

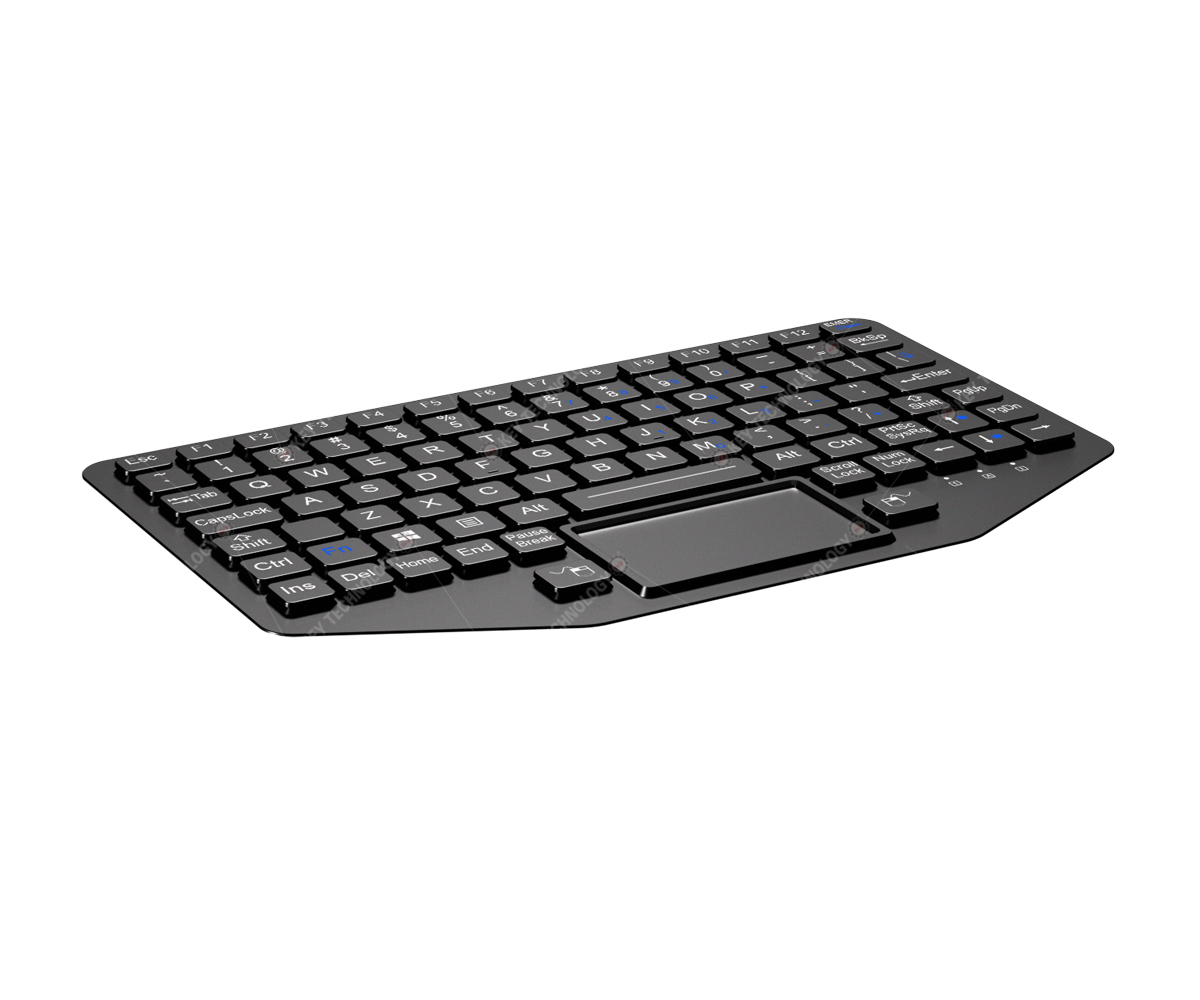

DESCRIPTION: 92 keys IP67 fully sealed and durable embedded ultra thin rugged military keyboard, with sealed & ruggedized tough touchpad for fast and accurate cursor position, with built-in ultra-thin Flexible Printed Circuit and semi-reinforced ultra-thin stainless steel back plate, 12 function keys(F1, F2, ... F12) are on top line for easy operation, with combination numbers on letter keys for full keyboard functionality. Keyboard surface uses ultra rugged P+R technology (PC keycaps + Rubber), and adopts carbon contact and FPC carbon-on-gold key switch technology. With 1.50mm±0.10mm key travel with extremely good tactile feeling for fast and accurate data input without any noise, there will be no key value missing, no stuck key during keyboard operation, with durable coating & anti-microbial keyboard surface withstand most chemicals and liquids under harsh environment. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC to avoid misoperation or typing error. Adjustable white backlight included, top panel mounting solution. Designed to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.),and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity. Dimensions: 283.0mm x 177.7mm (Front panel)
MECHANICAL DATA | Key | 92 keys (including 2 mouse buttons) | Key technology | Carbon contact + FPC carbon-on-gold key switch technology | Key travel | 1.50mm±0.10mm | Switch life | more than 5 million of operations | Actuation Force | 1.2N±0.2N | N.W. | 222g | ELECTRICAL DATA | Supply Voltage | DC +5V±5% | Current Rating | ≤30mA when backlight is off, ≤300mA with backlight on | EMC Standard | EN 55032:2015 EN 55035:2017 | Lifespan | > 5 years | Interface | USB | OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). | ENVIRONMENTAL ADAPTABILITY | Operating temperature | -40℃ to + 75℃ | Storage temperature | -50℃ to + 85℃ | Humidity test | 1. Test temperature: 30℃~60℃, 2. Test humidity: 95%RH, 3. Test period: 24h as a cycle, 10 cycles, total 240h | Atmospheric pressure | 57kPa~106kPa | Vibration test | 0~2000Hz, displacement 1mm, acceleration 70m/s² | Shock test | 1. Pulse waveform: post-peak sawtooth wave 2. Peak acceleration: 40g 3. Pulse duration: 11ms 4. Test period: X,Y, Z , 3 times impact to each axial front and back, totally18 times | Temperature shock test | 1.Test temperature: -55℃~75℃ 2.Test period: -55℃ for 2h, 75℃ for 2h, 3 cycles, totally 12h | Fungus test | 1.Test temperature: (30±1) ℃. 2.Relative humidity: (95±5) %RH. 3.Test strains: Aspergillus flavus, Aspergillus variegatus, Penicillium cordylus, mucocellus globularis, Aspergillus Niger. 4.Test period: 28 days (total 672 hours). | Salt spray test |
1. Place the sample into the Salt Spray Corrosion Test Chamber, temperature inside the chamber is 35 ℃; Spray the sample with a NaCl test solution with a concentration of 5 ± 1% and a PH value of 6.6 for 24h at a pressure of 96kPa;Test duration is 24h. 2. After 24h of spray, dry and store the sample for 24h in an environment with temperature of 23 ℃ and humidity of 50%; 3. 1-2 steps as one cycle, test 2 cycles, total 96 h. 4.After test, exhaust the fog for 10 min, check the sample after cleaning it with flowing water under standard atmospheric conditions. | Rain test | 1.Test procedure: Procedure - rainfall and blowing rain 2.Test direction: keyboard surface 3. Wind velocity: no less than 18 m/s 4.Test duration: 3h | Dust test | 1.Test procedure: Procedure - Dust Blowing. 2. Dust content: 10.6g/m³±7g/m³. 3. Firstly conduct dust blowing for 6h under 23°C, then adjust the temperature to 60°C and stabilize for 1h, and then re-conduct dust blowing for 6h. | Transport package drop test | 1. Test procedure: Transport Drop Test 2. Sample state: Weight≤45.4kg, Maximum Size<91.0cm; 3. Drop height: 122cm 4. Drop count: drop to each surface, edge and corner, 26 times of drop totally. | RELIABILITY | RoHS compliant, CE and FCC certified, meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.) | Protection Level | IP67 (front panel) | Key Lifespan | >5 million actuations | MTBF | >20000H | MTTR | <30min | APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
|
