K-TEK-M270-FN-BL-IT-ML-DWP

Category：	Chiclet Keyboard
Key Number：	86 keys
Key Travel：	1.20mm±0.10mm
Backlight：	White
Interface：	USB/PS2 optional
Key Switch：	Carbon-on-gold
Protection Level：	IP65 dynamic (front panel)
Mounting Solution：	Rear panel mount
Operating Temperature：	-40℃~+75℃
Application：	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

Prev： K-TEK-M270-FN-BL-IT-ML-DWP+M73TP

Next： K-TEK-M70-38-MTB-BT-DWP

Description

Download

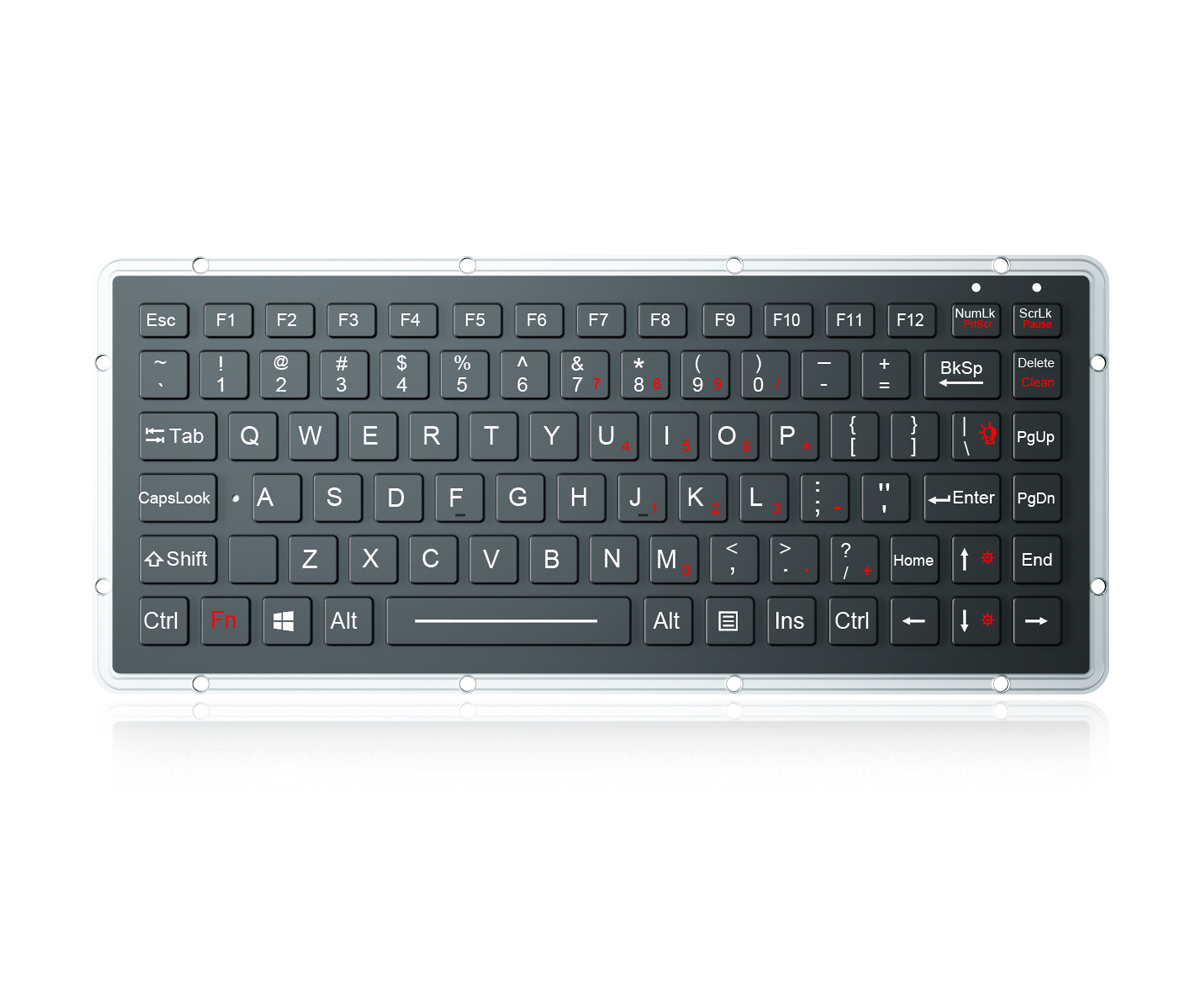

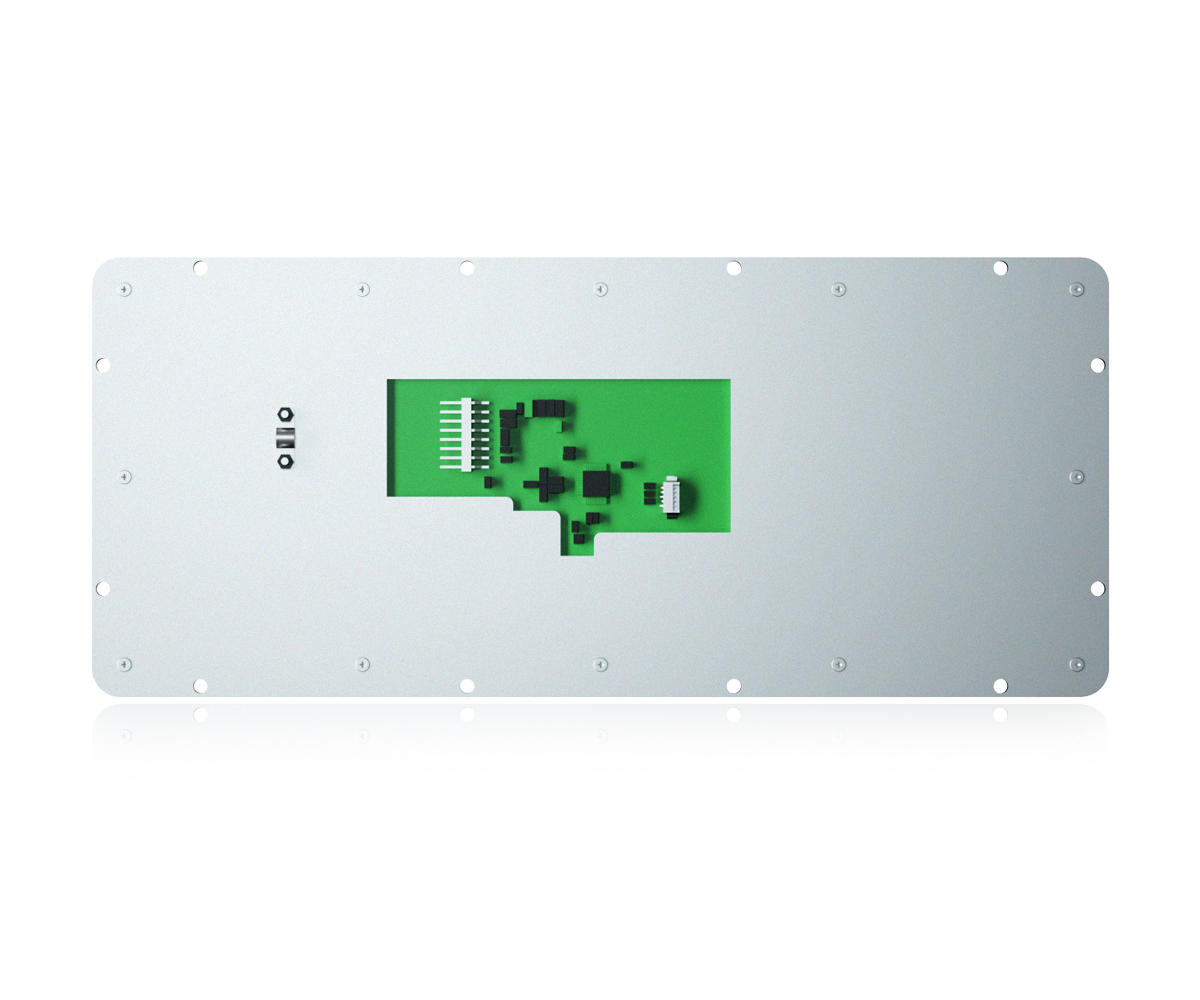

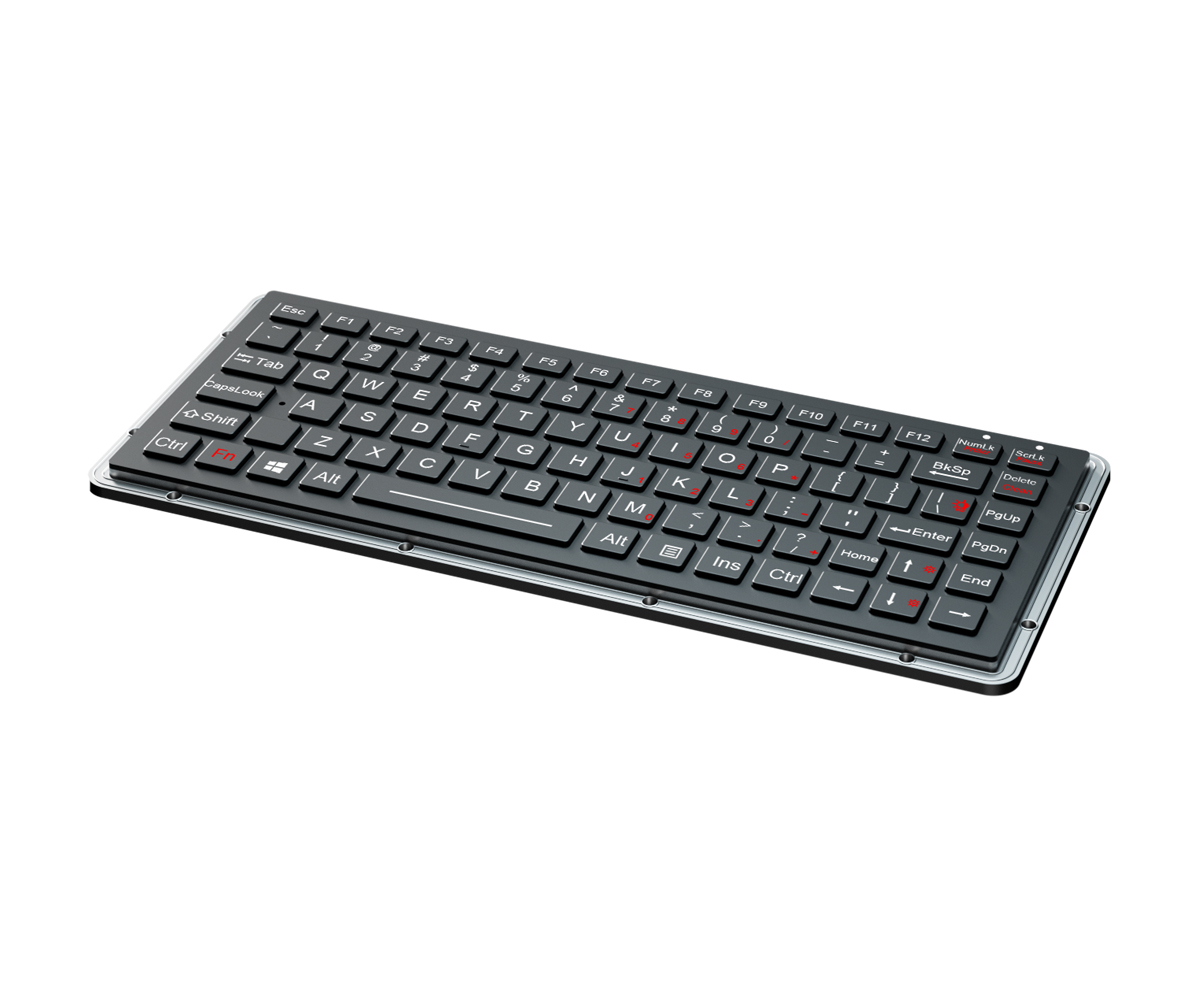

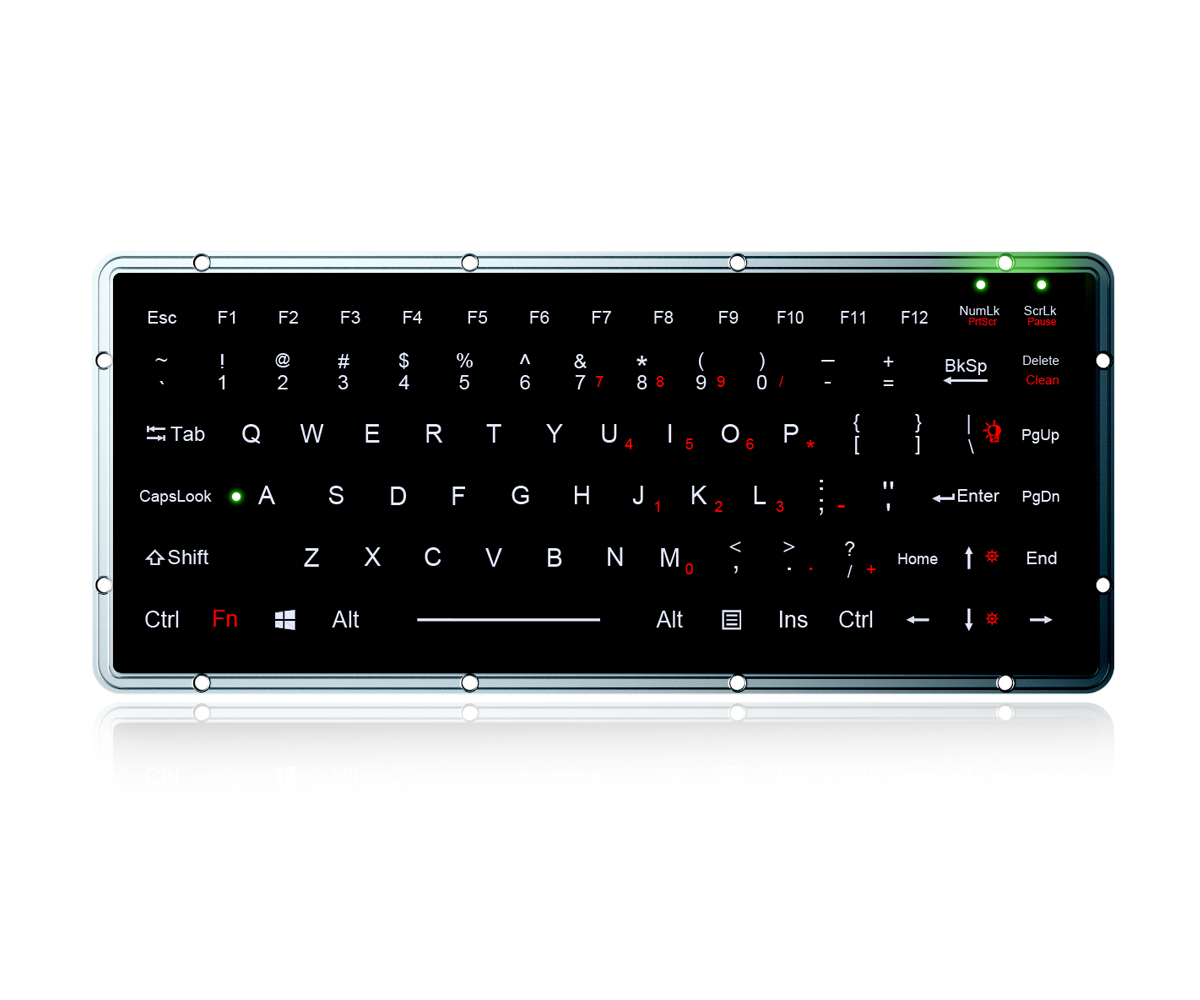

DESCRIPTION: 86 keys IP65 dynamic sealed and rugged durable embedded chiclet compact keyboard with polymer keys, 12 function keys(F1, F2, ... F12) are on the top line for easy operation. Carbon-on-gold key switch technology with (1.20mm±0.10mm) key travel with extremely good tactile feeling for fast and accurate data input without any noise.The whole keyboard is made of CNC aluminum alloy front plate + PC keycaps + carbon contact as well as military grade PCB. Durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, rear panel mounted with mounting holes for rear panel mounting. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC to avoid misoperation or mistyping. Adjustable white backlight included. Designed to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.),and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

DIMENSION: 270.0mm(L) x 110.0mm (W) (Top Panel)

MECHANICAL DATA
Key	86 keys, durable and robust polymer keys
Key Top Style	Protuberant rectangular keys with tactile feeling
Key Technology	Carbon-on-gold key switch technology
Key Size	14.0mm x 10.0mm for FN keys, 14.0mm x 14.0mm for normal keys, 21.8mm x 14.0mm for Tab key, 68.0mm x 14.0mm for Space bar
Key Travel	1.20mm±0.10mm
Actuation Force	1.0N±0.2N for normal keys and 1.5N±0.2N for Enter/Backspace/Shift/Capslock/Tab etc. keys
G.W.	≈0.70kgs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	30mA when backlight is off, 300mA with backlight on
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Interface	USB/PS2 optional
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating Temperature	-40℃ to +75℃
Storage Temperature	-45℃ to +85℃
Saline mist	96h, IEC60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
Humidity	3%~95%
Atmospheric Pressure	60-106Kpa
RELIABILITY
RoHS compliant, CE and FCC certified, MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.)
Protection Level	IP65 dynamic (front panel)
Vandal Resistant	IK09
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATION	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

K-TEK-M270-FN-BL-IT-ML-DWP--mechanical drawing
