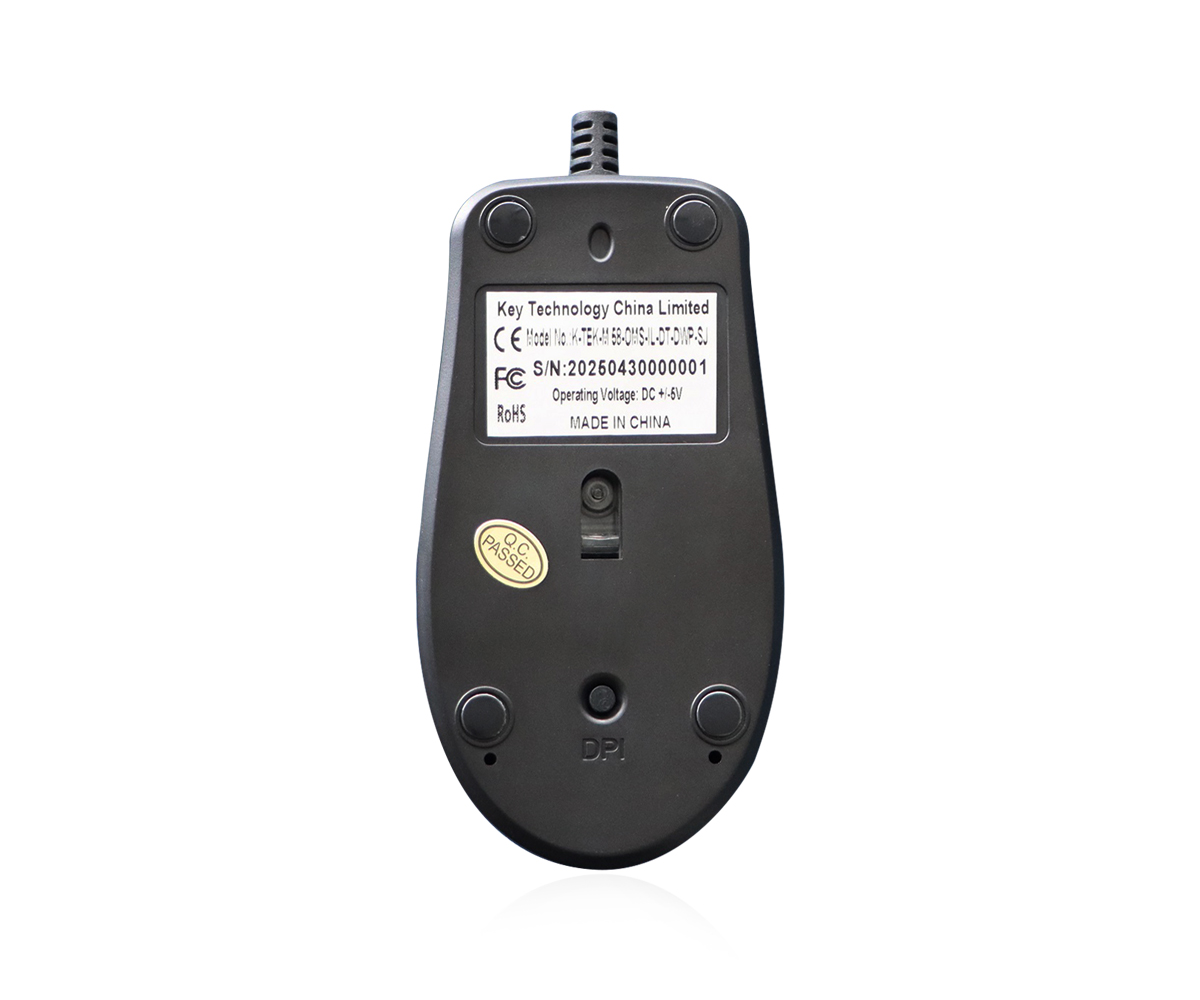

K-TEK-M58-OMS-DT-DWP

Category：	Waterproof mouse
Key Number：	4 keys
Interface：	USB
Key Switch：	Micro switch + plastic mouse buttons
Protection Level：	IP68
Mounting Solution：	Flat desk top solution
Operating Temperature：	-40ºC to +55ºC
Application：	Industrial, Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station, GCS, medical and pharmaceutical etc.

Prev： K-TEK-M354-FN-MA-NV-151B

Next： K-TEK-M58-OMS-NV-151B-DT-DWP

Description

Download

DESCRIPTION: IP68 dynamic rated sealed and rugged waterproof professional optical mouse, DPI can be adjusted and switched by mouse button, with extremely good tactile feeling for left and right clicking, durable coating & antimicrobial surface to withstand most chemicals and liquids under harsh environments. The mouse is full sized and featured with 4 keys, which are designed for right & left clicking and scrolling up and down key, as well as one adjustable key to adjust DPI. USB interface. Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.), as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity; MIL-STD-461G-EMC-EMI-EMS-ESD optional. Patented No. 202422493192.6

DIMENSIONS: 110.0mm x 58.3mm x 37.4mm (L x W x H)

MECHANICAL DATA
Actuator/keys	4 keys (Left+right mouse key+Scrolling key+DPI adjustable key)
Key Switch Technology	Micro switch + plastic mouse buttons
Actuation Force	0.55±0.15N
Key Gram Force	50±10gf
Resolution	400-800-1200-1600DPI
Actuation Pressure	1.0N-2.0N
Rotary Encoder Lifespan	≥0.8 millions scrolling
G.W.	0.25KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	≈80mA
EMC standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Interface	USB
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-40℃ to +55℃
Storage temperature	-45℃ to +60℃
Operating RH	3%~95%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
Protection Level	IP68
MTBF	>20000H
MTTR	<30min
APPLICATION	Industrial, Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station, GCS, medical and pharmaceutical etc.

K-TEK-M68-OMS-DT-DWP mechanical drawing
