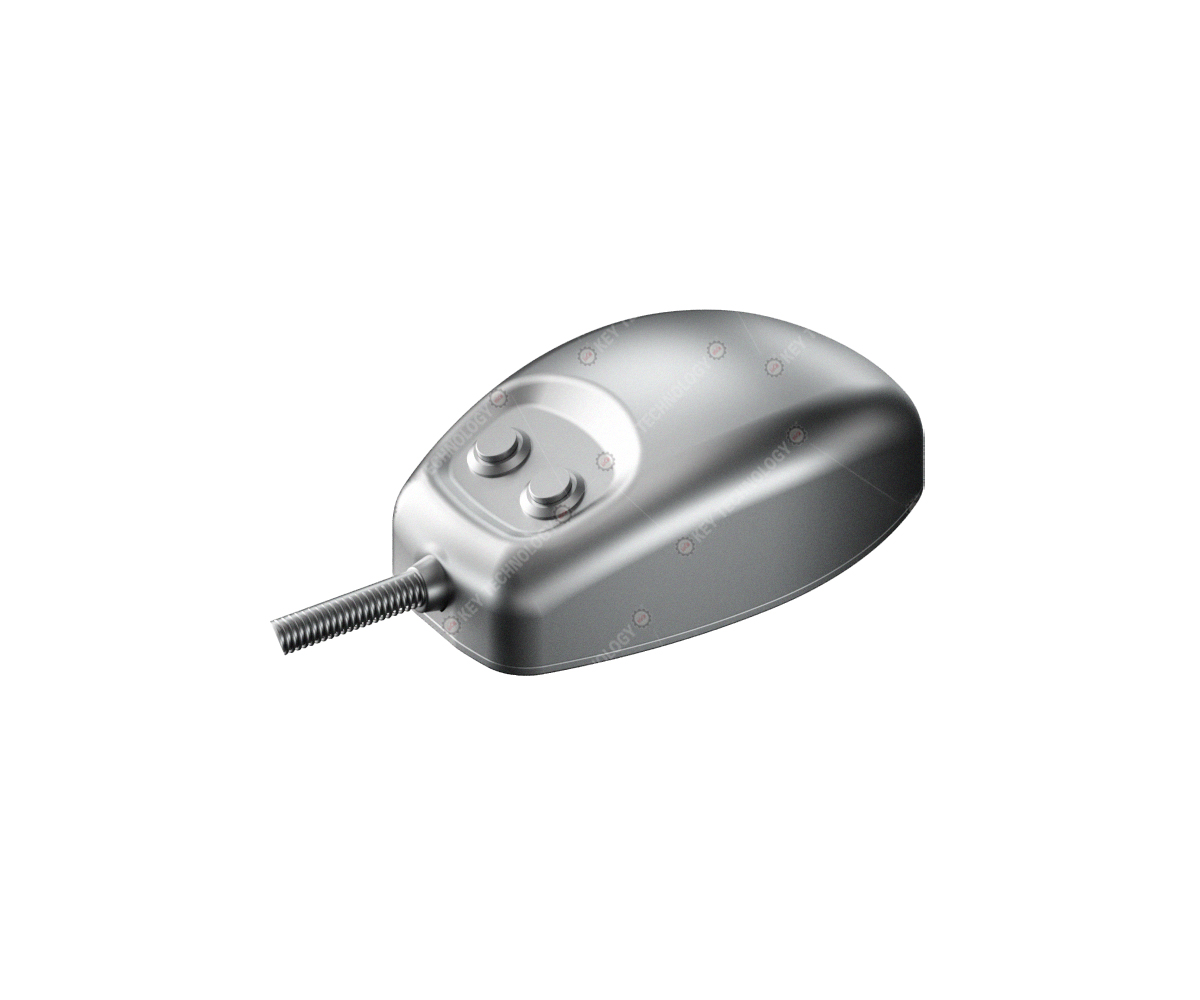

DESCRIPTION: IP68 dynamic sealed & Ruggedized CNC aluminium alloy optical mouse with 2 mouse buttons withstand to harsh environments, such as rain, direct water, dirt, collision, especially for outdoor public application. The mouse button is designed for right & left clicking just like a conventional non-waterproof mouse, compatible with both USB and PS/2.
DIMENSIONS : 125.6mm x 68.0mm x 38.0mm (L x W x H)
MECHANICAL DATA |
Key | 2 keys |
Key travel | 0.45±0.05mm |
Actuation Force | 2.5N±0.2N |
Switch life | more than 1 million of operations. |
G.W. | 0.8KGs |
ELECTRICAL DATA |
Supply Voltage | DC +5V±5% |
Current Rating | 80mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material | Mechanical Switch |
Interface | PS2 or USB |
Cable length | Standard 2.0m, customized length available. |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Saline mist | 96h, IEC60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
Humidity | 100% |
Atmospheric pressure | 60-106Kpa |
RELIABILITY |
RoHS compliant, CE and FCC certified |
Protection Level | IP68 dynamic |
Key Lifespan | >1 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
